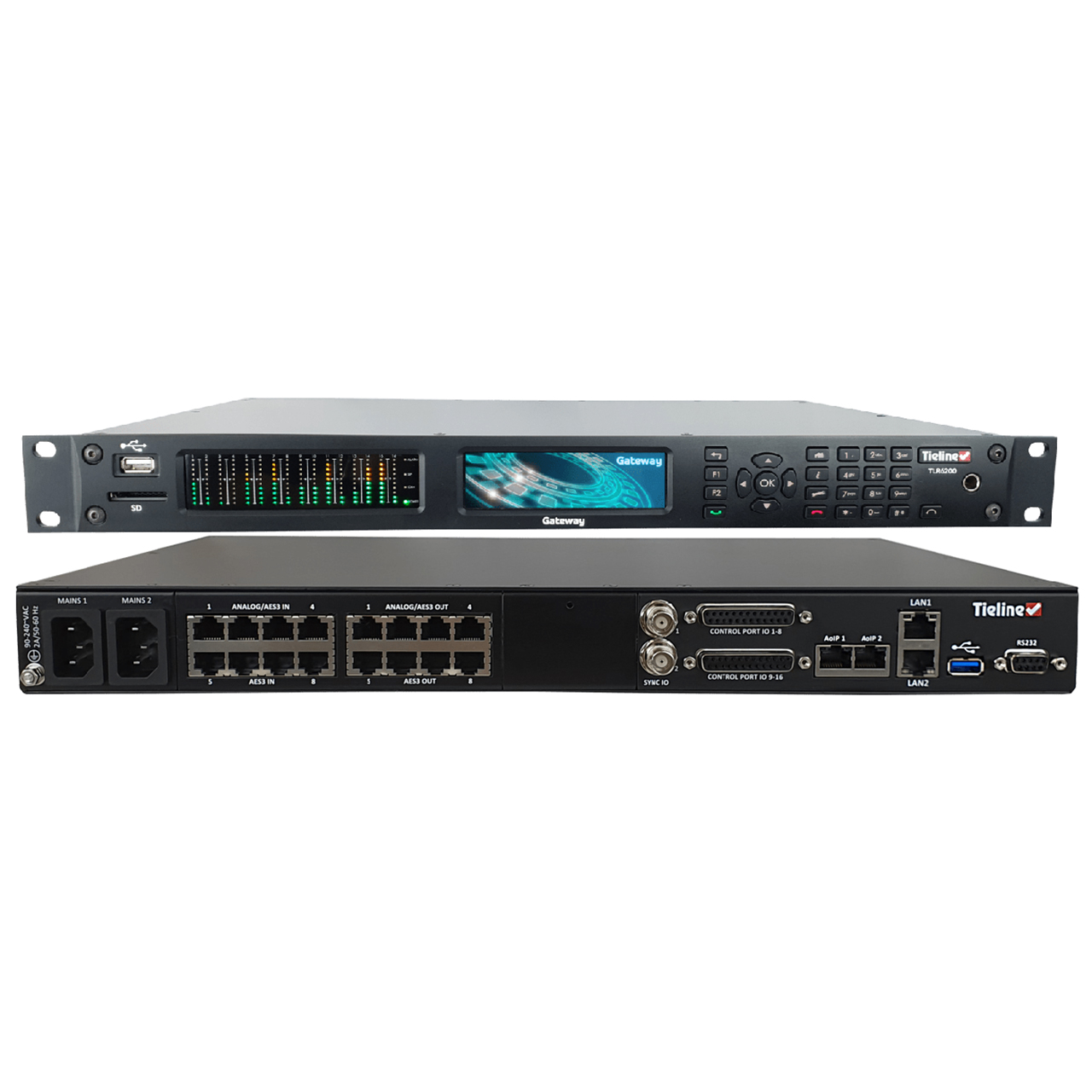

The Tieline TLR6200-8 Gateway is the most powerful DSP-based 1RU IP codec enabling transport of multiple channels of mono or stereo audio across the public internet and any QoS-enabled IP network, including T1 and T3 connections and private WANs with MPLS. The Gateway streams up to 16 IP audio channels with support for AES67, ST 2110-30, AES3 and analog I/O as standard.
The Most Powerful DSP-Based 1RU IP Codec
The Tieline Gateway introduces a new era in high-density multichannel IP codec streaming. The Gateway supports up to 16 mono channels or 8 stereo streams of bidirectional IP audio in 1RU to increase efficiency and reduce rack space requirements. It interfaces easily with legacy analog and AES/EBU digital sources, as well as newer broadcast plants with AES67 and ST 2110-30 IP audio infrastructure.

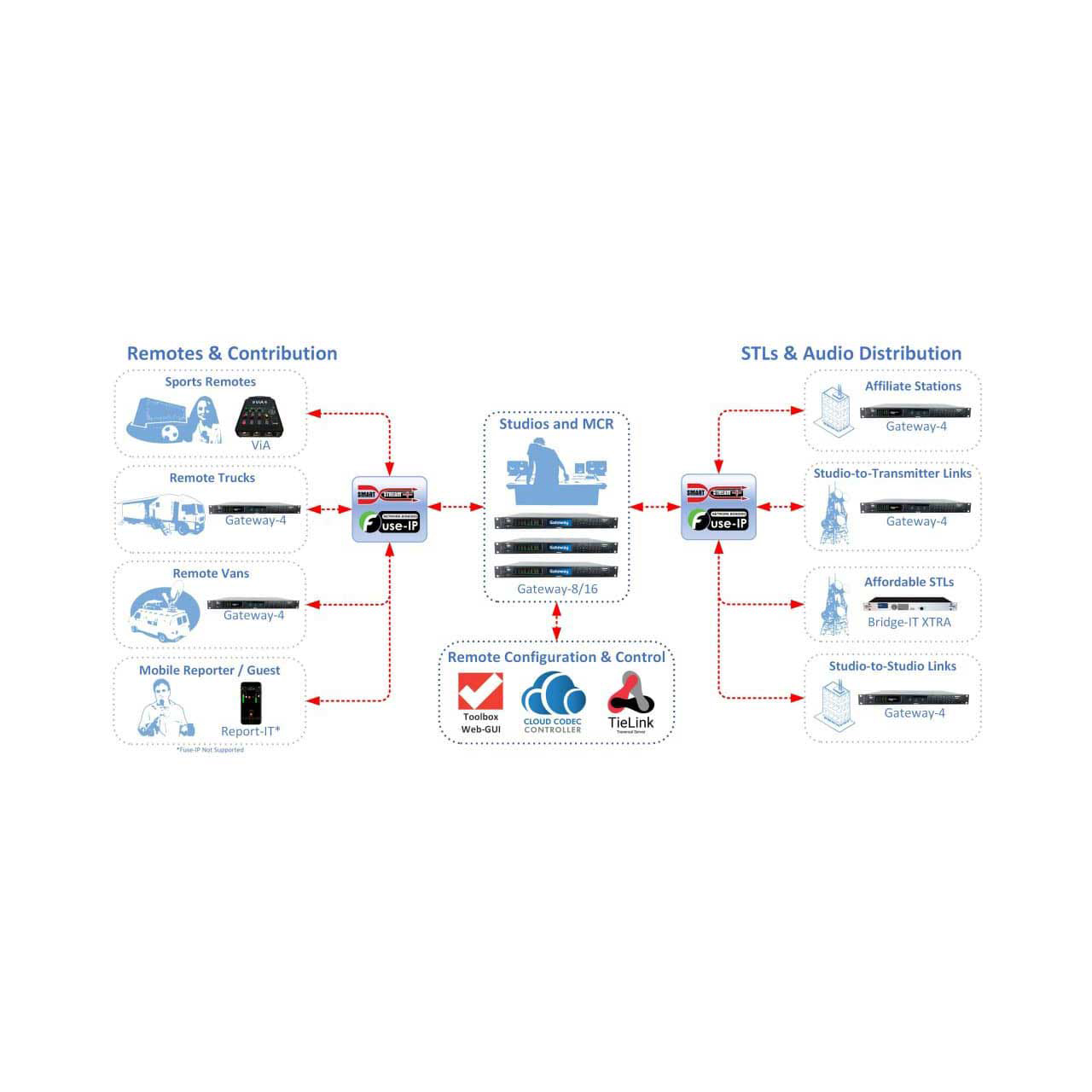

The Gateway is perfect for large-scale audio distribution to single or multiple locations, as well as managing multiple incoming remotes at the studio using SmartStream PLUS redundant IP streaming and Fuse-IP data aggregation technologies over internet connections. It is interoperable with all Tieline IP codecs and compatible over SIP with all EBU N/ACIP Tech 3326, 3347 and 3368 compliant codecs and devices.

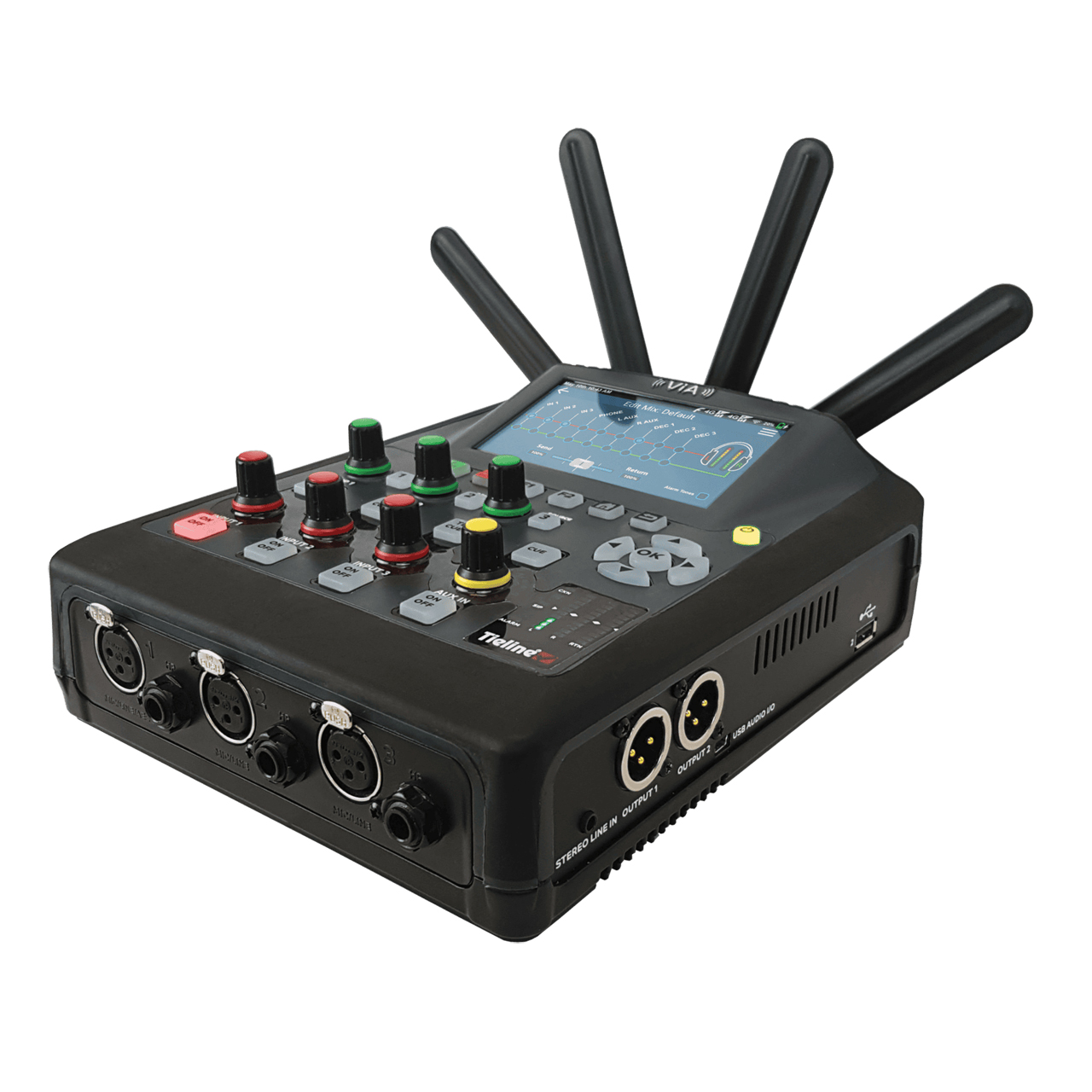

The included Tieline TLF5300 ViA portable codec mixer with 3 XLR inputs sets a new standard in wireless remote broadcasting and will fundamentally change the way you perform live remotes. Connect using dual LAN Ethernet ports, or 2 USB modems, or use the on-board Wi-Fi module to connect over Wi-Fi. Insert an optional POTS or ISDN module and the codec is instantly transformed to connect over alternative network transports. This means you can configure primary and backup connections over different network transports as required, or use them as your IFB circuit.

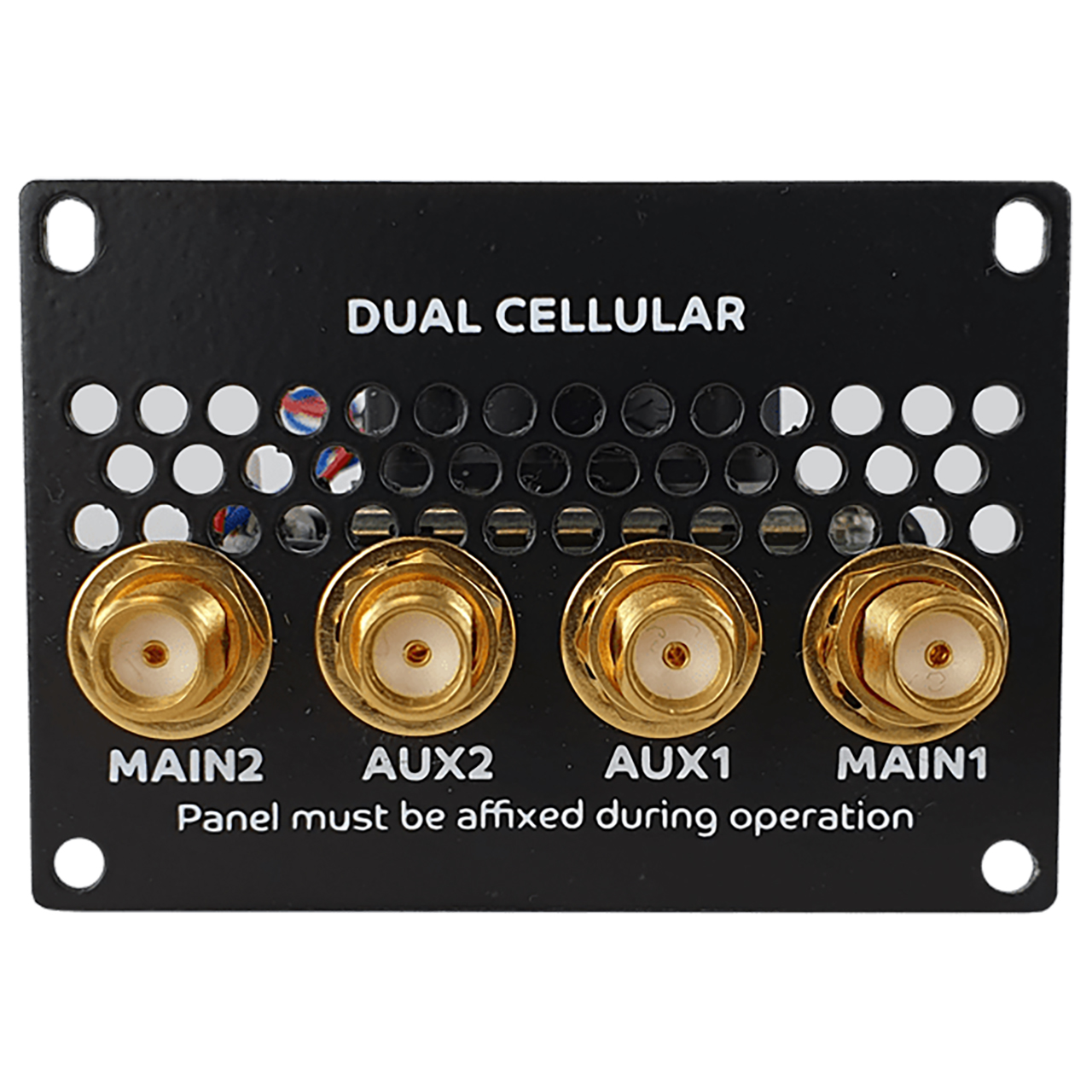

The Included ViA Global Dual SIM module works worldwide (excluding Australia). The module accepts two SIM cards and can connect over LTE networks to stream IP audio.
Bands:
• 4G LTE: B1, B2, B3, B4,B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28
• 3G HSPA+: B1 (2100MHz), B2 (1900MHz), B4 (1700MHz), B5 (850MHz), B6 (800MHz), B8 (900MHz), B19 (850MHz)
