TRENDnet TPE-TG83 8-Port Gigabit PoE+ Switch - 65W PoE Power Budget - 16Gbps Switching Capacity - IEEE 802.1p QoS

ITEM #: TNET-TPE-TG83 MFG #: TPE-TG83

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$79.99

Availability: In Stock
iAvailability Description Popup


TPE-TG83 - Overview

The TRENDnet 8-Port Gigabit PoE+ Switch, model TPE-TG83, reduces equipment and installation costs by delivering data and power over existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both data and power. This compact network switch provides eight gigabit PoE+ ports with a total PoE power budget of 65W. The TPE-TG83 PoE+ switch allows you to network PoE devices, such as wireless access points, IP cameras, VoIP phones, IP video encoders, access controls, and more. It features a fanless design, and has a convenient option for wall mounting.

PoE+
A 65W PoE power budget supports up to eight Power over Ethernet devices.

Gigabit Ports
Eight gigabit PoE+ ports provide a 16Gbps switching capacity to support edge network installations.

Compact Design
Compact, lightweight, and fanless, this switch is designed for desktops and quiet environments.

  • Features:

    • 8x Gigabit PoE+ ports
    • 65W PoE power budget
    • 16Gbps switching capacity
    • IEEE 802.1p QoS and DSCP pass-through support
    • Compact fanless design
    • Wall-mountable metal housing
    • NDAA/TAA compliant (U.S. and Canada only)

  • Specifications:

    • Standards:
      - IEEE 802.3
      - IEEE 802.3u
      - IEEE 802.3ab
      - IEEE 802.3x
      - IEEE 802.3p
      - IEEE 802.3af
      - IEEE 802.3at
    • Device Interface:
      - 8x Gigabit PoE+ ports
      - LED indicators
    • Data Transfer Rate:
      - Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
      - Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
      - Gigabit Ethernet: 2000Mbps (full duplex)
    • Performance:
      - Switch Fabric: 16Gbps
      - RAM Buffer: 192KB
      - MAC Address Table: 4K entries
      - Jumbo Frames: 9KB
      - Forwarding Rate: 11.9Mpps (64-byte packet size)
    • Special Features:
      - 802.1p Class of Service (CoS)
      - Wall Mountable
    • Power:
      - Input: 100V - 240V AC, 50/60Hz, 2.5A
      - Output: 55V DC, 1.3A external power adapter
      - Max. Consumption: 71W
    • PoE:
      - PoE Budget: 65W
      - PoE Mode A: Pins 1,2 for power and pins 3,6 for power
    • Dimensions: 9.45" x 4.13" x 1.1" (240mm x 105mm x 27mm)
    • Weight: 20.45oz (580g)

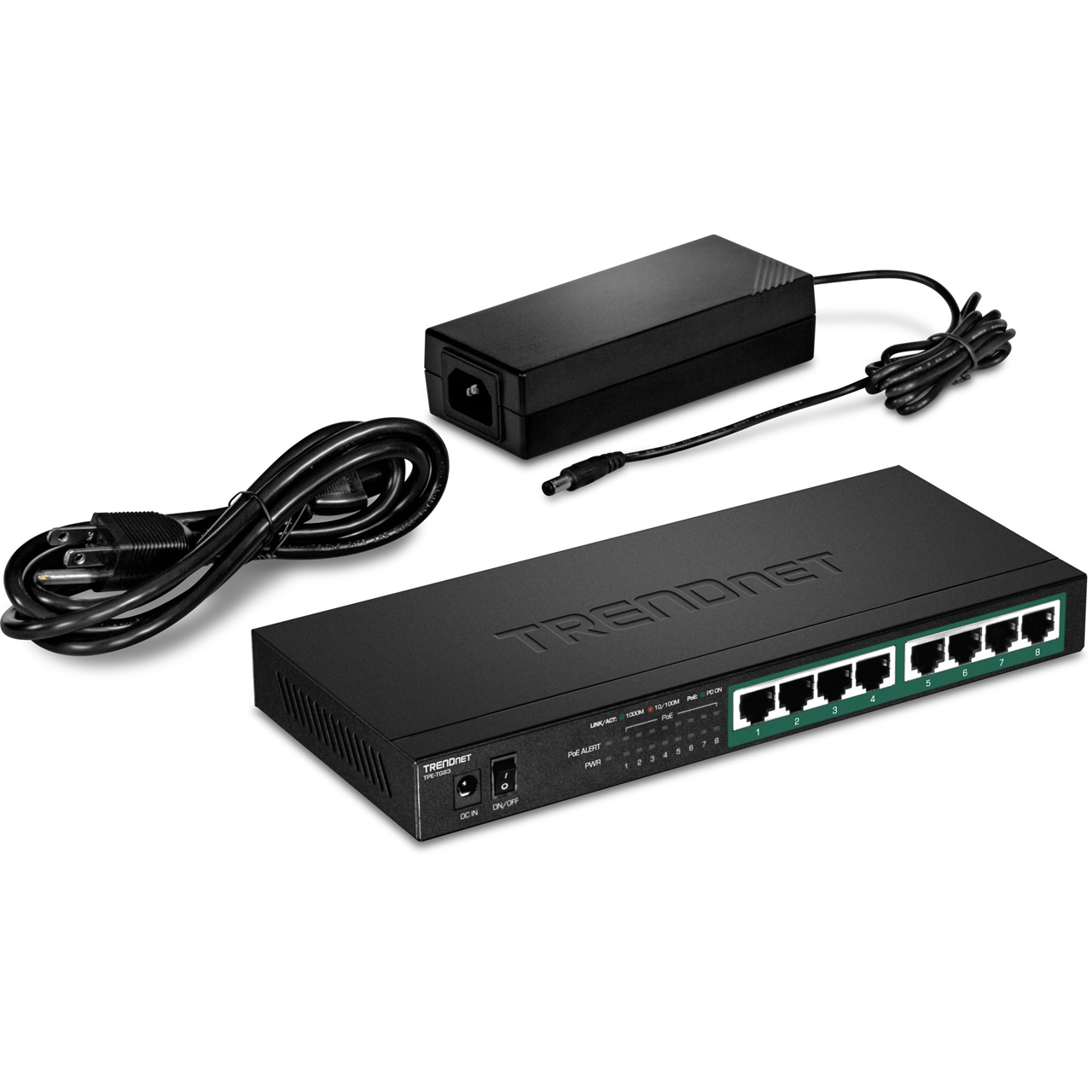

  • Item Includes:

    • 1x TPE-TG83 8-Port Gigabit PoE+ Switch
    • 1x Power Adapter

  • Warranty:

    • Limited Lifetime Warranty
