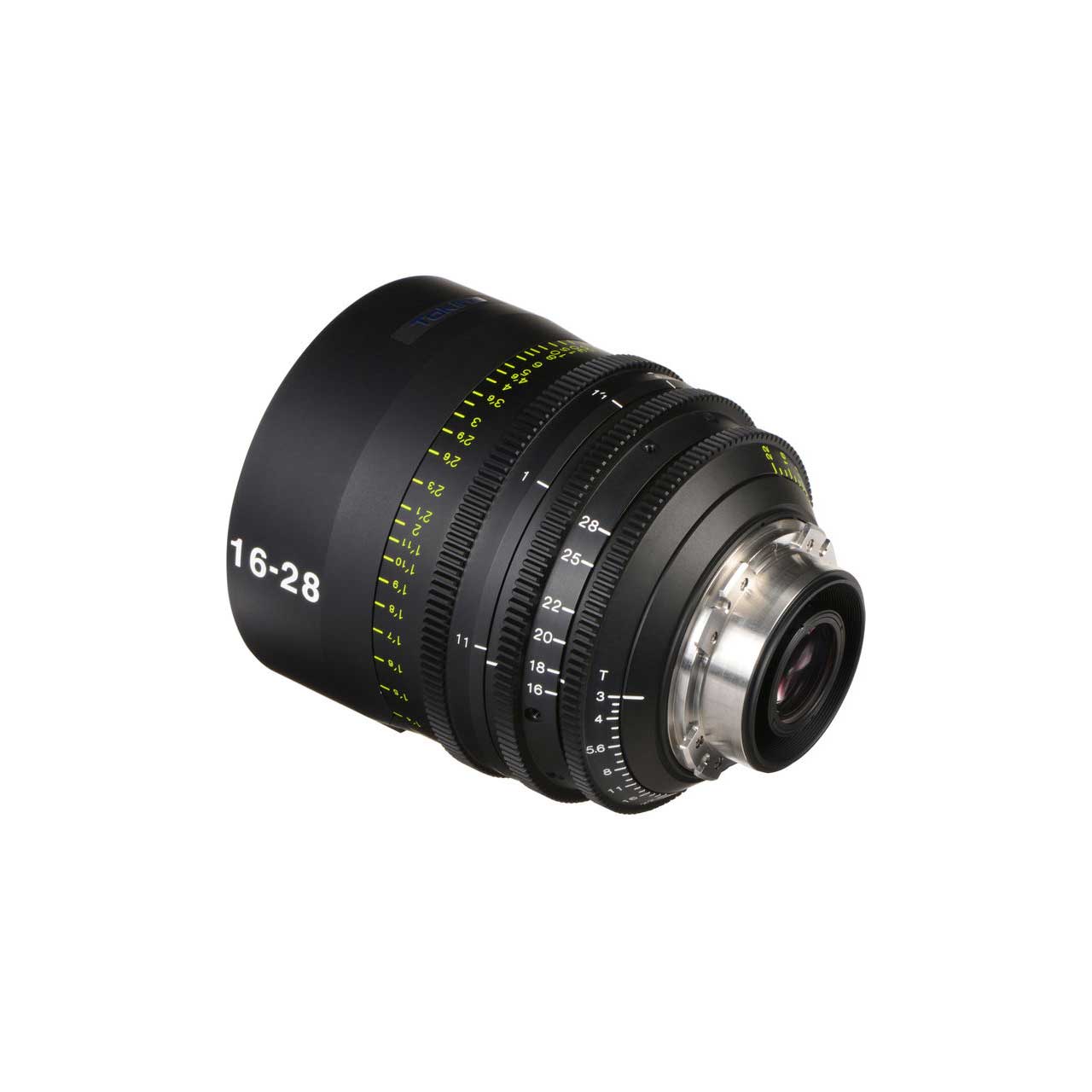

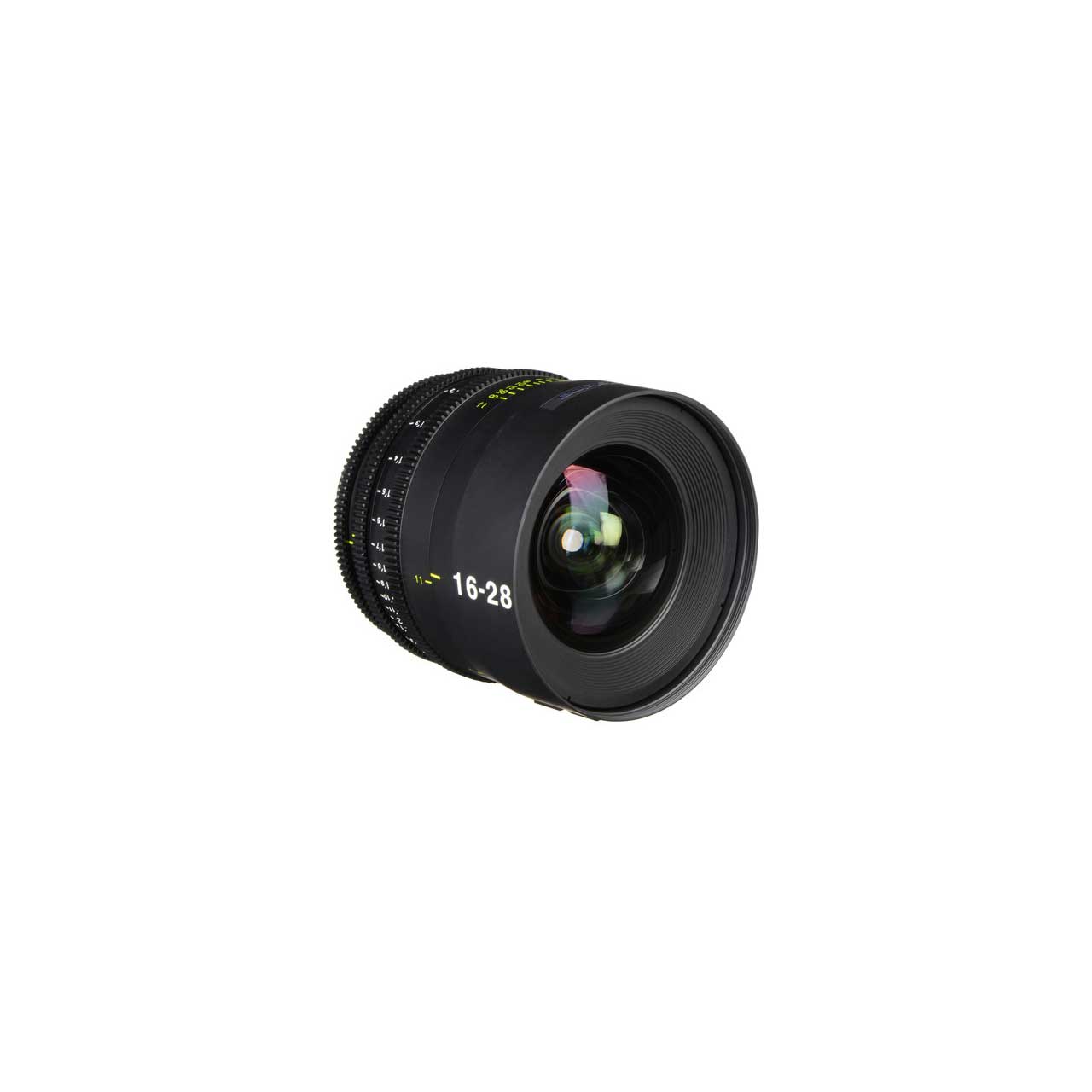

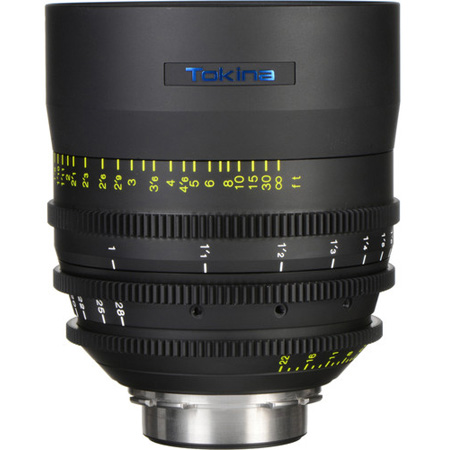

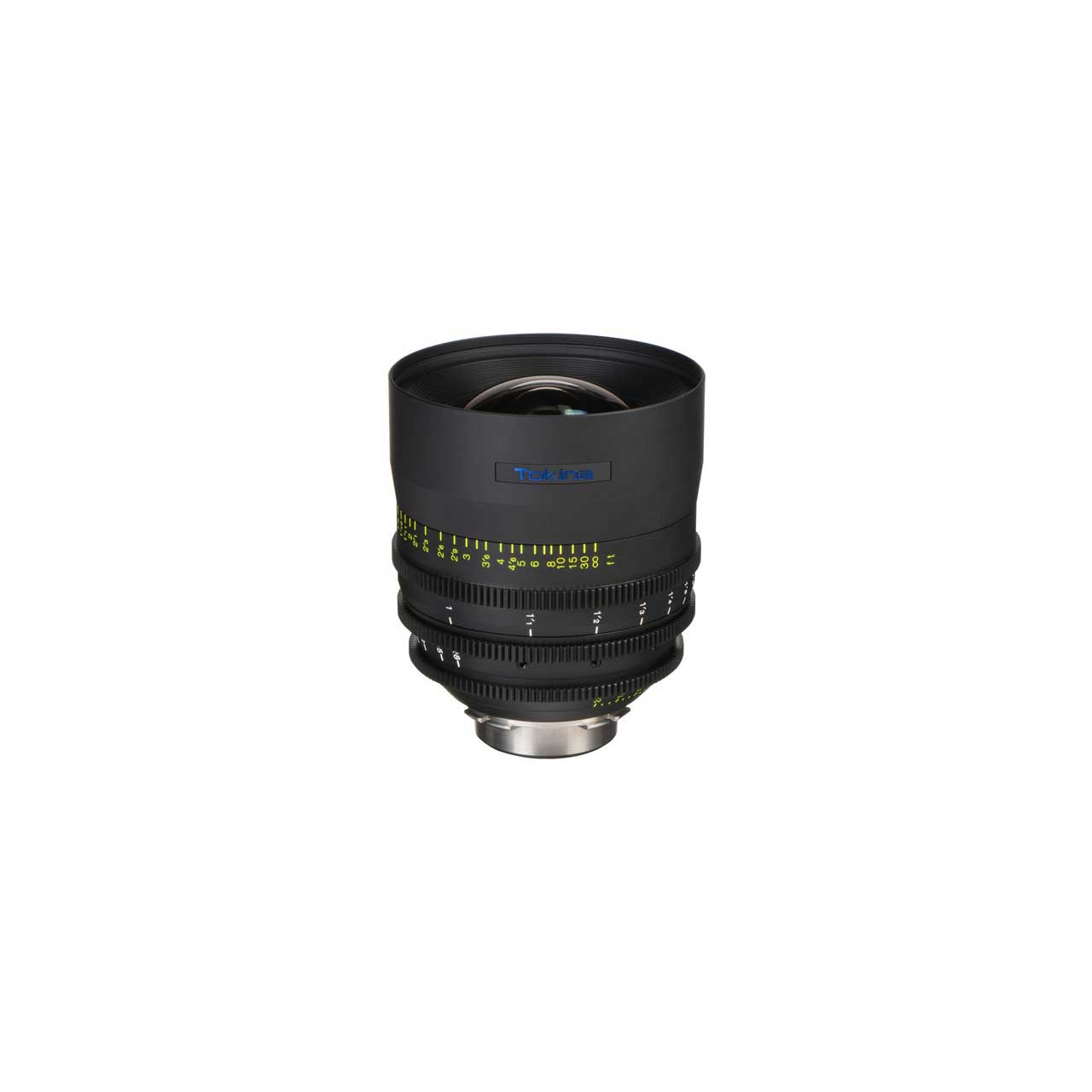

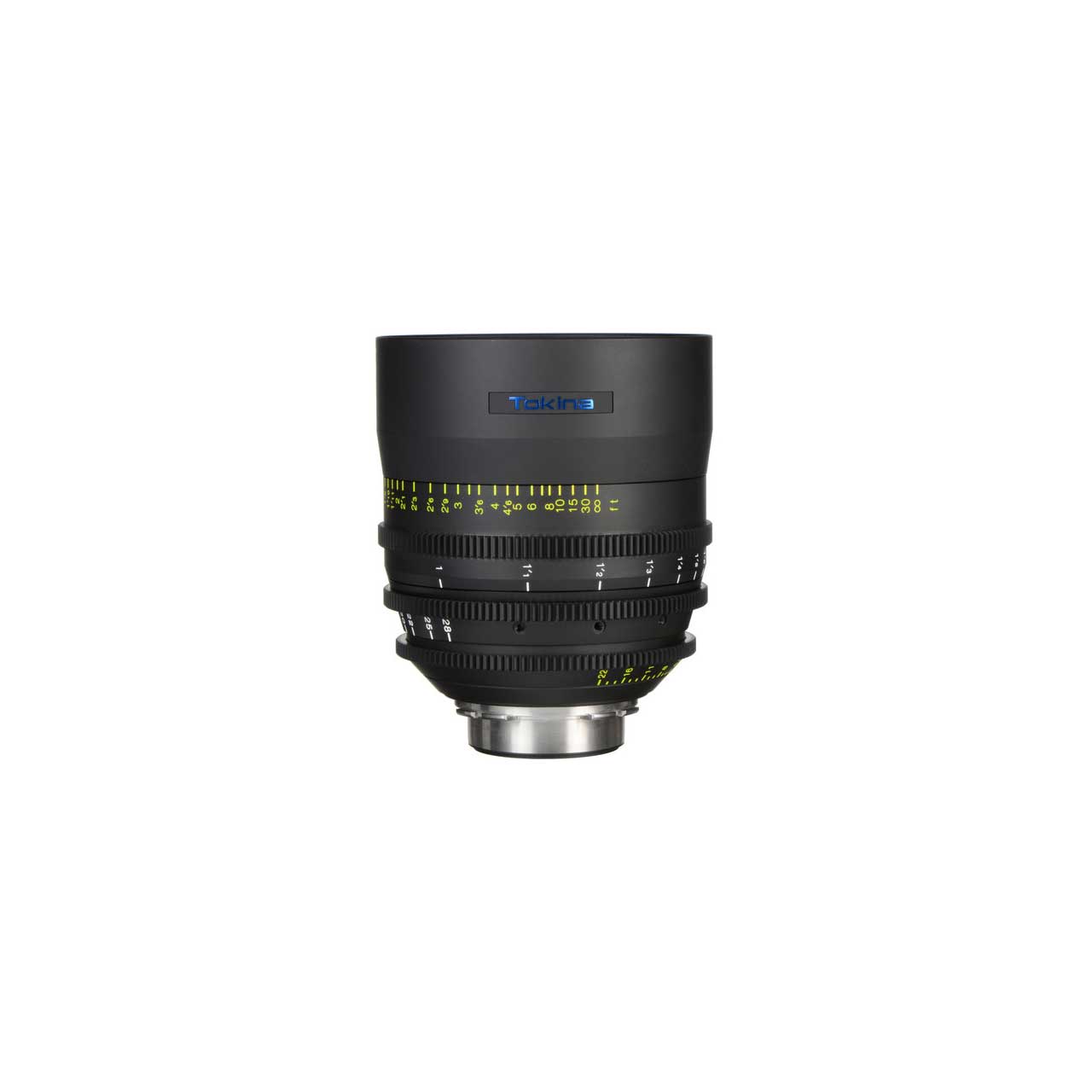

Tokina Cinema TO-KPC-1016PL Vista 16-28mm T3.0 MKII Wide-Angle Zoom Lens - PL Mount (Imperial Focus Scale)

ITEM #: TO-KPC-1016PL MFG #: TO-KPC-1016PL

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the TO-KPC-1016PL

TO-KPC-1016PL - Overview

The highly innovative Tokina Cinema 16-28mm T3.0 has been re-engineered to meet the demanding needs of the professional cinematographer. Using the successful optical formula of the award winning still lens, Tokina engineers have created a lens that is Parfocal, has dramatically reduced breathing and image shift, and a de-clicked, 9-bladed, curved iris for beautiful bokeh and precise exposure control. With its 28cm close-focus capability, the lens allows you the freedom to capture a super wide-angle of view while still maintaining a tight perspective on your subject.

  • Features:

    • Full frame super-wide 16-28mm lens
    • Fast Constant T3.0 Aperture Throughout the 16mm to 28mm Zoom Range
    • Virtually No Breathing
    • A Focus Rotation Angle of Approximately 300 Degrees
    • High Resolution - Low Distortion
    • Low Chromatic Aberration
    • Aspherical Elements and Super-Low Dispersion Glass Reduce Distortion and Increase Optical Performance
    • Durable, All-metal Cine-Style Housing with Geared Manual Zoom, Focus and Aperture Rings for Use in Follow-Focus Systems
    • Common 114mm Front Diameter for Use with a Wide Variety of Matte Boxes and Accessories

  • Specifications:

    • Image Sensor Size Supported: Full-frame 35mm
    • Lens Mount: PL Mount
    • Focal Length Range: 16-28 mm
    • Aperture Range: T3-22 (f/2.8-22)
    • Zoom Ratio: 1.75:1
    • Optical Construction: 13 groups, 15 elements
    • Minimum Focus Distance: 11" / 28 cm
    • Macro Magnification Ratio: Maximum: 1:5.26
    • Iris Blades: 9
    • Filter Thread: 112 mm
    • Front Lens Diameter: 114 mm
    • Gear Mod: 0.8
    • Length: 5.59" / 14.2 cm (overall), 5.0" / 12.7 cm (from front mount surface)
    • Weight: 3.86 lb / 1.75 kg

  • Warranty:

    • Limited 1-Year Warranty

  • GTIN:

    4968808220616
