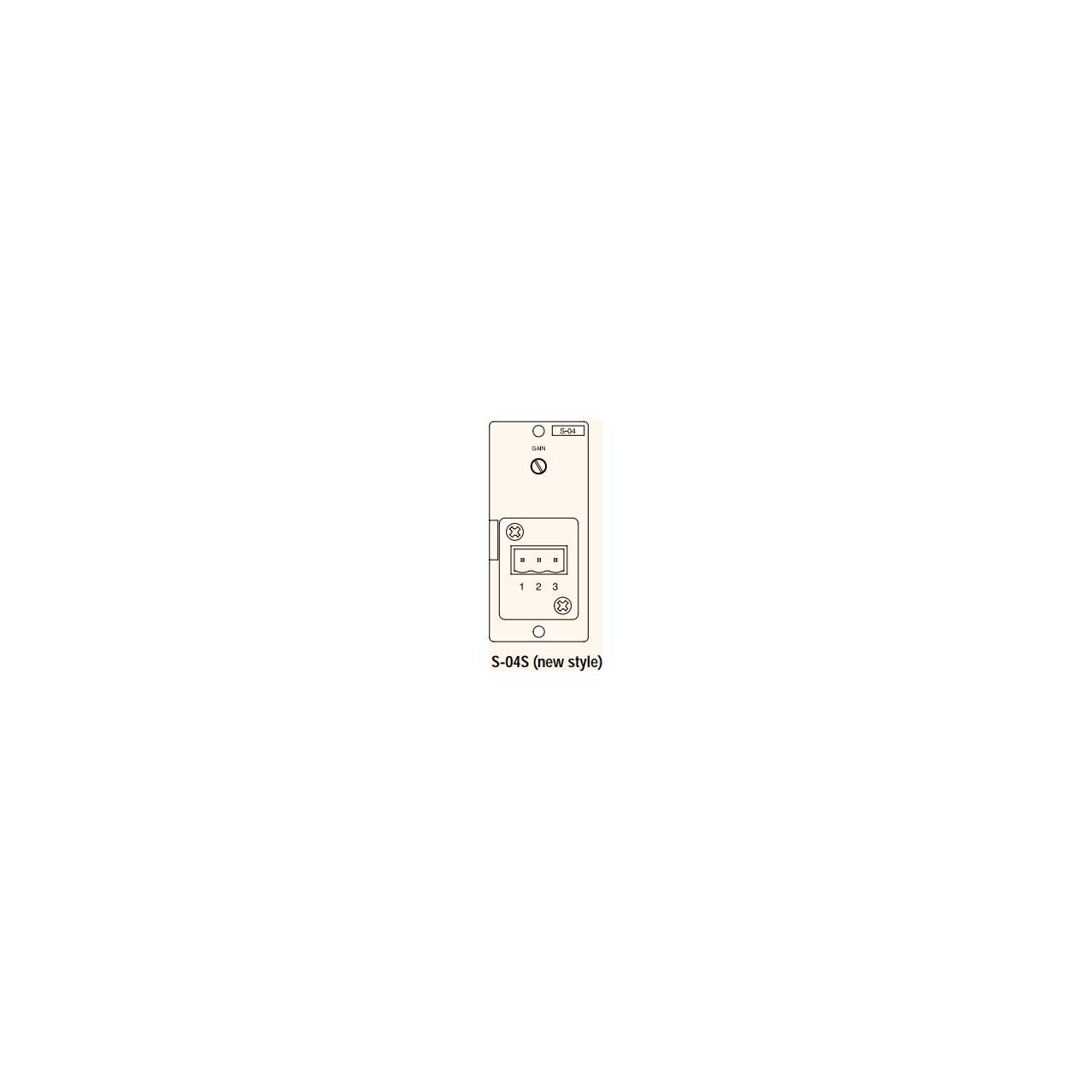

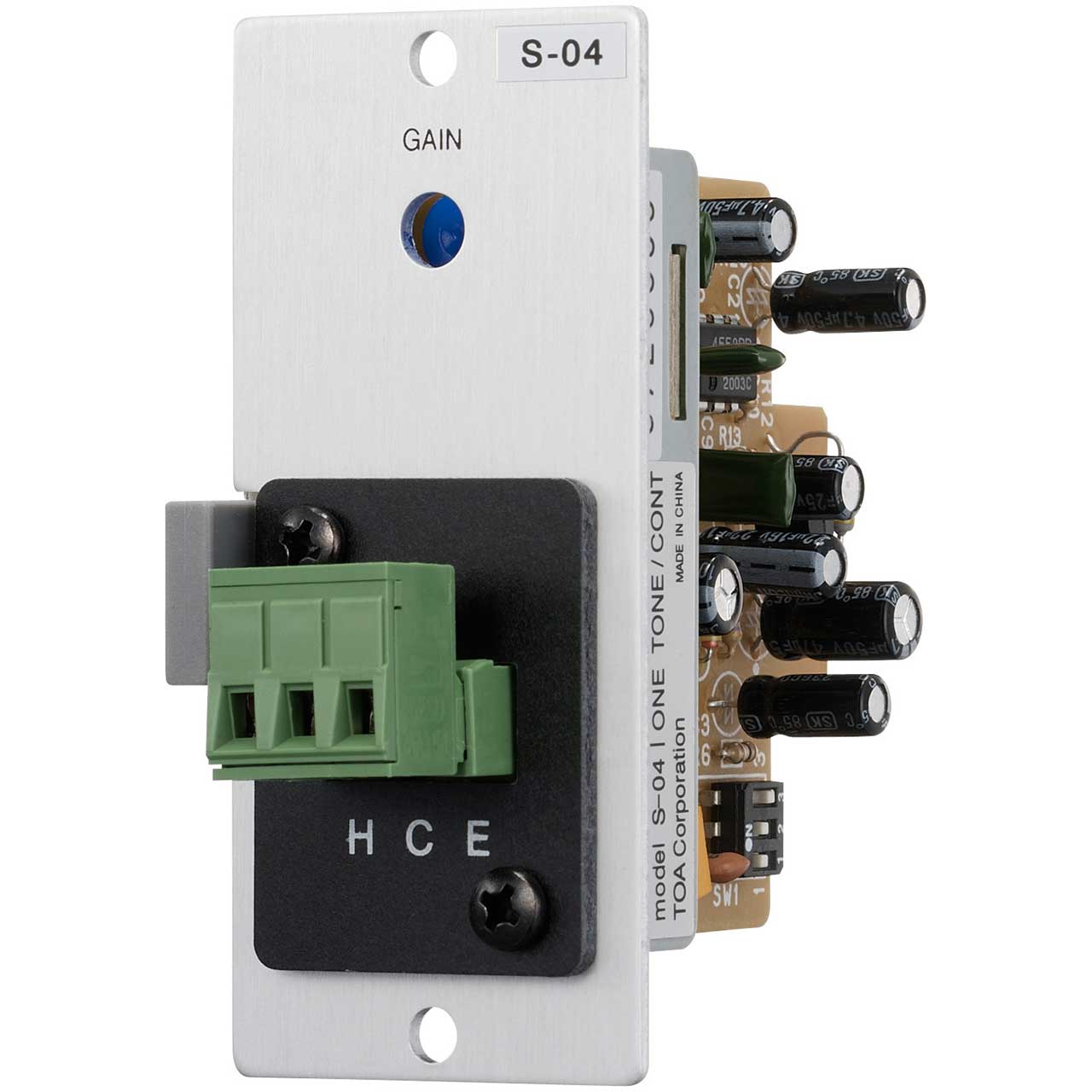

TOA S-04S Test Generator Module w/8 Selectable Tones & Screw Terminals

ITEM #: TOA-S04S MFG #: S-04S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    S-04S - Overview

    TOA 900 Series Modules give you the power to configure custom systems fast! The modules are available in three categories
    Microphone Input
    Line Input
    Special Function

    Use "B" Series modules with transformer isolation for balanced or unbalanced sources.
    Use "L" Series modules only for 600 ohm impedance matching.
    Use "U" Series modules for unbalanced sources with short cables (less than 15 feet).
    Note: All "S" type modules with 3-screw terminal connectors transitions to Removable Terminal Block (Phoenix-type) in 2004. Models include: B-01S, B-11S, L-01S, L-11S, L-41S, M-01S, M-11S, M-51S, M-61S, S-01S, S-02S, S-04S, T-01S, U-01S, U-11S, U-12S and U-61S. New Removable Terminal Block (Phoenix-type) connectors have the following pin-out: H: Hot, C: Common, E: Earth

    Generates one of eight tones via switch-closure. Can be used for doorbell, paging, door/gate release, telephone night ringer, annunciator, class change or pre-announcement tone.

    • Features:

      • Controls/Functions:
      • Gain Control
      • Terminals for Switch Activation
      • Performance Input: Switch Contacts
      • Gain (Adjustable): Off ~ 0 dB
      • Signal to Noise (S/N): 80 dBu (S/N)
      • Physical Connector: Removable Terminal Block
