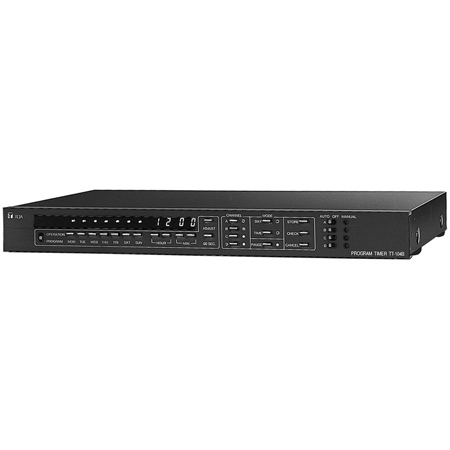

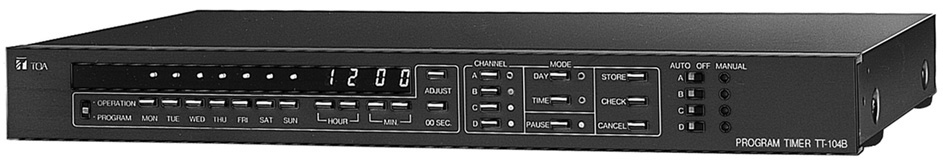

TOA TT-104B L Programmable Timer 4 Control Outputs - Black (1U)

TT-104B L - Overview

• Features:

  • For timed control of external equipment and events.
  • Four independent outputs with thirty programmable steps per output.
  • Outputs feature 0.5 A (@ 24 VDC) five second dry contact closures.
  • Weekly program with pause mode for vacations/holidays.
  • ±5 second per month clock accuracy with four day backup battery if power fails.
  • Optional rack-mount kit, model MB-15B
  • Five year warranty


• Specifications:

  • Power 110-120VAC, 50/60Hz
  • Power Consumption 3W
  • Power Outage Protection Period 100 Hours
  • Program Capacity 30 Steps per Channel
  • Programmable Items Day of the Week, Hour, Minute, and Output Channel
  • Number of Channels 4 (A,B,C,D)
  • Output System Terminal Connector with No-Voltage Make Contact Outputs
  • Contact Capacity 24VDC, 0.5A
  • Clock Accuracy +/-5 Seconds per Month
  • Display Indicates Day of Week, Hour, and Minute
  • Specialties Entire Program Cancellation
  • Output Switchover
  • Pause Mode
  • Error Warnings by Tone and Display
  • Operating Temperature 32 to 122 Degrees F (0 to 50 Degrees C)
  • Dimensions (HxWxD) 1.8 x 16.5 x 9" (45 x 420 x 228 mm)
  • Weight 5.5 lbs (2.5 kg)


• Item Includes:

  • Power Cord
  • Operating Instructions
  • Program Table
  • Output Identification Label
  • 5 Year Limited Warranty
