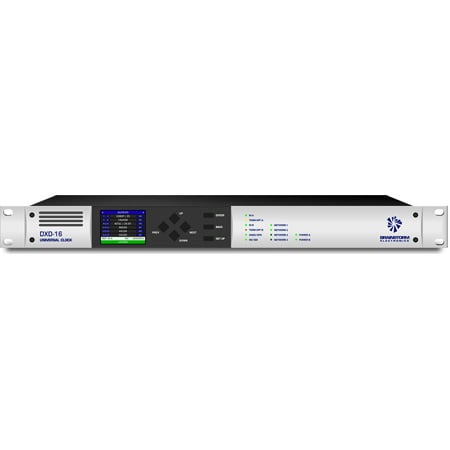

Brainstorm DXD-16 PTP Grandmaster Universal Clock with Precision Reference Generator


Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:


Availability: In Stock
iAvailability Description Popup

    DXD-16 - Overview

    A PTP Grandmaster Merged with a Precision Reference Generator

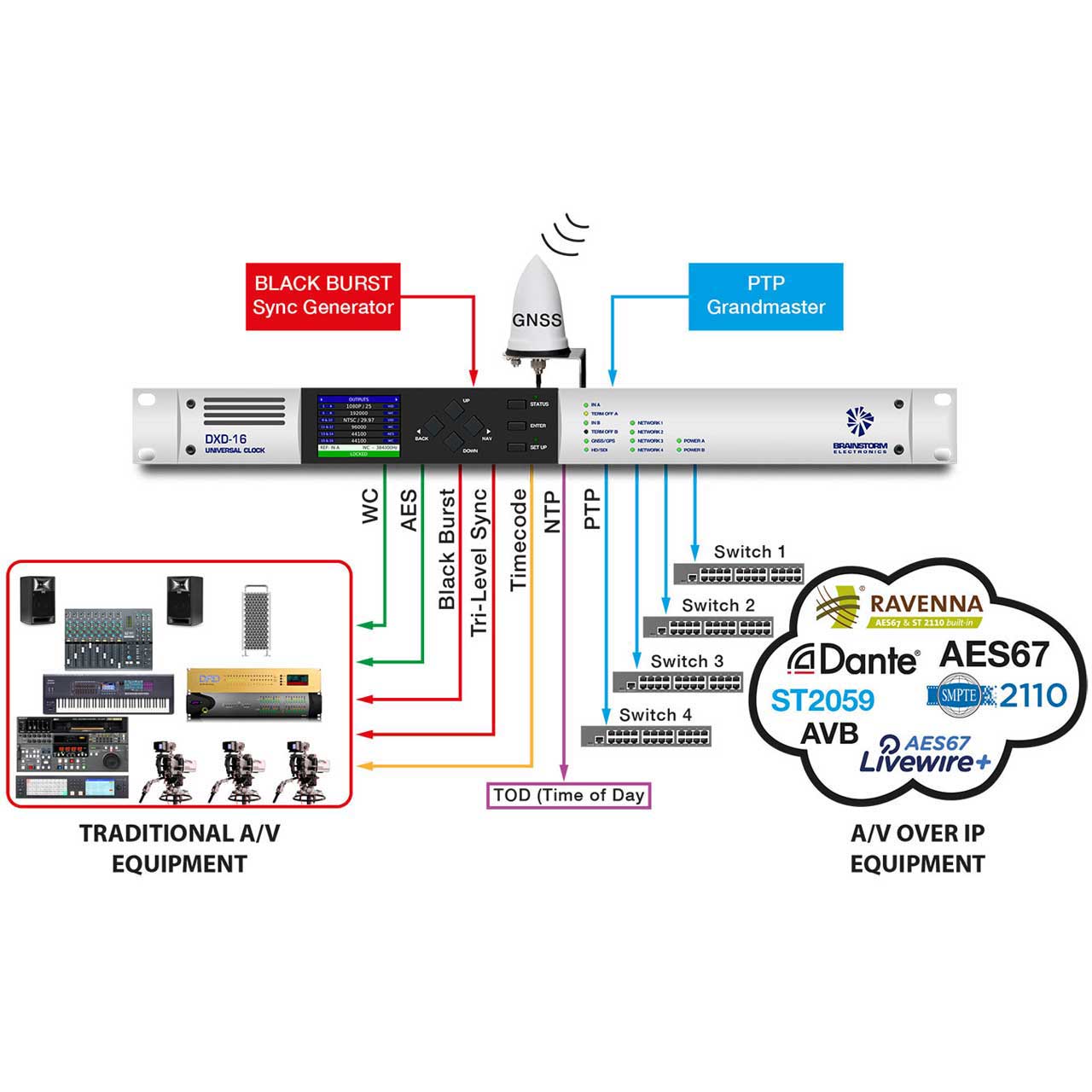

    DXD-16 Universal GPS-capable Clock combines PTP and legacy Sync to keep traditional Audio/ Video equipment and the IP network in perfect sync, making the DXD truly Universal.

    IEEE 1588 Network Sync
    The PTP module supports PTP v2, PTP v1 (Dante) and gPTP (AVB). The DXD-16 can be either a PTP Grandmaster, slave or Boundary Clock. Precision Time Protocol (PTP) has been broadly adopted as the network synchronizing standard, which means that the DXD-16 can work in a number of systems. Several PTP profiles are included: AES67, SMPTE 2059 and gPTP.

    As a Boundary Clock, the DXD-16 can follow an external Grandmaster on one of its attached networks, synchronize its internal clocks to that Grandmaster, and distribute the same Grandmaster time in its role as PTP master to the remaining attached networks. Alternatively it can itself fulfill the function of Grandmaster and be PTP master on all attached networks.

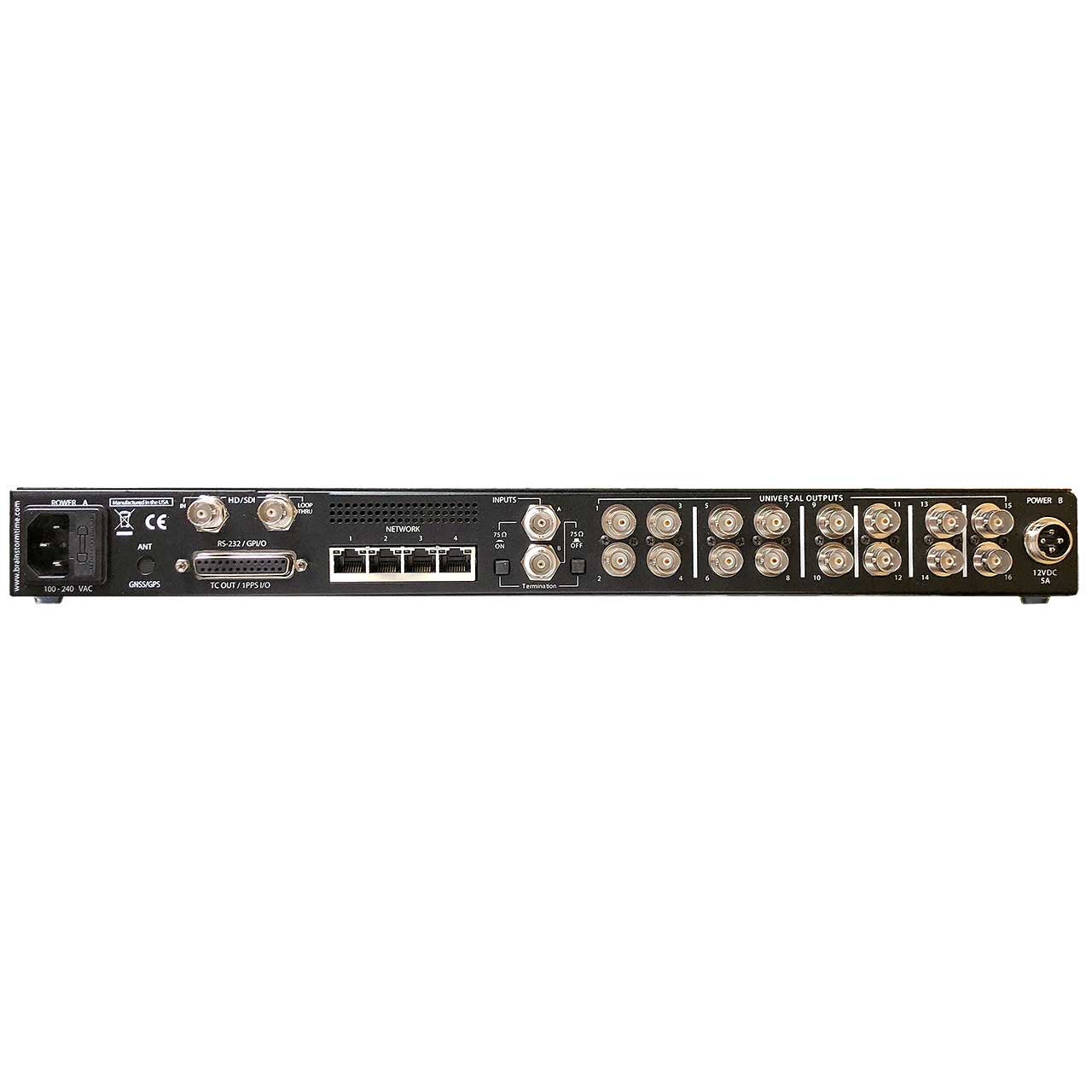

    Four Gigabit Ethernet ports (RJ45) are available. The different ports can be used independently or as primary and secondary pairs. Each network connector supports an electrically and logically independent network, with the DXD-16 acting as a PTP timing bridge. The DXD-16 is not a network switch, and for security reasons, no information flows from any network port to any other.

    Customize Your Units with User-Assignable BNC Outputs
    The DXD-16 generates up to 6 independent sync signals simultaneously and routes them to the 16 BNC outputs. These user-definable outputs offer great flexibility compared to dedicated outputs as they can be configured for any of the generated references, video or audio. This includes all standard SD and HD video sync formats (Black Burst and HD tri-level sync), word clock and AES-3id (at rates from 32 to 384 KHz, plus all the necessary pull-up/down, including 24:25 conversions, even VSO) and 10MHz. With the time code option installed, LTC is also included

    Accurate and Versatile Clock Generator
    A high-accuracy internal crystal oscillator (TCXO) provides a very stable frequency reference (+/- 1ppm). An optional oven-controlled oscillator (OCXO) can be installed.

    External legacy signals can also be used as reference, such as Word Clock, AES, Video Sync (SD & HD) or a 10MHz tone. The generated outputs have extremely low jitter. The output rates are independent from the reference rate which means that any rate can be generated from any reference such as 59.97 from 25FPS for example.

    PTP Slave or Grandmaster

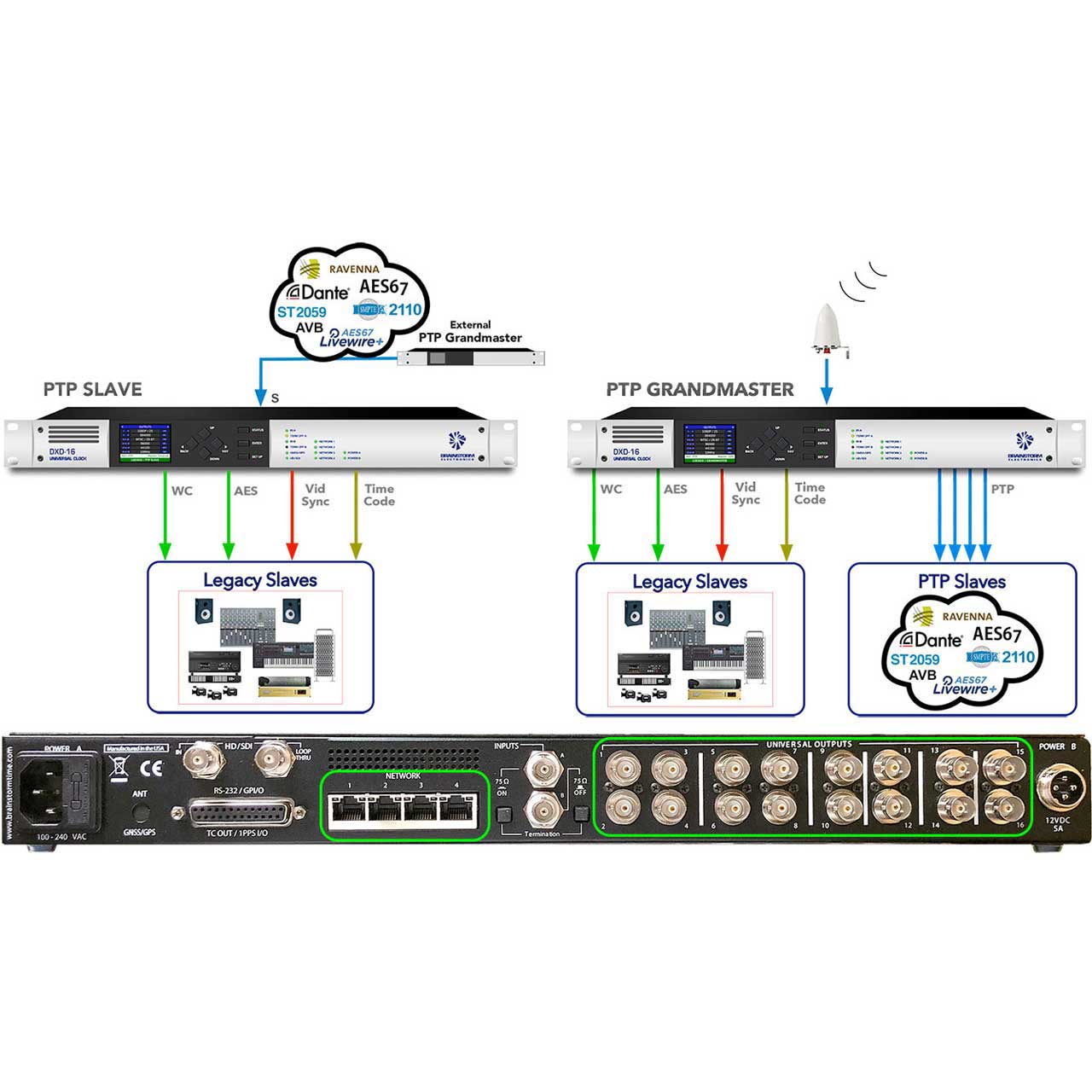

    The DXD-16 can be a PTP slave or a PTP Grandmaster giving the operator exceptional flexibility: As a PTP slave, it can generate legacy sync so that the legacy equipment locks to the network; As a PTP master, it can lock to an external legacy sync source so that the network locks to the legacy equipment; As a stand-alone master, locked to its internal oscillator or optional GPS, it provides sync to the network via the PTP port and to the legacy equipment via the BNC outputs, simultaneously.

    GNSS / GPS

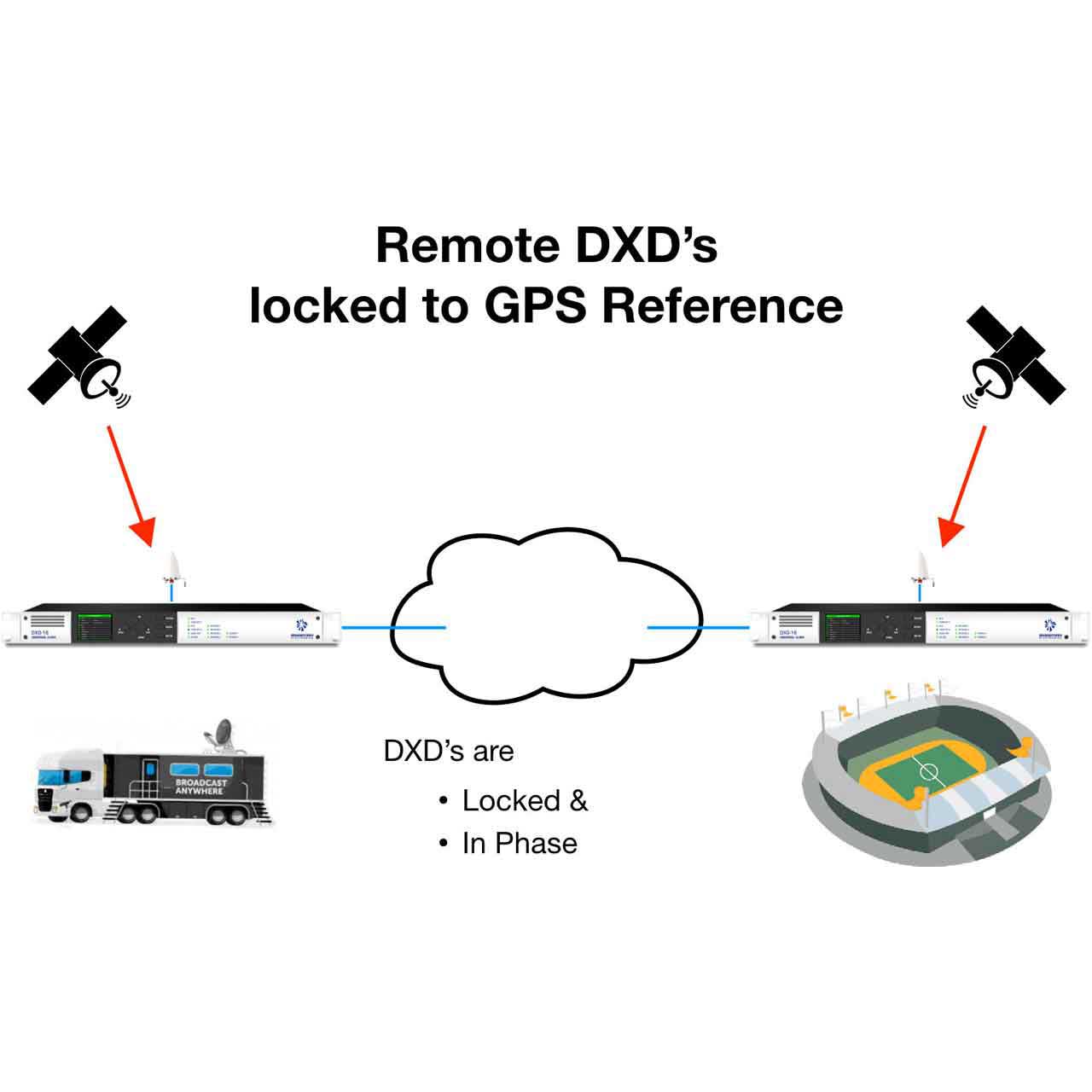

    An optional GPS receiver can be installed in the DXD-16. GPS not only provides an extremely accurate timing source, it also enables DXD's in remote locations to be locked and in phase with one another. Additionally, with the GPS option, the DXD will have a higher priority as a PTP Grandmaster.

    • Features:

      • Flexibility and easy integration
      • 4 independent Ethernet ports
      • PTP Grandmaster, Slave or Boundary Clock
      • Supports PTP v2, PTP v1 (Dante) and gPTP (AVB)
      • Synchronizes to a PTP network, a legacy reference or GPS
      • 6 separate reference generators
      • Each can generate WC, AES, VID Sync or 10MHz
      • 16 BNC outputs for generated references (user-defined)
      • 2 BNC inputs for external references with failover
      • NTP Server
      • NTP Client
      • Generates TOD Time Code (option)
      • Remote control via web browser
      • Available options: GPS receiver, OCXO, Time Code
    • Specifications:

      • PTP
      • 4 independant Gigabit Ethernet ports (RJ-45)
      • Configurable as a Grandmaster, PTP Slave or Boundary clock
      • Complies with IEEE-1588 V2 & V1 (Dante) and gPTP (AVB)
      • Unicast / Multicast operation

        Reference Generator
      • Generates Simultaneously up to 6 Different Rates in any of these Formats:
        Word clock - rates from 32 to 384 KHz
        AES - rates from 32 to 96 KHz
      • Video Sync:
        NTSC/PAL black burst
      • HD Tri-Level Sync:
      • 10MHz
      • Time Code (optional): 2 streams of LTC at different rates are generated simultaneously

        Universal Outputs:
      • 16 outputs - in 6 different groups
      • BNC - 75Ω
      • Output signal: any of the generated legacy references

      • TCXO: +/- 1ppm
      • OCXO: +/-10ppb (option)

        External Sync Sources:
      • Word clock
      • AES
      • Video sync (Black Burst or HD tri-level sync)
      • 10MHz
      • GPS (option)
      • PTP

        Universal Inputs:
      • 2 BNC input connectors w/ 75Ω termination switch
      • Accepts the Following Input Signals:
        Word clock
        Video sync (Black Burst or HD tri-level sync)
        10 MHz

      • Server: The DXD-16 System Time is distributed to the NTP Clients connected to the Server port
      • Client: The Time-of-Day from an External NTP Server can be manually transferred to the DXD-16 System Time

        Remote Control:
      • Web browser
      • 3 GPIO inputs (DB-25)

        Alarm: 3 GPIO outputs (DB-25)
      • Battery Backup: An on-board battery keeps the internal backup clock (RTC) running while power is off
      • Presets: 10 presets can be programmed for quick recall
      • Display: 2.4" TFT LCD - 240 x 320 resolution

      • AC: 100-240 VAC - Internal power supply with IEC inlet
      • DC: 12 VDC @ 5A - 4 pin circular input connector for external DC power source
      • Dual power sources with auto switch-over in case of failure for redundancy

        Dimensions: 19" x 1.75" x 8"

        GNSS/GPS Internal Receiver (Option):
      • The DXD-16 can be fitted with an Internal GNSS/GPS receiver.
      • The option includes an SMA antenna input connector. An antenna is required (not included).
