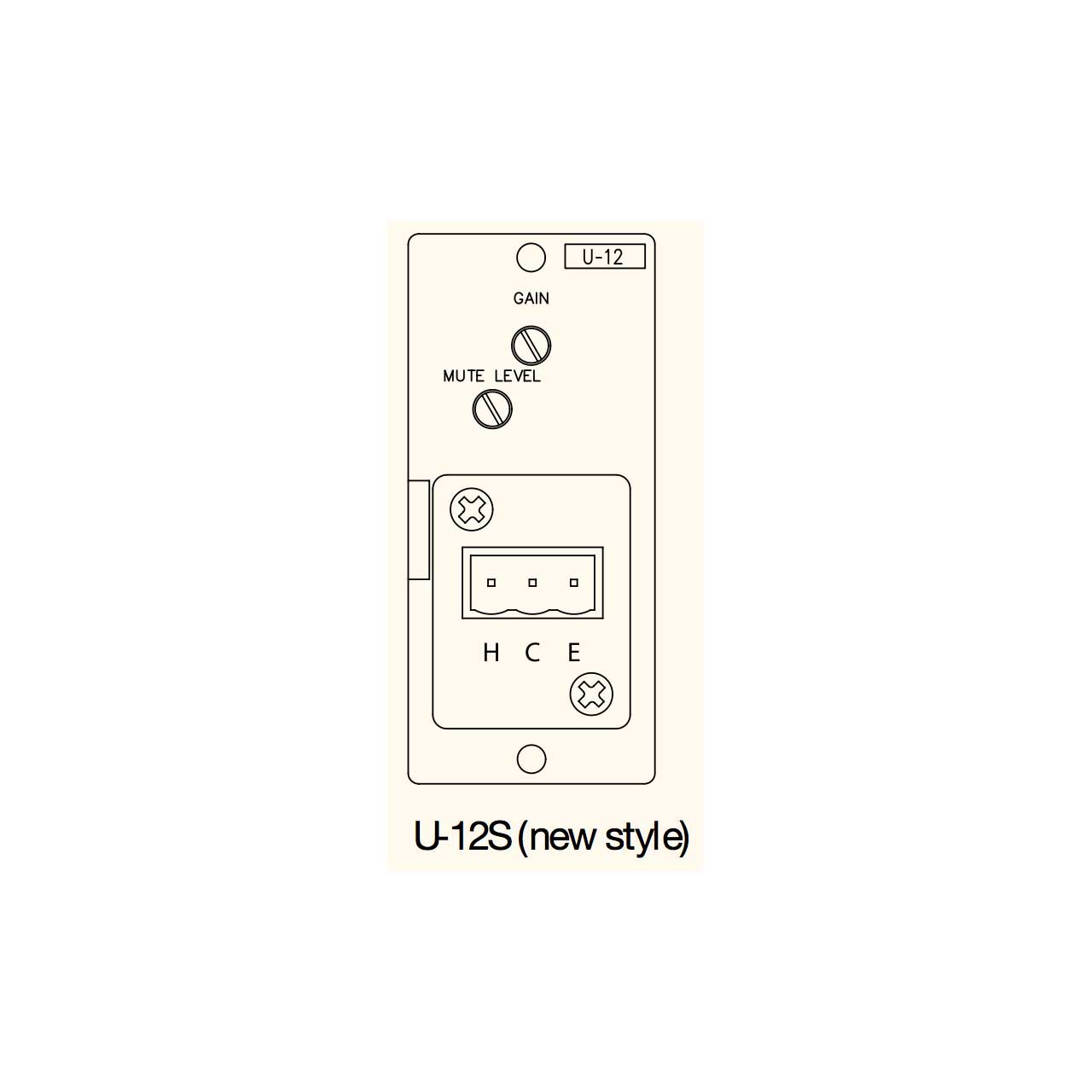

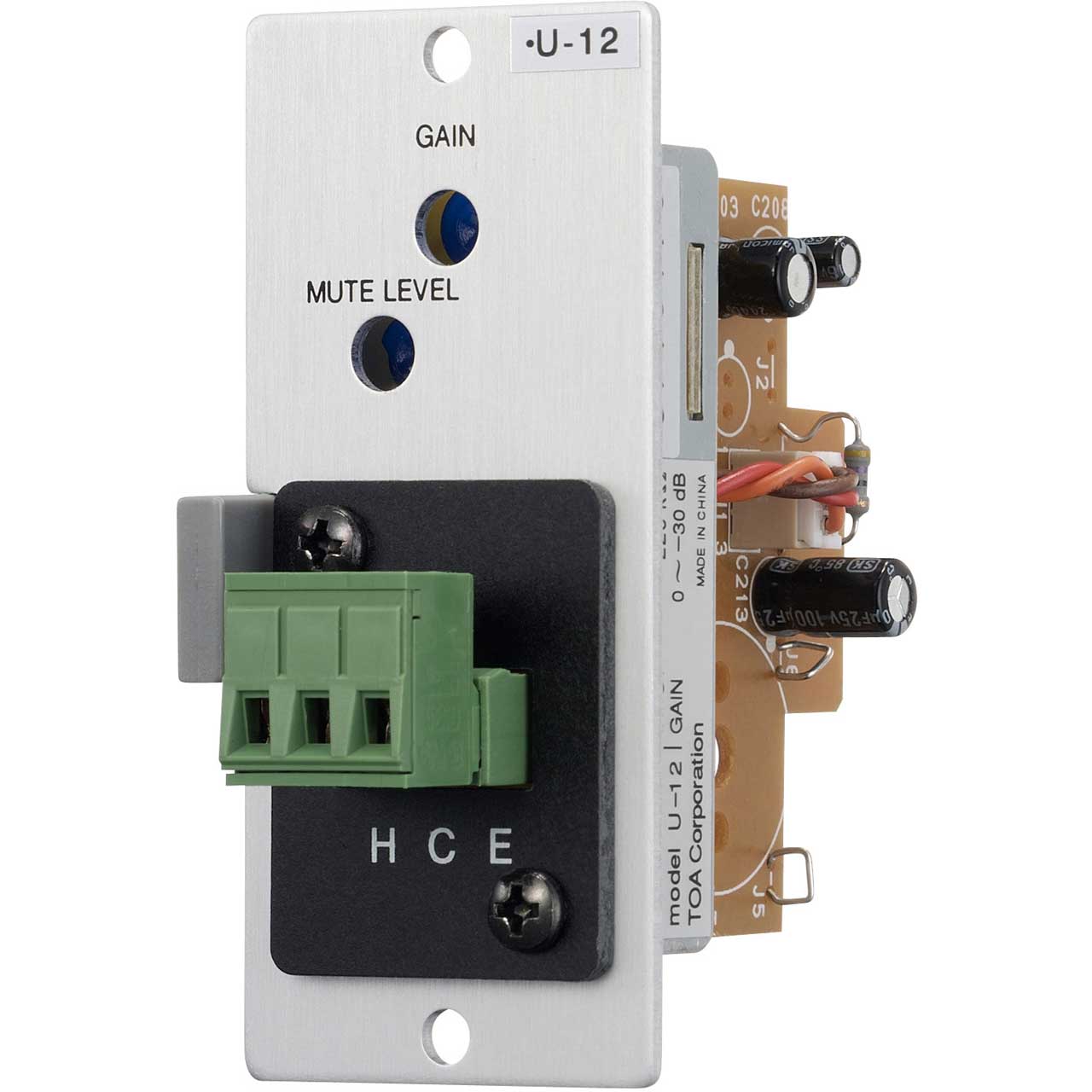

TOA U-12S Unbalanced Line Input Module Variable Mute Receive with Screw Terminals

ITEM #: TOA-U12S MFG #: U-12S

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$93.70

Our Price:

$75.70

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    U-12S - Overview

    TOA U-12S unbalanced line input module for unbalanced, line level sources such as AM/FM tuners, casette decks, CD players, computer sound cards, jukeboxes, mixers and satellite receivers. Use For Adjacent Sources (less than 15 feet from the hos unit). Responds To Mute Bus Activation, via Mute SEND module or switch-closure. Responds To Both Mute Bus #1 And Mute Bus #2 By Default (cut jumper(s) to disconnect individual mute bus).

    • Features:

      • Adjustable Mute Depth Provides Ducking Rather Than Full Muting.
      • Connector: removable terminal block

    • Specifications:

      • Faceplate Controls: Gain, muting depth
      • PCB Controls: Mute bus selection
      • Input Impedance: 220k ohms, unbalanced
      • Sensitivity: -18 to +12 dBu
      • Gain: -30 to 0 dB
      • Mute Depth: -60 to 0 dB
      • Noise (S/N): 90 dB


    U-12S - Required Accessories
