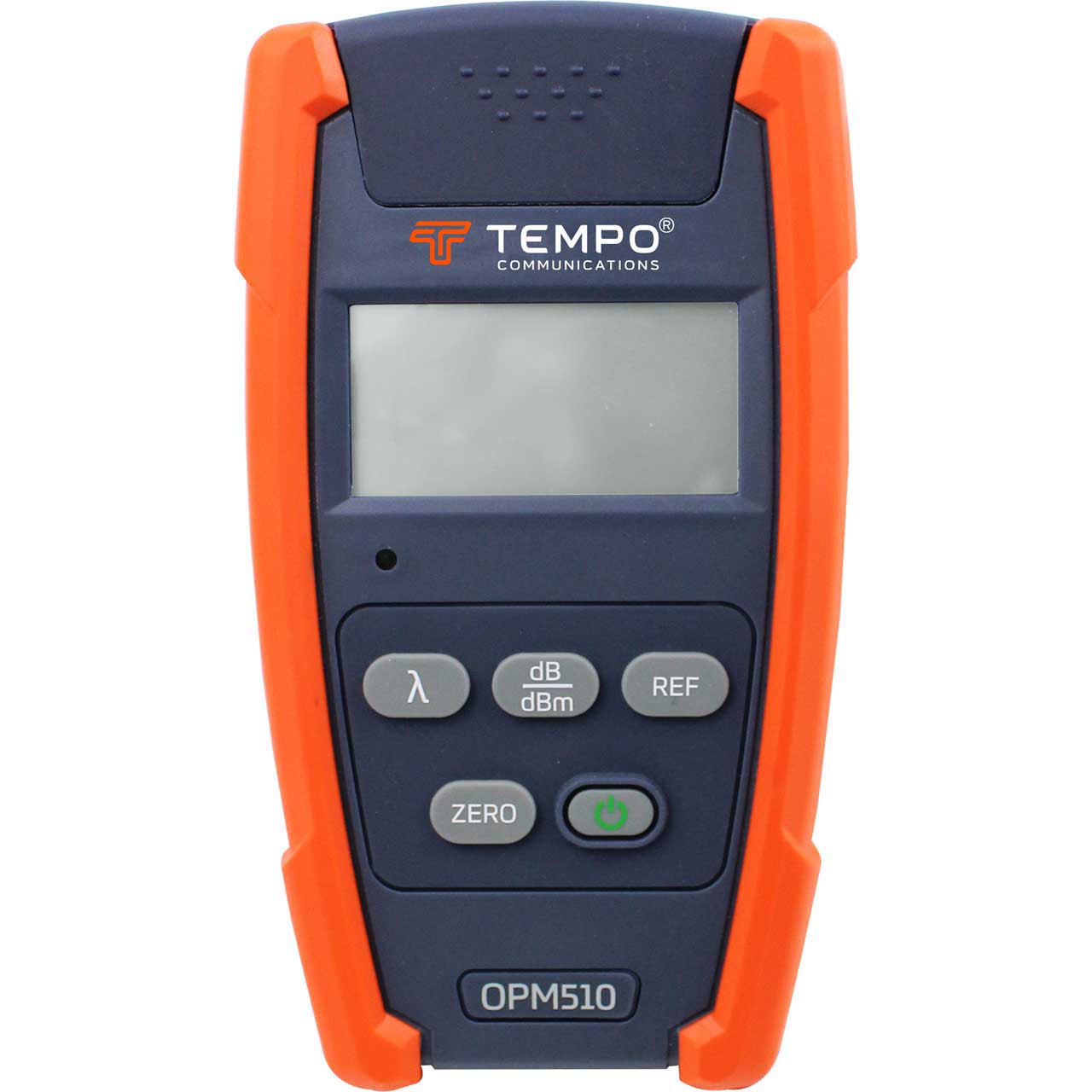

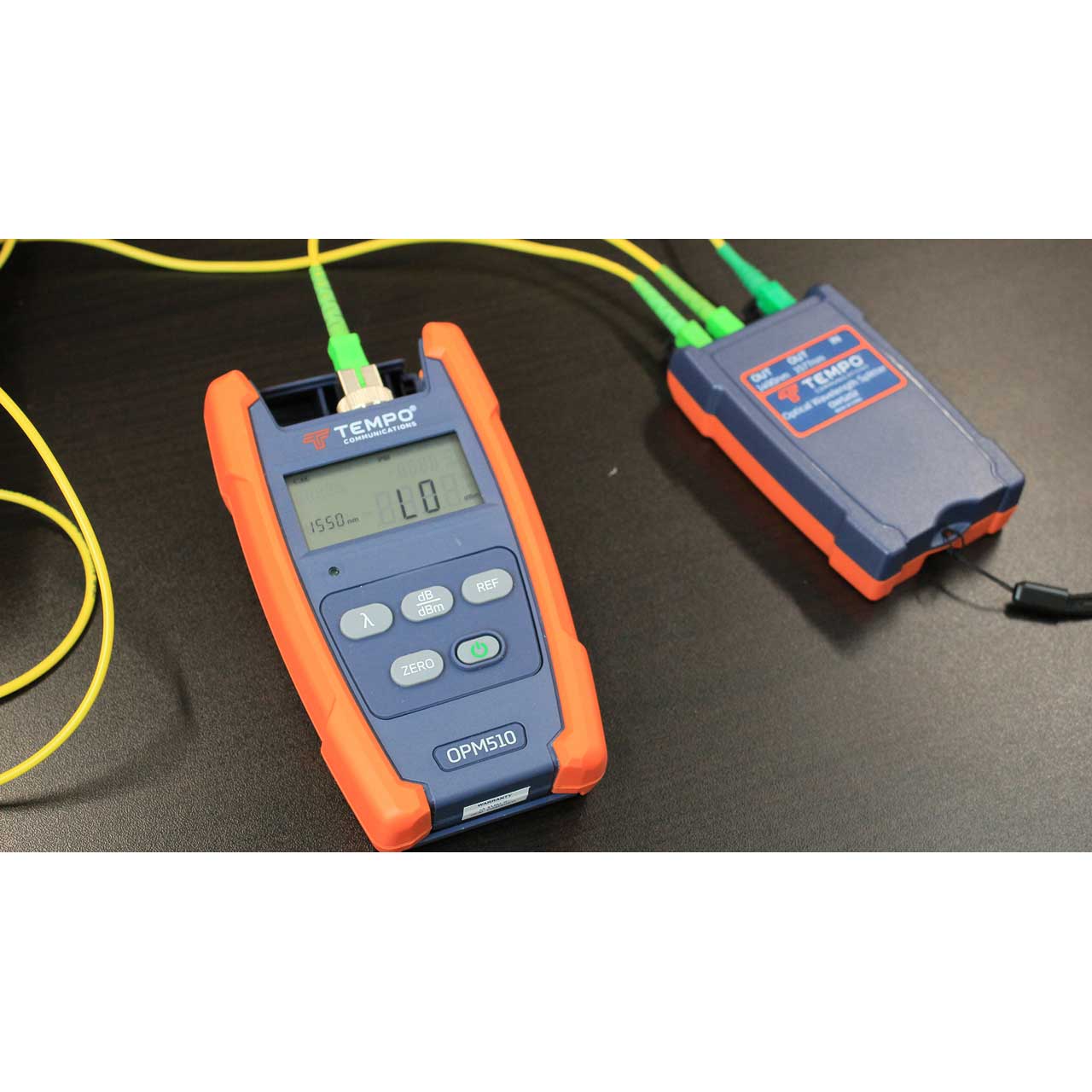

Tempo Communications OPM510 IP54 Singlemode/Multimode Optical Power Meter - -65 to +10dBm

OPM510 - Overview

• Features:

  • Measure Optical Power
  • Accurate Insertion Loss Measurements
  • Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz
  • Absolute or Referenced Optical Power Measurements
  • InGaAs detector for Maximum Sensitivity
  • Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm
  • SC, LC, FC and ST Interchangeable Bulkheads
  • Ruggedized Package, IP54 compliant
  • Compatible with Singlemode and Multimode Networks
  • Auto Off or Continuous On Operation
  • Battery or 120/240VAC Operation


• Specifications:

  • Attribute Name: Attribute Value
  • Calibrated Wavelengths: 850, 1300, 1310, 1490, 1550, 1625
  • Measuring Range: OPM510: -65 ~ +10
  • Detector Type: InGaAs
  • Accuracy: OPM510: ±0.25dB (±0.5dB@850nm)
  • Linearity: OPM510: +/-0.5dB (+10 to -3dBm) +/-0.1dB (-3 to -50dBm) +/-0.5dB (-50 to -65dBm)
  • Resolution: 0.01dB
  • Functions: µW/dBm/dB(REF)/ MOD TONE DETECT 270Hz, 1kHz, 2kHz
  • Connector Type: SC/PC (Interchangeable LC, ST, SC)
  • Fiber Type: Singlemode & Multimode
  • Battery Life: > 100 Hours
  • Power Supply: 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter
  • Operating Temperature: -10°C ~ 50°C
  • Storage Temperature: -20°C ~70°C
  • Relative Humidity: 0 TO 95% (NON-CONDENSING)
  • Weight: 0.68lbs (300g)
  • Dimensions: 6.1 x 3.5 x 1.3" (155 x 88 x 33mm)
  • IP Rating: IP54
  • Vibration: 5Hz to 150Hz, Amplitude+0.15mm
  • Shock: Peak acceleration 25g at a pulse duration of 6ms
  • Compliance: CE, FCC


• Item Includes:

  • 1x Optical Power Meter (-65 to +10dBm)


• GTIN:

  0810025413064
