Eclipse Pros Kit MT-7509 Visual Fault Locator & Light Source for LC Fiber Connectors & Cables

ITEM #: MT-7509 MFG #: MT-7509

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$126.21

Our Price:

$115.45

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    MT-7509 - Overview

    Visual Fault Locator & Light Source for LC Fiber Connectors & Cables

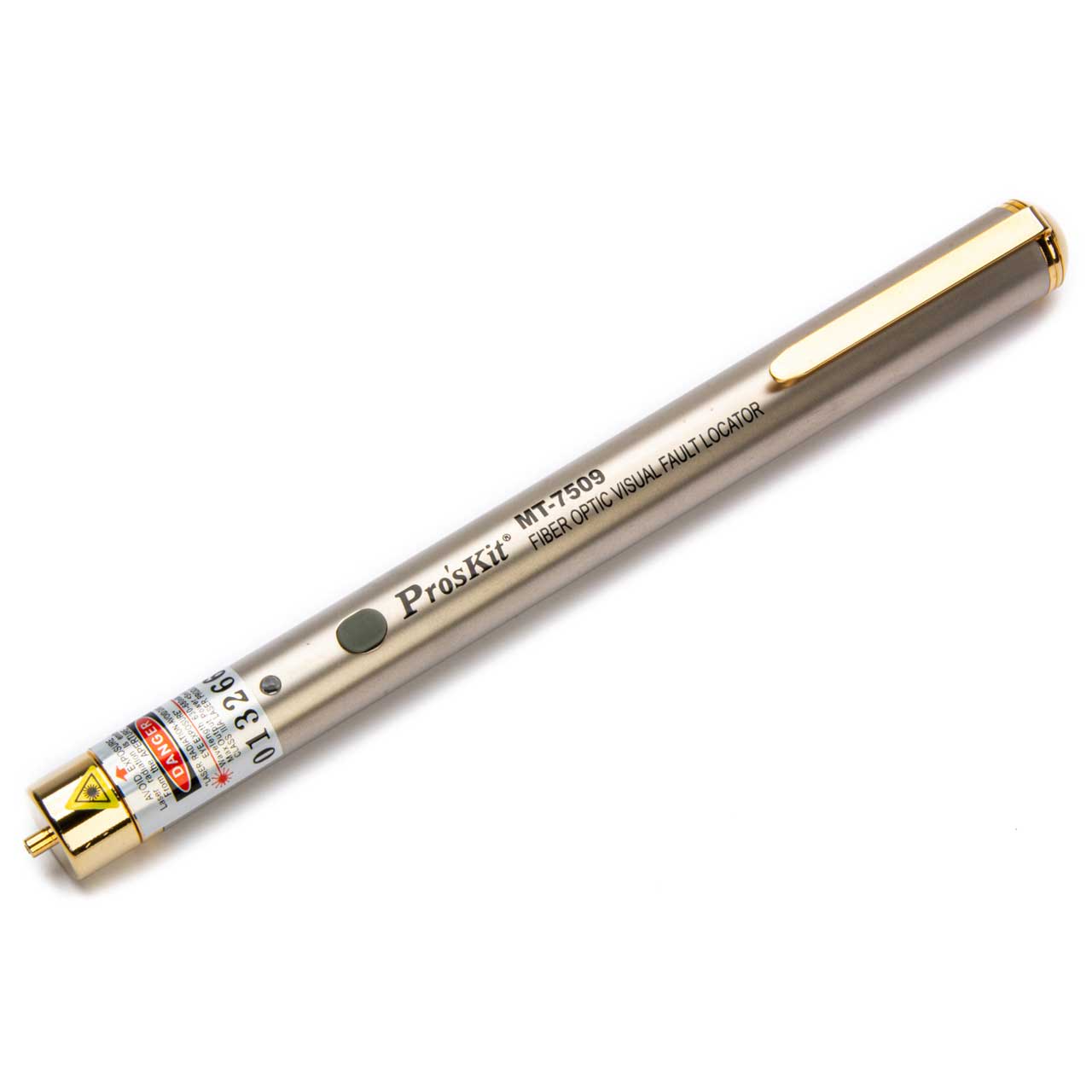

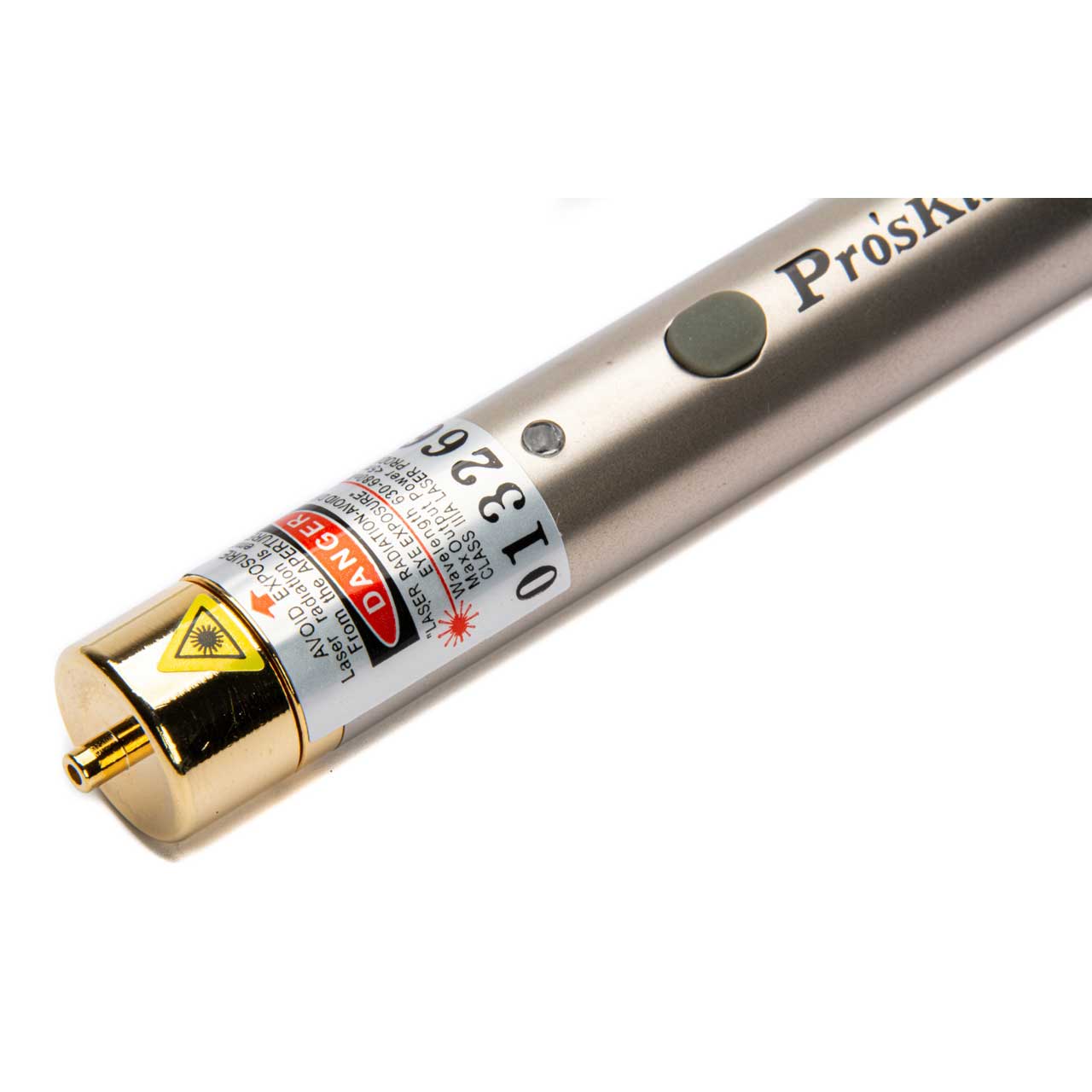

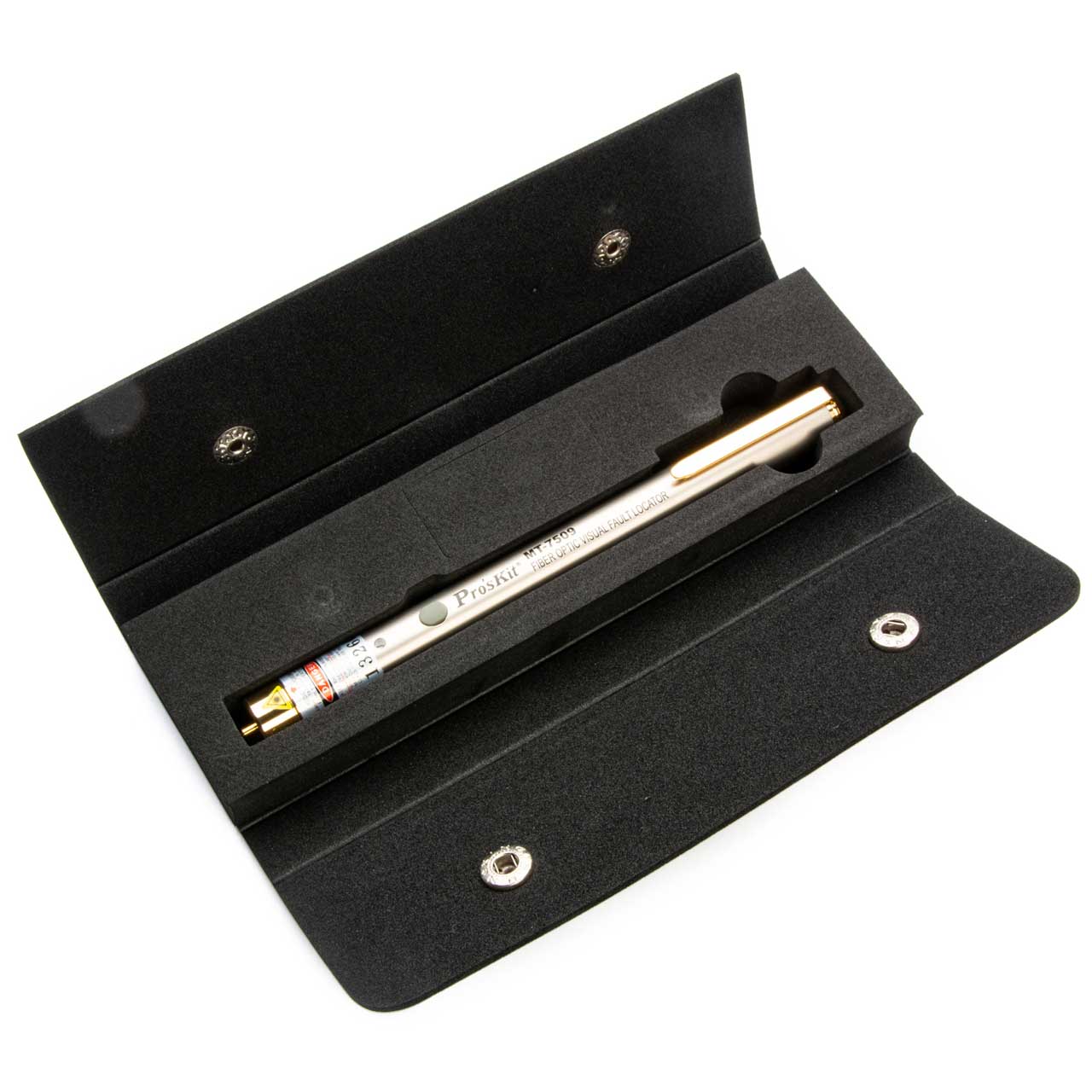

    The Eclipse MT-7509 Fiber Optic Laser Tester is a light source used to locate breaks and misconnections in fiber optic cables. It is an ideal instrument to find the broken or bent patch cords, especially in fiber identification among ribbon or bunched optic fiber pigtails during the installation, in which identifying fiber from end to end may be troublesome or time-consuming. It as a 635nm Class III A laser source with an output power of 5mW and it can be used on SM (single mode) fibers.

    The MT-7509 projects a highly visible red light into a fiber optic cable. The operator simply looks at the length of cable and where light is seen, there is a break. Equipped with a high-power, extra long-life, 635nm Class III A laser diode, it operates in a Continuous mode. Any breaks will be seen as a conspicuously glowing red light point.

    WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

    • Features:

      • Simple, versatile, and user-friendly design
      • Rugged, compact, and splash proof copper housing
      • Three operation modes available: "CW" (Continuous wave output), "Pulse" and "Off" modes
      • Continuous wave output mode (CW) for steady fault illumination
      • Pulse mode helps to locate faults under high ambient light conditions
      • Support LC 1.25mm connectors
      • The button switch permits easy one handed operation
      • Handy, pocket pen design
      • 2 AAA-size alkaline batteries provide 50 hours of continuous operation

    • Specifications:

      • Light Source Class III A Laser Diode
      • Central Wave Length 635nm/±10nm
      • Connector Interface 1.25mm; LC only
      • Peak Power Output > 0.5mW
      • Operating Temperature 0 ~ +40°C
      • Storage Temperature 20 ~ +60°C
      • Dimensions Length: 6"
      • Diameter: .5"
      • Batteries 2 AAA (Not included)

    • GTIN:

      4710810399794
