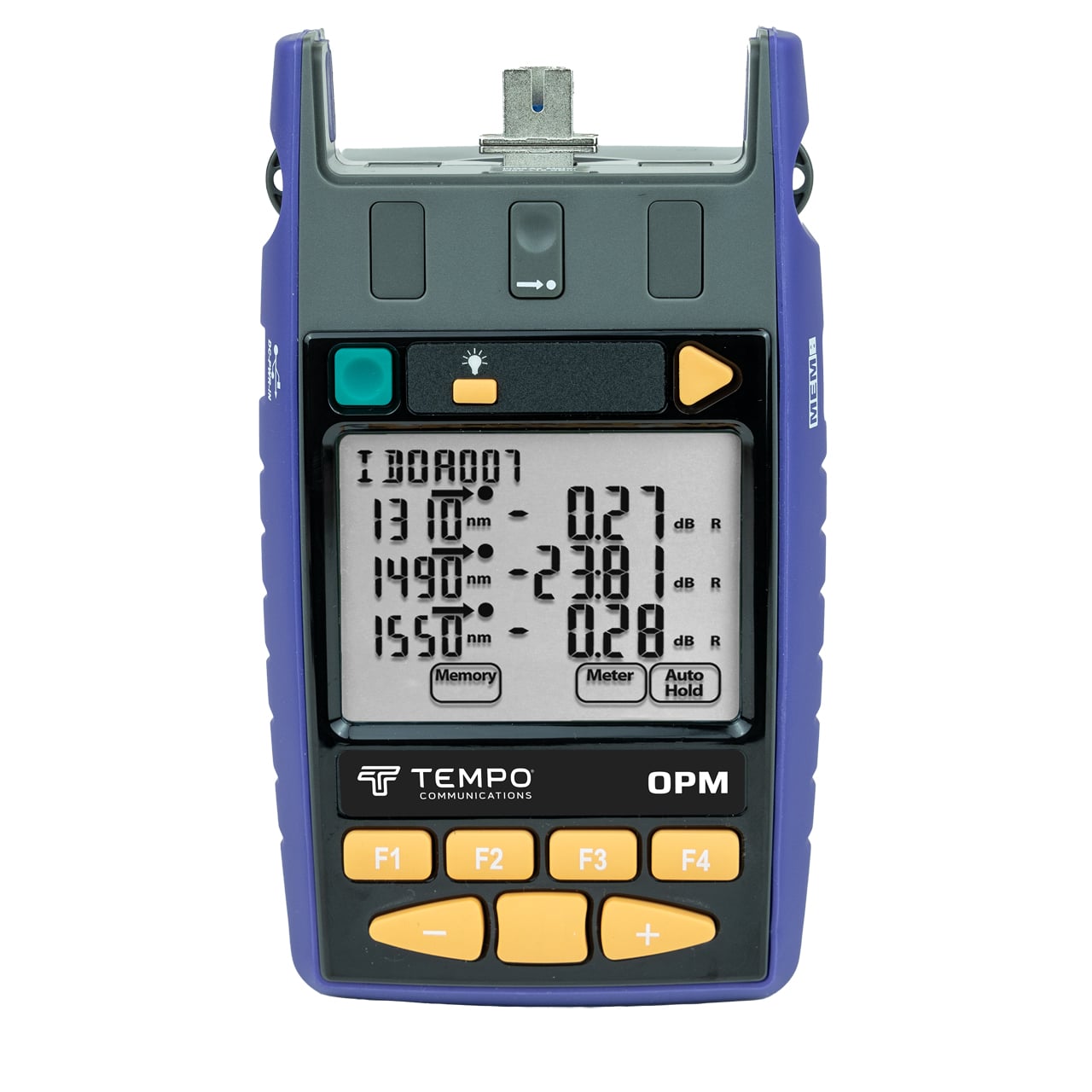

Tempo Communications T2600XL-GE5 Large Area MPO Singlemode/Multimode Optical Power Meter - GE 5mm

ITEM #: TPO-T2600XL-GE5 MFG #: T2600XL-GE5

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Our Price:

$2,452.35

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


T2600XL-GE5 - Overview

The Tempo Communications T2600XL-GE5 is an optical power meter for professional installers and contractors. It tests power, loss, and continuity on plastic fiber, multimode, and single-mode fiber optic systems with MPO and other connectors. It can also measure free-space beams up to +15dBm. This meter is ideal for plastic fiber, PCS, single-mode, multimode, and multi-fiber ribbon cable systems. Examples include MMC and MPO connectors with 12 to 72 fibers, as well as LC/SC connectors. Its comprehensive report generation simplifies documentation, while features such as flexible connector compatibility and high measurement range maximize productivity and adaptability. It supports all fiber-optic Ethernet and InfiniBand applications, except for 16 x 1 or 16 x 2 ribbon types.

  • Features:

    • Easy to use, rugged and versatile
    • 31 calibration λ, 1% accuracy ISO/IEC 17025 traceable
    • Improved high power accuracy
    • Autotest with up to 3λ displayed
    • Long battery life & micro USB external power
    • Large back-lit LCD, sunlight readable
    • Interchangeable connectors
    • Large memory with text naming & time stamp
    • KITS reporting software with data security
    • One button memory dump to USB key
    • MultiFiber ID tone detection
    • Full QA & linearity test report

  • Specifications:

    • Detector Type: Ge (5mm)
    • Calibration Accuracy: 1% (0.06dB)
    • Response Wavelength: 600nm - 1650nm
    • Calibration Wavelengths: 660, 780, 820, 850, 880, 910, 940, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610, 1625, 1650nm
    • Power Range:
      - +15dBm - -30dBm (for 660nm - 820nm, 1590nm - 1650nm)
      - +15dBm - -40dBm (for 850nm - 1570nm)
    • Mid-Range Linearity: 0.06dB (Typical)
    • Total Uncertainty: 0.5dB (Max)
    • Wavelength Sensitivity (±30nm): 0.03dB (Typical)
    • Response Uniformity Across Detector: 2% (0.09dB)
    • ID Tone Detection & Autotest Sensitivity: -37dBm
    • Calibration Validity: 3 years (ISO/IEC 17025)
    • Resolution: 0.01dB
    • Polarization Sensitivity: < 0.05dB (Typical)
    • Tone Detection: 150Hz - 9999Hz ±1%
    • Power: 2x AA (LR6) Alkaline/External via USB
    • Battery Life: Up to 1000 hours
    • Auto-off: Selectable
    • USB Interfaces:
      - USB-micro for power & software
      - USB-A for memory key
    • Software: KITS (Free Download)
    • Memory: 1000 (4-λ tests)/Unlimited on USB memory key
    • Size: 4.9" x 3.2" x 1" (124mm x 81mm x 25mm)
    • Unit Weight: 0.3lbs (150g)
    • Shipping Weight: 2.4lbs (1.1kg)

  • Item Includes:

    • 1x T2600XL-GE5 Large Area MPO Singlemode/Multimode Optical Power Meter - GE 5mm

  • Warranty:

    • 3 Year Limited Warranty
