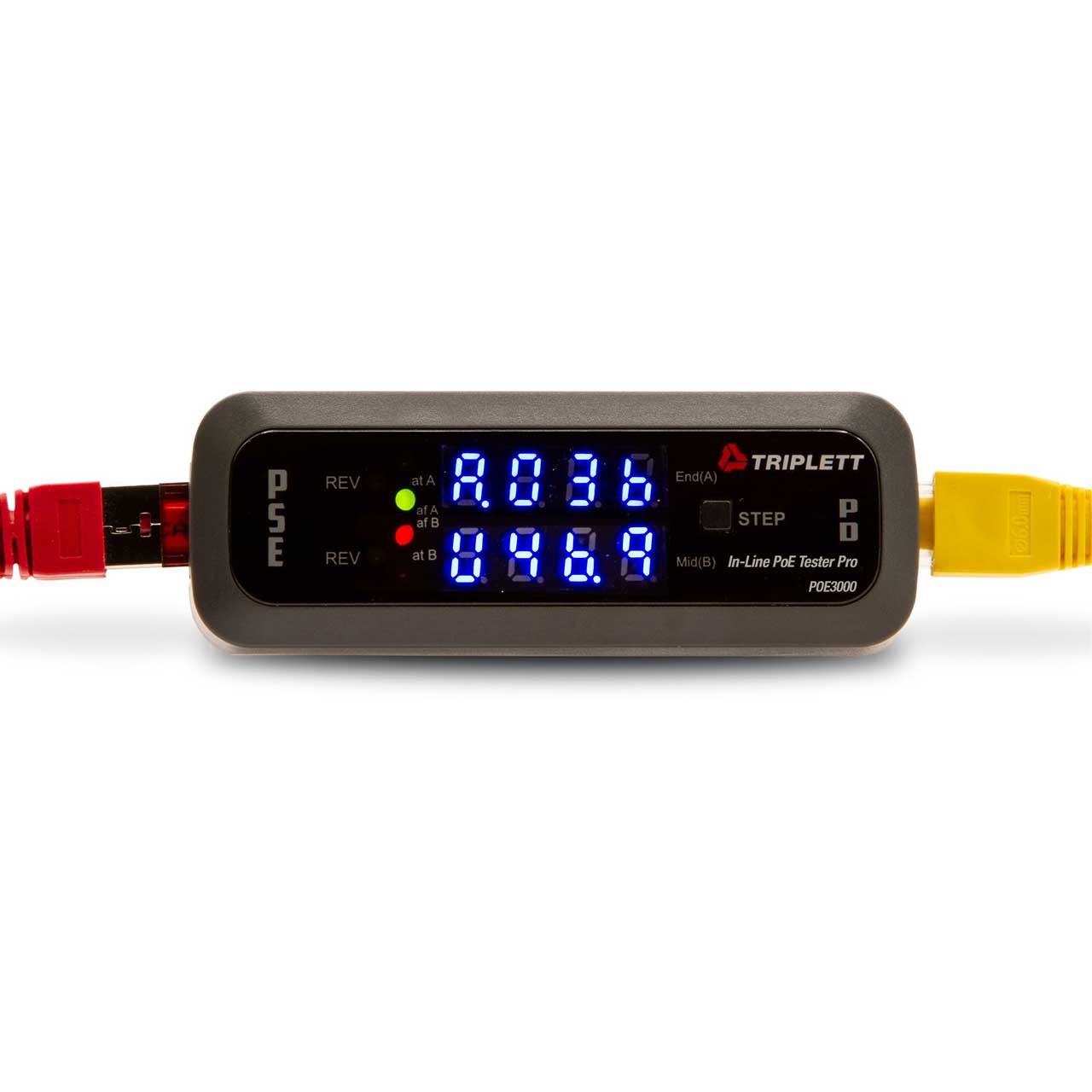

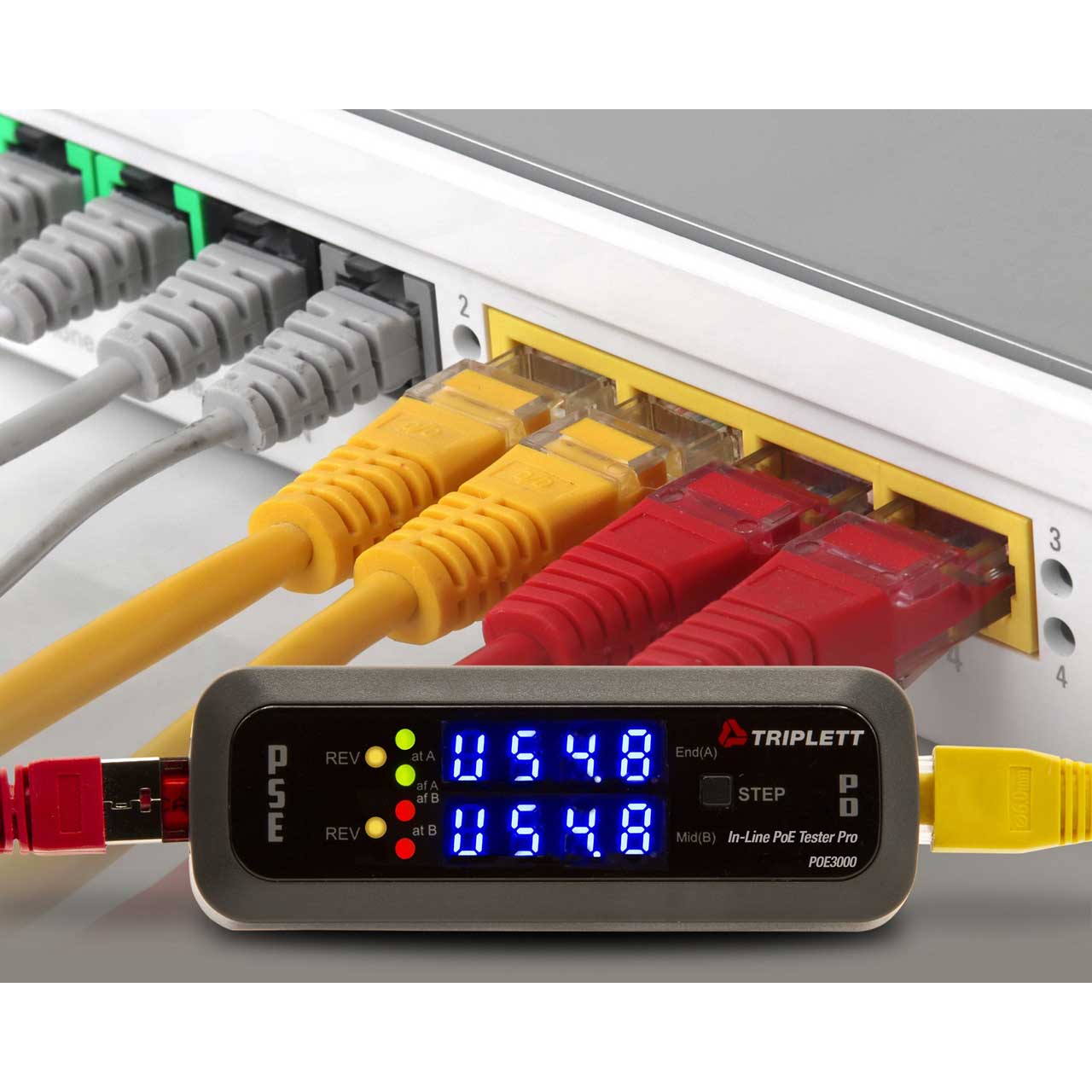

Triplett POE3000 In-Line PoE Tester Pro - 2x RJ45 PSE & PD Test Jacks

POE3000 - Overview

• Features:

  • Passes Thru Voltage and Data: This in-line PoE tester not only detects various PoE parameters but also allows the passage of both voltage and data, ensuring seamless power and data transmission in your PoE system.
  • Streamlines Installation and Troubleshooting: Helps to speed up the installation and troubleshooting of PoE system devices.
  • IEEE802.3af/802.3at/bt Detection: 4 LEDs indicate IEEE802.3af or 802.3at/bt standard compliance.
  • Comprehensive Detection: Detects PSE-type/class, power source, polarity, voltage, current, power, and determines End Span, Midspan, or across all 4 pairs.
  • Standard vs. Non-Standard PoE: Determines standard PoE (36 to 60V) or non-standard (11 to 60V) passive PoE.
  • Polarity Reversal Indication: 2 Yellow LEDs indicate reversed polarity for power type.
  • Inline Power Level Monitoring: Alternates between displaying Voltage, Current, and Power with a step button for data selection.
  • No Battery Required: Uses system power when connected to a device.
  • Complete Package: Includes the Inline PoE Tester Pro for your convenience.


• Specifications:

  • Connector Interface:
  • 2X RJ45 (PSE & PD Test Jacks)

    Voltage Range:
  • Standard PoE: 36 to 60V; Non-Standard: 11 to 60V

    Max Current (based on 50V):
  • 990mA/50W per mode; Total 2A/100W

    Function Selection Mode:
  • T Mode: for detecting PSE status
  • N Mode: for determining non-standard PoE + inline testing
  • I Mode: for testing & monitoring real-time power status

    Display:
  • 4 LEDs indicate IEEE802.3af or 802.3at/bt standard, Dual 7-digit LEDs indicate power source either end (A) Span (1/2, 3/6) or Mid (B) span (4/5, 7/8) or both for bt, 2 Yellow LEDs indicate reversed polarity for power type. Display alternates between Voltage, Current and Power

    Step Button:
  • For selecting specific data to display

    Power:
  • Uses system power when connected to a device


• Warranty:

  • 1 Year


• GTIN:

  0614395004859
