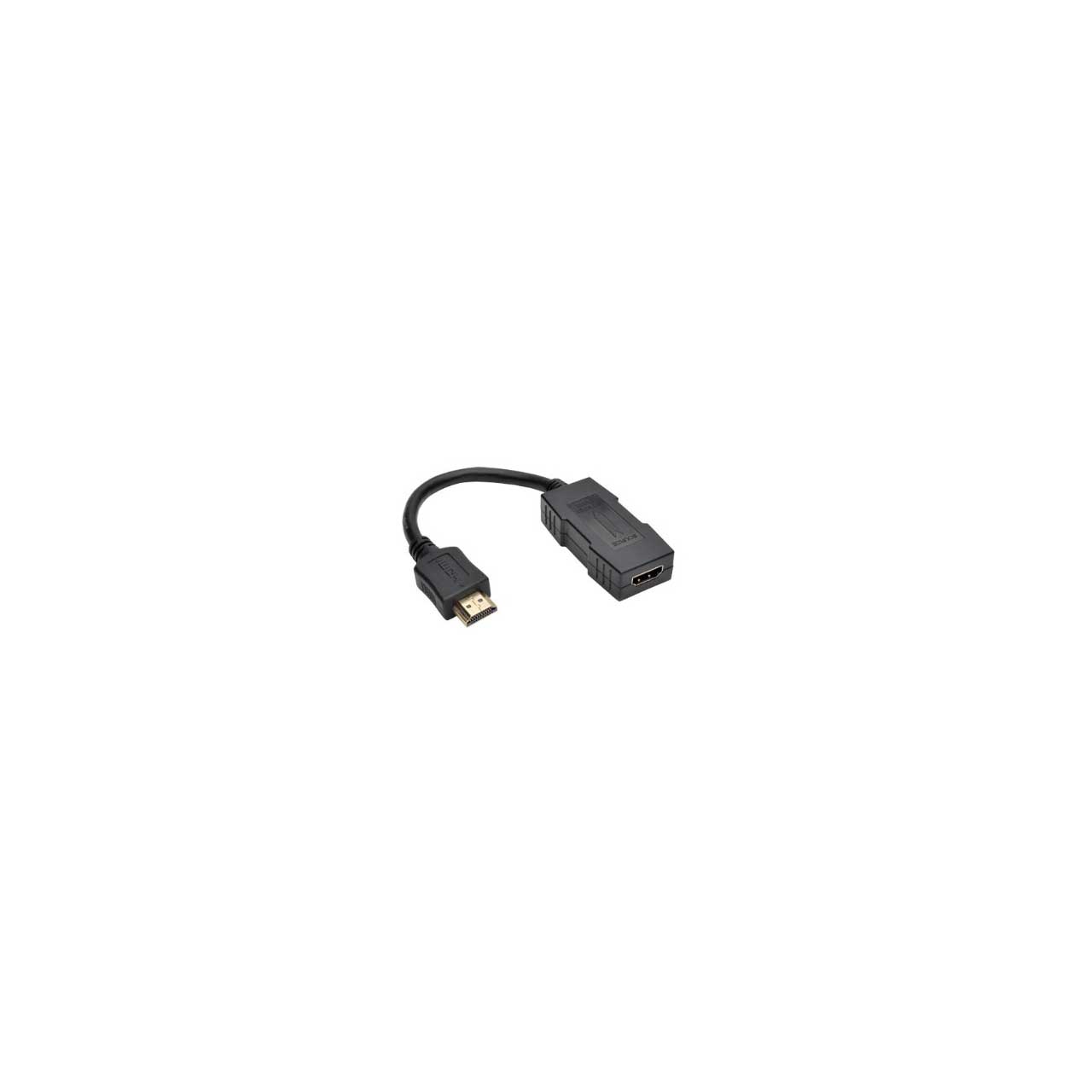

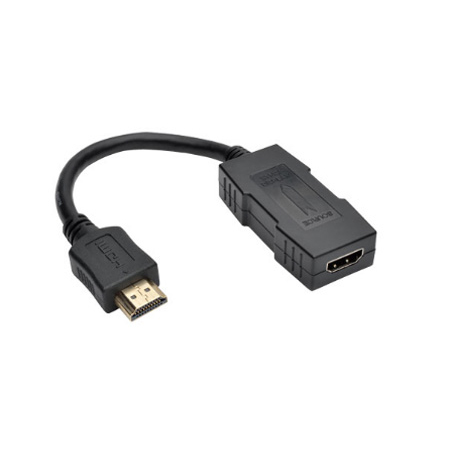

Tripp Lite B123-001-60 1 Foot HDMI Active Signal Extender Cable HDMI 60Hz M/F

ITEM #: TRL-B123-001-60 MFG #: B123-001-60

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$30.00

Our Price:

$21.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    B123-001-60 - Overview

    Tripp Lite's B123-001-60 HDMI Signal Extender increases the distance a 1080p at 60 Hz or 1920 x 1200 signal can be transmitted beyond the recommended 16 ft. 5 m. It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p at 60Hz, at a maximum distance of 125 ft. from the source. When extending a 1080p at 60Hz or 1920 x 1200 signal more than 75 ft., use cable made with 24Awg wiring. 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001-60, and the built-in cable between the adapter and the monitor/TV. Software or drivers are not required. HDCP compliant. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

    • Features:

      • Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
      • No external power required in most installations
      • HDCP compliant
      • No software or drivers required
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications:

      • INPUT;
      • Cable Length 1 ft;
      • COMMUNICATIONS;
      • Max 1024 x 768 Range 125 ft;
      • Max 480P Range 125 ft;
      • Max 1440 x 900 Range 125 ft;
      • Max 1080i Range 125 ft;
      • Max 1080P Range 125 ft;
      • Max 480i Range125 ft;
      • Max 640 x 480 Range125 ft;
      • Max 800 x 600 Range 125 ft;
      • Max 1600 x 1200 Range 125 ft;
      • Max 720P Range125 ft;
      • CONNECTIONS;
      • Ports 1;
      • Side A Connector 1 HDMI (MALE);
      • Side B Connector 1 HDMI (FEMALE);

    • GTIN:

      0037332171184
