Tripp Lite B130-101A-WP-2 VGA with Audio over Cat5/Cat6 Extender Kit Wallplate TX/RX with EDID - 1000 Feet

ITEM #: TRL-B130-101AWP2 MFG #: B130-101A-WP-2

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$144.00

Our Price:

$107.05

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    B130-101A-WP-2 - Overview

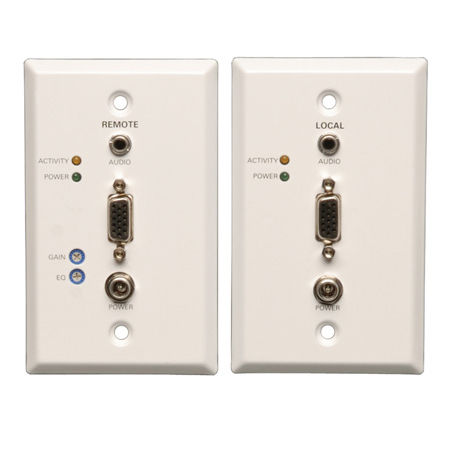

    The Tripp Lite B130-101A-WP-2 VGA with Audio over Cat5/Cat6 Extender Kit includes transmitter and receiver wall plate units that work in tandem to extend a VGA signal to to a projector, monitor or television. The kit is ideal for digital signs in schools, churches or retail applications where the video source is located farther than conventional cables allow. Attractive wall plate units eliminate cable clutter.

    Because compatibility issues can occur when EDID information is not properly communicated between the source and the display, the B130-101A-WP-2 includes an EDID copy feature. This enables the transmitter to store the display's EDID information and send it to the video source, ensuring top-shelf compatibility.

    The B130-101A-WP-2 can extend a 1024 x 768 (60 Hz) signal up to 1,000 feet and a 1920 x 1440 (60 Hz) signal up to 500 feet when using 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), to connect the two units. For optimal image quality between 500 and 1,000 feet, use zero-skew cable, such as Tripp Lite's P524-01K. The RJ45-type wall plate jacks accept standard Cat5e/6 patch cables, so no 110 punchdown connection is required.

    You can also connect up to three B132-110A remote repeaters in a chain (using Cat5e/6 cable) for a total of five VGA displays (one local and four remote) and full 1024 x 768 (60 Hz) signal extension of 2,000 feet.

    • Features:

      • Stores display's EDID information and sends it to source
      • Extends 1024 x 768 video and audio signal up to 1,000 ft.
      • Extends 1920 x 1440 video and audio signal up to 500 ft.
      • Built-in equalization and gain controls let you fine-tune image
      • Plug and play-no software or drivers to install
      • 1-year limited warranty
      • Extends a 1024 x 768 (60 Hz) signal up to 1,000 ft. and a 1920 x 1440 (60 Hz) signal up to 500 ft.
      • Connect up to three B132-110A remote repeaters to the chain for maximum 1024 x 768 (60 Hz) signal range of 2,000 ft.
      • Transmitter and receiver connect with one Cat5e/6 cable, such as Tripp Lite's N022-01K-GY or N222-01K-GY 24 AWG solid-wire Cat5e/6 cable
      • No 110 punchdown connection required
      • For optimal image quality between 500 and 1,000 ft., use zero-skew cable, such as Tripp Lite's P524-01K
      • Plug-and-play engineering-no software or drivers to download and install
      • Wall plate units eliminate cable clutter
      • LEDs indicate at a glance when the unit is receiving power
      • Included VGA + audio "Y" splitter cable allows connection of local monitor and speakers
      • Built-in equalization and gain controls lets you adjust the image on the remote monitor
      • Wall-mounting screws included
      • Supports all operating systems, as well as HDCP

    • Specifications:

      • Physical
      • Color: White
      • Shipping Dimensions (hwd / in.): 6.46 x 10.24 x 2.17
      • Shipping Weight (lbs.): 1.61

        Communications
      • Max 1024 x 768 Range (ft): 1000
      • Max 480P Range (ft): 1000
      • Max 1440 x 900 Range (ft): 500
      • Max 1080i Range (ft): 500
      • Max 1080P Range (ft): 500
      • Max 1920 x 1440 Range (ft): 500
      • Max 480i Range (ft): 1000
      • Max 640 x 480 Range (ft): 1000
      • Max 800 x 600 Range (ft): 1000
      • Max 1600 x 1200 Range (ft): 500
      • Max 1920 x 1200 Range (ft): 500
      • Max 720P Range (ft): 500

        Connections
      • Ports: 1
      • Side A - Connector 1: HD15 (FEMALE)
      • Side A - Connector 2: RJ45 (FEMALE)
      • Side A - Connector 3: 3.5MM (FEMALE)
      • Side B - Connector 1: HD15 (FEMALE)
      • Side B - Connector 2: 3.5MM (FEMALE)
      • Side B - Connector 3: RJ45 (FEMALE)

        Features & Specifications
      • Technology: VGA/SVGA; Stereo Audio

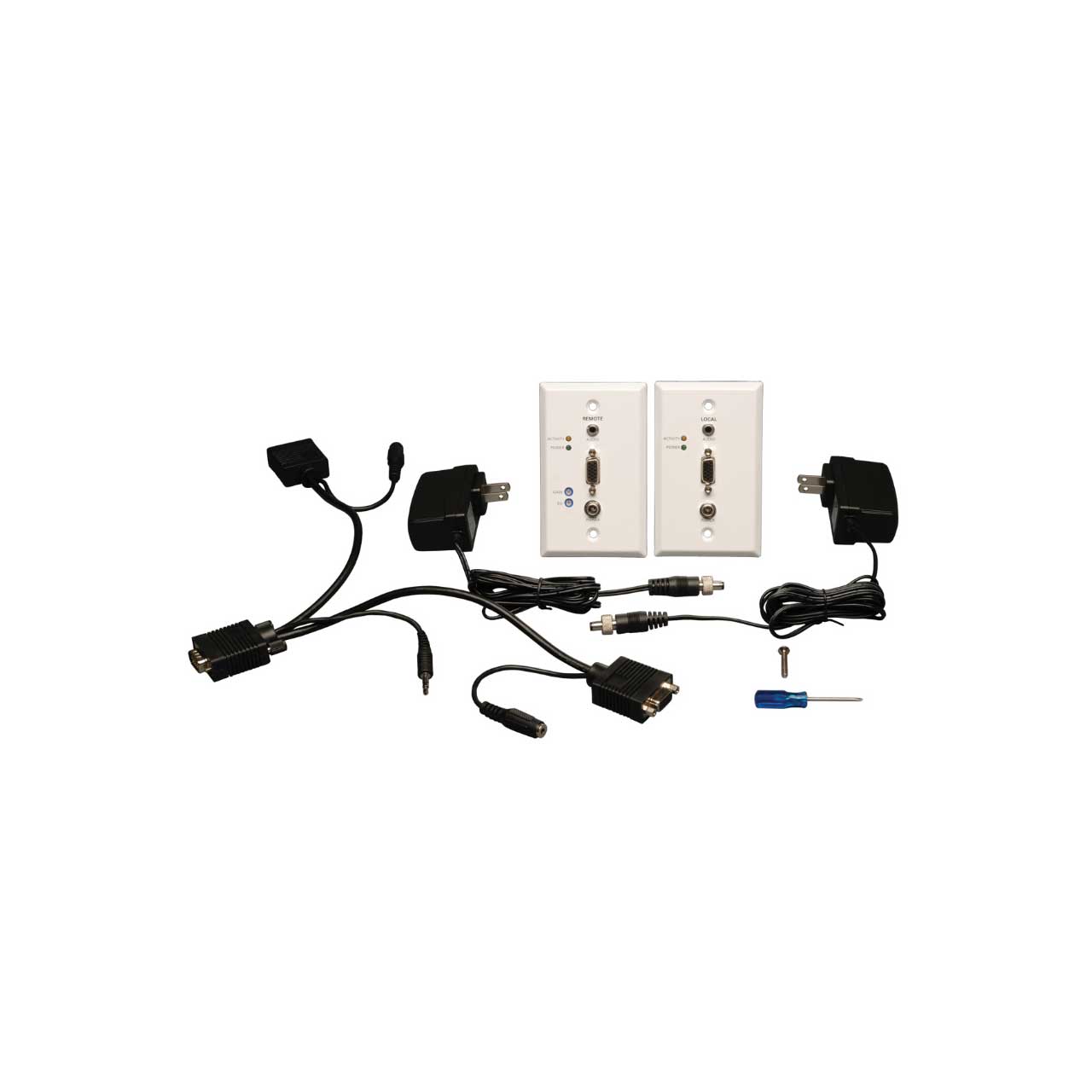

    • Item Includes:

      • 1x Transmitter wall plate unit
      • 1x Receiver wall plate unit
      • 1x VGA + audio "Y" splitter cable
      • 1x Screwdriver for adjusting equalization and gain
      • 2x External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A, 5 ft.)
      • 1x Wall plate screws
      • 1x Owner's Manual

    • Warranty:

      • 1 Year

    • GTIN:

      0037332186270
