Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet
  • Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet
  • Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet
  • Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet
  • Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet
  • Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite B132-100A-SR VGA with Audio over Cat5/Cat6 Extender Receiver USB-Powered 1440x900 at 60Hz Up to 300 Feet

Manufacturer: Tripp Lite

Item #: TRL-B132-100A-SR   •   MFG #: B132-100A-SR



List Price:$68.80
Our Price:$52.89

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Tripp Lite's B132-100A-SR VGA with Audio over Cat5 Extender Receiver Unit is designed to work with Tripp Lite's B13 and B13 VGA with Audio over Cat5 Extender / Splitter Transmitter Units. Unlike the B13 Receiver Unit (which supports distances up to 1,000-ft.), or the B132-100A-MR (which supports distances up to 750-ft.) the B132-100A-SR is a cost effective solution for distances up to 300-ft. It extends a 1440 x 900 video and audio signal up to 150-ft. from the source, or a 1024 x 768 video and audio signal up to 300-ft. Power is supplied via the included USB Micro-B cable, with no external power supply required. Connect the included Micro-B cable between the Receiver and a USB port on a computer, monitor, or USB wall charger, such as the Tripp Lite UAC. It also features equalization and gain controls to adjust the video image. Audio connections are made with standard 3.5 (not included). Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.


    • Features

      • Works with a B13 or B13 Transmitter Unit to extend a VGA video and audio signal up to 300-ft. from the source
      • Extends a 1440 x 900 video and audio signal up to 150-ft, or a 1024 x 768 video and audio signal up to 300-ft.
      • 24 AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite's N20 Cat6 cables) is required to achieve maximum distance and resolution
      • Power is supplied via the included USB Micro-B cable; no external power supply required
      • Features built-in equalization and gain controls to adjust the video image
      • All operating systems supported
      • Plug and play; no software or drivers required
      • HDCP and EDID compliant
      • Ideal for digital signage installations for retail, schools, churches, etc.
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

    • Specifications

      • Shipping Weight (lbs.): 1
      • Shipping Weight (kg): 0.45
      • Unit Dimensions (hwd / in.): 1 x 2.5 x 3.6
      • Unit Dimensions (hwd / cm): 2.54 x 6.35 x 9.14
      • Unit Weight (lbs.): 0.45
      • Unit Weight (kg): 0.2
      • Color: Black
      • Max 1024 x 768 Range (ft): 750
      • Max 480P Range (ft): 750
      • Max 1440 x 900 Range (ft): 300
      • Max 1080i Range (ft): 300
      • Max 1080P Range (ft): 300
      • Max 480i Range (ft): 750
      • Max 640 x 480 Range (ft): 750
      • Max 800 x 600 Range (ft): 750
      • Max 1600 x 1200 Range (ft): 300
      • Max 720P Range (ft): 300
      • Ports: 1
      • Side A - Connector 1: RJ45 (FEMALE)

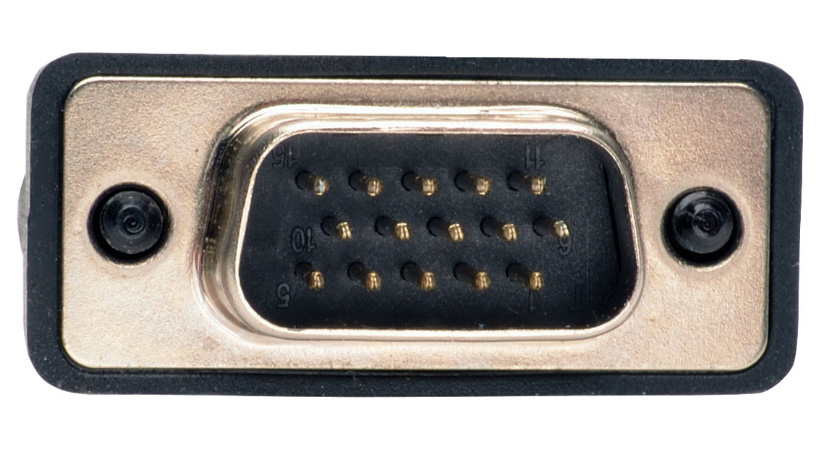

      • Side B - Connector 1: HD15 (FEMALE)
      • Side B - Connector 2: 3.5MM (FEMALE)
      • Product Warranty Period (Worldwide): 1-year limited warranty

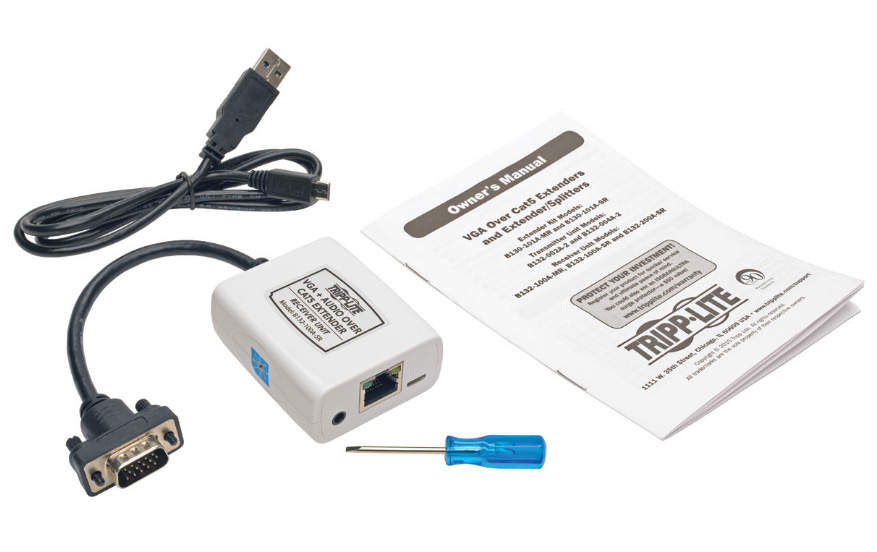

    • Item Includes

      • B132-100A-SR
      • USB Micro-B cable
      • Screwdriver for EQ/Gain adjustment
      • Owner's Manual

    • Warranty

      • 1 Year

    • GTIN:

      0037332185563
