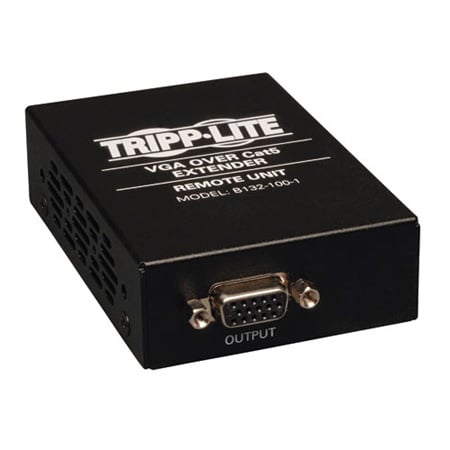

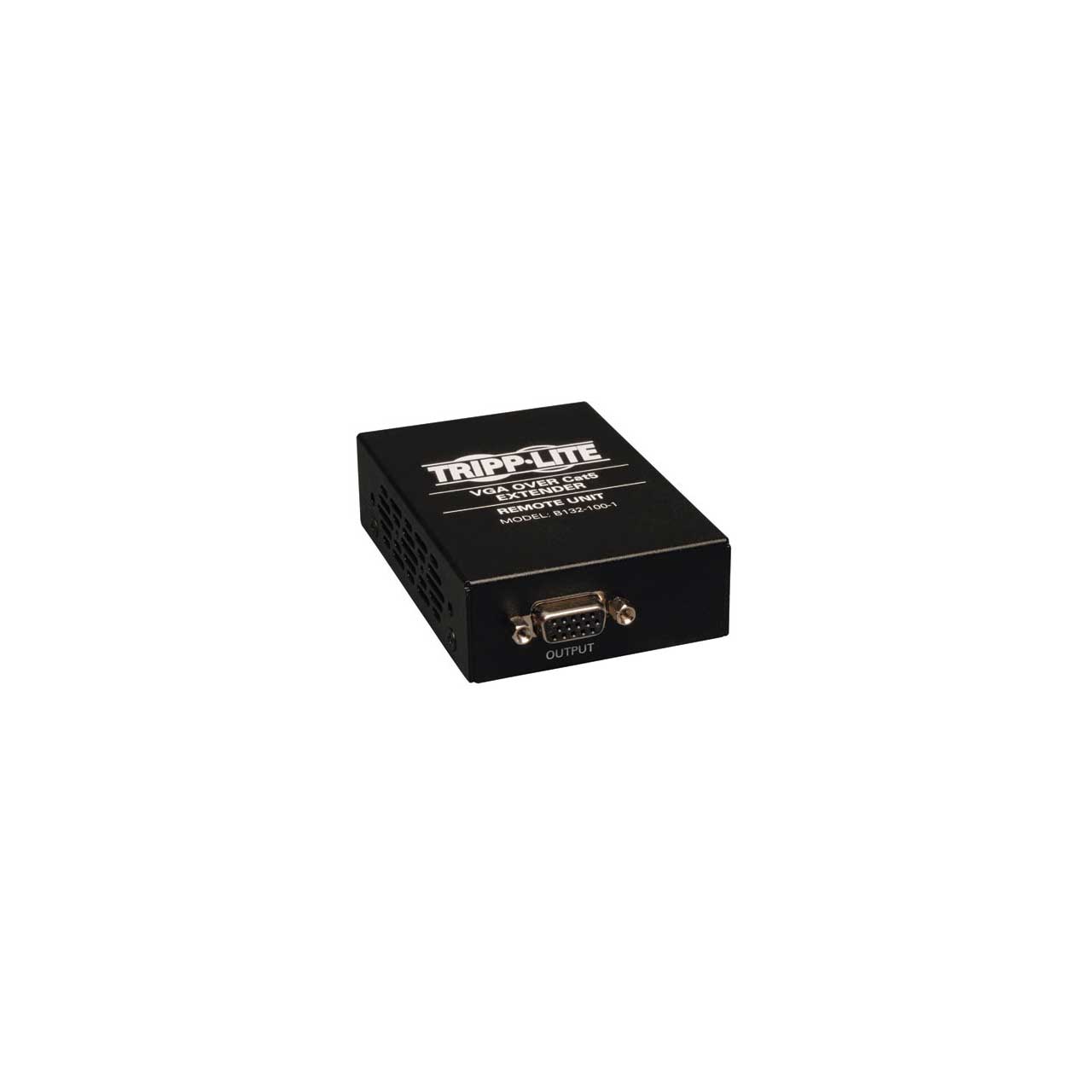

Tripp Lite B132-100-1 VGA over Cat5/Cat6 Extender/ Receiver 1920x1440 at 60Hz

Manufacturer: Tripp Lite

Item #: TRL-B132-100-1   •   MFG #: B132-100-1




Share!





Tripp Lite's B132-100-1 works with a B132-002-1 or B132-004-1 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.


  • Features

    • Works with a B132-002-1 or B132-004-1 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 500 ft., or a 1024 x 768 (60Hz) video signal up to 1,000 ft.
    • 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
    • For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K
    • Features built-in Equalization and Gain controls to adjust the video image
    • Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
    • Ideal for digital signage situations, such as retail, schools, churches, etc..
    • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

  • Specifications

    • Connector A: HD15 (FEMALE)

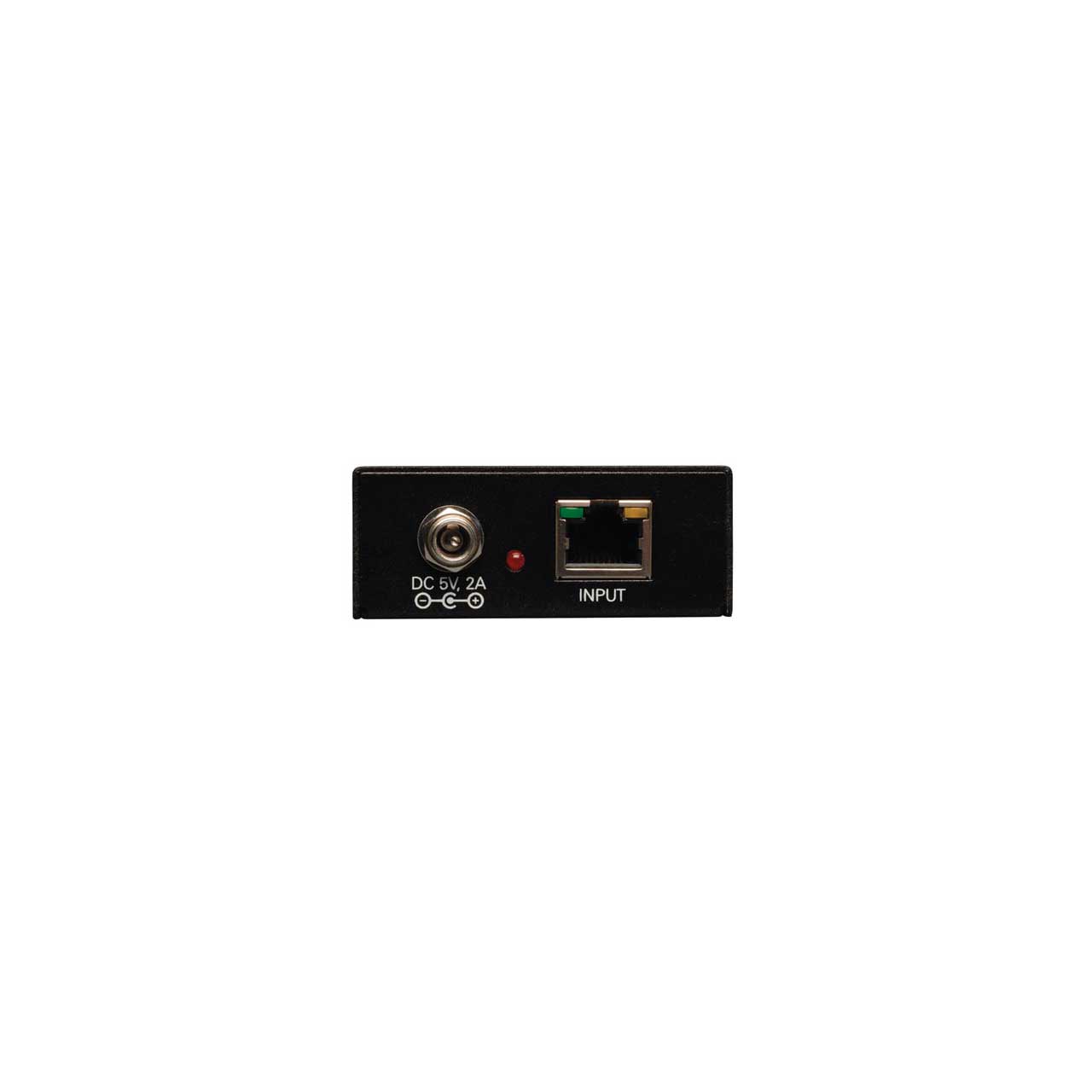

    • Connector B: RJ45 (FEMALE)
    • Display Style: Splitter
    • Model Type: VGA
    • Cable Types: CAT5/CAT5E

  • Item Includes

    • Extender remote (Receiver) unit
    • Mini-Screwdriver for EQ/Gain adjustment
    • Mounting Hardware
    • External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
    • Owner's Manual

  • Warranty

    • 1 year limited waranty
