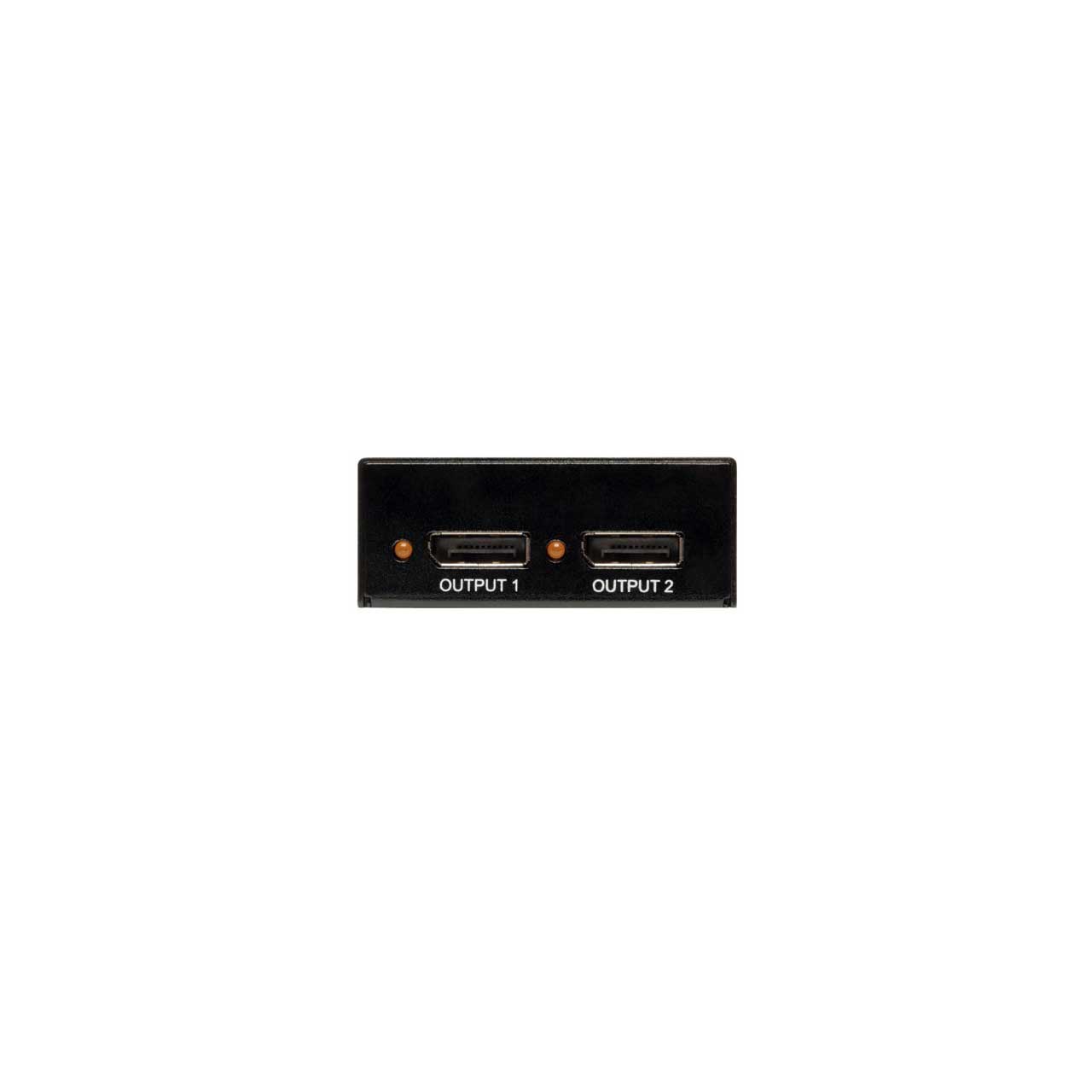

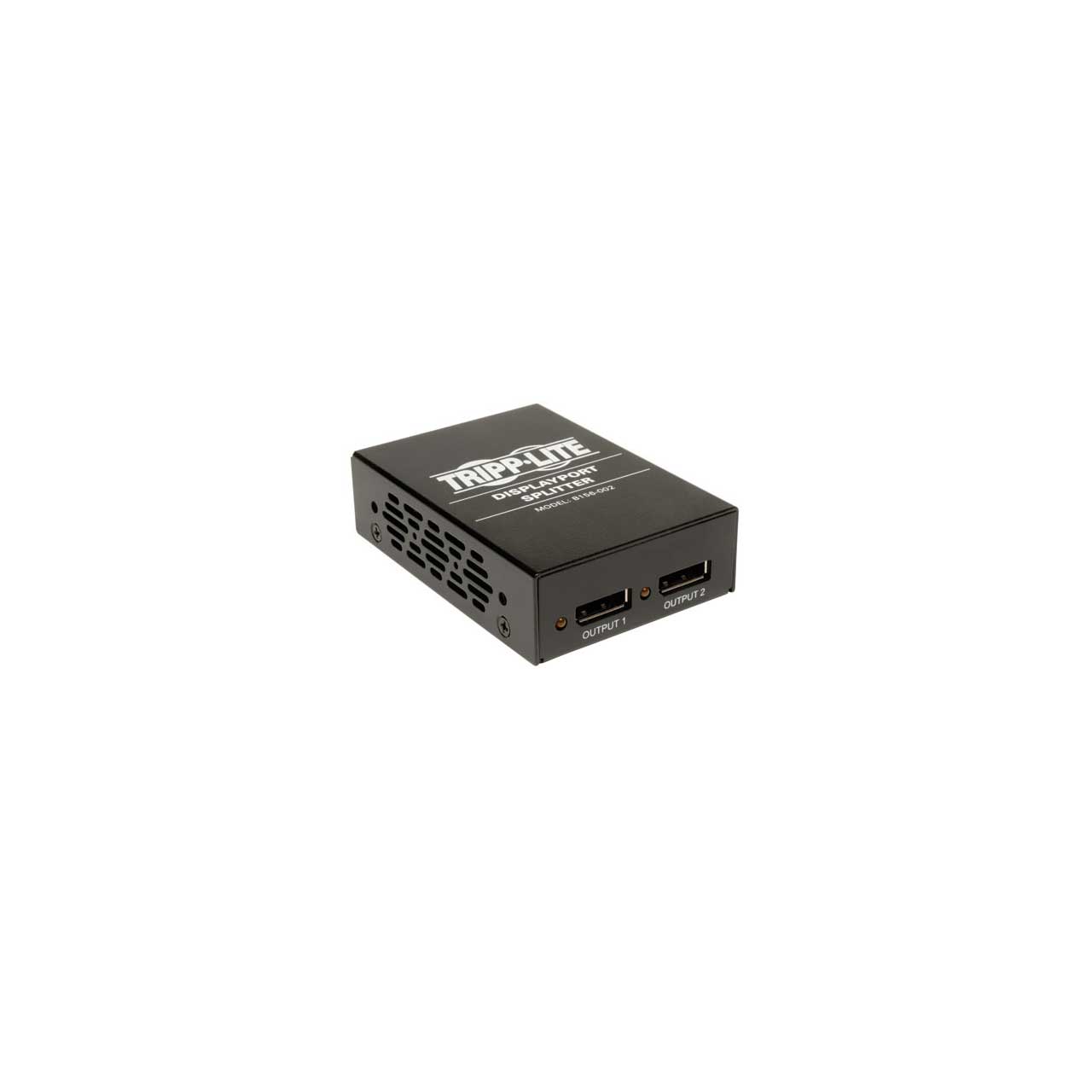

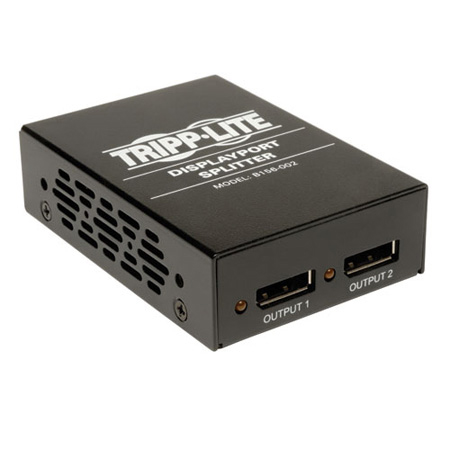

Tripp Lite B156-002 2-Port Displayport Multi Display Splitter Expander Booster TAA
  • Tripp Lite B156-002 2-Port Displayport Multi Display Splitter Expander Booster TAA
  • Tripp Lite B156-002 2-Port Displayport Multi Display Splitter Expander Booster TAA
  • Tripp Lite B156-002 2-Port Displayport Multi Display Splitter Expander Booster TAA

Questions? Ask a Markertek Expert:
800-522-2025 Email

Tripp Lite B156-002 2-Port Displayport Multi Display Splitter Expander Booster TAA

Manufacturer: Tripp Lite

Item #: TRL-B156-002   •   MFG #: B156-002



List Price:$304.00
Our Price:$216.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    A computer with a DisplayPort v1.2 compatible Graphics Card (e.g. AMD Radeon with AMD Eyefinity technology) is required to display in video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror mode only). Compatibility with older graphics cards is not guaranteed.

    Tripp Lite B156-002 MST compliant DisplayPort 1.2 graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors, with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface for your graphics card. If the total percentage of bandwidth taken up by all of the connected monitors exceeds 100%, an image will not display on one or more of them.

    Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities.

    Notes:
    A computer with a DisplayPort v1.2 compatible Graphics Card (e.g. AMD Radeon with AMD Eyefinity technology) is required to display in video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror mode only). Compatibility with older graphics cards is not guaranteed.

    MST compliant DisplayPort 1.2 graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors, with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface for your graphics card. If the total percentage of bandwidth taken up by all of the connected monitors exceeds 100%, an image will not display on one or more of them.

    Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities.

    System Requirements:
    A computer with a DisplayPort v1.2 compatible Graphics Card (e.g. AMD Radeon with AMD Eyefinity technology) is required to display in video wall mode.
    Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on the connected monitors to mirror mode.
    Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers, with the feature set being limited to that of your equipment (e.g. you may be limited to displaying in Clone / Mirror Mode only). Compatibility with older graphics cards is not guaranteed.
    Maximum supported video resolutions and number of monitors will be dependent upon your graphics card. Check the specifications of your graphics card to determine its capabilities.
    A monitor with a Displayport input port.


    • Features

      • Compliant with DisplayPort 1.2
      • Splits or expands a DisplayPort audio/video signal on two DisplayPort monitors
      • Display the same image on each monitor, extend the desktop across them, or display in video wall mode where monitors are combined to display as one
      • Supports Ultra High Definition (UHD) video resolutions up to 4K @ 60Hz (3840 x 2160) - see System Requirements
      • Supports up to 48-bit Deep Color (16 bits per channel)
      • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
      • 3-year limited warranty

    • Specifications

      • Input
      • External Power Supply Input Specs (V / Hz / A): 100-240V, 50/60Hz, 0.5A
      • External Power Supply Output Specs (V / A): 5V, 2A
      • External Power Supply Cord Length (ft.): 4.5
      • External Power Supply DC Barrel Connector Specs: OD: 5.5 x 2.1 x 7.5mm, Positive Pin, Negative Sleeve
      • External Power Supply Plug(s): NEMA 1-15P North America
      • External Power Supply Certifications: FCC; UL; cUL

        User Interface, Alerts & Controls
      • LED Indicators: (x2) Orange (Monitor Signal); (x1) Green (Power)

        Physical
      • Color: Black
      • Material of Construction: Metal
      • Rackmountable: No
      • Shipping Dimensions (hwd / in.): 7.20 x 6.50 x 2.20
      • Shipping Weight (lbs.): 1.00
      • Unit Dimensions (hwd / in.): 3.6 x 5.3 x 1.0
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.86

        Environmental
      • Operating Temperature Range: 14 to 167 °F (-10 to 75 °C)
      • Storage Temperature Range: -4 to 176 °F (-20 to 80 °C)
      • Relative Humidity: 0% to 85%, Non-Condensing
      • BTUs: 11.92 BTU/Hr
      • Power Consumption (Watts): 3.5W

        Connections
      • Ports: 2
      • Side A - Connector 1: DISPLAYPORT (FEMALE)
      • Side B - Connector 1: (2) DISPLAYPORT (FEMALE)
      • Connector Plating: Nickel
      • Contact Plating: Gold

        Features & Specifications
      • Max Supported Video Resolution: 4K @ 60Hz (3840 x 2160)
      • Displayport Specification: 1.2
      • HDCP Specification: 1.3
      • Audio Specification: DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
      • Driver Required: No
      • Max Supported Color Depth: 48-bit Deep Color
      • EDID Compatible: Yes
      • 3D Video Supported: Yes
      • Technology: DisplayPort

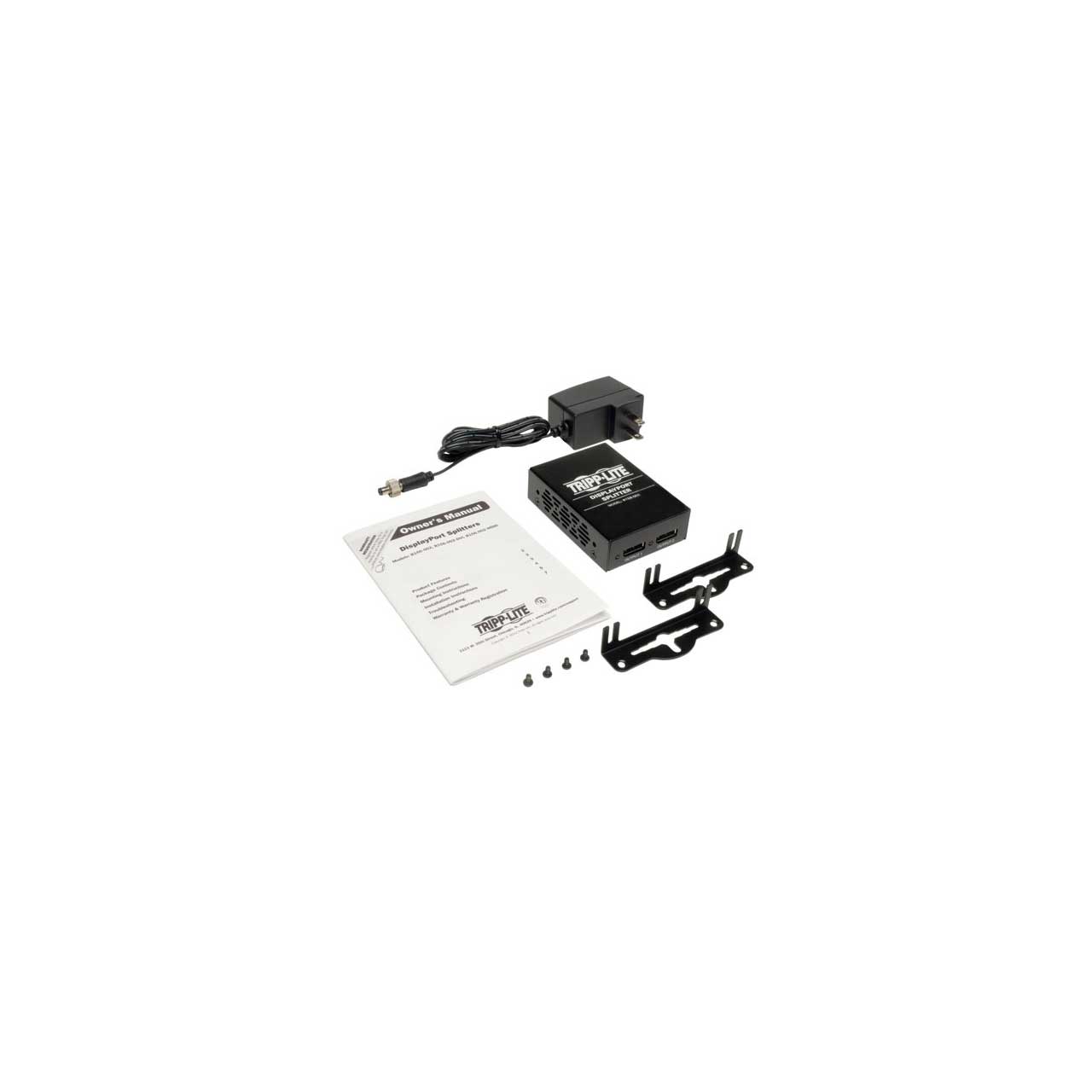

    • Item Includes

      • 1x B156-002 Multi-Display Splitter/Expander
      • 1x Mounting hardware
      • 1x Bracket (for wall-, rack- or pole-mounting)
      • 1x External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)

    • Warranty

      • 3-year limited warranty

    • GTIN:

      0037332175878
