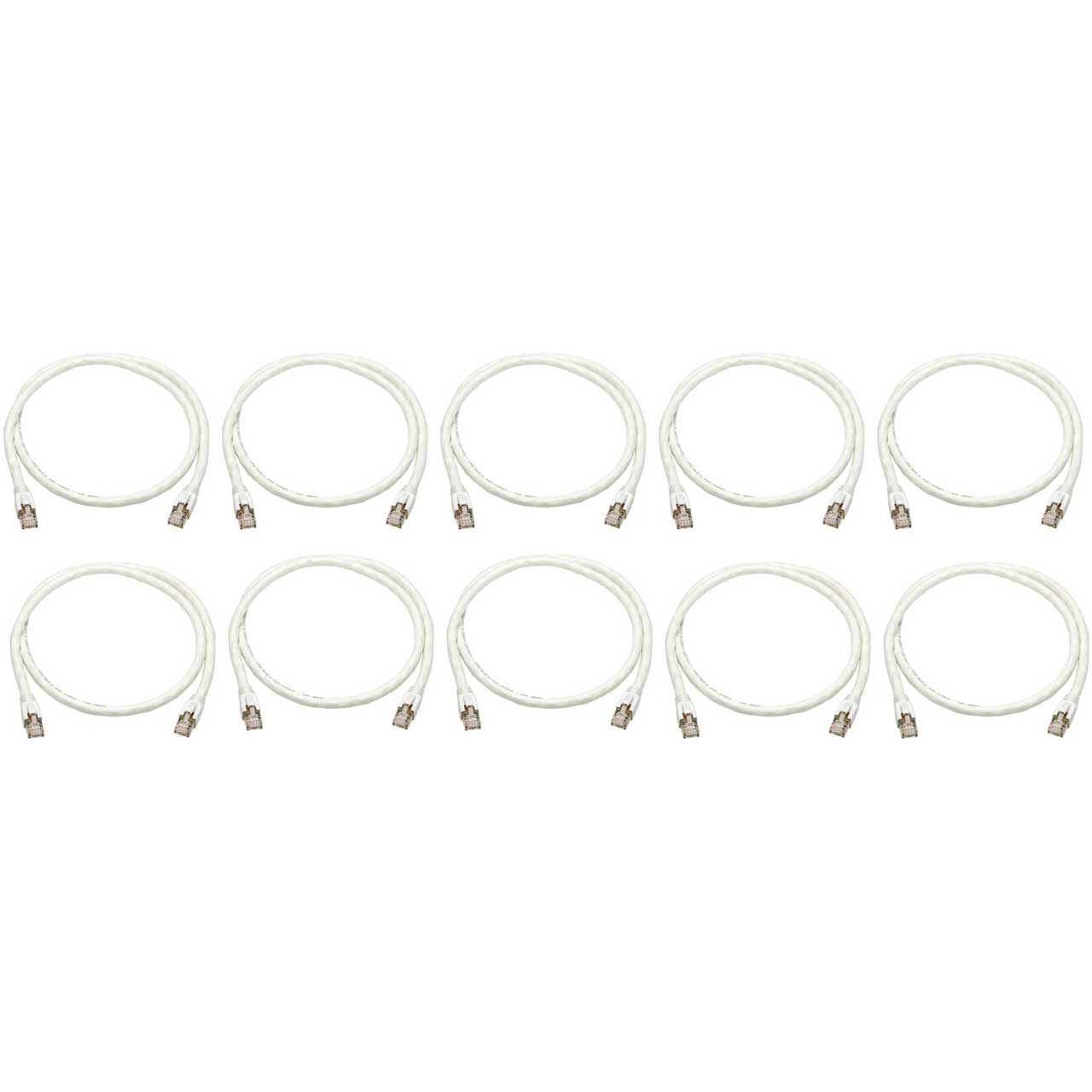

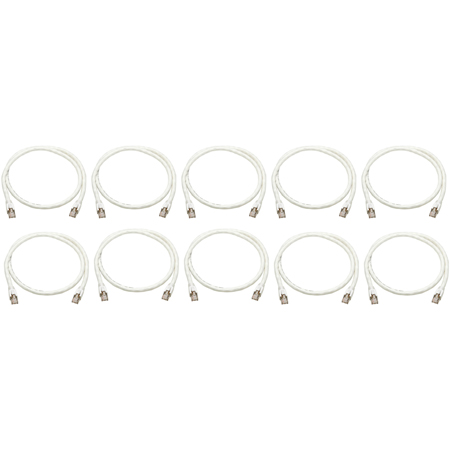

Tripp Lite N272-030-WH Cat8 25G/40G-Certified Snagless Shielded Ethernet Cable - White - 30-Foot - 10 Pack

ITEM #: TRL-N272030WE10 MFG #: N272-030-WH

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1,834.50

Our Price:

$850.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N272-030-WH - Overview

    High-Speed Cat8 S/FTP Patch Cable Up to 4 Times Faster Than Cat6a
    This certified Cat8 cable transmits 40 Gbps data, voice and audio/video through high-speed 40G equipment, including network switches, modems, routers, adapters, hubs and patch panels. Not only is its 40 Gbps data transfer speed four times that of Cat6a cable, but this Cat8 cable also supports bandwidth up to 2 GHz (2000 MHz) for carrying information and streaming video with no lag.

    Supports Power over Ethernet (PoE) to Cut Down on Power Supplies
    Because this Cat8 shielded cable supports PoE, it can supply the power to operate compatible PoE devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.

    Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
    EMI (electromagnetic interference) and RFI (radio frequency interference) line noise is a common cause of performance problems. The 22 AWG S/FTP (shielded foiled twisted pair) cable’s foil shielding blocks disruptive line noise that can disturb your electronics and inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer. Near-end crosstalk (NEXT) levels are practically eliminated, so you don’t have to worry about keeping your cables separated in crowded pathways or spend valuable time on field testing.

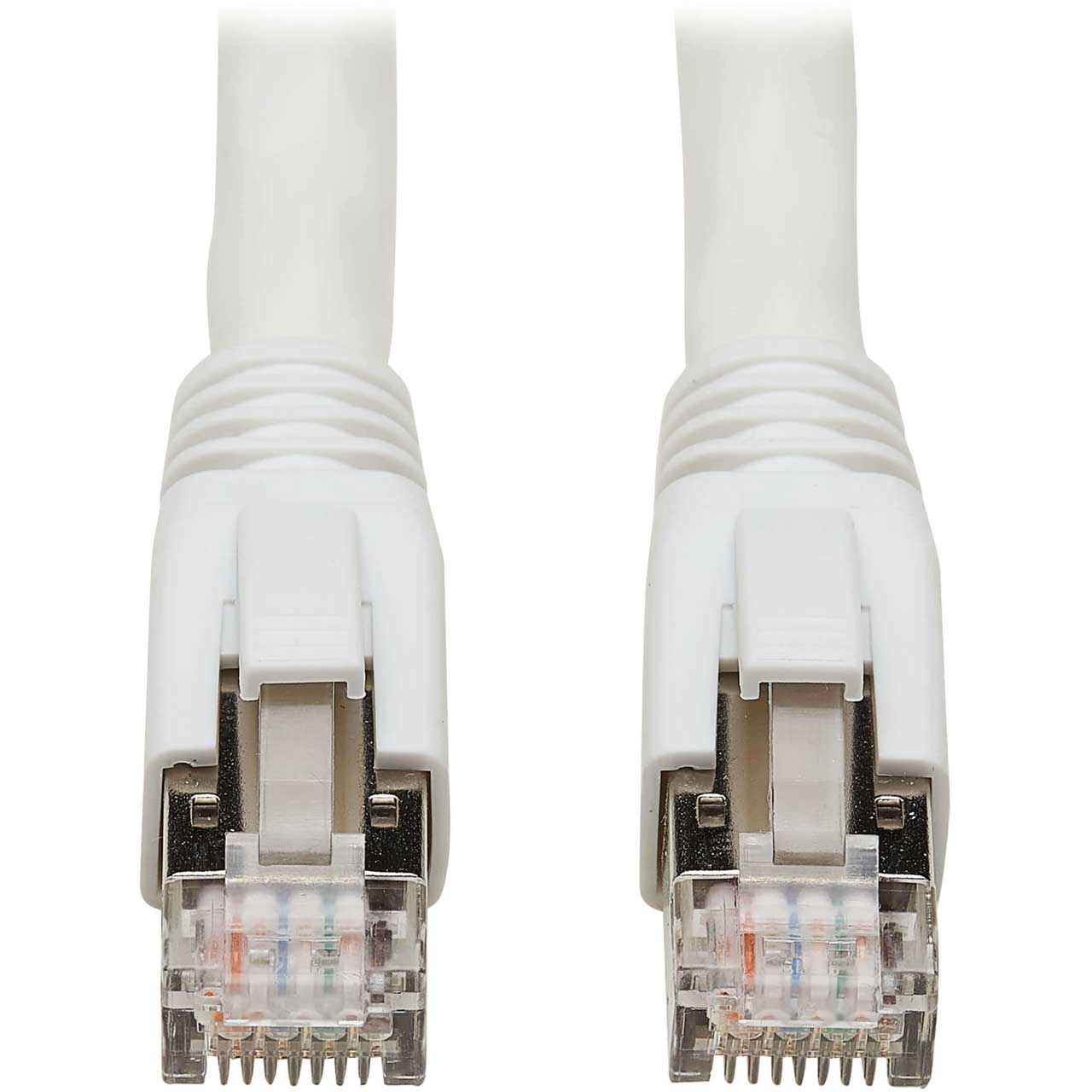

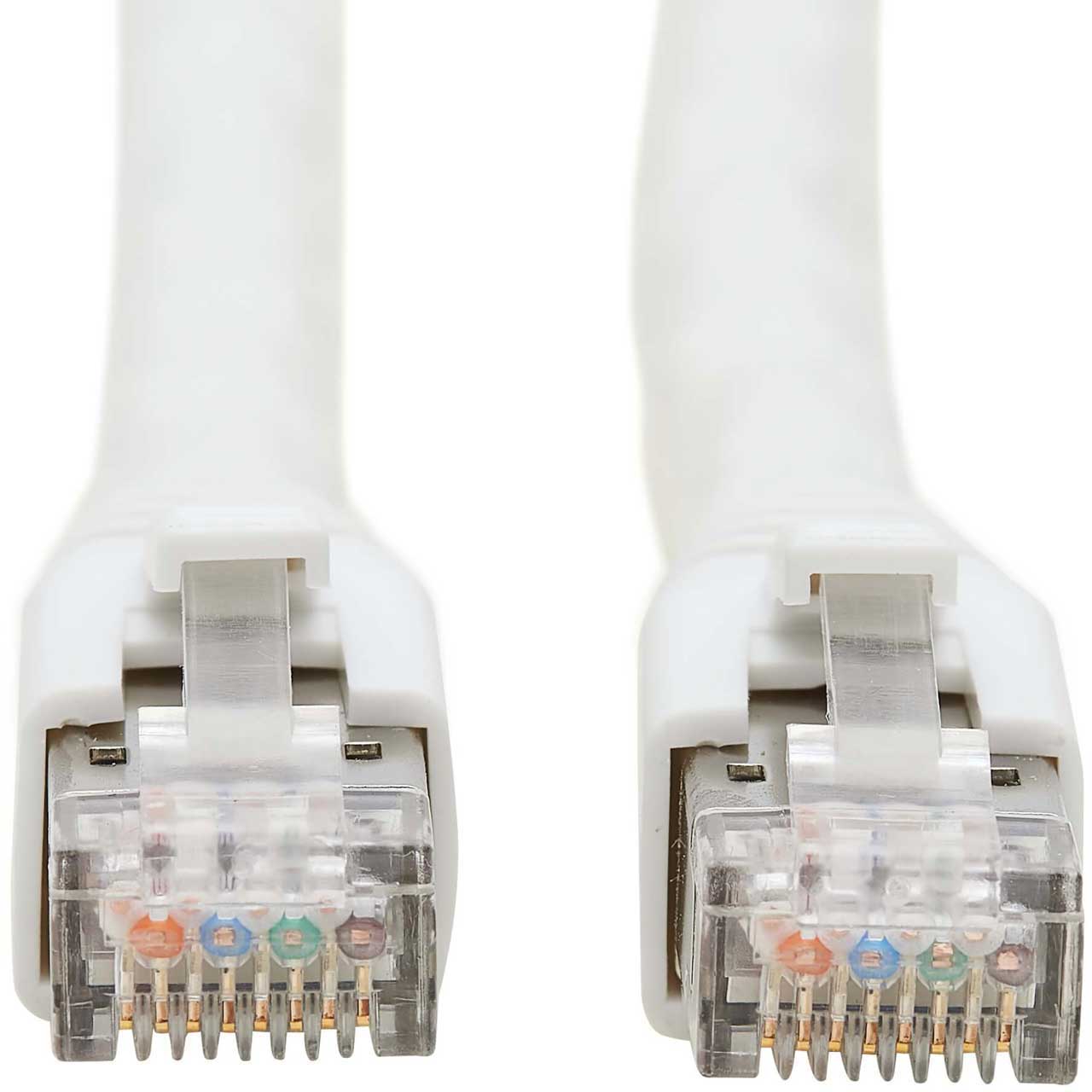

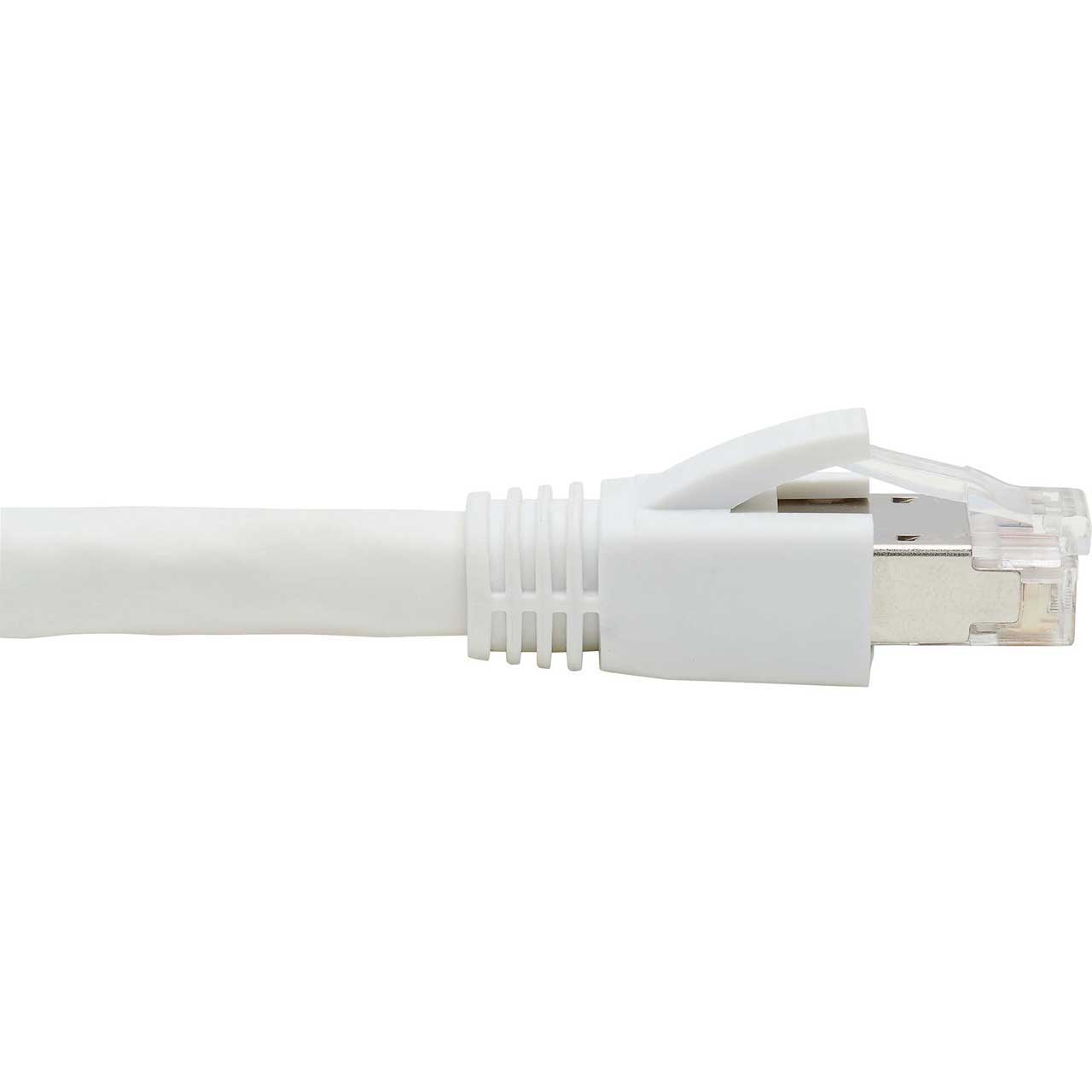

    Snagless RJ45 Male Connectors Add Extra Protection During Installation
    The RJ45 connectors’ snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief provides extra flexibility, reduces stress and helps the cable move freely without cracking or breaking loose from the connector.

    Color-Coded to Avoid Misidentification That Can Cause Costly Downtime
    This Cat8 patch cable features a durable white PVC jacket. The color-coding allows easy, fast identification in a crowded rack, patch panel or workstation, preventing the cable from becoming accidentally disconnected.

    • Features:

      • Certified Cat8 S/FTP patch cord rated for 40 Gbps networks-4x faster than Cat6a
      • Supports PoE to save you expense and effort of powering PoE devices individually
      • Dispels EMI/RFI line noise that can destroy data and affect equipment performance
      • Snagless RJ45 connectors prevent tabs from being damaged during installation
      • White PVC jacket allows fast, easy identification in a crowded rack or workstation

    • Specifications:

      • Physical
      • Cable Jacket Color: White
      • Cable Jacket Material: PVC
      • Cable Jacket Rating: CM
      • Cable Shielding: S/FTP
      • Cable Outer Diameter (OD): 8.0 mm
      • Number of Conductors: 4 Pair
      • Conductor Material: Solid Copper
      • Conductor Gauge: 22 AWG
      • Cable Length: 30'

      • Environmental
      • Operating Temperature Range: 14° to 122°F (-10° to 50°C)
      • Storage Temperature Range: 5° to 140°F (-15° to 60°C)
      • Relative Humidity: 0% to 90% RH, Non-Condensing

        Communications
      • Bandwidth per TIA Standard: 1000 MHz
      • Maximum Bandwidth as Tested: 1200 MHz
      • Network Compatibility: 40 Gbps
      • IEEE Standards Supported: 802.3bt

        Connections
      • PoE Capability: 60W (802.3bt)
      • Side A - Connector 1: RJ45 (MALE)
      • Side B - Connector 1: RJ45 (MALE)
      • Connector Plating: Nickel
      • Contact Plating: Gold
      • PoE Type: Type 3 PoE++/UPoE (60W, IEEE 802.3bt)
      • Connector Type: Snagless
      • Wiring Configuration: EIA/TIA 568B

        Features & Specifications
      • Snagless Connector: Yes

        Standards & Compliance
      • Product Certifications:
        UL Listed
        cUL Listed
      • Product Compliance:
        CE (Europe)
        RoHS
        IEEE 802.3bt PoE++
        REACH
        UKCA
        Trade Agreements Act (TAA)

    • Item Includes:

      • 10x N272-030-WH 30-Foot Cable White

    • Warranty:

      • Lifetime limited warranty

    • GTIN:

      0037332256362
