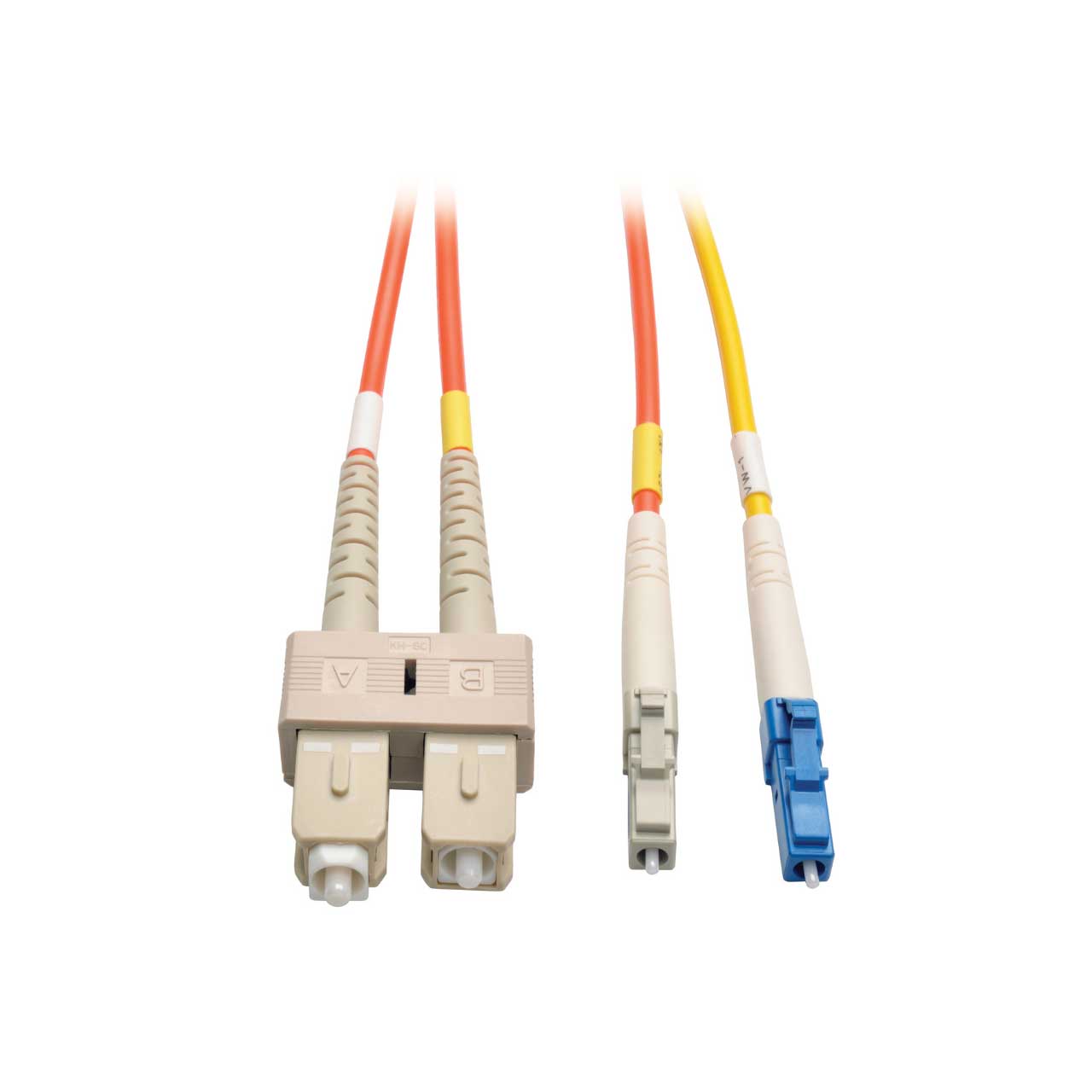

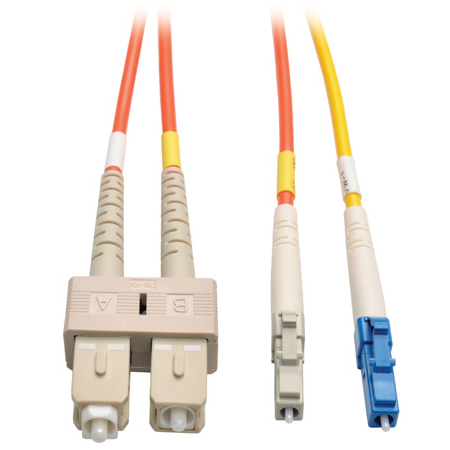

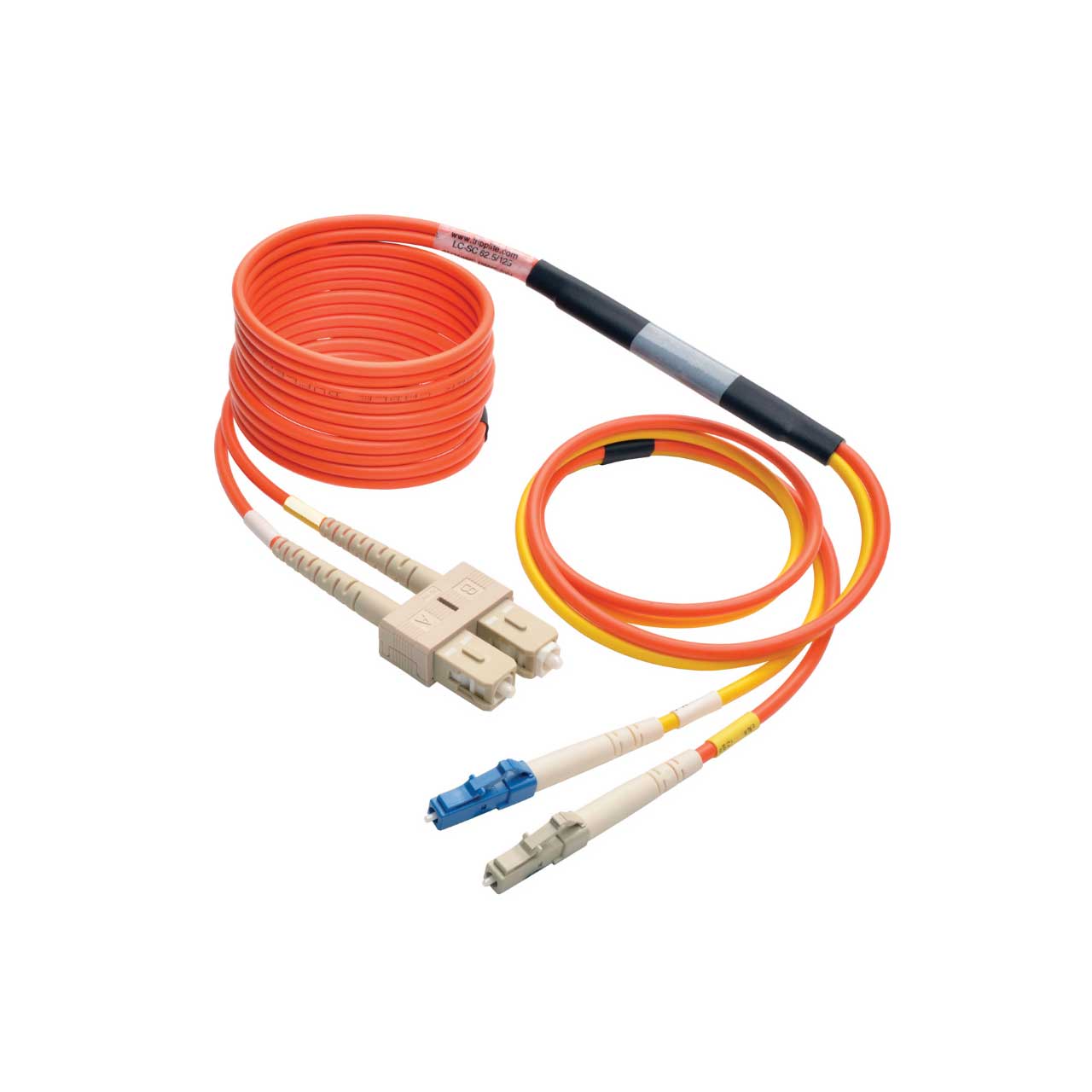

Tripp Lite N425-03M Fiber Optic Mode Conditioning Patch Cable (LC Mode Conditioning to SC) 10 Feet

ITEM #: TRL-N425-03M MFG #: N425-03M

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$72.00

Our Price:

$57.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    N425-03M - Overview

    Tripp Lites Mode Conditioning Cables are designed for use in Gigabit Ethernet 1000BASE-LX applications. N425-Series cables convert a Singlemode LC GBIC to an SC Multimode patch bay. They are fully compliant with IEEE 802.3z application standards. Mode Conditioning Cables are needed in applications where high-speed Gigabit 1000BASE-LX routers and switches are being deployed into existing Multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber.

    These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.

    • Features:

      • Converts Singelemode LC GBIC to Multimode SC Patch Panel
      • Run 1000Base-LX Gigabit Ethernet over MMF by offsetting signal loss
      • Use LC GBIC Singlemode Transceivers on Multimode Fiber Backbones with SC patch bays
      • 62.5/125 and 8.3/125
      • Offsets the Singlemode Laser launch from the center of a Multimode fiber
      • Available in a variety of connector combinations

    • Specifications:

      • Cable Length (ft.): 9.8
      • Cable Length (m): 3
      • Color: Orange; Yellow
      • Side A - Connector 1: LC DUPLEX (MALE)
      • Side B - Connector 1: SC DUPLEX (MALE)
      • Product Warranty Period (Worldwide): Lifetime limited warranty

    • Item Includes:

      • LC Mode Conditioning to SC Fiber Optic Patch Cable, 10-foot

    • Warranty:

      • Lifetime

    • GTIN:

      0037332167798
