Tripp Lite PDU3XEVN6G20 3-Phase PDU Monitored 11.5kW 220/230/240V 42 C13- 6 C19 16/20A

ITEM #: TRL-PDU3XEVN6G20 MFG #: PDU3XEVN6G20

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


PDU3XEVN6G20 - Overview

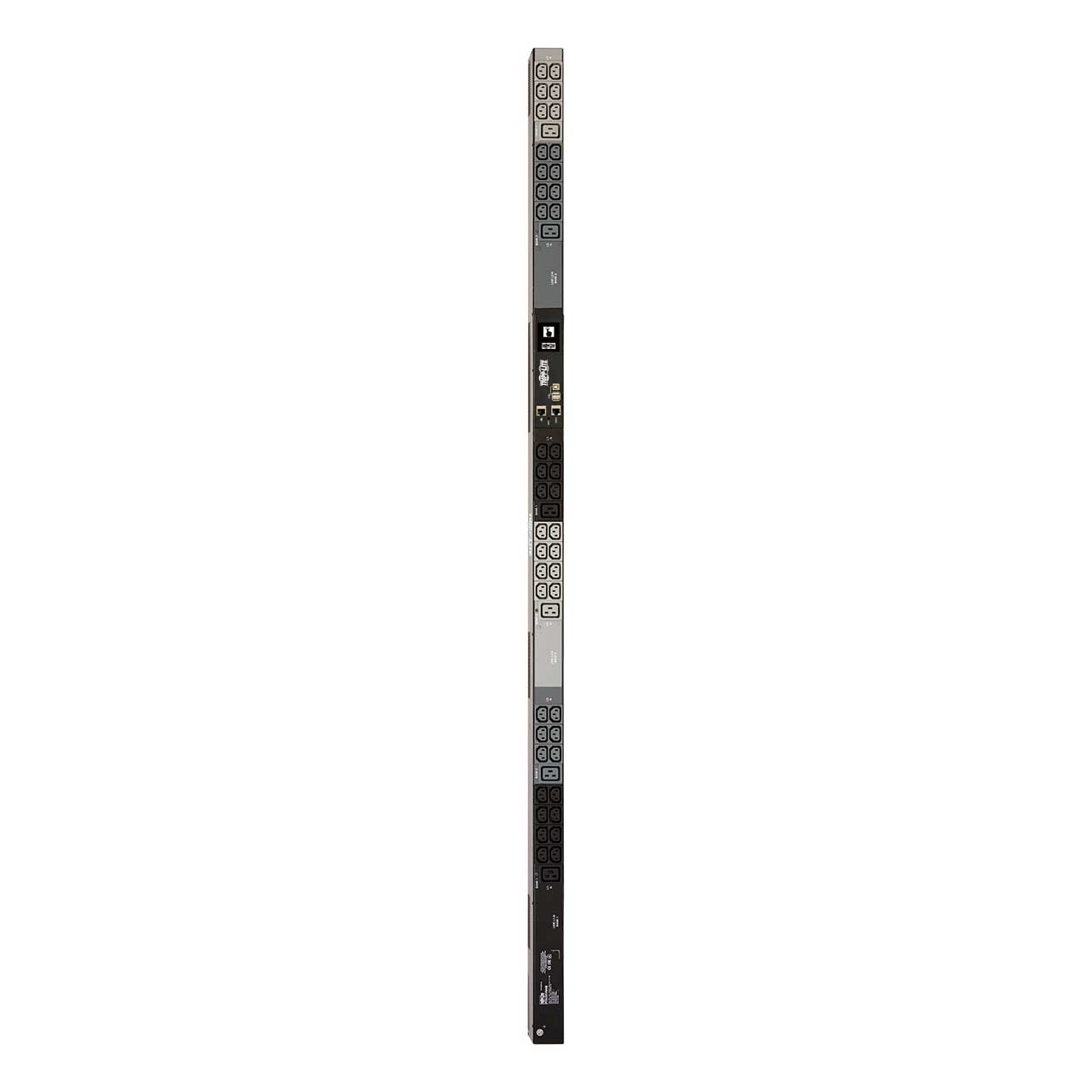

3-Phase PDU Distributes and Monitors Network-Grade Power
This monitored PDU provides real-time remote monitoring of voltage and load levels via its built-in network interface. Ideal for data centers, server rooms and high-density network closets, the PDU3XEVN6G20 features 42 C13 and six C19 220/230/240V outlets in three load banks, which distribute AC power to rack equipment. Each load bank is accompanied by an LED that illuminates green when it is ready to distribute power. The banks can be individually monitored to ensure proper load balance and prevent downtime. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100/1000 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The monitored PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

  • Features:

    • 42 C13 and 6 C19 220/230/240V outlets distribute AC power to connected equipment
    • Built-in Java-free HTML5-based LX Platform interface allows you 24/7 remote access

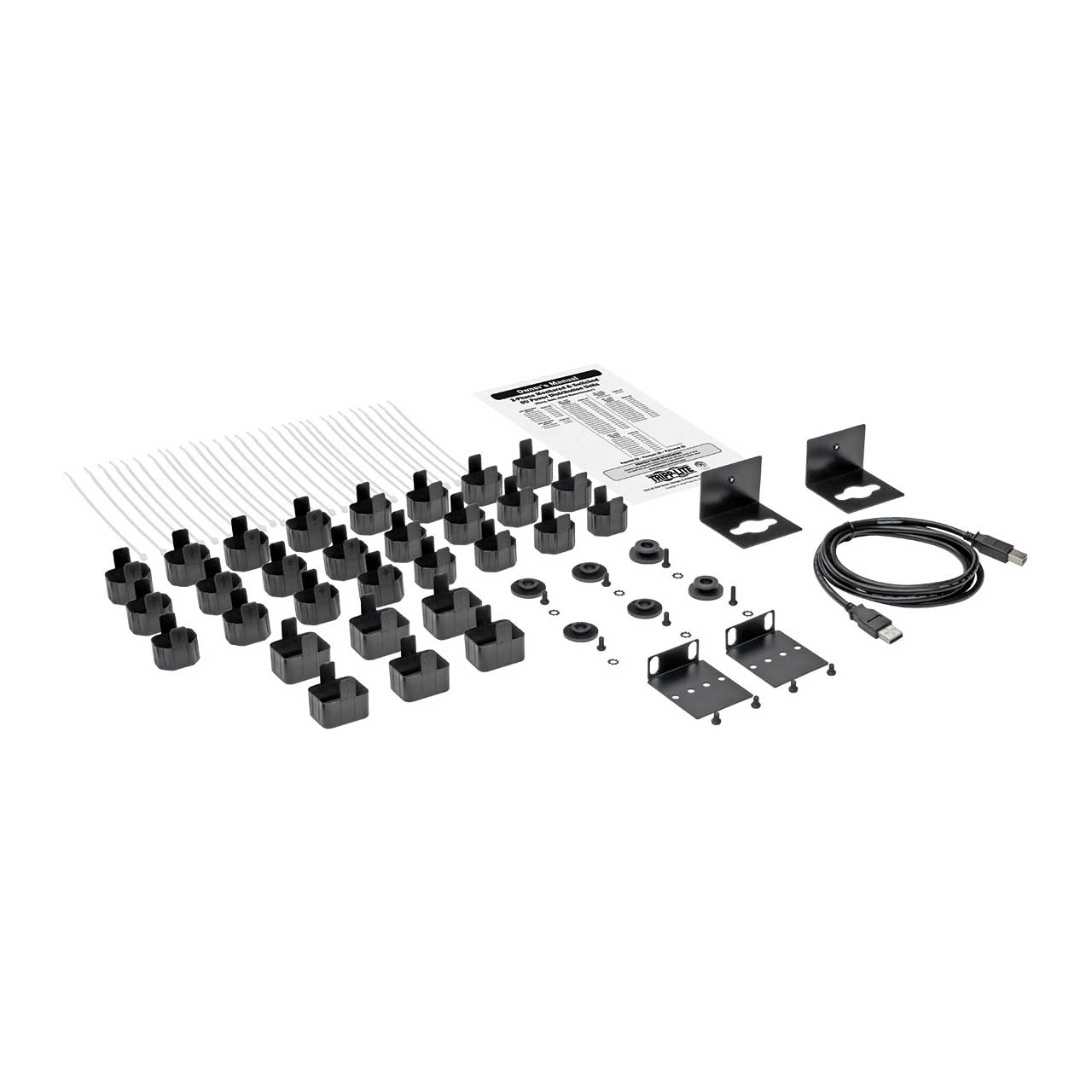

    • Installs in 0U of rack space in standard 19 in. racks using included mounting hardware

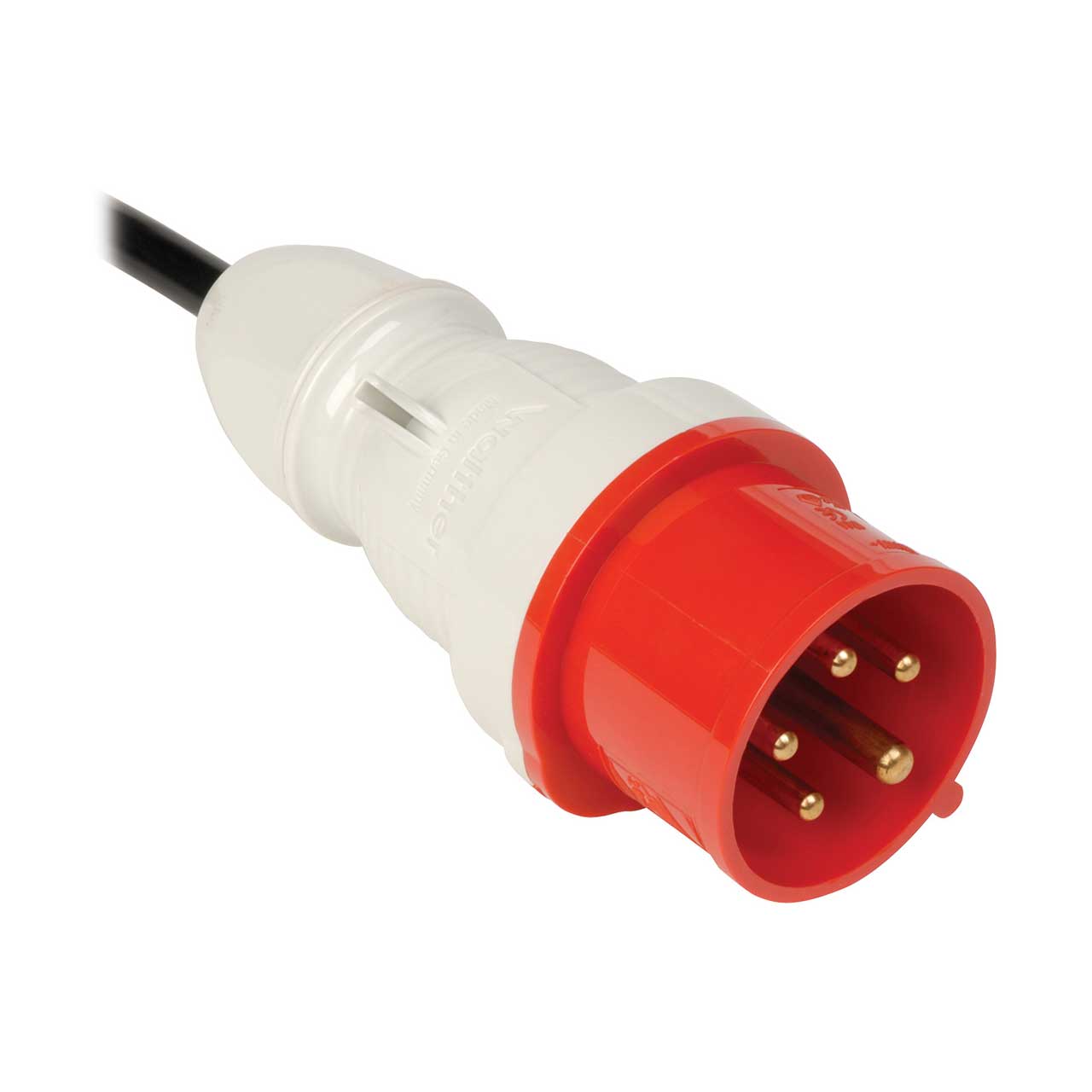

    • 6 ft. cord with IEC 309 16/20A Red (3P+N+E) 3-phase input connects to AC power source
    • Color touchscreen LCD provides current levels, environmental data and network info
    • 2-year limited warranty

  • Specifications:

    • Output
    • Frequency Compatibility: 50 / 60 Hz
    • Output Capacity Details: 11.5kW (415/240V), 11.1kW (400/230V), 10.5kW (380/220V) total capacity; 16A max per outlet bank (L1-N, L2-N, L3-N); 16A max per C19 outlet; 12A max (10A CE) max per C13 outlet
    • Output Receptacles: (42) C13; (6) C19
    • Output Nominal Voltage: 220 (380V input); 230 (400V input); 240 (415V input)
    • Overload Protection: n/a

      Input
    • PDU Input Voltage: 380; 400; 415
    • Recommended Electrical Service: 16A 400/230V, 380/220V with IEC309 16A Red (3P+N+E) outlet; 20A 415/240V with IEC309 20A Red (3P+N+E) outlet
    • Maximum Input Amps: 16
    • PDU Plug Type: IEC-309 16/20A RED (3P+N+E)
    • Input Phase: 3-Phase
    • Input Cord Details: 11GA / 4mm2 (SOOW/ H07RN-F); IP44 Splashproof connector
    • Input Cord Length (ft.): 6

      User Interface, Alerts & Controls

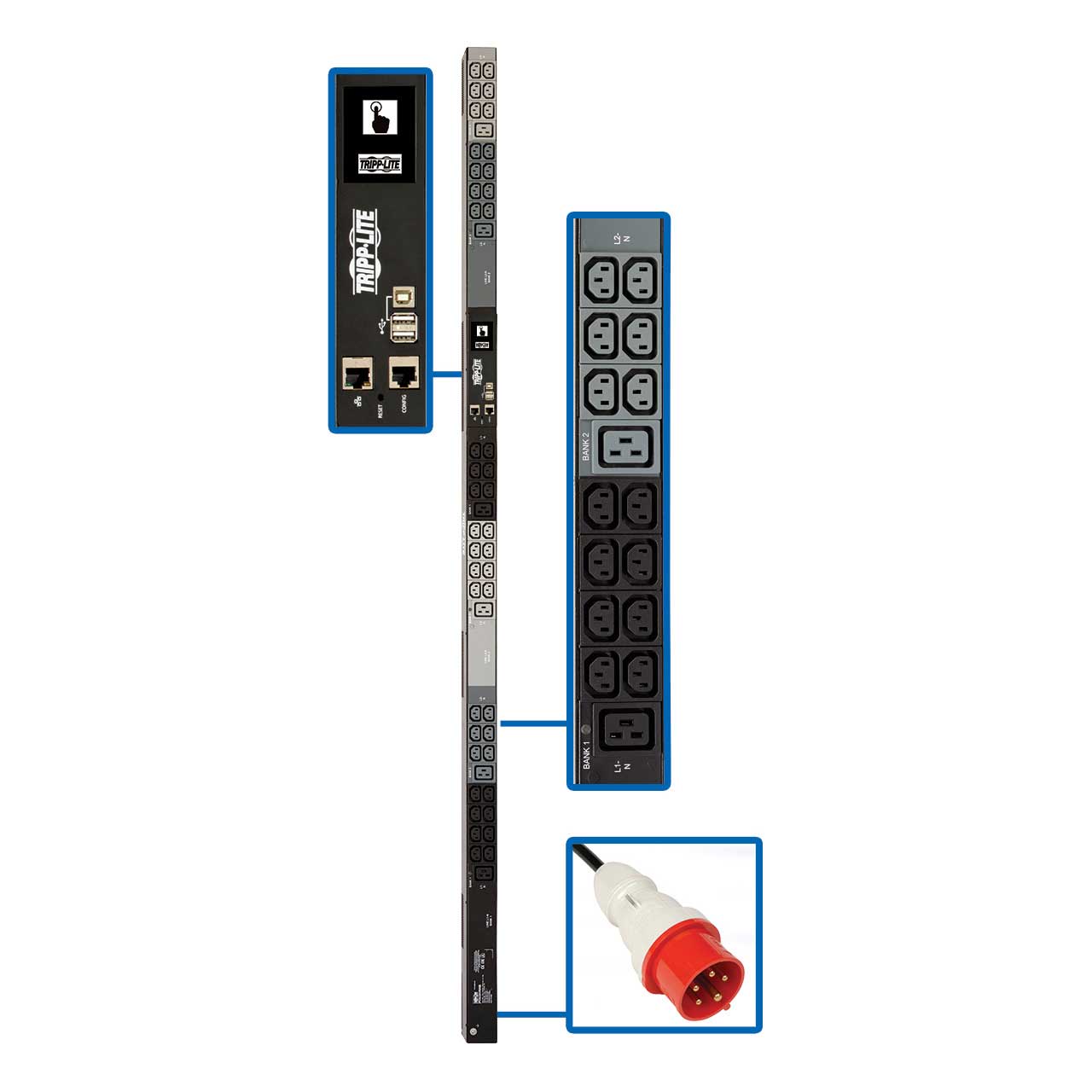

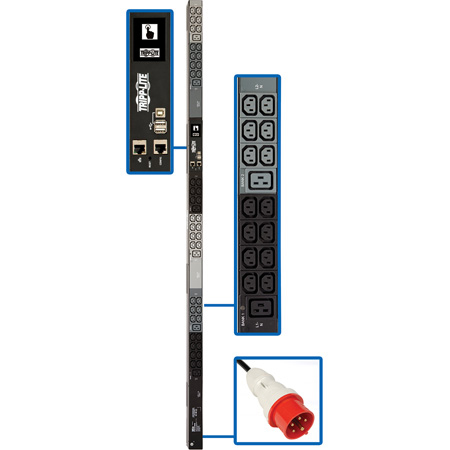

    • Reported Load Segments: Supports monitoring of current per input phase (L1, L2, L3) and output current per load bank (Banks 1-3); Outlets are color-coded and labeled for phase and load bank identification; L1-L2 powers light gray outlets (Bank 1); L2-L3 powers black outlets (Bank 2); L3-L1 powers dark-gray outlets (Bank 3)
    • Front Panel LCD Display: Touchscreen LCD reports NETWORK DATA (IP address, Subnet Mask, Gateway, MAC Address, Device Name, Model, Serial Number), INPUT PHASE DATA (Amperage, Wattage, Voltage per phase, plus Unbalance percentage), LOAD BANK DATA (Amperage, Wattage, Voltage per load bank, plus total PDU output in watts), CONFIGURATION DATA (Listing of current configuration settings), ENVIRONMENTAL DATA (Reports data and status of E2 sensor modules; Sensor options are available for temperature and humidity, plus input and output dry contacts), MOBILE ACCESS (Generates a unique QR code to view reported PDU details on a mobile device)
    • Front Panel LEDs: One LED per output load bank (Bank 1, Bank 2, Bank 3); GREEN (Power On), YELLOW (Warning condition), Red (Critical warning condition)
    • Current Measurement Accuracy (Amps): +/-1%
    • Voltage Measurement Accuracy (Volts): +/-1%
    • Power Measurement Accuracy (Watts): +/-1%

      Physical
    • Shipping Dimensions (hwd / in.): 75.87 x 9.65 x 6.89
    • Unit Dimensions (hwd / in.): 70 x 2.17 x 2.86
    • Unit Weight (lbs.): 13.49
    • Material of Construction: Metal
    • Form Factors Supported: Vertical rackmount installation supported with included mounting brackets; supports toolless mounting in button-mount compatible racks
    • PDU Form Factor: Vertical (0U)

      Environmental
    • Operating Temperature Range: 32 to 122F (0 to 50C)
    • Storage Temperature Range: 5 to 140F (-15C to 60C)
    • Relative Humidity: 5 to 95% non-condensing
    • Operating Elevation (ft.): 0-10,000
    • Operating Elevation (m): 0-3000

      Communications
    • SNMP Compatibility: Pre-installed LX platform network interface

      Certifications
    • Certifications: Tested to UL 60950-1:2007 R12.11, IEC 60950-1:2005+A1:2009 (USA), CAN/CSA-C22.0 No 60950-1-07-A1:2011 (Canada), NOM (Mexico), CE (EN 60950-1), CE / FCC Class A (Emissions), RoHS (Hazardous Substances), TAA Compliant

  • Warranty:

    • 2-year limited warranty

  • GTIN:

    0037332206923
