Tripp Lite PDUV30 PDU Basic 24 5-15/20R L5-30P 2.9kW 120V - 10 Foot Cord/63.75 Inch 0U Rack

ITEM #: TRL-PDUV30 MFG #: PDUV30

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$490.46

Our Price:

$364.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Shipment of this item is subject to a separate oversized-package carrier surcharge.


PDUV30 - Overview

Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This Tripp Lite PDUV30 basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-size data centers, computer rooms and network closets, the PDUV30 features two breakered load banks, each with 12 NEMA 5-15/20R outlets for connecting equipment. A 10-foot cord with NEMA L5-30P input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.

Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected components from dangerous overloads.

Versatile Installation Options Give You Plenty of Choices

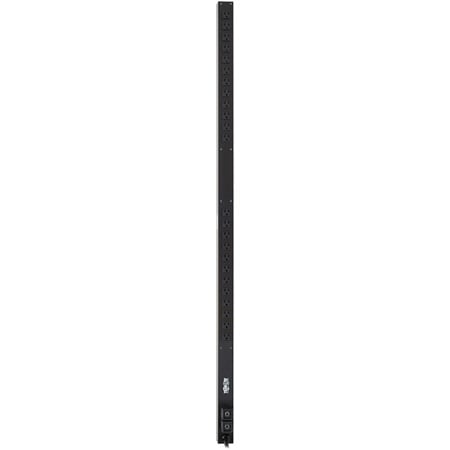

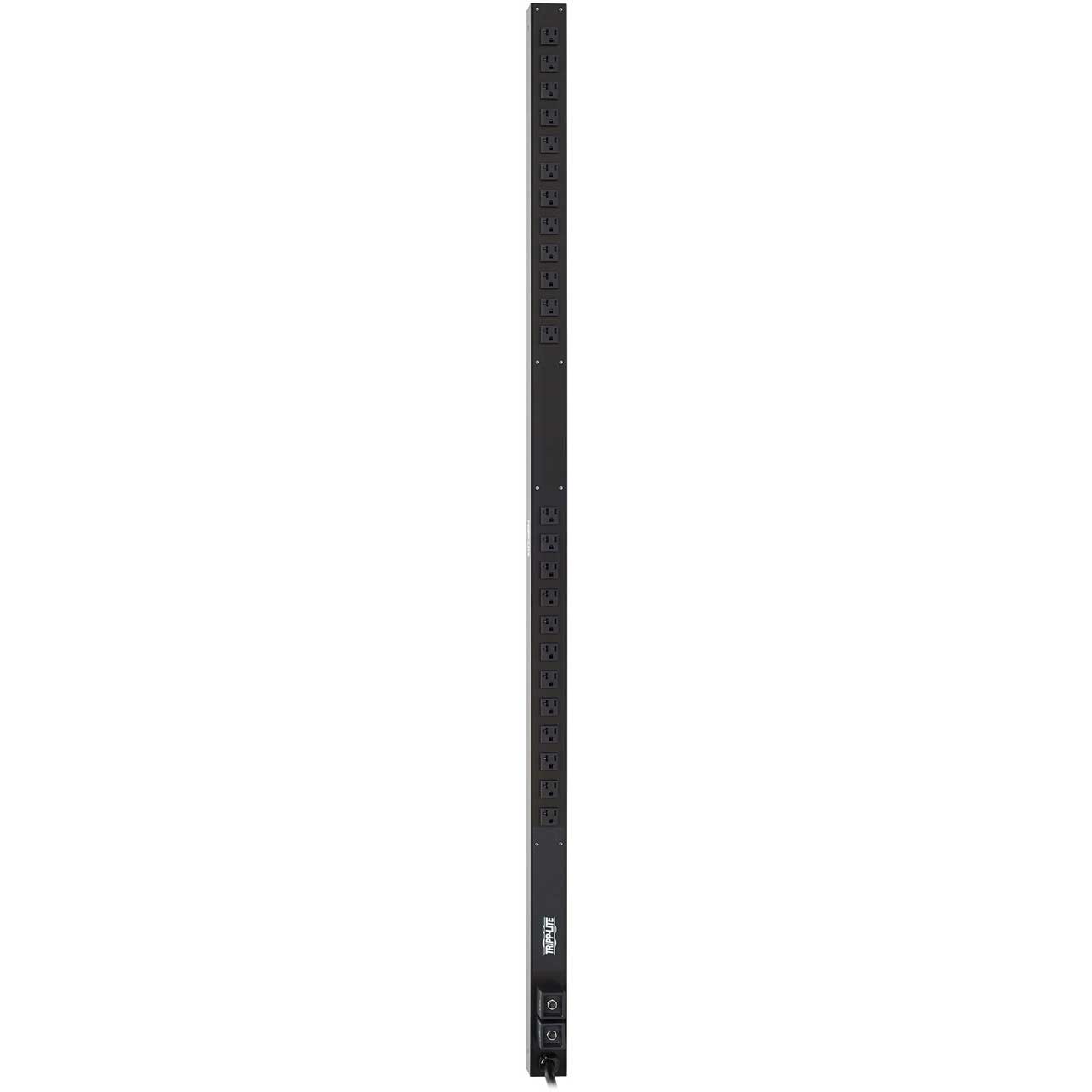

The 63.75-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.

Typical Applications
Deliver network-grade power to high-density equipment in networking, telecom, security, audio/video and sound reinforcement applications

  • Features:

    • Ideal no-frills PDU for telecom, security, audio/video and other network applications
    • 24 NEMA 5-15/20R outlets distribute AC power to connected equipment
    • Switchless design helps prevent accidental shutdowns that can lead to costly downtime
    • 10 ft. cord with NEMA L5-30P single-phase input connects to AC power source
    • 63.75 in. 0U PDU with included mounting hardware installs in rack or under counter
    • 2-year limited warranty

  • Specifications:

    • PDU Input Voltage: 100; 120; 127
    • Recommended Electrical Service: 30A 120V
    • Maximum Input Amps: 30
    • Maximum Input Amps Details: Agency de-rated to 24A continuous
    • PDU Plug Type: NEMA L5-30P
    • Input Phase: Single-Phase
    • Input Cord Length (ft.): 10
    • Output Capacity Details: 3.05kW (127V), 2.88kW (120V), 2.4kW (100V) / 30A total capacity (Agency de-rated 24A); 20A max per breakered load bank; 16A max per outlet
    • Frequency Compatibility: 50 / 60 Hz

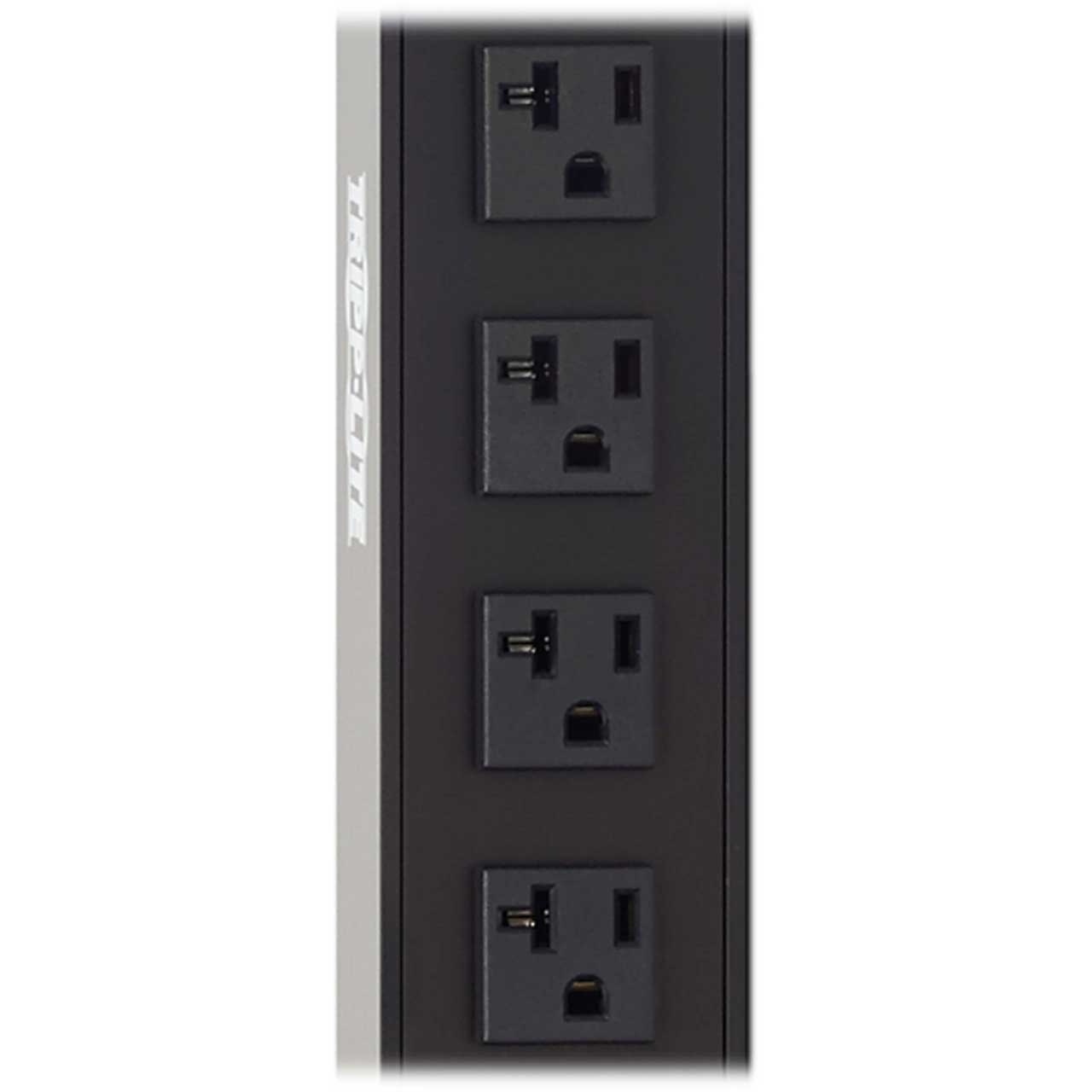

    • Output Receptacles: (24) 5-15/20R
    • Output Nominal Voltage: 100; 120; 127

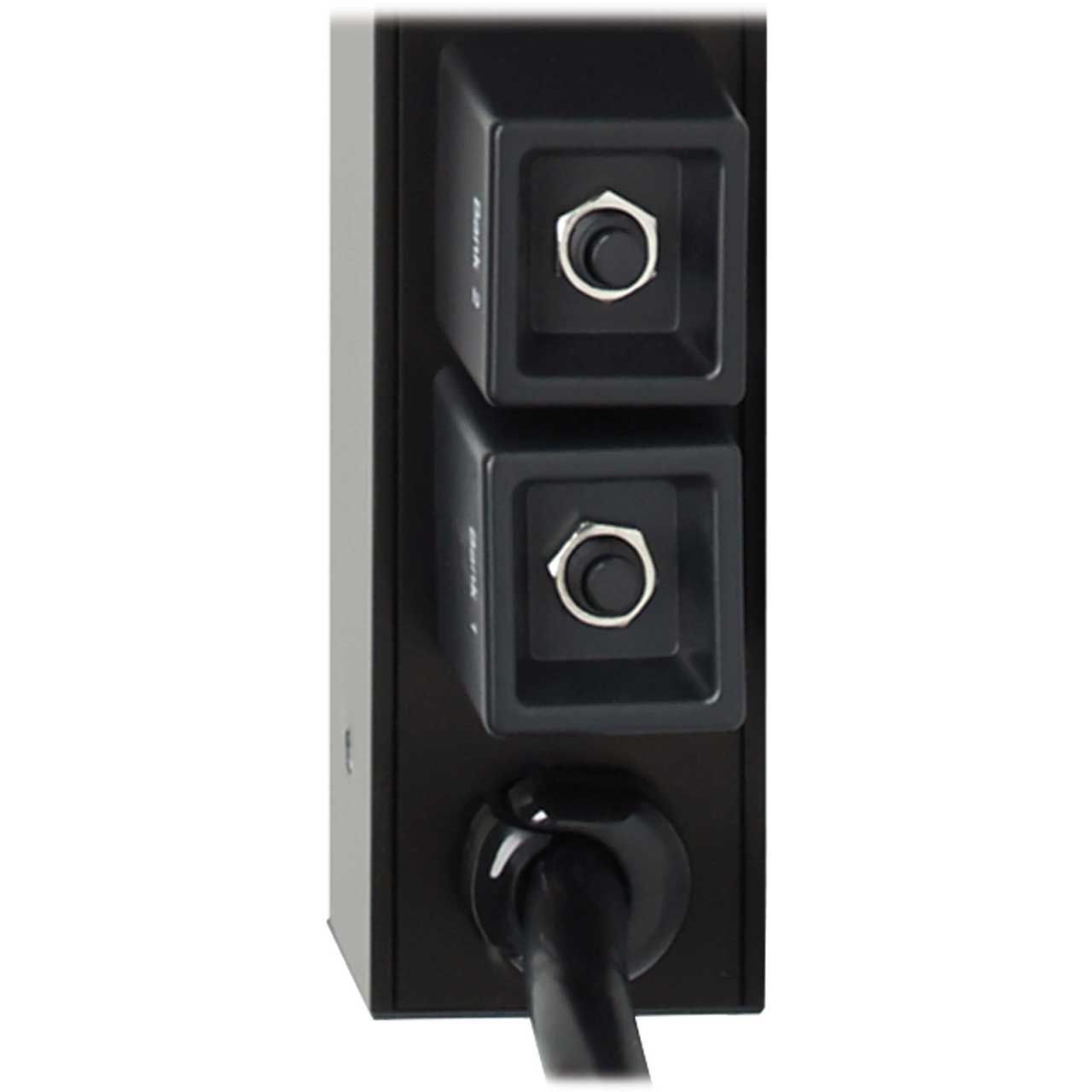

    • Overload Protection: Two 20A breakers protect 12 outlets each
    • Switches: n/a
    • Form Factors Supported: 0u vertical installation in equipment racks, plus under-counter and wallmount
    • Material of Construction: Aluminum
    • PDU Form Factor: Vertical (0U)
    • Shipping Dimensions (hwd / in.): 2.90 x 4.90 x 65.00
    • Unit Dimensions (hwd / in.): 63.75 x 2.25 x 3.75
    • Unit Weight (lbs.): 8
    • Storage Temperature Range: -30°C to +50°C (-22°F to +122°F)
    • Relative Humidity: 0-95% non-condensing
    • Certifications: Tested to UL60950-1 (USA, Canada), NOM (Mexico)
    • Certification Details: Series Number (s) AGPD6673; Safety Standards (Canada) CAN/CSA-C22.2 No. 60950-1:2007 (2nd Ed) +A1:2011 +A2:2014; Safety Standards (U.S.) UL60950-1:2007 (2nd Ed)+A1 R10.14; NOM, RETIE

  • Item Includes:

    • 1x PDUV30 2.9kW 120V Single-Phase Basic PDU
    • 2x Plug retention brackets with installation hardware
    • 1x Rack-mounting hardware
    • 1x Owner's manual

  • GTIN:

    0037332255792
