SMART1500XL - Overview

Tripp Lite's SMART 1500XL intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. Runtime is expandable with the addition of BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible) and BP36V27-2US (multi-pack compatible) external battery packs. 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types. Includes a total of 6 outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or to shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Notification of system status via 5 LEDs and multi-function audible alarms. Wall mountable with UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower housing uses less than 66 square inches of floor or desktop space.

  • Features:

    • 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types
    • Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
    • Runtime is expandable with the addition of BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible) and BP36V27-2US (multi-pack compatible) external battery packs
    • Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V

  • Specifications:

    • Output Volt Amp Capacity (VA) 1500
    • Output kVA Capacity (kVA) 1.5
    • Output Watt Capacity (Watts) 980
    • Power Factor 0.7
    • Nominal Output Voltage(s) Supported 120V
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Line Mode) -18%, +8%
    • Output Voltage Regulation (Battery Mode) +/- 5%

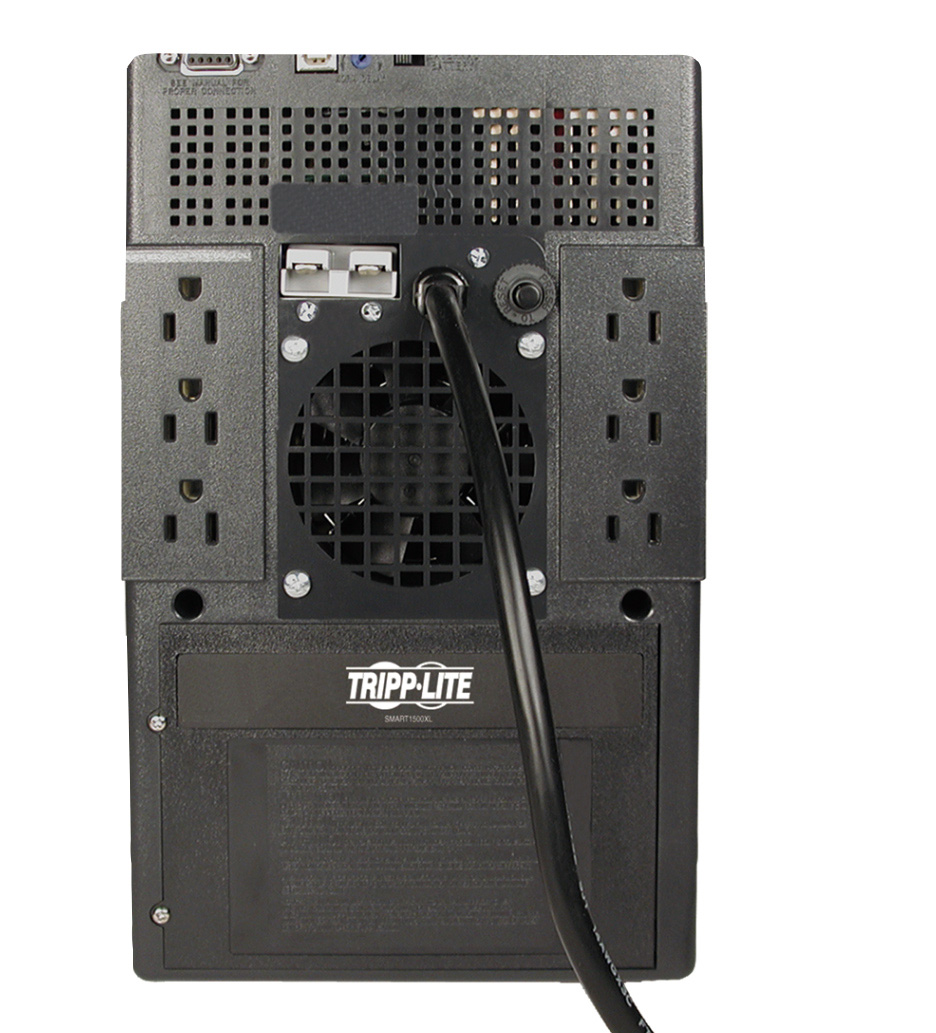

    • Output Receptacles (6) 5-15R
    • Load Management Receptacles One switchable single-outlet 5-15R load bank
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) PWM sine wave
    • Rated input current (Maximum Load) 12A
    • Nominal Input Voltage(s) Supported 120V AC
    • UPS Input Connection Type 5-15P
    • Input Circuit Breakers 15A
    • UPS Input Cord Length (ft.) 6
    • UPS Input Cord Length (m) 1.8
    • Recommended Electrical Service 15A 120V
    • Input Phase Single-Phase
    • Full Load Runtime (min.) 7 min. (980w)
    • Half Load Runtime (min.) 20 min. (490w)
    • Expandable Battery Runtime Extended runtime supported via optional external battery packs
    • External Battery Pack Compatibility BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27-2US (multi-pack compatible)
    • DC System Voltage (VDC) 36
    • Battery Recharge Rate (Included Batteries) Less than 4 hours from 10% to 90% (typical, full load discharge)
    • Internal UPS Replacement Battery Cartridge RBC53
    • Battery Access Battery access door
    • Battery Replacement Description Hot-swappable, user replaceable batteries
    • Voltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
    • Overvoltage Correction Input voltages between 128 and 147 are reduced by 12%
    • Undervoltage Correction Input voltages between 93 and 107 are boosted by 14%
    • Severe Undervoltage Correction Input voltages between 75 and 92 are boosted by 30%
    • Switches 2 Switches control off/on power status and alarm-cancel/self-test operation
    • Alarm Cancel Operation Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
    • Audible Alarm Audible alarm indicates power-failure, overload and low-battery conditions

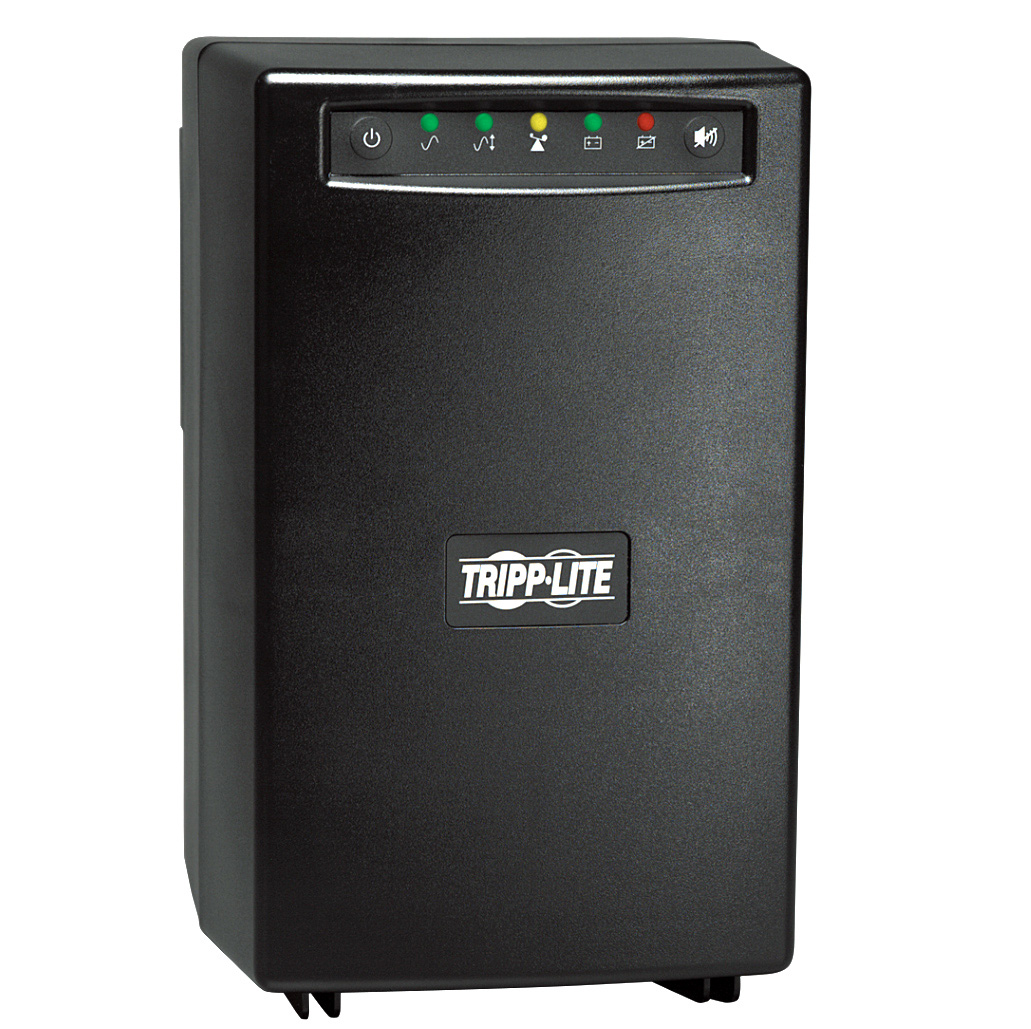

    • LED Indicators 5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
    • UPS AC Suppression Joule Rating 480
    • UPS AC Suppression Response Time Instantaneous
    • EMI / RFI AC Noise Suppression Yes
    • Installation Form Factors Supported with Optional Accessories Wallmount (UPSWM - tower mounting kit)
    • Primary Form Factor Tower
    • UPS Power Module Dimensions (hwd, in.) 12.8 x 7.5 x 9.5
    • UPS Power Module Dimensions (hwd, cm) 32.4 x 19 x 24.1
    • UPS Power Module Weight (lbs.) 41.6
    • UPS Power Module Weight (kg) 18.9
    • UPS Shipping Dimensions (hwd / in.) 18 x 11.8 x 13.5
    • UPS Shipping Dimensions (hwd / cm) 45.7 x 29.8 x 34.3
    • Shipping Weight (lbs.) 46.2
    • Shipping Weight (kg) 21
    • Cooling Method Fan
    • UPS Housing Material PVC
    • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load) 175.4
    • Battery Mode BTU / Hr. (Full Load) 454.4
    • AC Mode Efficiency Rating (100% Load) 0.95
    • Communications Interface USB; DB9 Serial
    • Network Monitoring Port Description Supports detailed monitoring of UPS and site power conditions
    • PowerAlert Software Included
    • Communications Cable USB and DB9 cabling included
    • WatchDog Compatibility Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Transfer Time 2-4 milliseconds
    • Low Voltage Transfer to Battery Power (Setpoint) 75
    • High Voltage Transfer to Battery Power (Setpoint) 147
    • Cold Start (Startup in Battery Mode During a Power Failure) Cold-start operation supported
    • High Availability UPS Features Hot swappable batteries
    • Green Energy-Saving Features Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
    • UPS Certifications Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
    • P

  • GTIN:

    0037332100689
