Tripp Lite B004-VUA2-K-R 2 Port KVM Switch (USB) Desktop with Audio & Cables

ITEM #: TRL-B004-VUA2KR MFG #: B004-VUA2-K-R

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    B004-VUA2-K-R - Overview

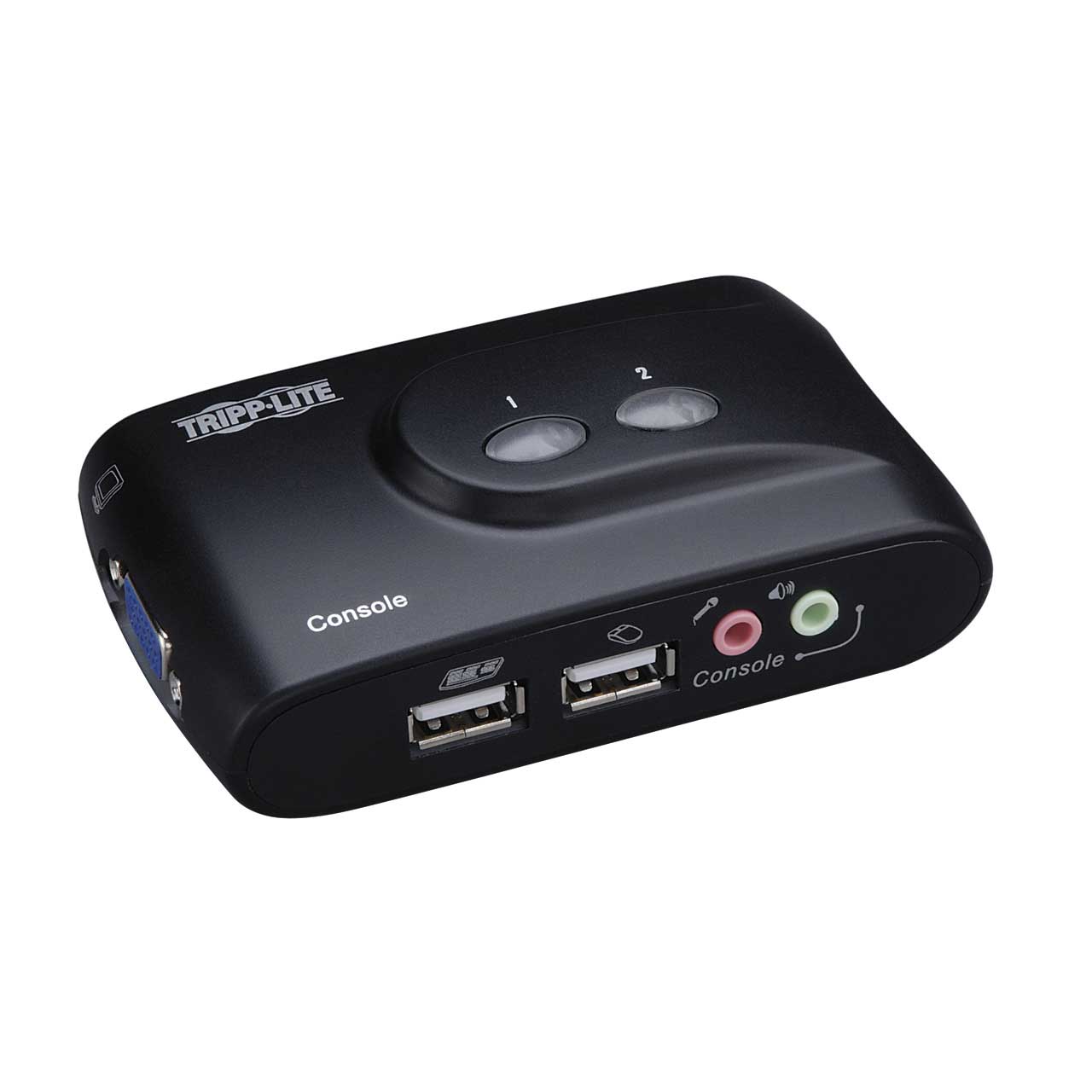

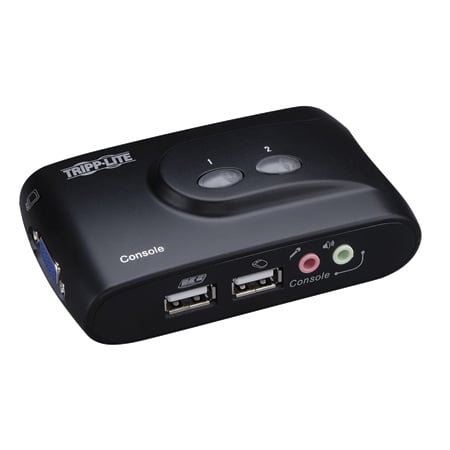

    The Tripp Lite B004-VUA2-K-R is a 2-port Compact USB KVM Switch with optional audio and microphone switching function. It allows you to access, control, boot and reboot two USB-enabled computers from a single console (keyboard, monitor and mouse). The independent audio/mic switching function allows an uninterrupted audio experience - you can continue listening to audio even when you switch to the other computer.

    It includes innovative, easy-to-use KVM Switcher Software for Windows and Macintosh platforms. A small client application facilitates your KVM switching operations such as computer selection, hot key sequence programming, auto-scanning, auto-scan delay time programming, independent or simultaneous audio/computer switching and more. Compatible with all major operating systems.

    • Features:

      • Fast, easy switching via keyboard hot keys, push buttons or software
      • Plug-and-play setup - no software required
      • Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers
      • Speaker and microphone connections allow sharing of audio components between systems (standard 3.5 mm audio connections)
      • Independent audio switching allows you to listen to audio from one computer while switching to the other computer
      • Supports video resolutions up to 2048 x 1536 (standard 15-pin VGA connectors)
      • Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice]
      • Compact design saves desk space
      • Does not require an AC adapter
      • Compatible with all major operating systems
      • Includes two, 6ft Cable Kits
    • Specifications:

      • System Requirements
      • Console: VGA, SVGA or Multisync Monitor, USB Keyboard and USB Mouse
      • Computers: VGA, SVGA or Multisync Monitor Port and USB Port
      • Audio (Optional): Speakers with standard 3.5 mm Connectors and a computer with 3.5mm ports
      • Compatible with all major operating systems

      • Bus Powered: Yes

        User Interface, Alerts & Controls
      • LED Indicators: Green (Selected PC)

      • Color: Black
      • Material of Construction: ABS
      • Shipping Dimensions (hwd / in.): 3.00 x 7.90 x 7.80
      • Shipping Weight (lbs.): 1.80
      • Unit Dimensions (hwd / in.): 1.3 x 4 x 2.6
      • Unit Packaging Type: Box
      • Unit Weight (lbs.): 0.22

      • Operating Temperature Range: 32 to 104 F (0 to 40 C)
      • Storage Temperature Range: -4 to 140 F (-20 to 60 C)
      • Relative Humidity: 0%-90% RH, Non-Condensing
      • BTUs: 1.7 BTU/Hr
      • Power Consumption (Watts): 0.5

      • IP Remote Access: No

      • Ports: 2
      • PC/Server Connections: USB; VGA

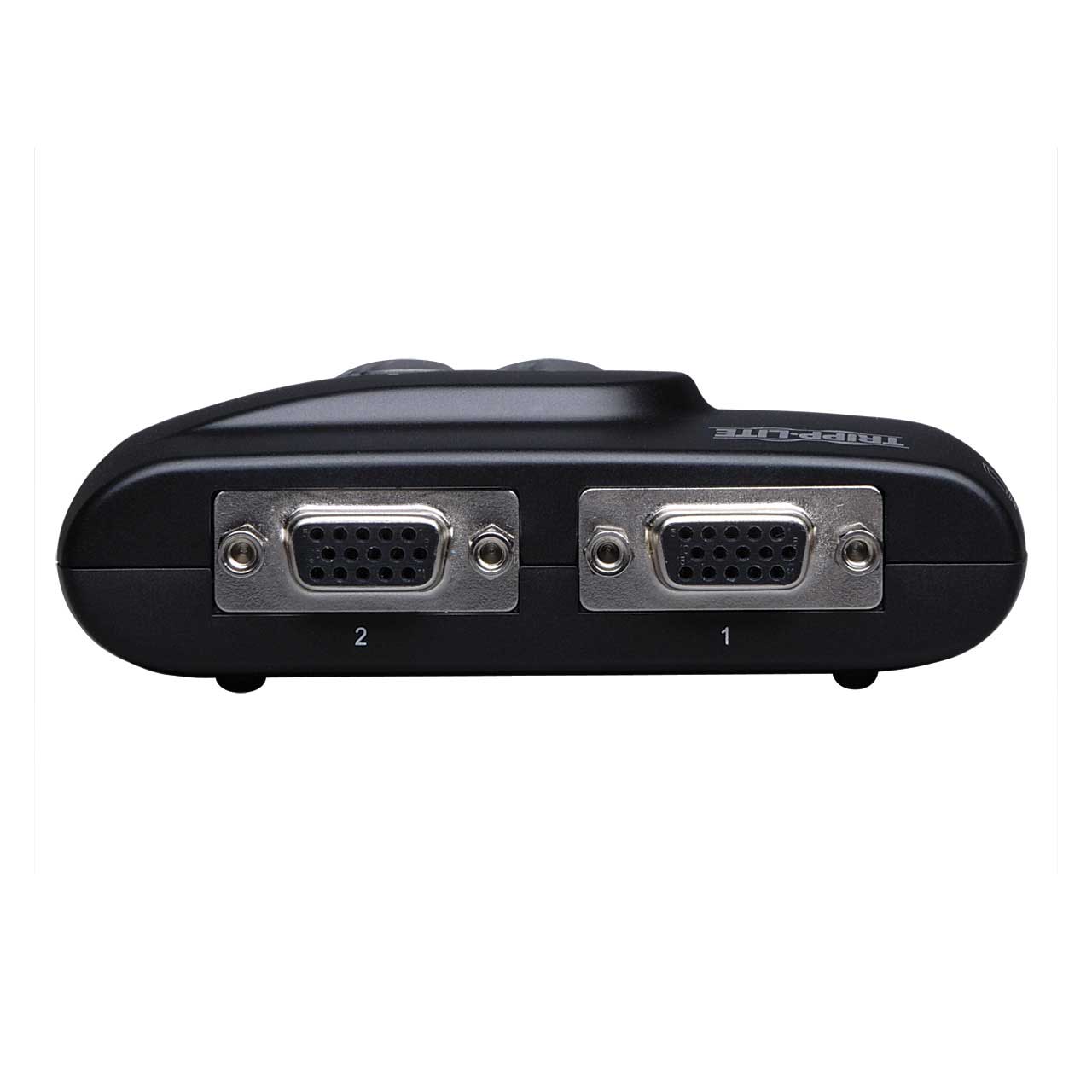

      • Side A - Connector 1: (2) HD15 (Female)
      • Side B - Connector 1: HD15 (Female)
      • Side B - Connector 2: (2) USB A (Female)
      • Side B - Connector 3: (2) 3.5MM (Female)
      • Computer Keyboard and Mouse Interface: PS/2
      • Computer Monitor Interface: VGA
      • Console Keyboard and Mouse Interface: USB
      • Console Monitor Interface: VGA
      • Connector Plating: Nickel

        Features & Specifications
      • Number of Users: 1
      • NIAP-Certified Secure: No
      • Port Selection: Pushbutton; Hotkey; Software
      • Max Supported Video Resolution: 2048 x 1536 @60Hz
      • USB Specification: USB 1.1 (up to 12 Mbps)
      • Audio Specification: Stereo Audio
      • Cat5 KVM Switch: No
      • Technology: USB; VGA/SVGA; Stereo Audio
    • Item Includes:

      • 1x Compact 2-port USB KVM Switch with Audio
      • 2x 6ft USB KVM Cable Kits and (2) 6ft 3.5mm Audio Cable Kits
      • 1x CD-ROM with KVM Switcher Software
      • 1x Owner's Manual with Warranty Information
    • GTIN:
