Tripp Lite SMART700HGL 700VA 450W Lithium Ion UPS Smart Tower AVR Hospital Medical 120V

ITEM #: TRL-SMART700HGL MFG #: SMART700HGL

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$3,159.52

Our Price:

$2,103.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Item restricted to the Contiguous United States ground shipment only.


SMART700HGL - Overview

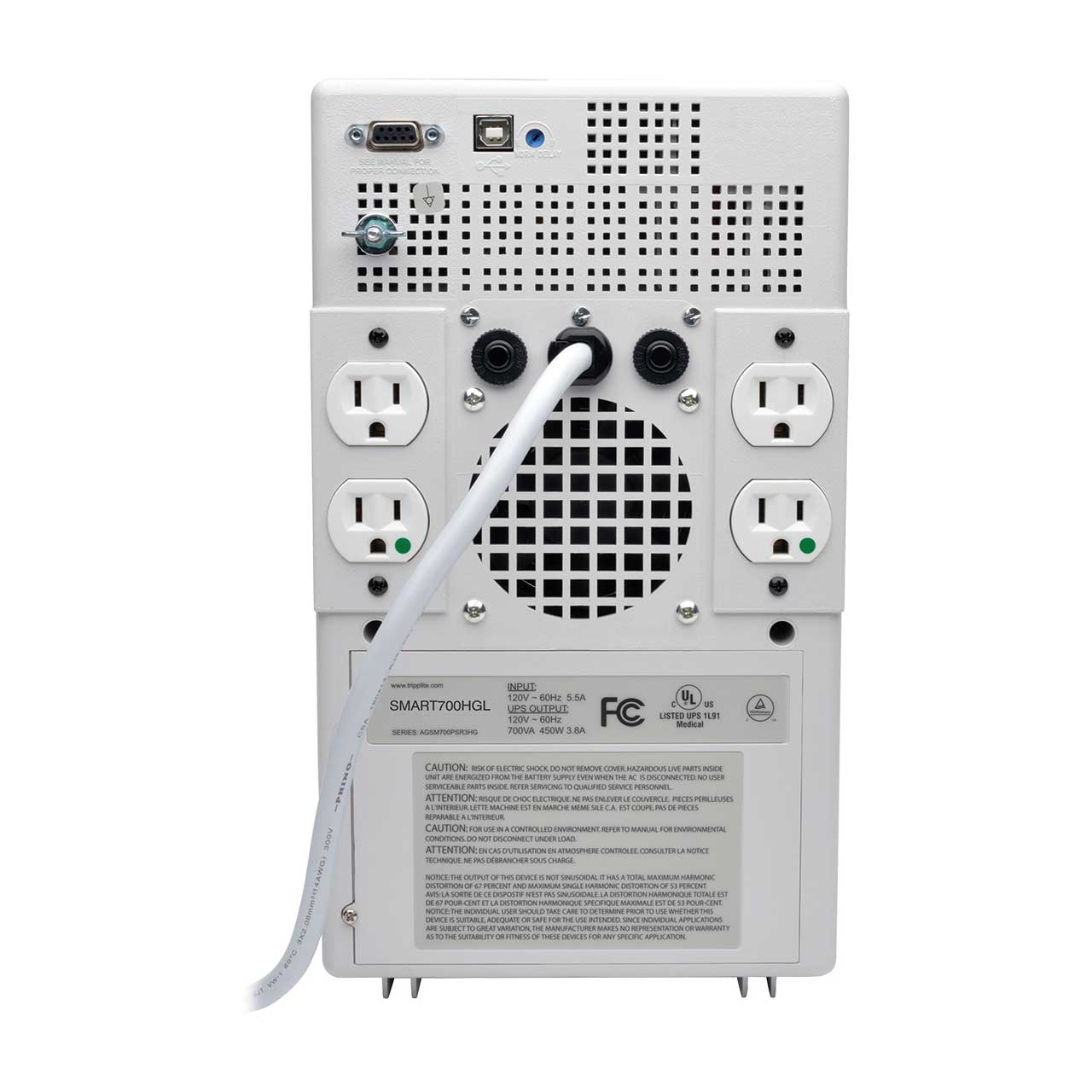

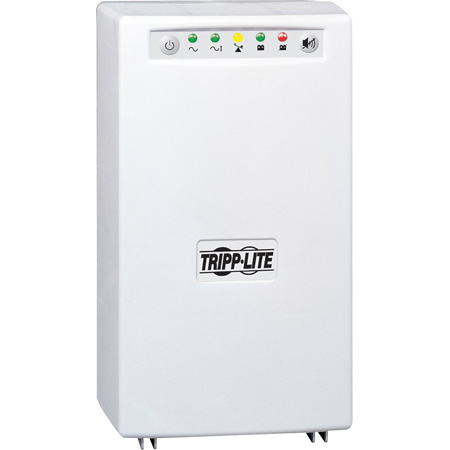

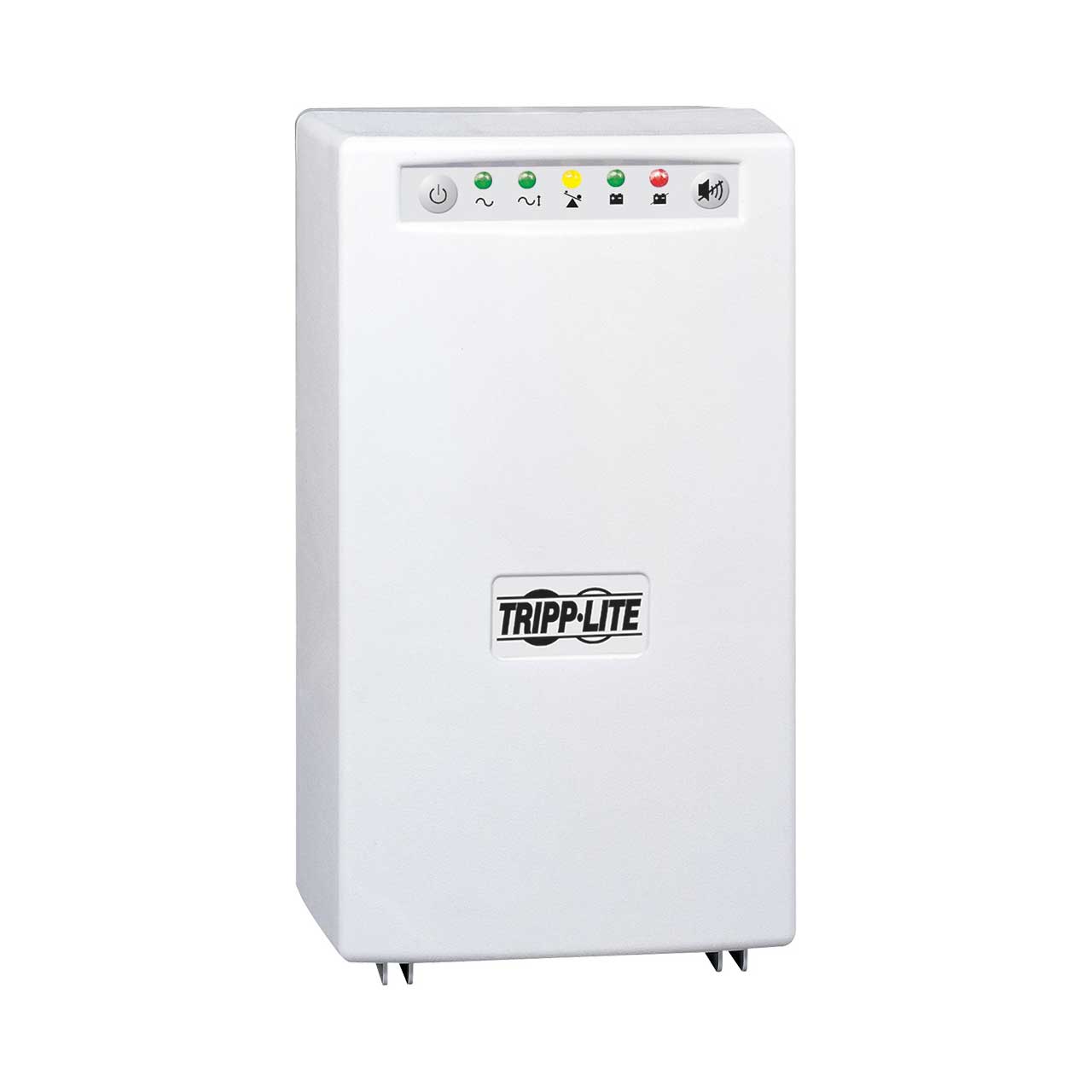

Tripp Lite’s SMART700HGL medical-grade UPS system provides dependable lithium iron phosphate (LiFePhos) battery backup, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. It’s fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load and 18 minutes for a full load. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART700HGL’s built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both battery backup and 940 joules of surge protection. The SMART700HGL also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite’s free downloadable PowerAlert® software for safe, unattended system shutdown and file saves in the event of a prolonged power failure.

  • Features:

    • 42 min. runtime at half load; 18 min. at full load
    • Reduces cumulative leakage current to under 100 μA
    • Floating AC output prevents noise coupling
    • 940 joules of surge protection
    • 10,000-cycle LiFePhos battery

  • Specifications:

    • Output
    • Output Volt Amp Capacity (VA): 700
    • Output Watt Capacity (Watts): 450
    • Power Factor: 0.6
    • Nominal Output Voltage(s) Supported: 115V; 120V
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -18%, +8%
    • Output Voltage Regulation (Battery Mode): 115V (+/- 5%)
    • Output Receptacles: (4) 5-15R
    • Output Receptacle Details: Hospital grade output receptacles
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): PWM sine wave
    • Individually Controllable Load Banks: No

      Input
    • Rated input current (Maximum Load): 5.5A
    • Nominal Input Voltage(s) Supported: 120V AC

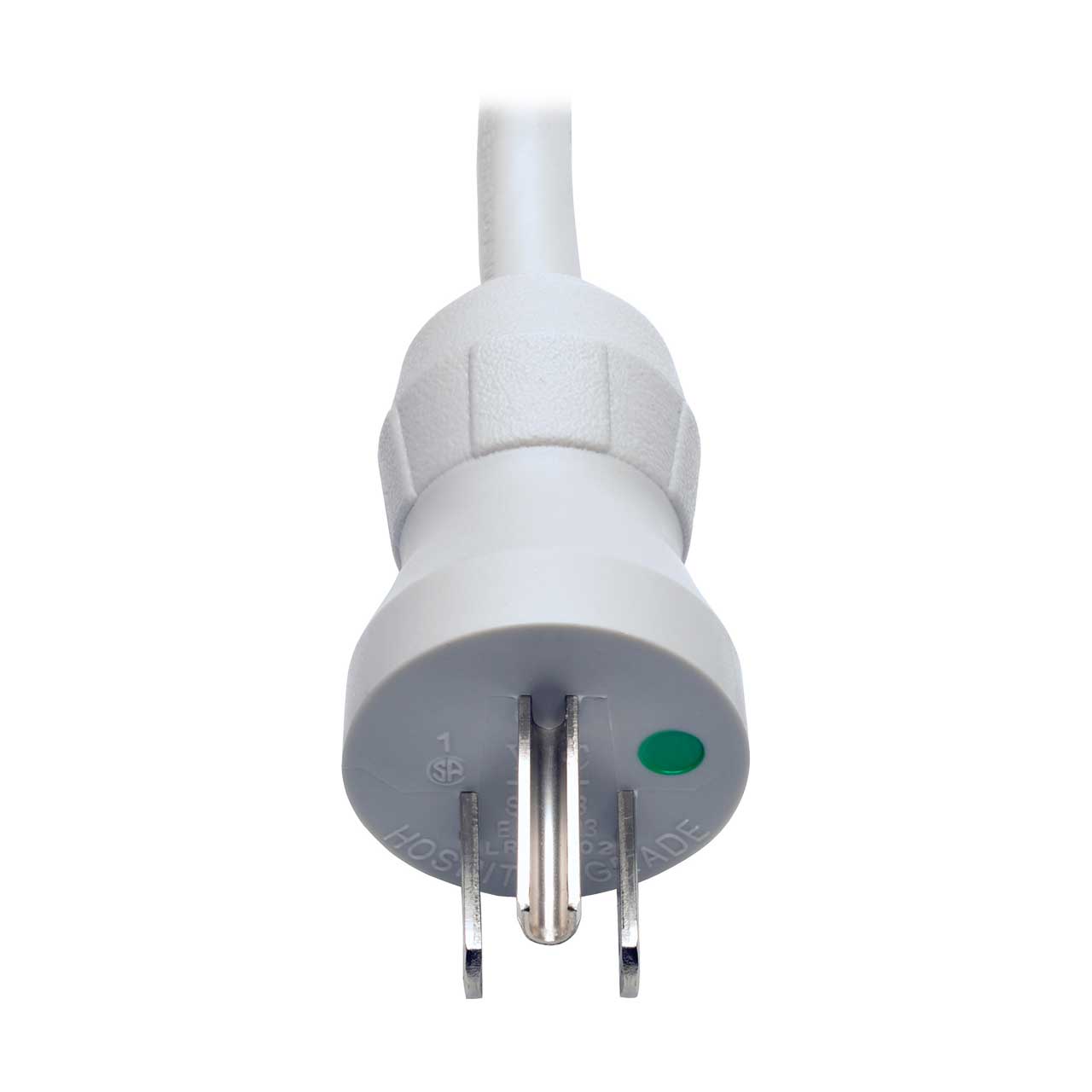

    • UPS Input Connection Type: 5-15P-HG
    • Input Circuit Breakers: 10A
    • UPS Input Cord Length (ft.): 6
    • Recommended Electrical Service: 15A 120V
    • Input Cord Length (ft.): 6
    • Input Phase: Single-Phase

      Battery
    • Full Load Runtime (min.): 18 min. (450w)
    • Half Load Runtime (min.): 42 min. (225w)
    • DC System Voltage (VDC): 36
    • Battery Recharge Rate (Included Batteries): Less than 4 hours from 10% to 90%
    • Battery Access: Battery access door
    • Expandable Runtime: No

      Voltage Regulation
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 81 to 143
    • Overvoltage Correction: Input voltages between 126 and 143 are reduced by 9%
    • Undervoltage Correction: Input voltages between 96 and 106 are boosted by 10%
    • Severe Undervoltage Correction: Input voltages between 81 and 95 are boosted by 21%

      Surge / Noise Suppression
    • UPS AC Suppression Joule Rating: 940
    • UPS AC Suppression Response Time: Instantaneous
    • EMI / RFI AC Noise Suppression: Yes
    • AC Suppression Joule Rating: 940
    • AC Suppression Response Time: Instantaneous

      Isolation
    • Output Isolation Transformer: Hospital grade load isolation transformer
    • Leakage Current: Equal to less than 100 microamps

      Physical
    • Installation Form Factors Supported with Optional Accessories: Wallmount (UPSWM - tower mounting kit)
    • Primary Form Factor: Tower
    • UPS Power Module Dimensions (hwd, in.): 12.8 x 7.5 x 9
    • UPS Power Module Weight (lbs.): 33.73
    • UPS Power Module Weight (kg): 15.30
    • Shipping Dimensions (hwd / in.): 17.00 x 11.20 x 13.00
    • Shipping Weight (lbs.): 35.43
    • Cooling Method: Fan
    • UPS Housing Material: PVC
    • Primary UPS Height (mm): 325
    • Primary UPS Width (mm): 191
    • Primary UPS Depth (mm): 229

      Environmental
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity: 0 to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load): 97.7
    • Battery Mode BTU / Hr. (Full Load): 189.1
    • AC Mode Efficiency Rating (100% Load): 94%

      Communications
    • Communications Interface: USB; DB9 Serial
    • Network Monitoring Port Description: Supports detailed monitoring of UPS and site power conditions
    • PowerAlert Software: Communications Cable: USB and DB9 serial cabling included

      Line / Battery Transfer
    • Transfer Time: 2-4 milliseconds
    • Low Voltage Transfer to Battery Power (Setpoint): 81
    • High Voltage Transfer to Battery Power (Setpoint): 143

      Special Features
    • Grounding Lug: Grounding lug
    • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
    • High Availability UPS Features: Hot swappable batteries
    • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS

      Certifications
    • UPS Certifications: Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to UL1778 (USA); Tested to UL60601-1 (medical grade)

  • Item Includes:

    • SMART700HGL 700VA/450W Medical-Grade Tower UPS System
    • USB monitoring cable, 6 ft.
    • DB9 serial monitoring cable, 6 ft.
    • 5 yr. warranty on UPS and batteries
    • Owner’s manual

  • Warranty:

    • 5-year

  • GTIN:

    0037332192219
