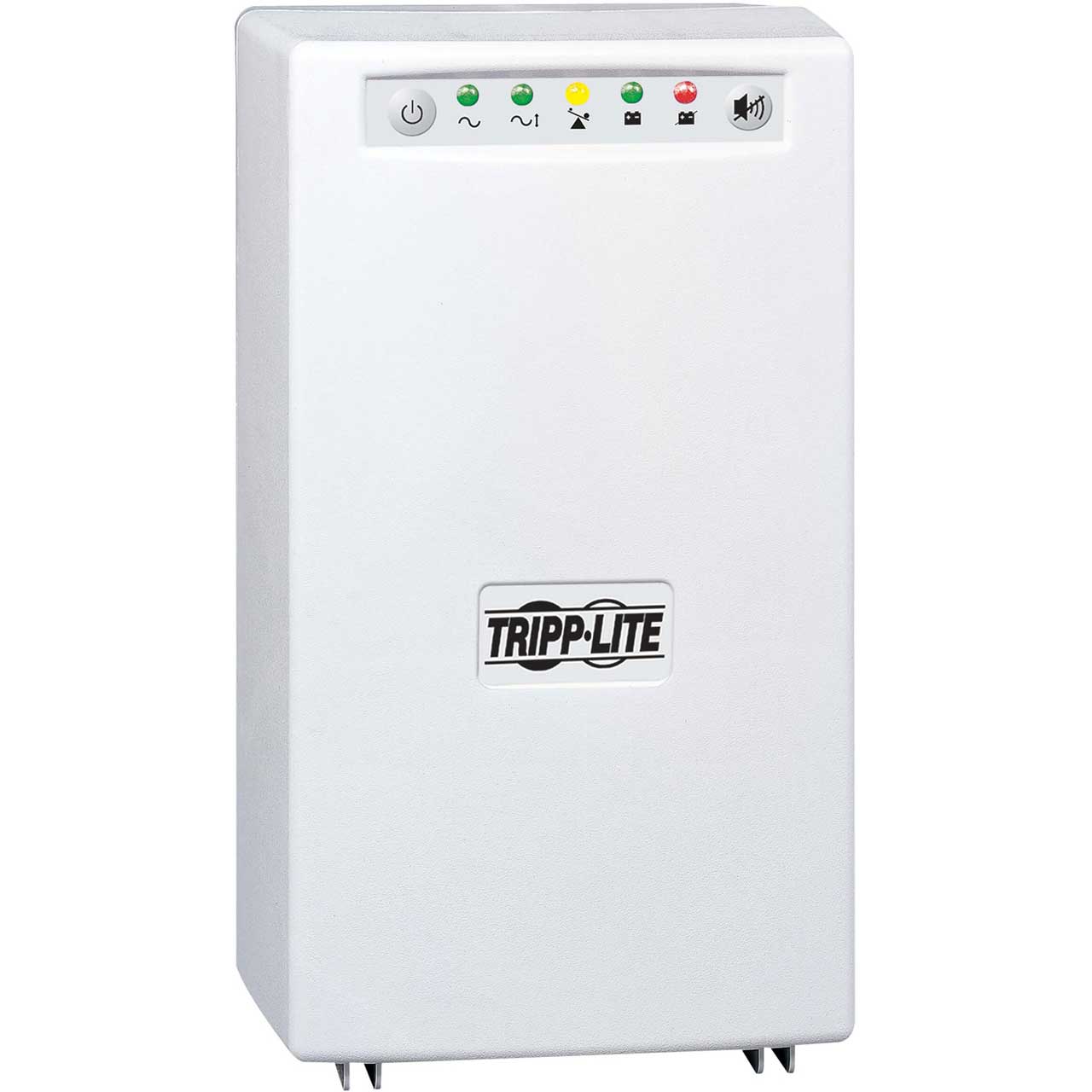

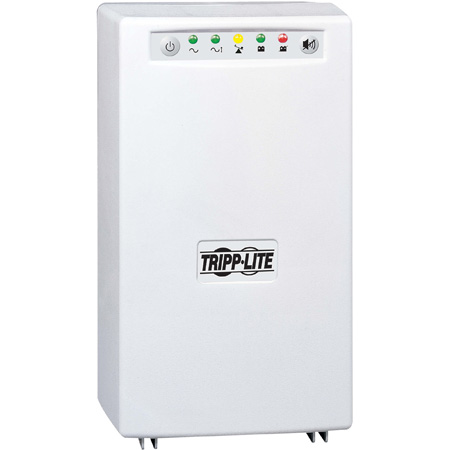

Tripp Lite SMART1200XLHG 1000VA Hospital Grade SmartPro UPS System

ITEM #: SMART1200XLHG MFG #: SMART1200XLHG

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$1,547.52

Our Price:

$1,000.08

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    SMART1200XLHG - Overview

    SmartPro Medical Grade 1kVA 120V Line interactive Tower UPS with Extended-Run, Full Isolation, USB & Serial Ports

    Tripp Lite's SMART 1200XLHG offers medical-grade UPS protection with built-in line-interactive voltage regulation, expandable battery runtime and intelligent monitoring with unattended shutdown capability. UL 60601-1 listed as medical electrical equipment. Built-in isolation transformer with Faraday shield offers full line isolation and removes common mode noise while maintaining full AC surge suppression in all modes equal to 100 microamps. Includes high quality hospital-grade plug and outlets. Resistant to electrostatic discharge. 1000VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures.

    External battery connector allows configuration for up to several hours of runtime during power failures by adding one or more external battery packs (BP36V15-2U limit 1 or BP36V42-3U multi-pack compatible). Line interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes diagnostic LEDs and 2 built-in communications ports (1 USB, 1 DB9) that work with included PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

    • Features:

      • Ideal UPS protection for applications in medical patient-care areas where UL 60601-1 listed medical electrical equipment is required

      • Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes

      • Provides connected equipment with continuous power during short and long duration loss of commercial power

      • Expandable runtime is available with the addition of one or more external battery packs (BP36V15-2U limit 1 or BP36V42-3U multi-pack compatible)

      • Line-interactive voltage regulation corrects brownouts and overvoltages from 81 to 143 volts back to usable 120V output levels, without using battery power

      • Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections

      • Full line isolation prevents shock potential and operational problems in sensitive electronic equipment

      • Resistant to electrostatic discharge

      • Supports loads up to 1000VA/750W

      • 28 min. half-load runtime (500VA/375W), 10 min. full load runtime (1000VA/750W)

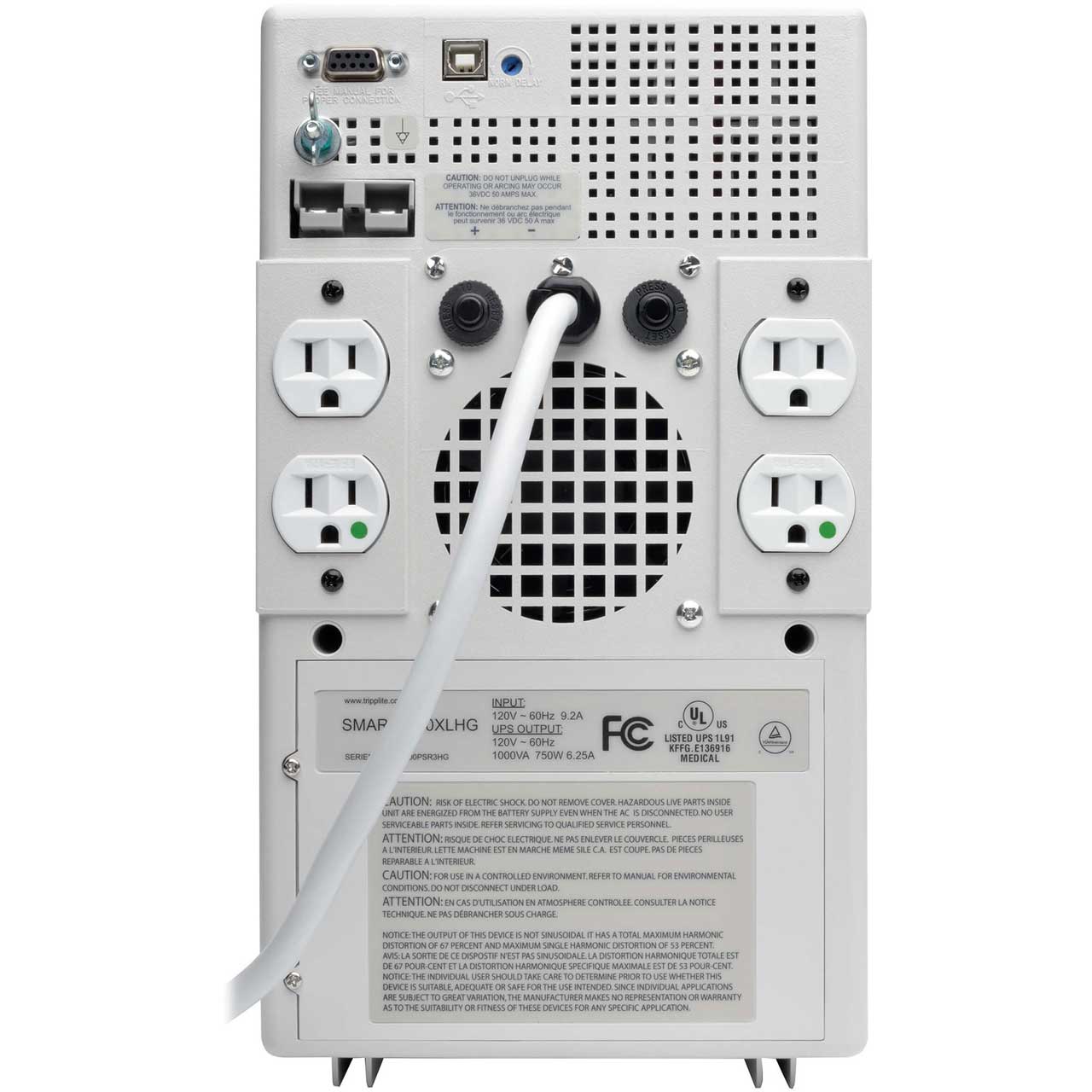

      • 4 protected hospital-grade outlets; 6-ft. cord

      • USB and DB9 communication ports

      • PowerAlert unattended shutdown software and complete cabling included

      • Complete surge protection, line isolation and EMI/RFI noise filtering

      • 5 diagnostic LEDs indicate AC present, on battery, voltage correction, overload & battery low/replace

      • Battery replacement door and back panel grounding lug

      • 2-year product warranty

    • Item Includes:

      • SMART 1200XLHG Medical Grade Tower UPS System
      • PowerAlert Software and cabling
      • Warranty information
      • Instruction manual

    • GTIN:

      0037332116406
