Tripp Lite SU1000XLCD 1000VA 900W UPS Smart Online LCD Tower 120V USB DB9 SNMP RT

SU1000XLCD - Overview

• Features:

  • 1000VA / 1kVA / 900 watt on-line double-conversion tower UPS
  • 100/110/120/127V 50/60Hz output, high efficiency economy mode option

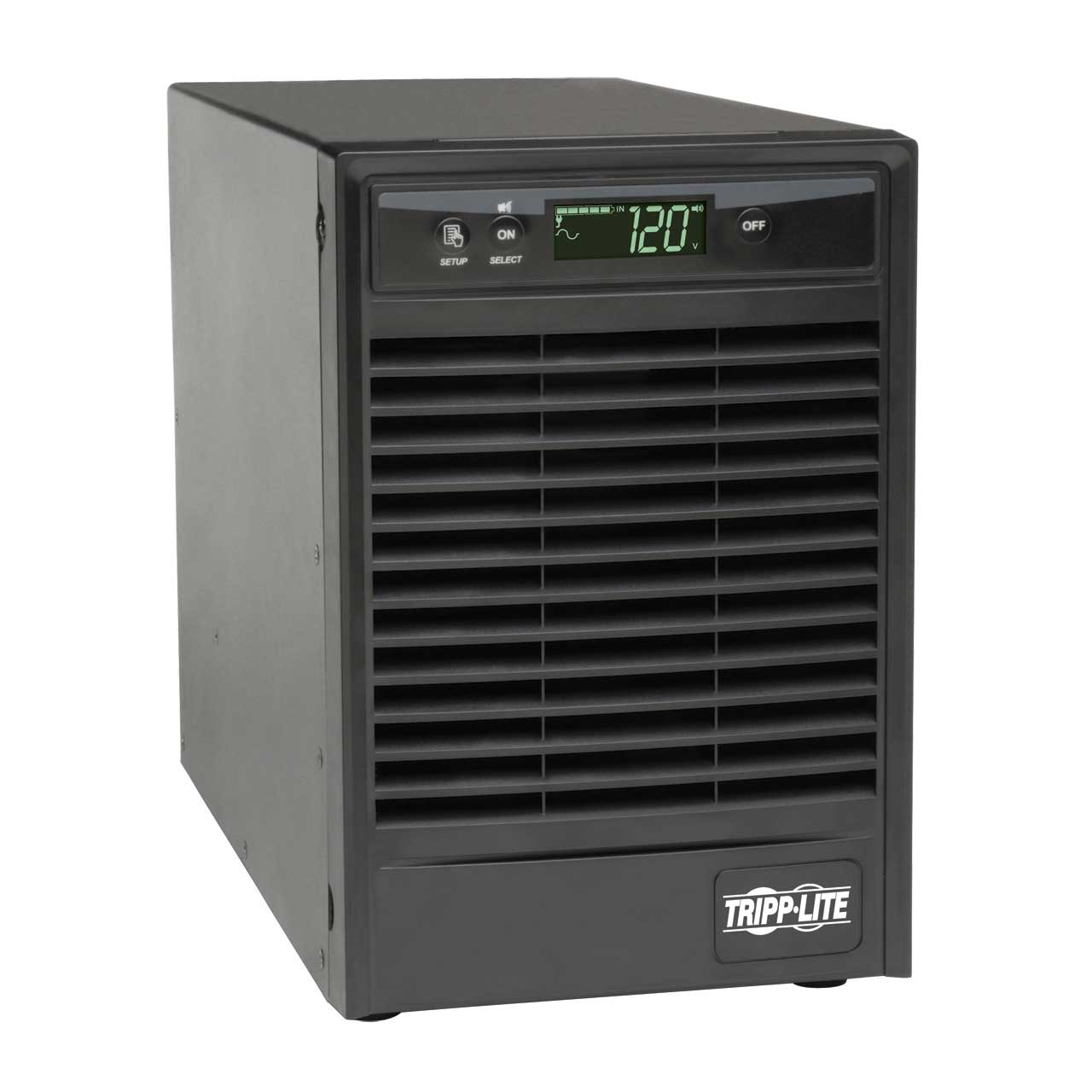

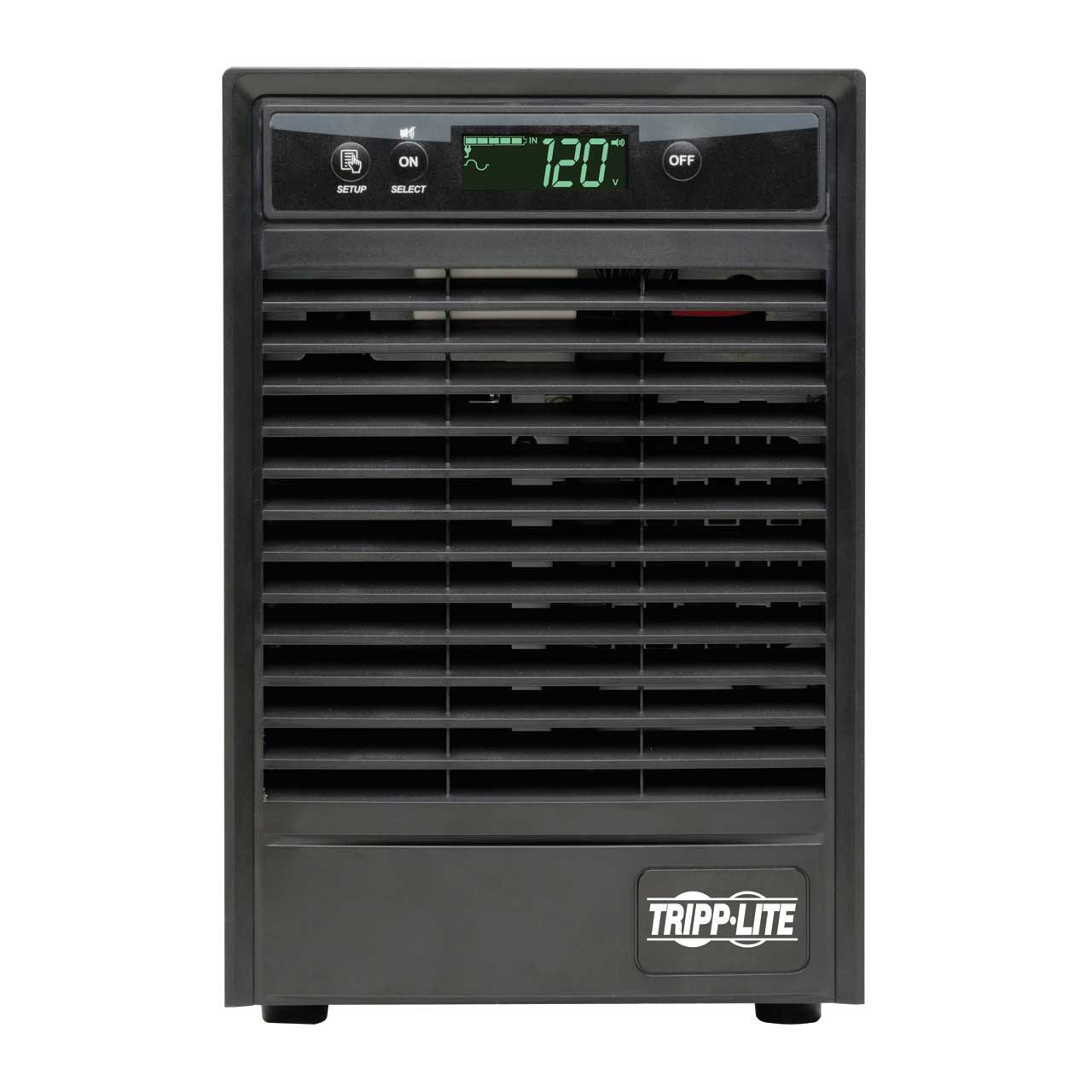

  • Interactive LCD with 10 selectable screens of UPS and site power data
  • Expandable runtime, Hot-swappable batteries

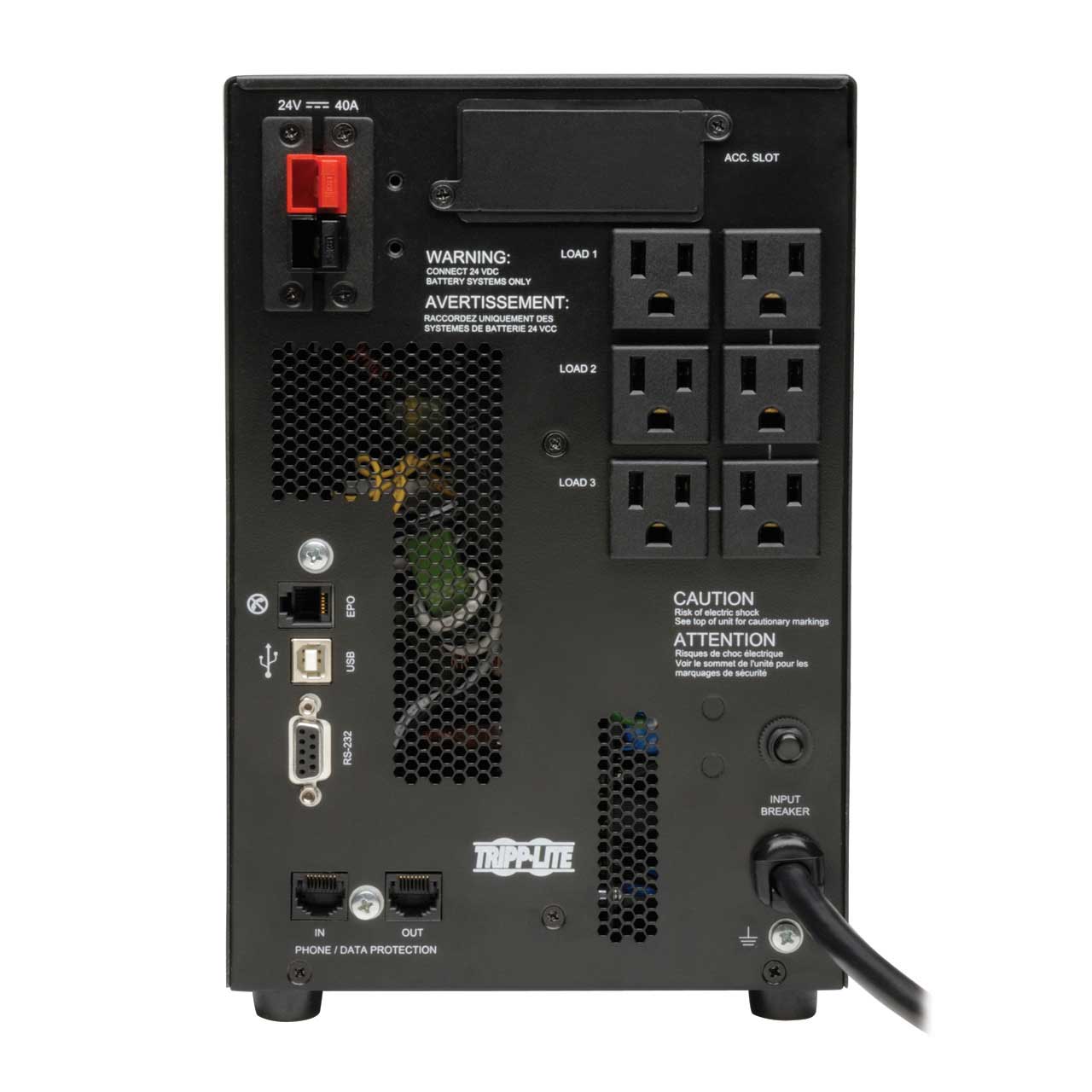

  • USB, RS232 & EPO ports, Network Management Card options
  • 2 independently switched load banks
  • NEMA 5-15P input; 6 5-15R outlets
  • To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
  • 2-year limited warranty
  • $250,000 Ultimate Lifetime Insurance


• Specifications:

  • Input
  • Rated input current (Maximum Load): 10A
  • Nominal Input Voltage(s) Supported: 100V AC; 110V AC; 120V AC; 127V AC
  • Nominal Input Voltage Description: 120V factory default
  • UPS Input Connection Type: 5-15P
  • Input Circuit Breakers: 15A
  • UPS Input Cord Length (ft.): 10
  • Recommended Electrical Service: 15A 120V
  • Input Phase: Single-Phase

    Output
  • Output Volt Amp Capacity (VA): 1000
  • Output kVA Capacity (kVA): 1
  • Output Watt Capacity (Watts): 900
  • Output kW Capacity (kW): 0.9
  • Output Capacity Details: On Line Mode - Maximum output capacity rating is reduced to 810W at 100V nominal; FREQUENCY
  • Output Voltage Regulation (Line Mode): +/- 2%
  • Output Voltage Regulation (Economy Line Mode): +/- 10%
  • Output Voltage Regulation (Battery Mode): +/- 3%
  • Load Management Receptacles: Two switchable single-outlet 5-15R load banks
  • Output AC Waveform (AC Mode): Pure Sine wave
  • Output AC Waveform (Battery Mode): Pure Sine wave
  • Nominal Output Voltage(s) Supported: 100V; 110V; 115V; 120V; 127V
  • Output Receptacles: (6) 5-15R
  • Individually Controllable Load Banks: Yes

    Battery
  • Full Load Runtime (min.): 3.8 min. (900w)
  • Half Load Runtime (min.): 12.8 min. (450w)
  • Expandable Battery Runtime: Extended runtime supported via optional external battery packs
  • External Battery Pack Compatibility: BP24V15RT2U (limit 1); BP24V28-2U (limit 1); BP24V70-3U (multi-pack compatible)
  • Expandable Runtime Description: External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
  • DC System Voltage (VDC): 24
  • Battery Recharge Rate (Included Batteries): Less than 3 hours from 10% to 90% (typical, full load discharge)
  • Internal UPS Replacement Battery Cartridge: RBC24V-LCD
  • Battery Access: Battery access door
  • Battery Replacement Description: Hot-swappable, user replaceable batteries
  • Expandable Runtime: Yes

    Voltage Regulation
  • Voltage Regulation Description: Online, double-conversion power conditioning
  • Overvoltage Correction: 2% output voltage regulation during overvoltages to 150
  • Undervoltage Correction: 2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)

    Surge / Noise Suppression
  • UPS AC Suppression Joule Rating: 570
  • UPS AC Suppression Response Time: Instantaneous
  • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
  • EMI / RFI AC Noise Suppression: Yes

    Physical
  • Cooling Method: Fan
  • Primary Form Factor: Tower
  • Primary UPS Depth (mm): 335
  • Primary UPS Height (mm): 254
  • Primary UPS Width (mm): 173
  • Shipping Dimensions (hwd / in.): 13.90 x 9.80 x 18.00
  • Shipping Weight (lbs.): 33.50
  • UPS Housing Material: Steel
  • UPS Power Module Dimensions (hwd, in.): 10 x 6.8 x 13.2
  • UPS Power Module Weight (kg): 13.02
  • UPS Power Module Weight (lbs.): 28.7

    Environmental
  • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
  • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
  • Relative Humidity: 0 to 95%, non-condensing
  • AC Mode BTU / Hr. (Full Load): 341
  • AC Economy Mode BTU / Hr. (Full Load): 128
  • Battery Mode BTU / Hr. (Full Load): 585
  • AC Mode Efficiency Rating (100% Load): 90%
  • AC Economy Mode Efficiency Rating (100% Load): 95%
  • Audible Noise: < 50 dB at front side 1m
  • Operating Elevation (m): Up to 3000m

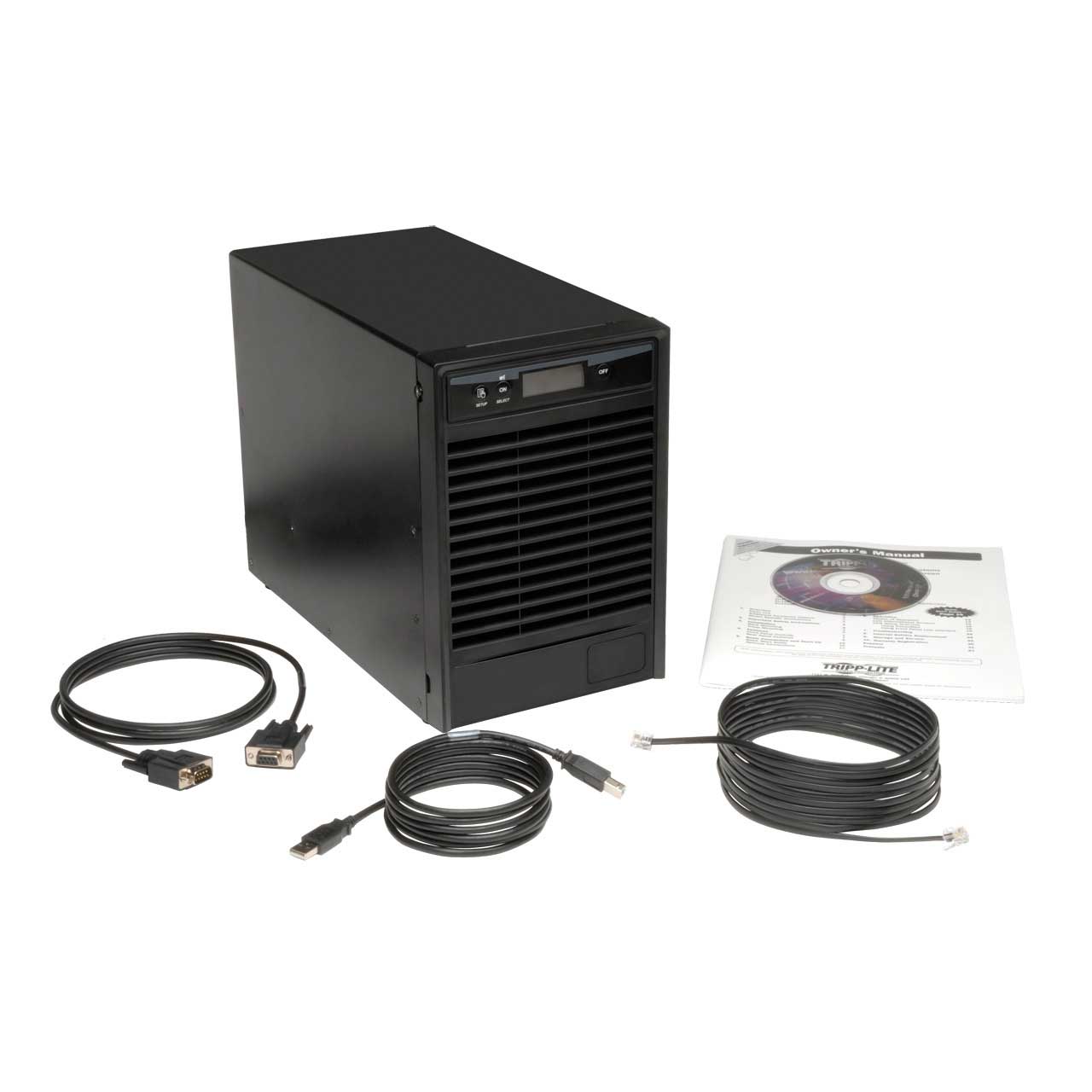

• Item Includes:

  • SU1000XLCD SmartOnline Tower UPS System
  • PowerAlert Software CD and Cabling
  • Emergency Power Off (EPO) Cabling
  • Owner’s Manual


• GTIN:

  0037332174666
