Tripp Lite SUPER6TEL Surge Protector Strip 120V 7 Outlet RJ11 6ft Cord 1080 Joule


Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

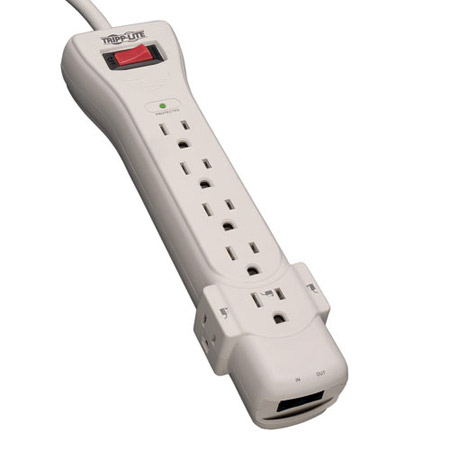

    SUPER6TEL - Overview

    Tripp Lite's SUPER6TEL surge suppressor offers complete AC and phone line surge suppression for comprehensive protection of workstations, desktop PCs, telecom systems and other sensitive electronics. High-grade AC surge suppression shields connected equipment from damage and performance problems due to transient surges. Set of RJ11 telephone line suppression jacks protect dialup and DSL modem lines, fax machines, cordless phones and more. SUPER6TEL offers 7 total outlets, 6 foot cord with a space-saving right angle plug and diagnostic LEDs to warn of wiring problems and suppressor damage. Heavy grade AC suppression rated at 1080 joules shields equipment from surges and line noise. Attractive white suppressor housing with keyhole mounting tabs and 3 designated transformer plug outlets offers convenient protection of desktop computer equipment and accessories. $50,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only). PLUG/OUTLETS: Input: NEMA5-15P/Output: 7 NEMA5-15R/6-ft. AC line cord ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires NEMA5-15R wall receptacle) FORMAT: Corded multi-outlet strip with 3 transformer spaced outlets SUPPRESSION: AC: 150V RMS Clamping/1080 joules/400V UL1449 Let-through Phone: Single telephone line surge suppression (RJ11 jacks, 2 wire, 1 line).

    What is the main culprit of electrical surges?
    Electrical devices that require lots of power to operate. Depending on the wiring of your Studio or Production suite, you may notice at times that your lights flicker when powerful devices turn on and off, e.g. your air conditioner. When these devices are switched on, they demand a lot of electricity, which puts a lot of strain on the grid and can cause surges.
    When should you use a surge protector?
    All the time. The real question is really which devices you should connect to a surge protector. You don’t need a surge protector for your desk lamp or your standing fan, but you do want a surge protector for expensive devices that have intricate microprocessors, like computers, DVR's, LED/LCD monitors, power amps, Studio Lighting, Powered Nearfield Speaker monitors, etc. Think of it this way: if there was an electrical surge that destroyed all of the devices connected to your outlets, which lost devices would pain you the most? Plug those into a surge protector. It’s better to be safe than sorry.

    • Features:

      • 1080 joules AC surge suppression shields equipment from the strongest surges and line noise
      • 7 AC outlets with room for 3 transformer plugs without blocking outlets covers computers and all peripherals
      • Phone line surge suppression protects both dialup and DSL modems, plus fax machines, cordless phones and more (pair of RJ11 jacks, 2 wire, 1 line, includes 6 ft phone cable)
      • 6 foot cord with space-saving right-angle plug
    • Specifications:

      • Style Strip
      • Frequency Compatibility 50 / 60 Hz
      • Output Receptacles (7) 5-15R
      • Output (Watts) 1800
      • Circuit Breaker (amps) 15
      • Transformer Accommodation Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 5 transformers total
      • Outlet Orientation Single row of 5, plus 2 side mounted outlets
      • USB Charging No
      • Nominal Input Voltage(s) Supported 120V AC
      • Recommended Electrical Service 120V (110-125V)
      • Input Connection Type NEMA 5-15P
      • Input Cord Length (ft.) 6
      • Input Cord Length (m) 1.83
      • Input Cord Gauge Type 14 gauge, SJT
      • Voltage Compatibility (VAC) 120
      • Maximum Surge Amps 72000
      • Switches Two position on/off power switch
      • Diagnostic LEDs Built-in LED confirms suppressor "protection present" (green) status
      • AC Suppression Joule Rating 1080
      • AC Suppression Response Time < 1 ns
      • Protection Modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
      • Clamping Voltage (RMS) 150
      • UL1449 Let Through Rating 400V
      • EMI / RFI Filtering Up to 20 dB
      • Telephone/DSL Protection Yes
      • Telephone/DSL Protection Details 1 line
      • Cable (Coax) Protection No
      • Network (Ethernet) Protection No
      • Shipping Dimensions (hwd / in.) 12.40 x 5.90 x 1.77
      • Shipping Dimensions (hwd / cm) 31.50 x 14.99 x 4.50
      • Shipping Weight (lbs.) 1.56
      • Shipping Weight (kg) 0.71
      • Unit Dimensions (hwd / in.) 1.54 x 2.72 x 10.3
      • Unit Dimensions (hwd / cm) 3.91 x 6.91 x 26.16
      • Unit Weight (lbs.) 1.39
      • Unit Weight (kg) 0.63
      • Material of Construction Plastic
      • Integrated Keyhole Mounting Tabs Keyhole mounting tabs enable wall mounting
      • Housing Color Light Gray
      • Receptacle Color Light Gray
      • Color (AC Line Cord) Light Gray
      • Outlets Measurement (Center to Center) Between Standard Outlets = 29mm; Between Transformer Outlets = 48mm
      • Keyhole Slot Mounting Measurement (Center to Center) Distance between slots = 78mm; Distance between slot height = 24mm
      • Right-Angle Plug Yes
      • UL1449 3rd Edition (AC Suppression) UL1449 3rd EDITION
      • UL1363 (Power Tap) UL1363
      • UL497A (Communications) UL497A
      • FCC Part 68 (Communications) FCC Part 68
      • cUL / CSA (Canada) cUL
      • Industry Canada (Communications) Industry Canada
      • Approvals Exceeds IEEE 587 category A&B specifications
      • Product Warranty Period (Worldwide) Lifetime limited warranty
      • Connected Equipment Insurance (U.S., Canada & Puerto Rico) $50,000 Ultimate Lifetime Insurance
    • GTIN:
