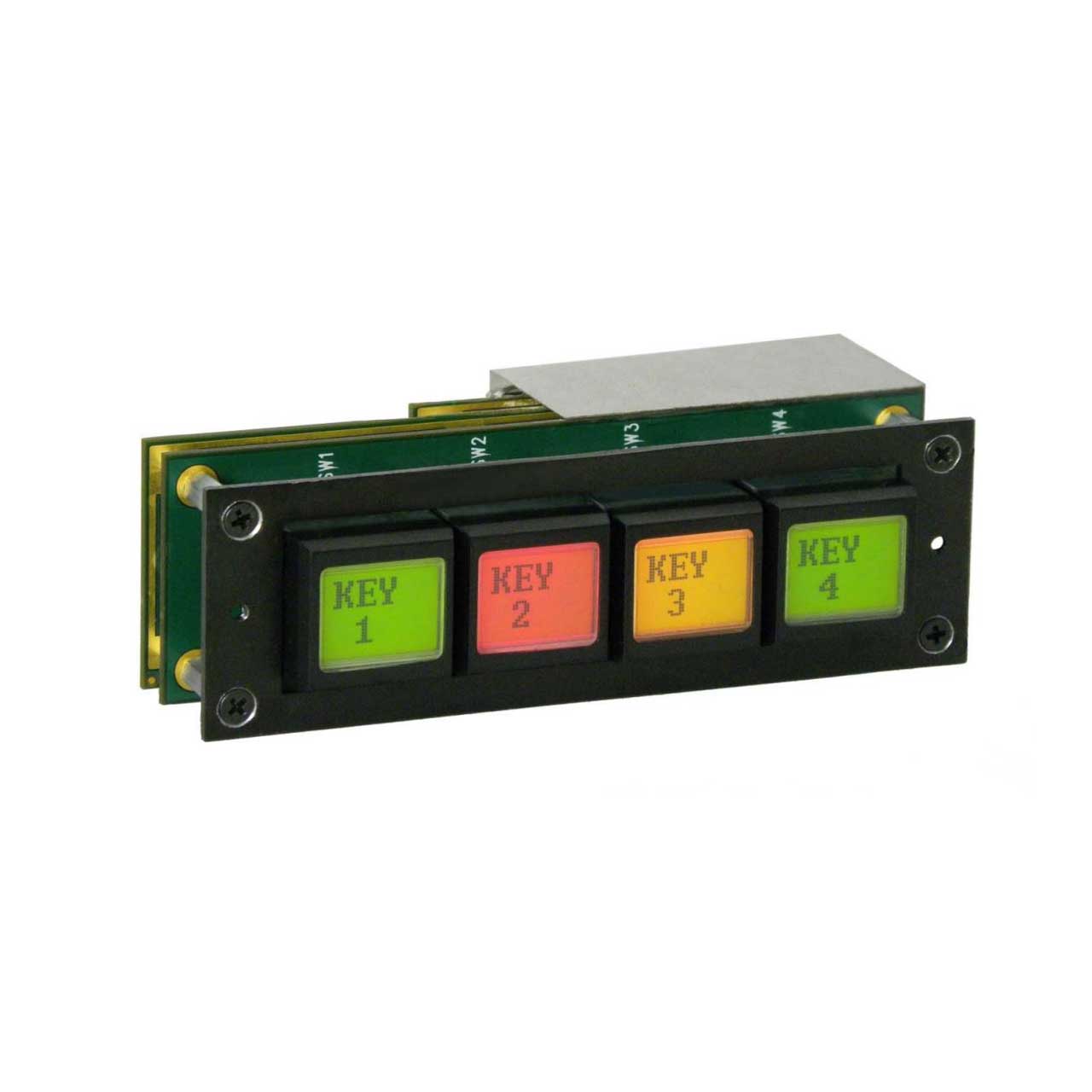

TSL's Control Buddy is a powerful yet compact control panel and intelligent control solution. Use it stand-alone or integrated with a larger control system, to quickly and cost-effectively get the job done.
Easy setup using a standard web browser, assign functions, enter text, and select button colours.
Includes web key functionality to virtually push the soft panel buttons via the password-protected web browser interface. Allows operators to work remotely without changing their workflow.
All devices in the USP3 range are managed via a web browser and provide freely configurable logic with IP, Serial, and GPIO interfaces. Directly monitor and control devices, including routers, DDRs, multi-viewers, TSL UMD streams and more, including SNMP and RESTful API.
Includes KeyPanel Map Windows application, trigger keyboard shortcuts on Windows PCs. ideal for triggering cues and streamlining edit operations.
It supports multiple mounting options, including rackmount, desktop, and wall-mount installations.

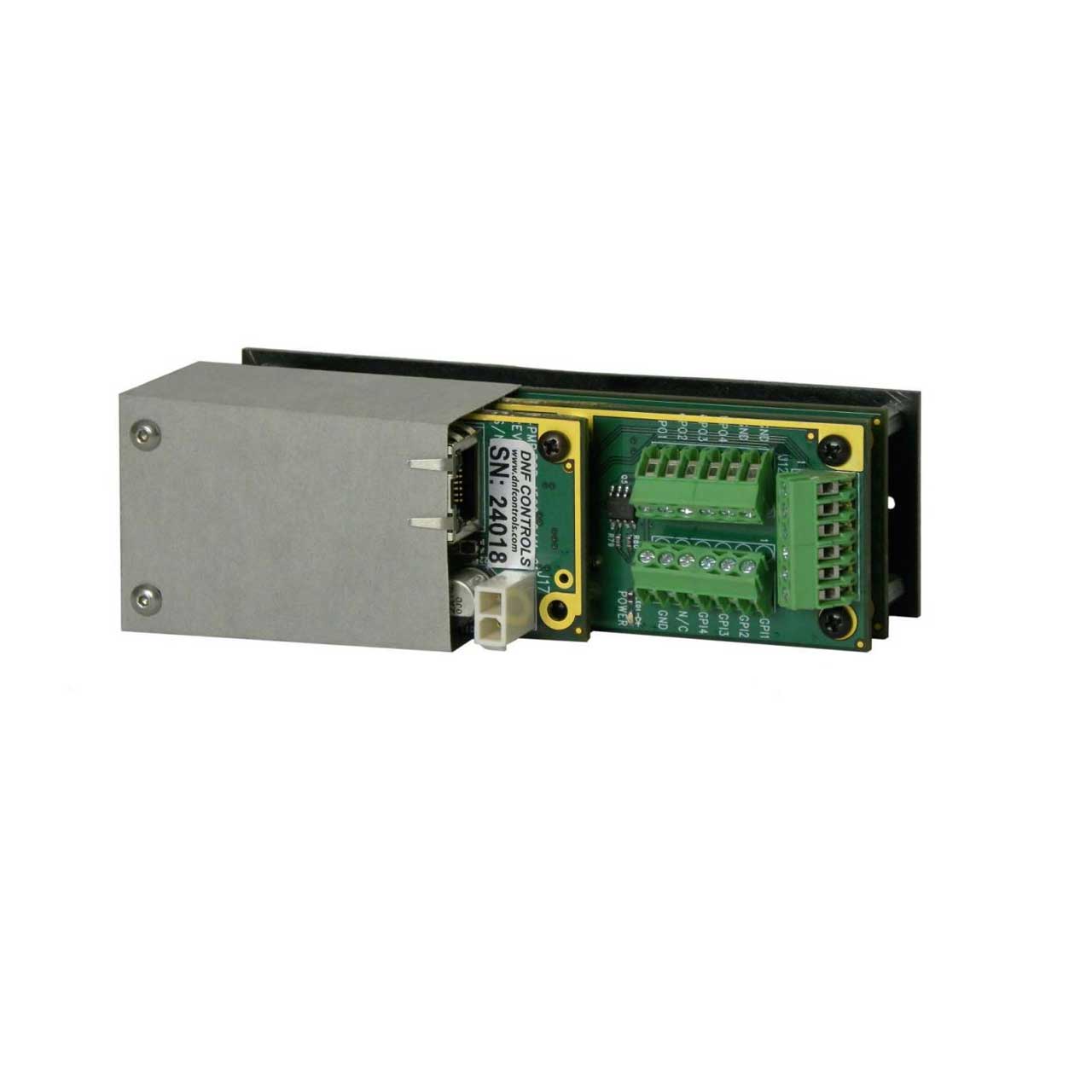

Controlling any GPI/O, IP, RS422, or RS232 enabled device, located anywhere, from a single button push - the IP Control Buddy can perform simple or complex functions and is perfect for yaway kits, small production tasks and one button applications, powered with Power over Ethernet (PoE) or an external power supply..
Your IP Control Buddy Helps You:
• Turn it on. Turn it off.
• Start it. Stop it.
• Open it. Close it.
• Raise it. Lower it.
• Enable it. Disable it, And more..
Extra Functionality Included
The IP Control Buddy can directly control other devices, such as Ensemble Designs' ultra-compact BrightEye NXT routers, Blackmagic Media Players and Power Distribution Systems.
With the 'programmer-free' web-browser configuration it's easy to configure the IP Control Buddy for any control and monitoring application.
Panel Key Mapper is a Service that can be installed on Windows enabling the IP Control Buddy to execute keyboard shortcuts and trigger common HotKey combinations for Editors, Production Playout Automation and other Windows applications.
User-configurable text and colors from real-time input with simple boolean logic from one or a combination of events such as:
• Recieve an SNMP trap
• Recieve a GPI input
• Recieve a serial or ethernet command
A single button press can tigger a salvo of actions such as:
• Turn a GPI Output On or Off
• Transmit a Serial Command
• Transmit an Ethernet TCP, UDP, SNMP, or HTTP command
