    TUFFCAT6A-100PS - Overview

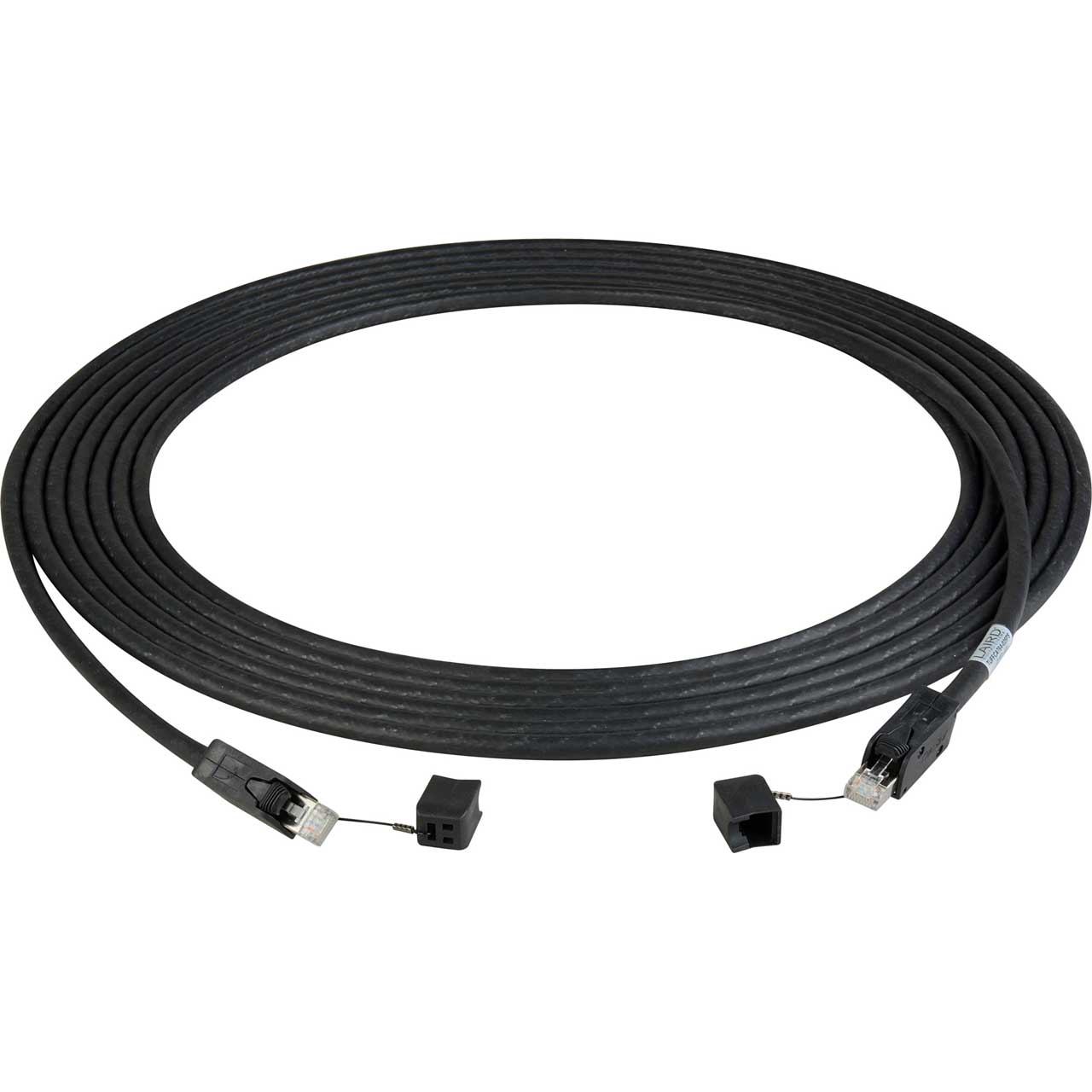

    The Laird TUFFCAT-6A series provides 10G Ethernet RJ45 cable performance with a field and studio ruggedness you won't find anywhere else. The Laird TUFFCAT-6A features ProShell heavy-duty road-ready RJ45 connections, a patented strain relief, integral latch protection and protective dust cap to ensure contacts stay clean and dry when not in use. Cables employ a tactical Category 6A SF/UTP network cable with a TPE jacket to stand up in extreme temperatures yet still provide a flexibility and performance level in HDBase-T and UHD-4K video applications. Both the cable, with its ruggedized foil and braid shield, and the shielded RJ45 connector deliver reduced pair-to-pair crosstalk, alien crosstalk, and considerably improved immunity to noise at all frequencies.

    • Features:

      • Ruggedized Cable and Connectors Designed for Repeated Connections
      • Extra-Flexible CAT6A Tactical Cable
      • RJ45 Strain Relief
      • Ergonomic Design for Easy Handling
      • Integral Latch Protection and Optimal Protective Caps
      • Protection Will Not Block Adjacent Ports

    • Specifications:

      • Tactical Category 6A Data Cable
      • 4 Twisted Pair 24AWG 7/32 Stranded Tinned Copper
      • Impedance: 100 Ω/ (+/- 15) 1 - 100MHz, 100Ω/ (+/- 25) 251 - 500MHz
      • Capacitance: 13.5 PF/[email protected]
      • DC Resistance: 14.0 Ω
      • Insulation: HDPE Shield: 75% TC Braid, 100% Foil UL Approved for Sunlight Resistant & Direct Burial
      • Meets IEEE 1202 Flame Test
      • Max Voltage Rating 300V TIA-568-C.2 Category 6 AND 6a
      • Applications Cable is suitable for use in Class I Division II Hazardous Locations
      • Platinum Tools RJ45 Connectors
      • UL and RoHS Compliant RJ45 Cat6A/10Gig Shielded Connector
      • Gold Contacts
      • ProShell Protective Caps

    • Warranty:

      • 1 Year
