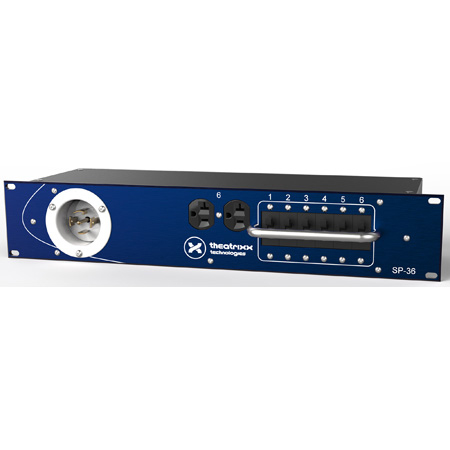

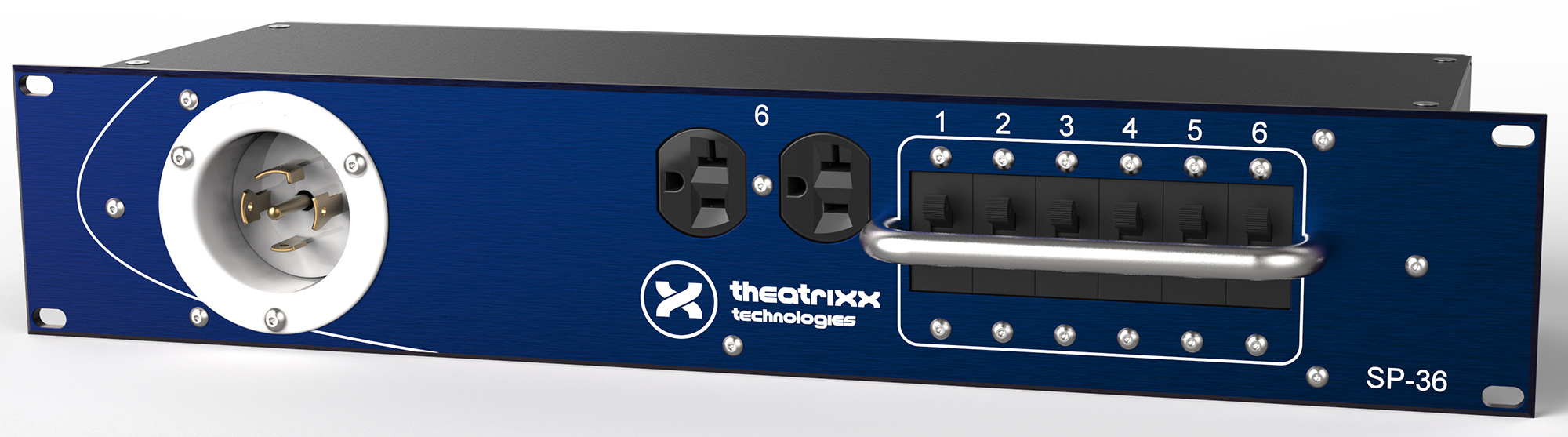

The Theatrixx Small Pack series was developed to fulfill the needs of small installations of rack mounted audio modules. The compact size of this two rackmount unit distribution system and its reduced depth allows it to be installed at the bottom of an amplification rack with minimal interference on internal hook-up. The front panel is cut from a thick 3/16" aluminum sheet and is fixed to a robust steel chassis.

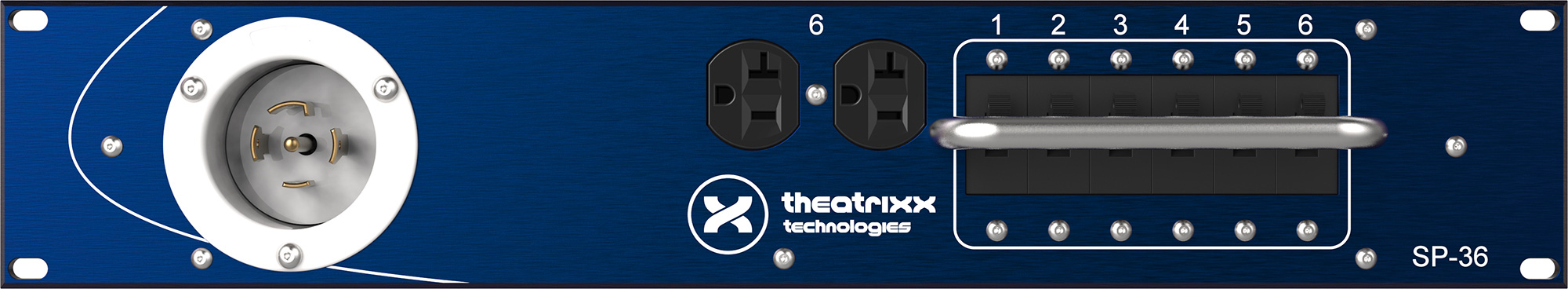

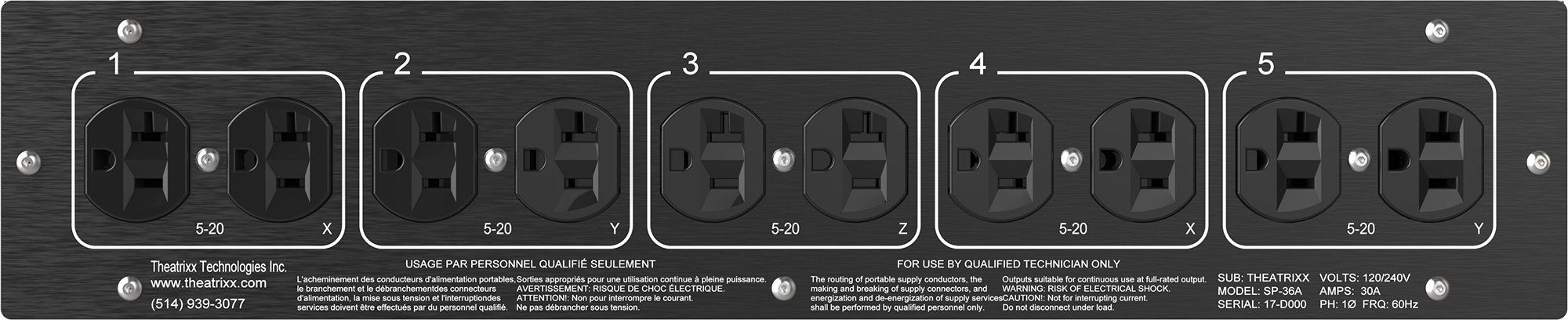

The SP-36-L2130 distribution unit offers one input on a L21-30 (TL5 30A 120/208V 3 phases) inlet and six circuits on six Edison duplexes (20A 125V) outputs, one on the front panel and five on the back panel.
All products are CSA (22,2 No 14) and UL (1640) certified.
All Theatrixx power and signal distribution products are configurable and can be customized to meet your project's specific needs. Please contact [email protected] for details.
