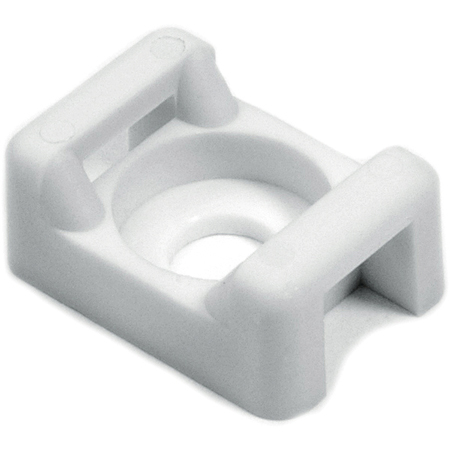

HellermannTyton CTM110M4 Cable Tie Anchor Mount - .58x.37in/.19 Inch Hole Dia/.2 Inch Max Tie - PA66 - White - 1000/pkg

CTM110M4 - Overview

• Features:

  • KR/CTM series are designed to provide stability to wire bundles.
  • These mounts can accommodate miniature, intermediate, or standard cross-section cable ties.
  • Each mount is secured with a single screw.


• Specifications:

  • Length L (Imperial): 0.58
  • Length L (Metric): 14.7
  • Fixation Method: Screw Mounting and Rivet
  • Width W (Imperial): 0.37
  • Width W (Metric): 9.4
  • Cable Ties: T18 - T50
  • Height H (Imperial): .27
  • Height H (Metric): 6.90
  • Cable Tie Width Max (Imperial): 0.2
  • Cable Tie Width Max (Metric): 5.0
  • Mounting Hole Diameter D (Imperial): 0.19
  • Mounting Hole Diameter D (Metric): 4.8 mm
  • Mounting Hole Diameter D Max (Metric): 4.8
  • Material: Polyamide 6.6 (PA66)
  • Material Shortcut: PA66
  • Flammability: UL 94 V-2
  • UV Resistant (Yes/No): No
  • Operating Temperature: -40°F to +185°F
  • Reach Compliant (Article 33): No
  • ROHS Compliant: Yes
  • Certification/Specification: UL 62275
  • UL Recognized (US): Yes
