Vanco RS232-IP RS232 and IP Router for Remote Access/Configuration/Serial over IP

ITEM #: VCO-RS232-IP MFG #: RS232-IP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$291.99

Our Price:

$243.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    RS232-IP - Overview

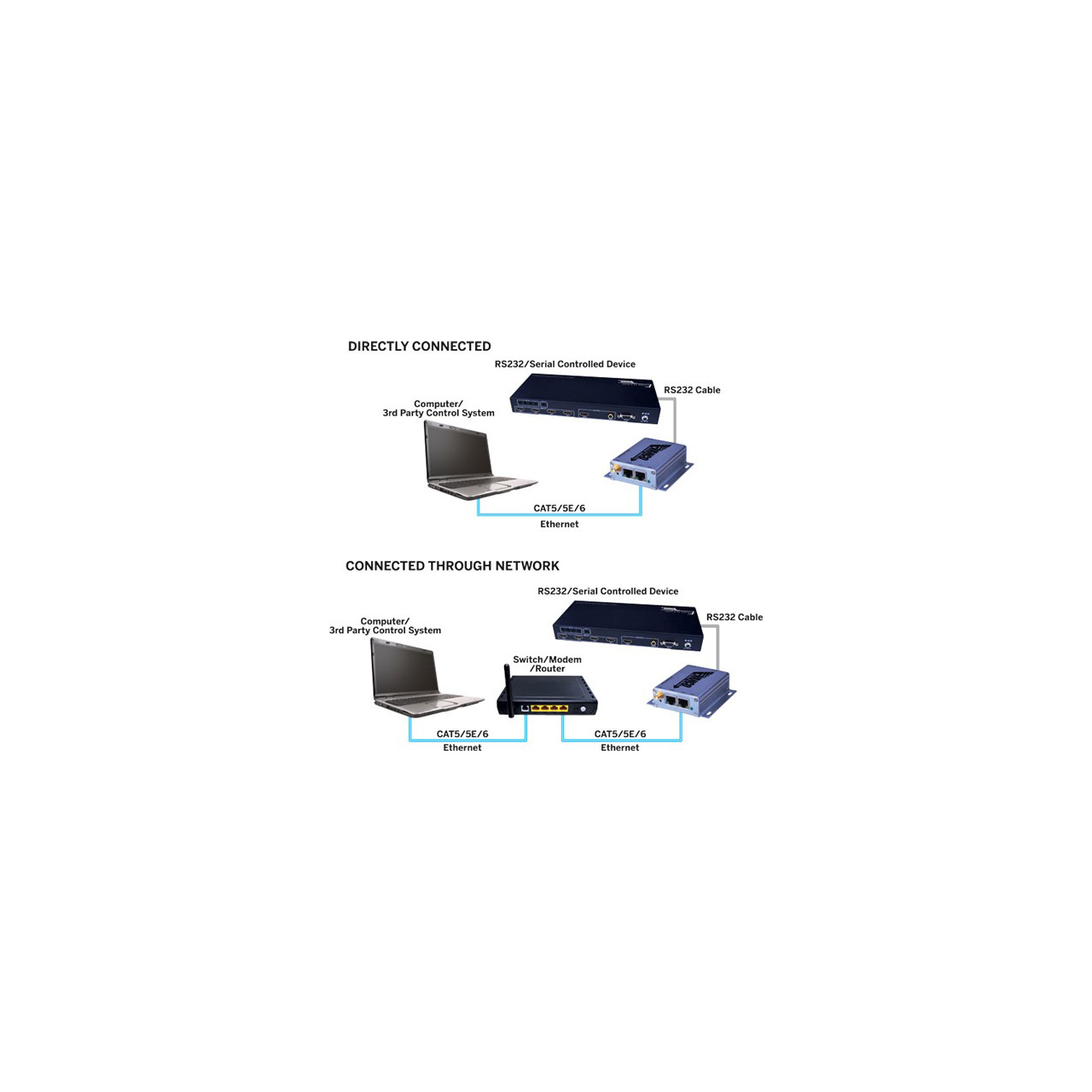

    The Vanco RS232-IP is a LAN/Wi-Fi to Serial adapter that allows for remote access, configuration, and the ability to control any serial device over an IP network. Based on the universal serial interface with built-in TCP/IP protocol, the RS232-IP enables seamless communication via serial port, Ethernet, or any wireless network interface. Works with any traditional serial devices and can send and receive data through a connected internet network. A great solution for devices that only has the ability of being controlled through a serial connection, this allows control through a PC or third party LAN or wifi network!

    • Features:

      • LAN/Wi-Fi to Serial adapter that allows for remote access, configuration, and the ability to control any serial device over an IP network
      • Enables seamless communication via serial port, Ethernet, or any wireless network interface
      • Wired/Wireless Router, and wireless access point capability
      • Converts commands received over UDP or TCP/IP to Serial
      • Supports RS232 and RS485 interfaces
      • Extremely low latency
      • DC 5-18V ultra wide voltage input provides 2A current for increased reliability
      • Suitable for use in battery powered systems
      • Transparent Transmission Mode, RS232/RS485 to RJ45, RS232/RS485 to WIFI
      • RJ45 to WIFI can be achieved simultaneously to ensure stable of data transmission
      • Supports WEP/WAP-PSK/WAP2-PSK/WAPI
      • Encipher Type: WEP64/WEP128/TKIP/AES
      • Power Supply: 5V

    • Specifications:

      • Network Standard: Wireless: IEEE 802.11n,IEEE 802.11g, IEEE 802.11b; Wired: IEEE 802.3, IEEE 802.3
      • Wireless Transmission Rate: 11n: maximum up to 150Mbps; 11g: maximum up to 54Mbps; 11b: maximum up to 11Mbps
      • Tracks Number: 1-14
      • Frequency Range: 2.4-2.4835G
      • Emission Power: 12-15DBM
      • Interface: Wi-Fi, WAN, LAN, RS232
      • Antenna Type: External Antenna 6DB
      • WiFi Work Mode: Client/AP/Router
      • WDS Function: Support WDS wireless bridge connection
      • Wireless Security: Wireless MAC address filtering; Wireless security function switch; 64/128/152 bit WEP encryption; WPA-PSK/WPA2-PSK, WPA/WPA2 security mechanism
      • Network Management: Remote Web management; Configuration file import and export; WEB software upgrade
      • Maximum Transmission Rate: 500000bps
      • TCP Connection: Max connection number>20
      • UDCP Connection: Max connection number>20
      • Serial Baud Rate: 1200~500000bps
      • Status Indicator: Status Indicator
      • Operating Temp: -4°F - 158°F (-20°C - 70°C)
      • Operating Humidity: 10% - 90%RH (Non-condensing)
      • Storage Temp: -40°F - 176°F (-40°C - 80°C)
      • Storage Humidity: 5% - 90%RH (Non-condensing)
      • Dimensions: 1.1" x 1.5" x 35" (29mm x 40mm x 8.8mm)
      • Frequency Bandwidth Optional: 20MHz, 40MHz, Automatic

    • Item Includes:

      • 1x RS232-IP Unit
      • 1x 5V Power Supply
      • 1x Male-to-Female DB9 (RS232) Cable
      • 1x Cat5e Patch Cable
      • 1x Mounting Screws (the unit has 4 holes for mounting the product)
      • 1x Product Manual

    • Warranty:

      • 2 Year Warranty
