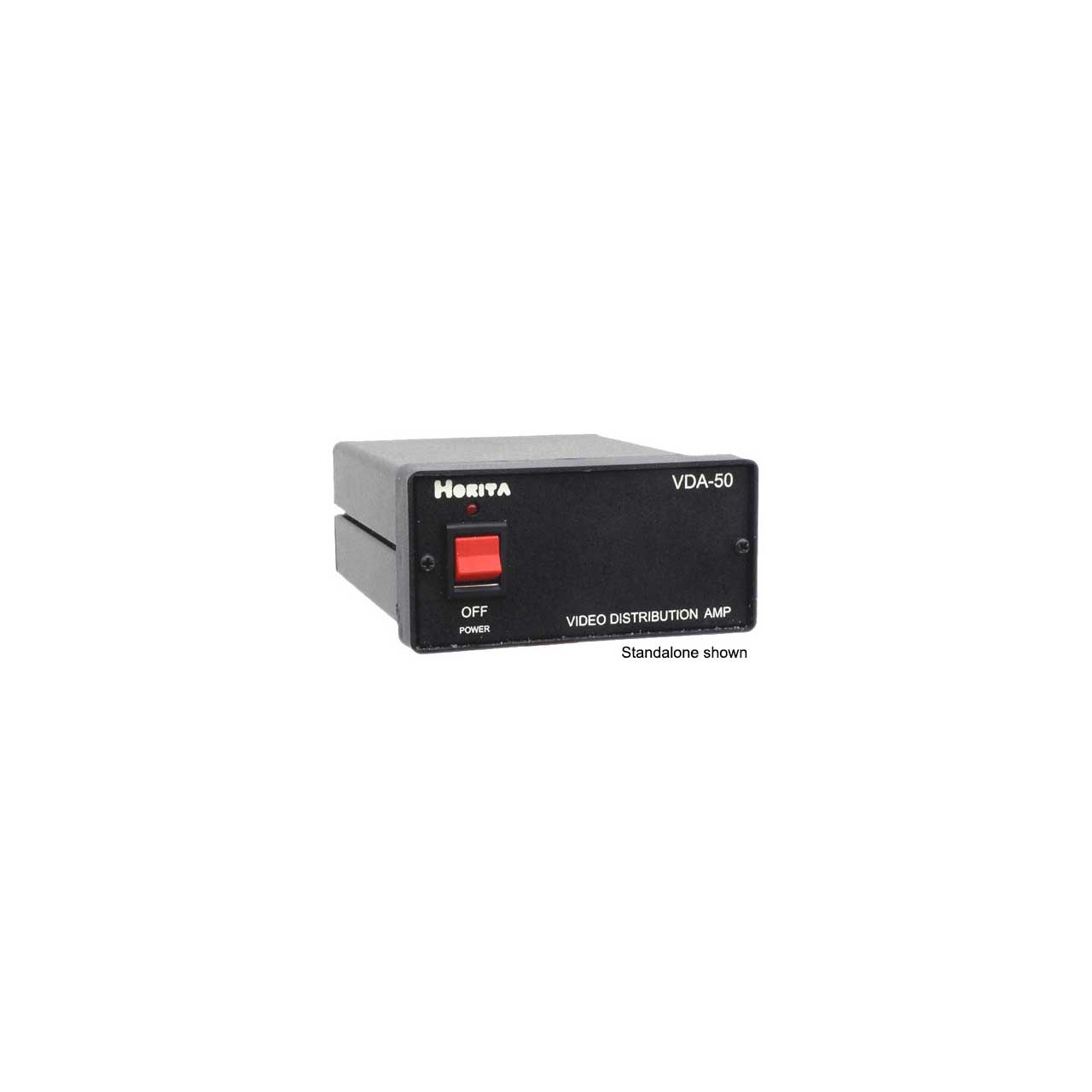

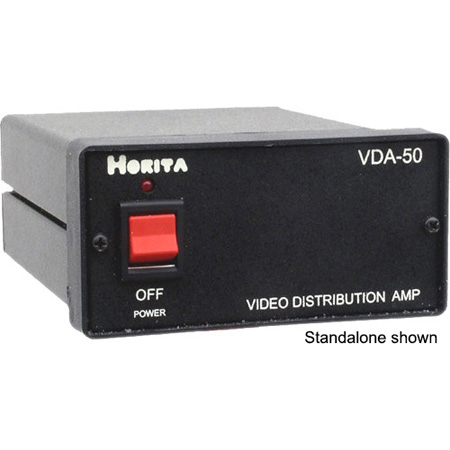

Horita VDA-50/RM Rackmount Wideband Multiple I/O Video DA

VDA-50/RM - Overview

• Features:

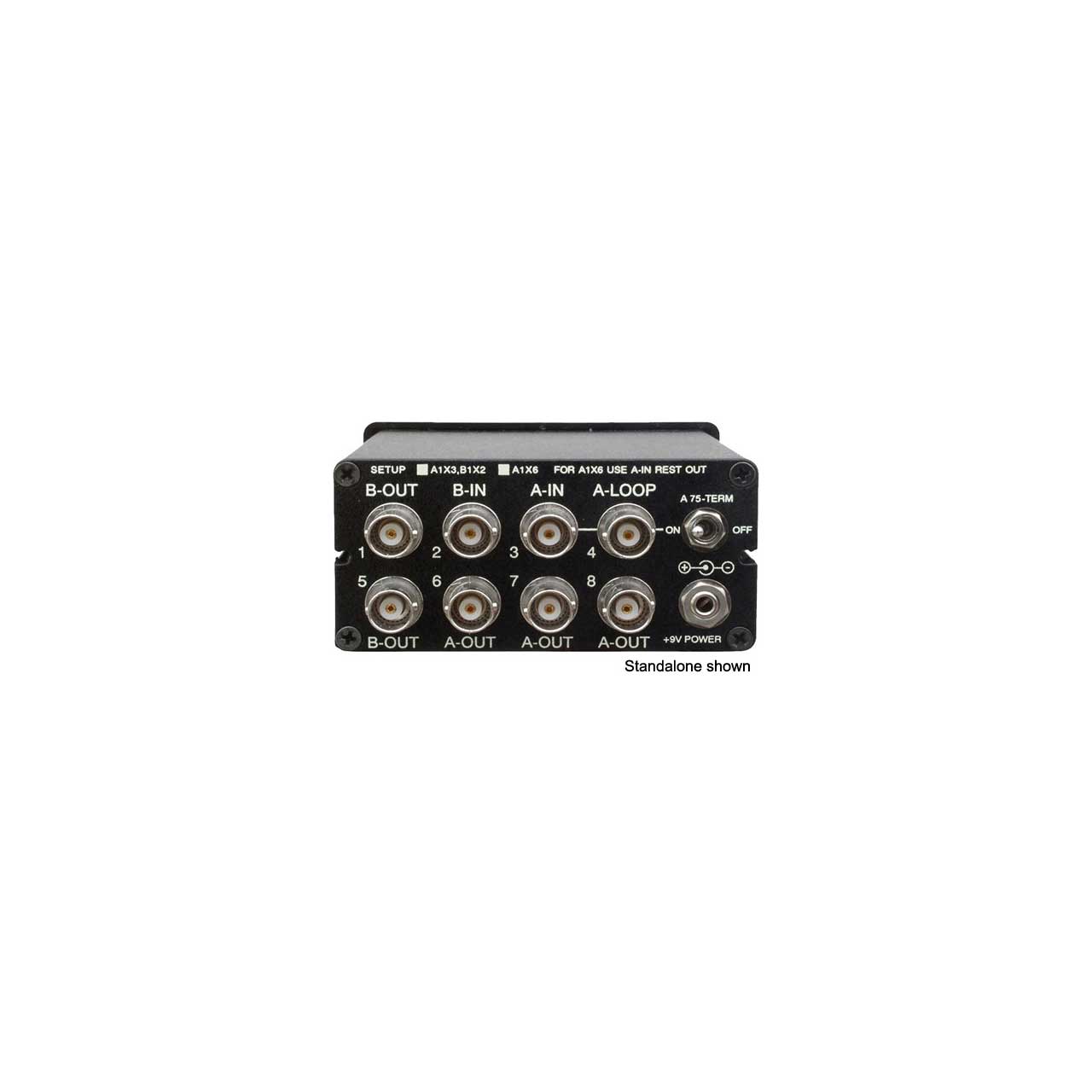

  • User configurable for a number of inputs and outputs. Ideal for small desktop video editing systems.Desktop version VDA-50 configurable as dual 1x2, 1x3 DA, or as single 1x6. Includes looping video input with switchable 75-ohm terminator. Rackmount version RM-50/VDA configurable as a triple 1x2 DA, dual 1x4, 1x3 DA or 1x5, 1x2 DA, or single 1x8 DA. Includes looping video input with switchable 75-ohm terminator. Looping input permits multiple VDA units to be easily connected for expansion or to pass the input video signal on to other pieces of equipment. Single HORITA RM-50 Rackmount panel can hold up to three VDAs which can be looped together to form a single 1x24 VDA for video duplication purposes. Wide bandwidth of over 80 MHz, differential phase .08 percent. Separate Level and EQ screwdriver adjustments provided for each DA section permit amplitude and frequency compensation for driving up to 500 feet of RG-59U coaxial cable.
