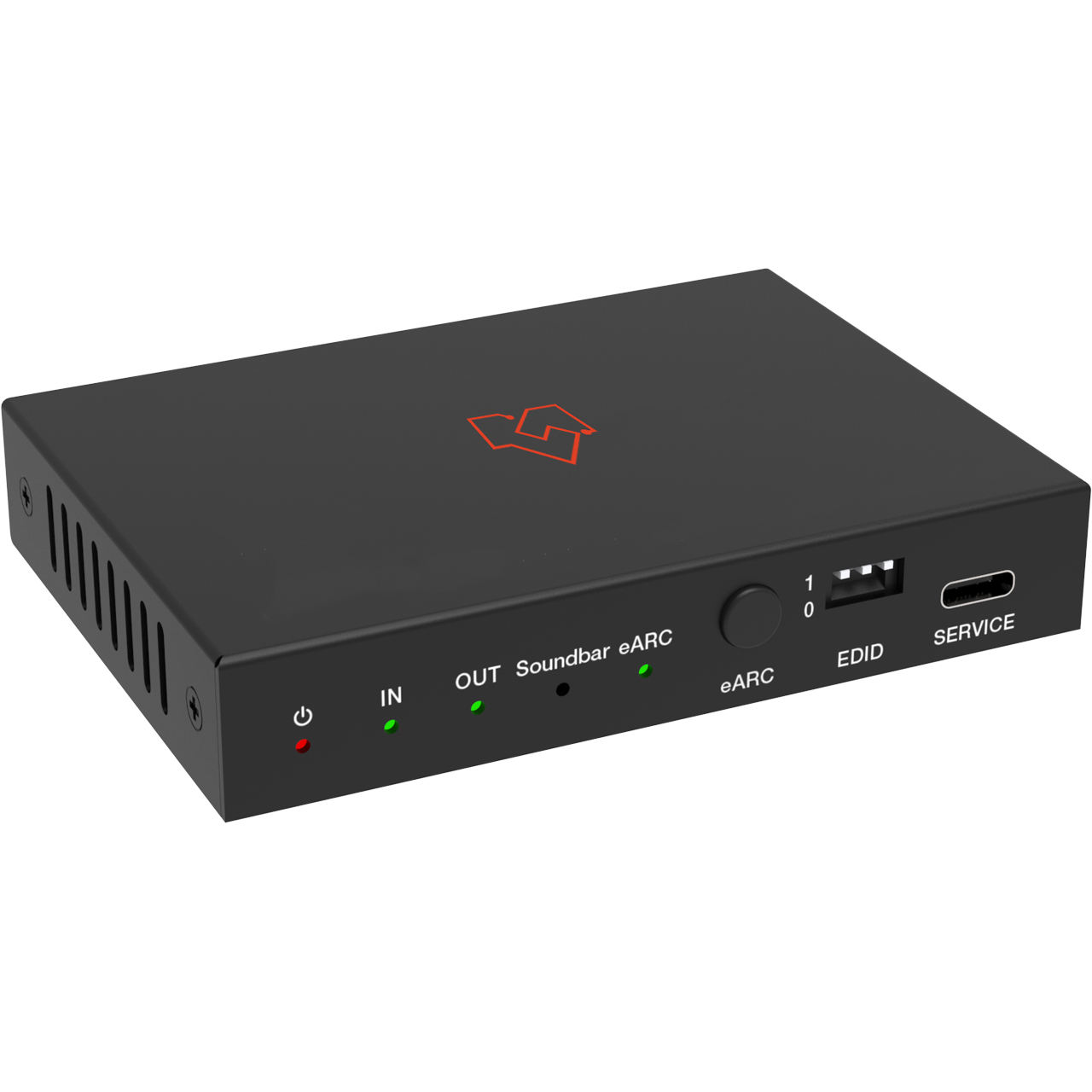

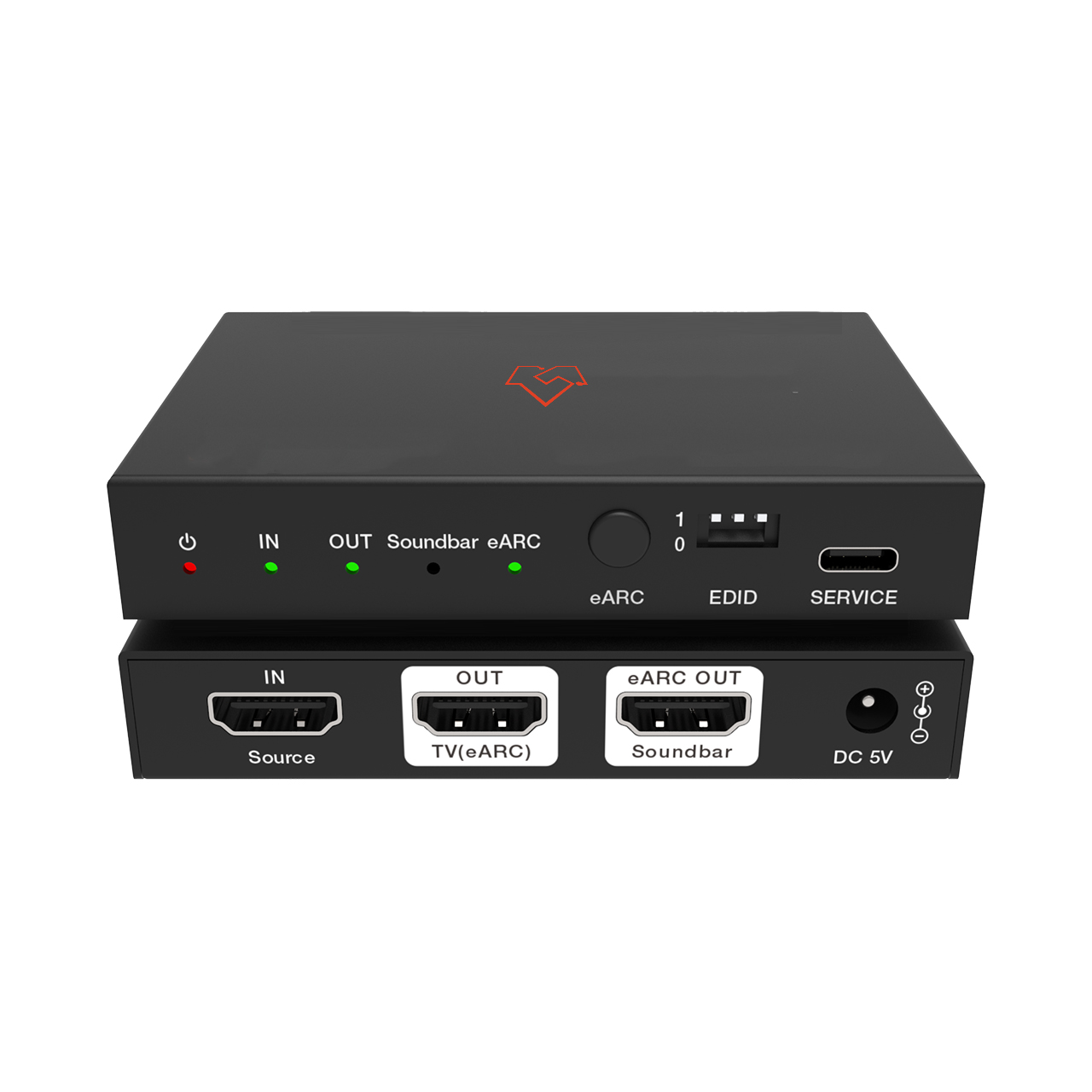

VigilLink VLHA-H21EMR HDMI 2.1 40Gbps Audio Embedder - HDMI 2.1 and HDCP 2.3 Compliant

ITEM #: VGL-VLHA-H21EMR MFG #: VLHA-H21EMR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$181.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLHA-H21EMR - Overview

Introducing the VigilLink VLHA-H21EMR HDMI eARC Audio to Soundbar Adapter, meticulously crafted to seamlessly extract audio signals from HDMI sources or ARC/eARC-enabled TVs to transmit HDMI audio to your Soundbar. It supports data rates up to 48Gbps and is compliant with HDMI 2.1 and HDCP 2.3 standards. It effortlessly manages UHDTV 8K@60Hz resolutions.

This adapter is packed with convenient features like EDID management and cable equalization, ensuring effortless integration into your HDMI setup. It offers a hassle-free solution for routing audio signals to your Soundbar, simplifying HDMI installations. Plus, enjoy seamless CEC control from your TV to the source and Soundbar, enhancing your audiovisual experience.

  • Features:

    • HDMI 2.1 and HDCP 2.3 compliant
    • Supports 48Gbps FRL and 18Gbps TMDS video bandwidth
    • Supports video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
    • HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
    • HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
    • LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
    • HDMI input audio or TV eARC audio de-embedded to any Soundbar
    • Full audio up to Dolby Atmos/DTS:x from eARC TV to SONOS ARC & Beam or any eARC Soundbar
    • Supports CEC control from TV to the source and Soundbar
    • Supports CEC volume control from TV to any sound system
    • Advanced EDID management


  • Specifications:

      Technical
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
    • Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
    • Video Resolution: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
    • Audio Latency: No Latency
    • Video Latency: No Latency
    • Color Depth: 8/10/12bit
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:0
    • Audio Formats:
      - HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
      - eARC AUDIO OUT: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DSD, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • ESD Protection: Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

      Connection

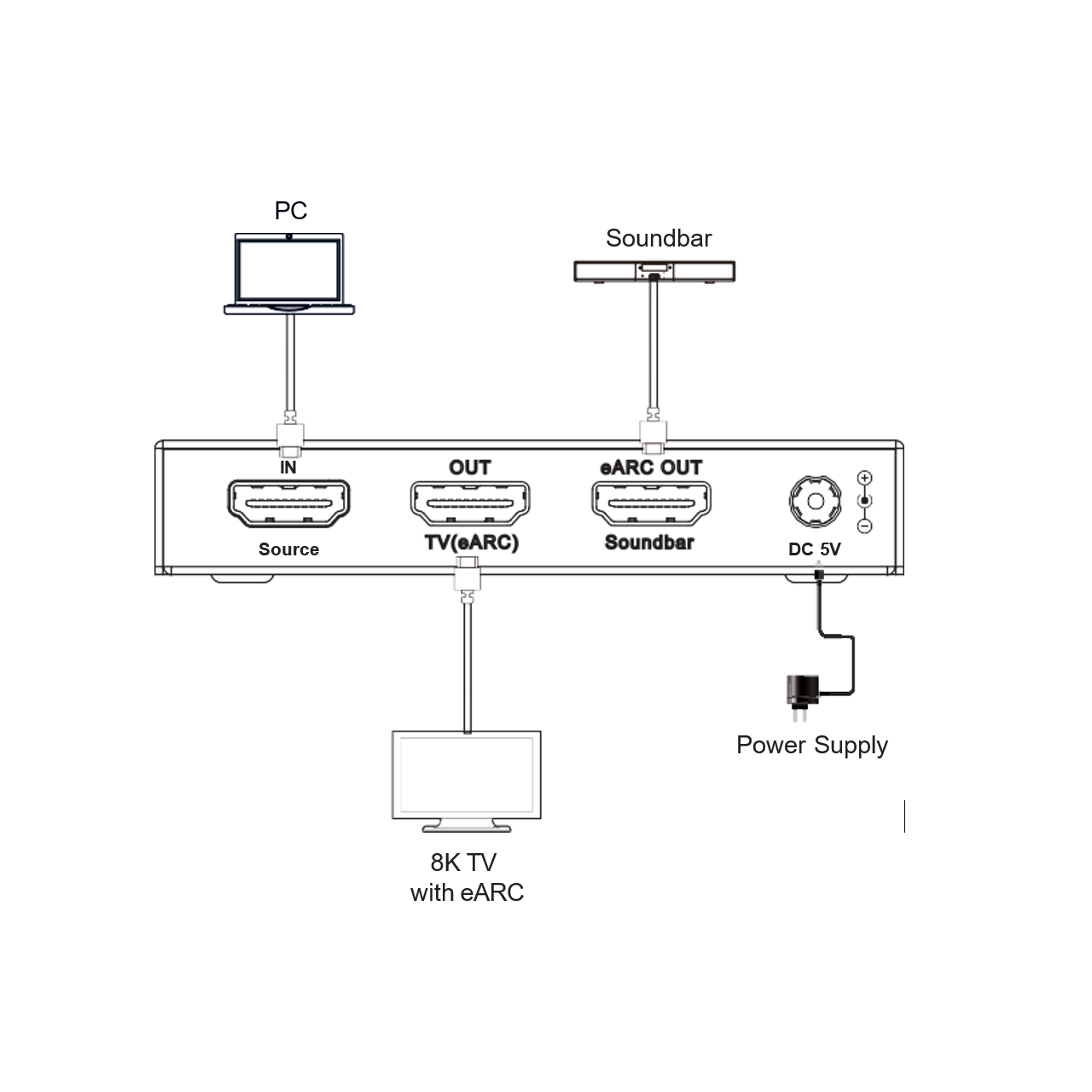

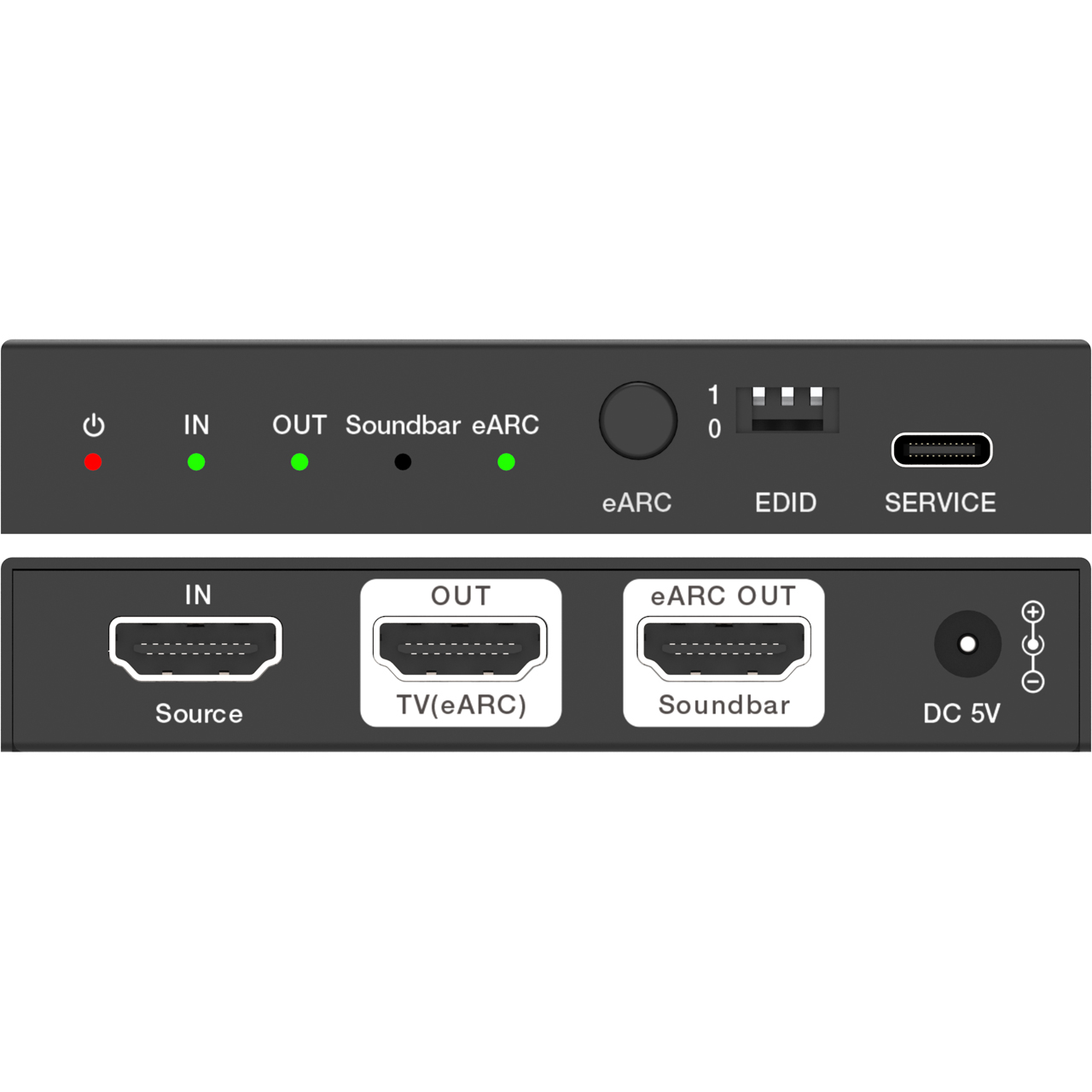

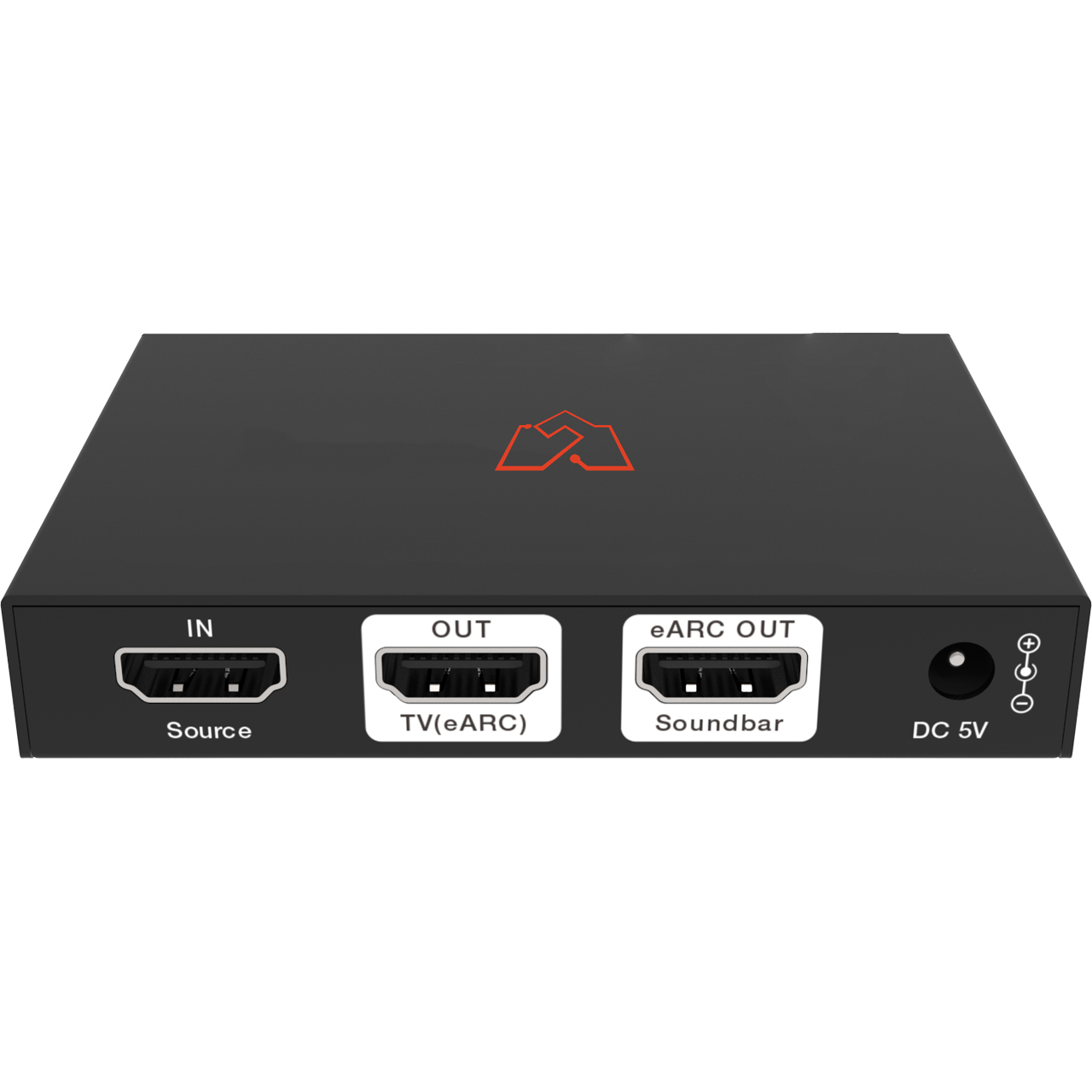

    • Inputs: 1x Source IN [HDMI Type A, 19-pin female]
    • Outputs:
      - 1x TV(eARC) OUT [HDMI Type A, 19-pin female]
      - 1x Soundbar eARC OUT [HDMI Type A, 19-pin female]
    • Control: 1x SERVICE [USB Type C, Update port]

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 3.74" x 2.68" x 0.70" / 95mm x 68mm x 18mm
    • Weight: 0.40 lbs / 178g
    • Power Supply:
      - Input: AC100 - 240V 50/60Hz
      - Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 4.13W
    • Operating Temperature: 32°F ~ 104°F / 0°C ~ 40°C
    • Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
    • Relative Humidity: 20 - 90% RH (No condensation)


  • Item Includes:

    • 1x 48Gbps HDMI eARC Audio to Soundbar Adapter
    • 1x 5V/1A Multinational Power Supply
    • 1x User Manual


  • Warranty:

    • 6 Years
