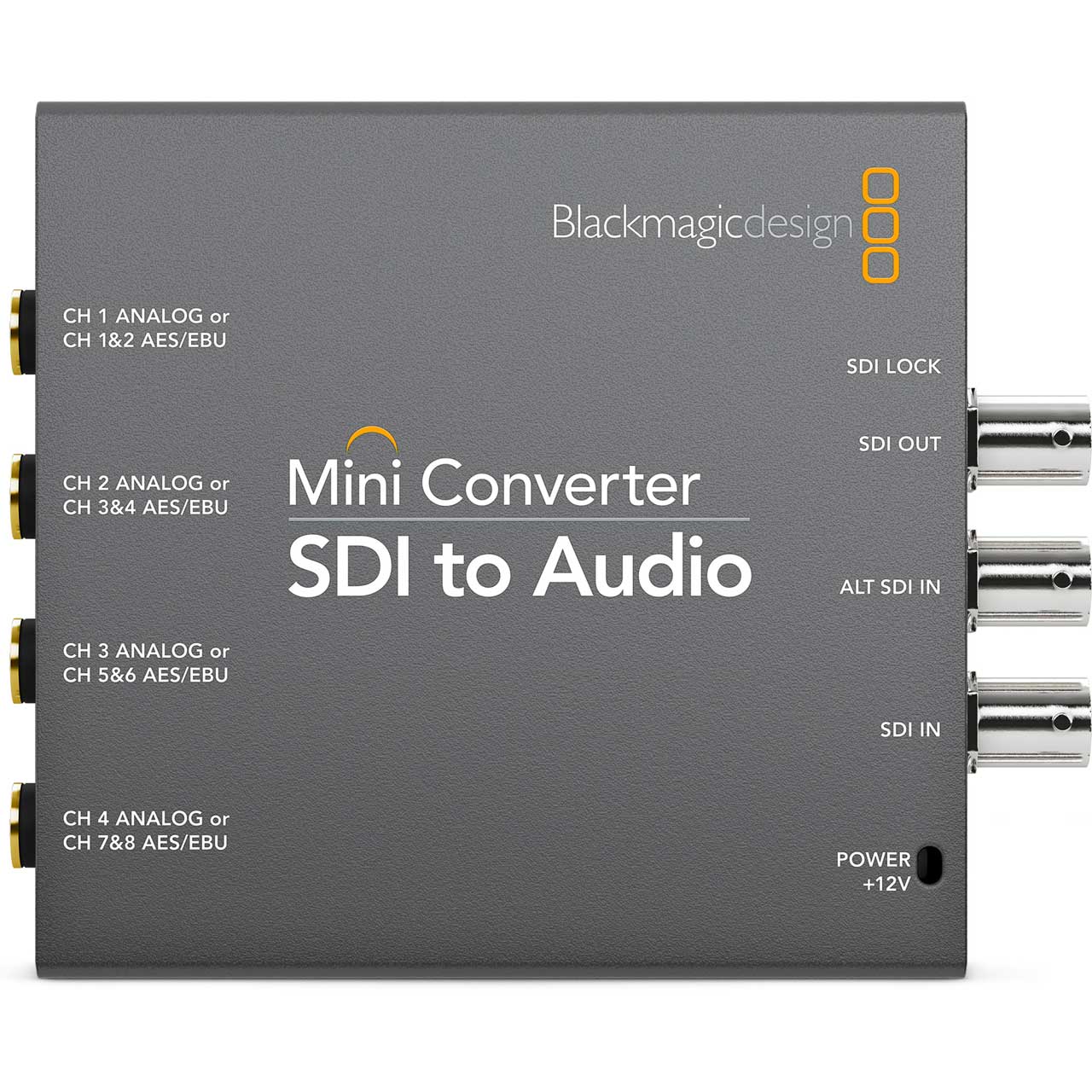

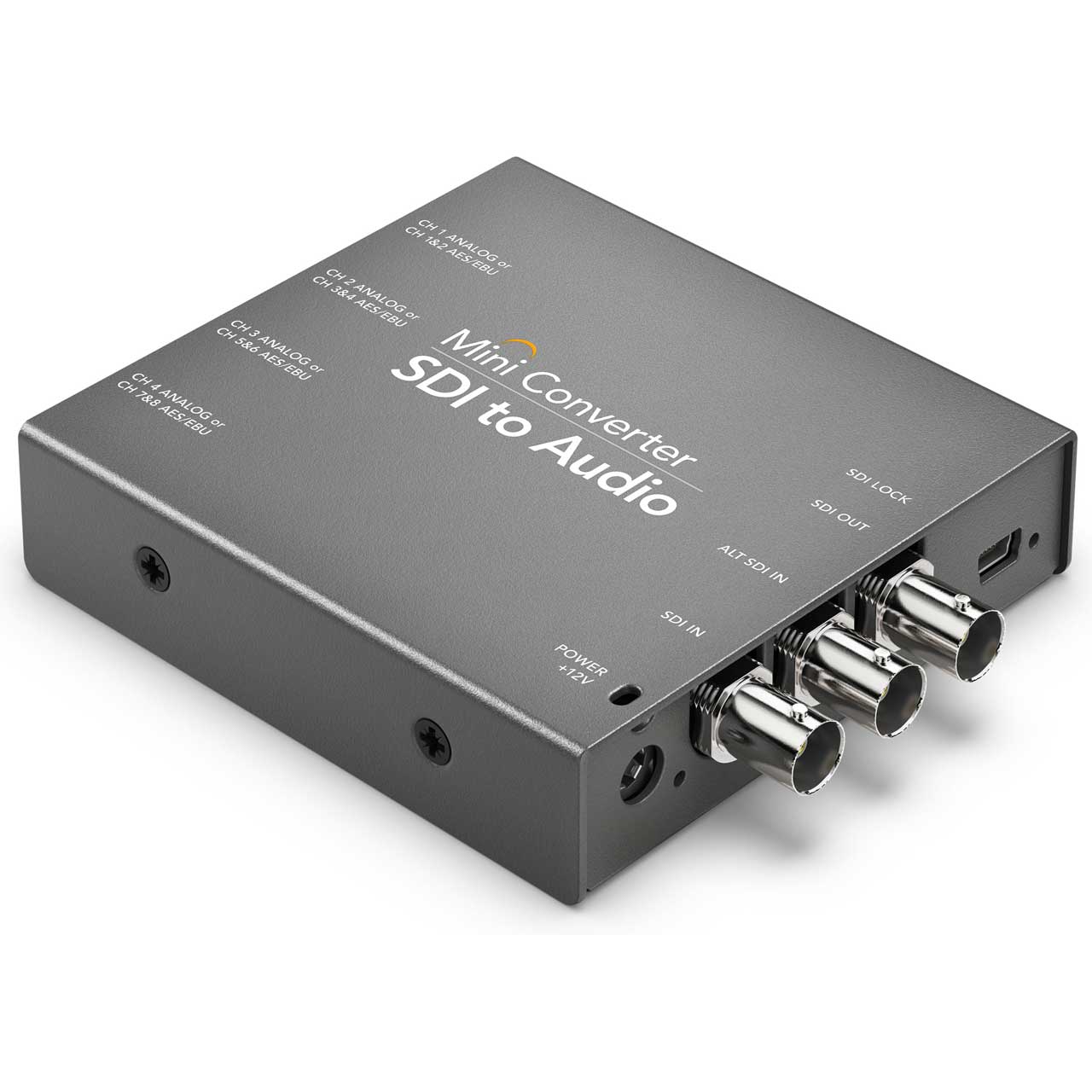

Blackmagic Design CONVMCSAUD Mini Converter SDI to Audio - De-Embedder

ITEM #: BMD-CONVMCSAUD MFG #: CONVMCSAUD

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$215.00

Availability: In Stock
iAvailability Description Popup


    CONVMCSAUD - Overview

    Switchable SD, HD and 3G SDI to Audio Mini Converter

    The Blackmagic CONVMCSAUD Mini Converter is the perfect way to de-embed audio from any SDI source in SD and HD formats up to 1080p60! Audio is output on 1/4 inch connectors for balanced analog and AES/EBU audio output to equipment such as mixers, analog decks, audio monitors and more. Mini Converter SDI to Audio is the ideal SD/HD SDI audio de-embedder for when you don't need the cost of the Ultra HD model!

    • Specifications:

      • SDI Video Inputs: 1 x SD, HD or 3G SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
      • SDI Video Outputs: 1 x SDI Loop Output.
      • Analog Audio Outputs: 4 channels of professional balanced analog audio.
      • Digital Audio Outputs: 8 channels of professional balanced AES/EBU audio.
      • SDI Redundant Inputs: Automatically switches over if main SDI input is lost.
      • Multi Rate Support: Auto detection of SD, HD or 3G SDI.
      • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
      • Reclocking: Yes
      • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
      • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60.
      • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
      • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M B, SMPTE 425M, ITU R BT.656, ITU R BT.601
      • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
      • SDI Video Sampling: 4:2:2, 4:4:4
      • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
      • SDI Color Precision: 4:2:2, 4:4:4
      • SDI Color Space: YUV, RGB
      • SDI Auto Switching: Automatically selects between SD, HD, and 3G SDI.
      • Software Control: Mac ™and Windows ™ software upgrade via USB.
      • Internal Software Upgrade: Via included updater application.

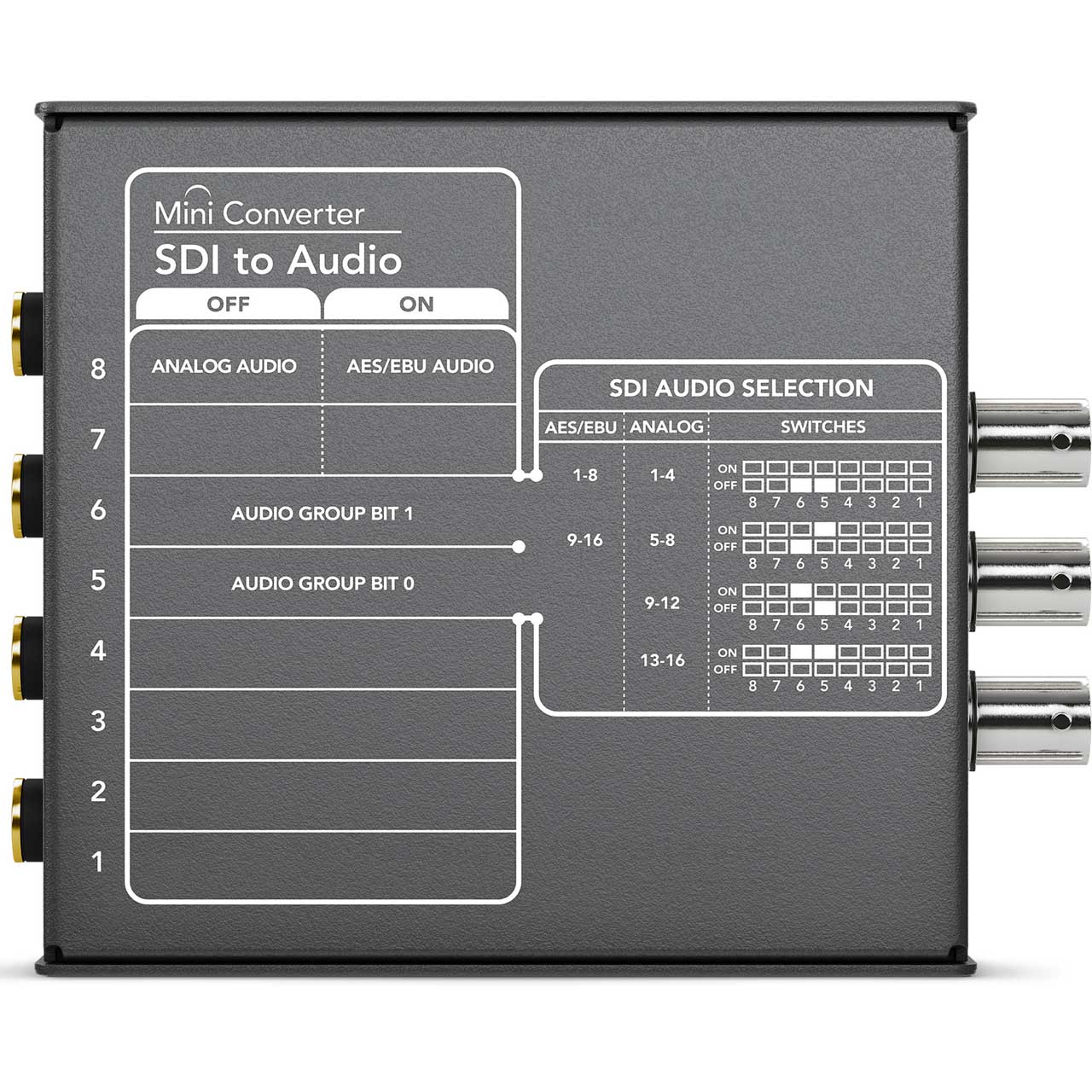

      • Settings Control: Mini Switches or USB software.
      • Operational Voltage Range: 12 15V DC
      • Operating temperature: 0° to 40° C (32° to 104° F)
      • Storage temperature: -20° to 45° C (-4° to 113° F)
      • Relative Humidity: 0% to 90% non condensing
      • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
      • Power Consumption: 5.52 Watts
      • Operating Systems: Mac 10.14 Mojave,Mac 10.15 Catalina or later. Windows 8.1 and 10.

    • Item Includes:

      • Mini Converter SDI to Audio
      • 12V universal power supply with international socket adapters

    • Warranty:

      • 3 Year Limited Manufacturer's Warranty

    • GTIN:

      9338716000603
