VLSM-4X3P4K-SR - Overview

The VigilLink VLSM-4X3P4K-SR is a dedicated design for integrating with multiple medical devices for video recording during operations or diagnoses. It supports high-quality 4K@60 video input and output for display over HDMI. The video from medical devices such as endoscope, X-Ray systems, ultrasonics, da Vinci Surgical Systems, etc., is exported to monitor and is recorded to build in hard disk in the recorder simultaneously. This medical recorder supports real-time display and recording and complies with medical criteria to fulfill medical applications.

Features:
- UHD+ 4K@60Hz video from medical devices can be recorded to the built-in SSD storage (downscaled to 1080p@60Hz)
- Records using the H.264 & H.265 codecs to offer the highest quality video recording possible while maintaining optimal file sizes
- An Intel Atom processor-based PC combined with Pro-AV streaming functionality
- Supports power-isolated HDMI, RS-232, and, LAN ports
- Supports video source previewing
- Includes TPM 2.0 (Trusted Platform Module) for industry-standard hardware-based security
- Medical-grade design fulfills medical application compliance requirements
Specifications:
- HDMI Compliance: HDMI 2.0 (DVI 1.0)
- HDCP Compliance:
  - Input: 2.0b
  - Output: 2.2
- Input Signal Types: 4K@60 8bit YUV 4:4:4
- HDCP Compliance: 4K@60 8bit YUV 4:4:4
- Maximum Input: HDMI: 4096x2160p@60
- Maximum Output:
  - HDMI: 4096x2160p@60
  - HDBaseT: 4096x2160p@60
  - Recording: 1920x1080p@60
  - HDMI: 1080p@60

  Audio
- HDMI: LPCM (8 Channels)
- Line In: 2 Vrms
  - S/N Ratio: > 80dB (1kHz with 0dBFS)
- Mic In: 2 Vrms
  - S/N Ratio: > 80dB (1kHz with 0dBFS)
- Line Out: 2 Vrms
  - S/N Ratio: > 80dB (1kHz with 0dBFS)

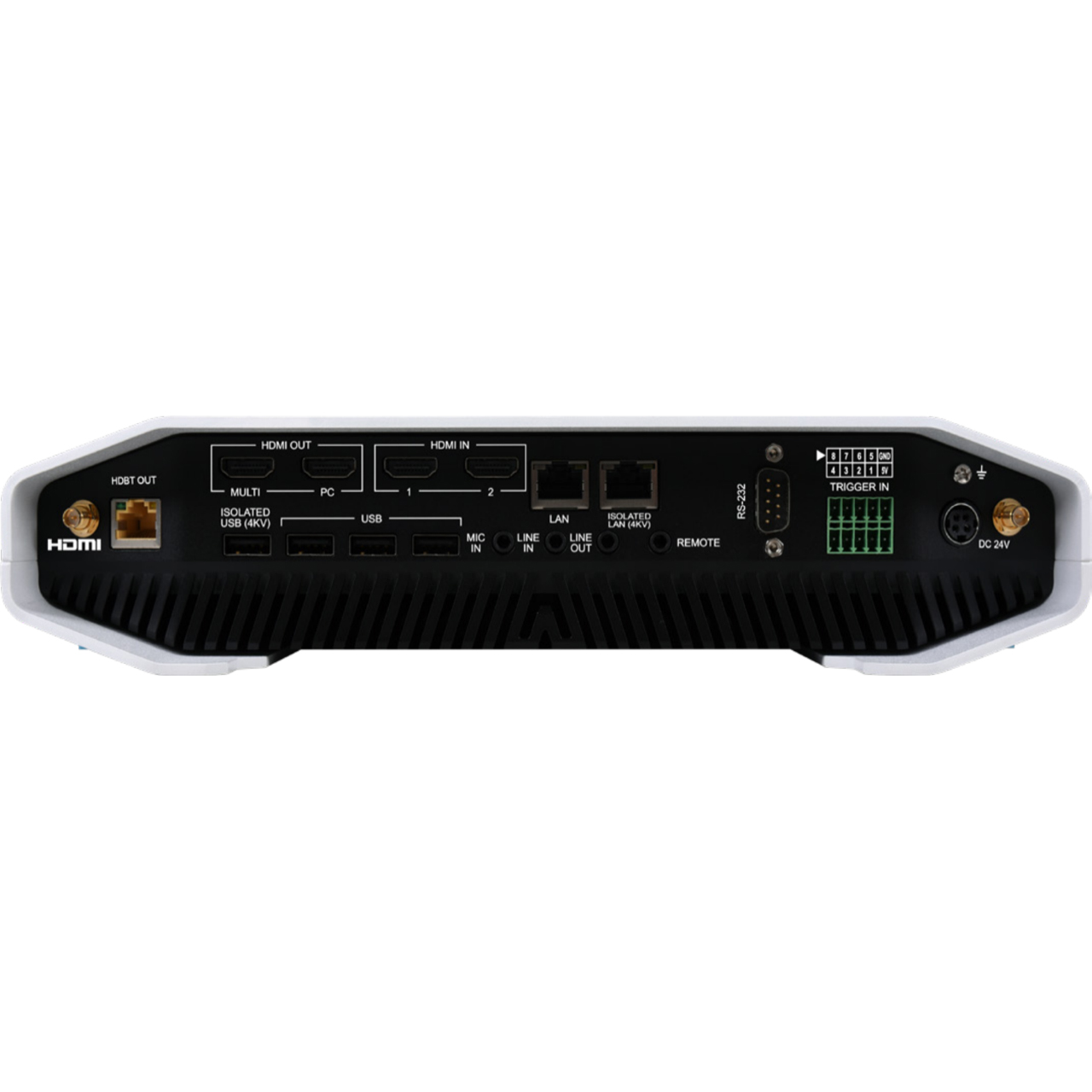

  Connections
- Input Port:
  - 4x HDMI (Type-A)
  - 8x Trigger (10-pin terminal block)
  - 2x Analog Stereo (3.5mm)
- Output Port:
  - 2x HDMI (Type-A)
  - 1x HDBaseT (RJ-45)
  - 1x Analog Stereo (3.5mm)
- Bi-directional Port:
  - 1x GbE LAN (RJ-45)
  - 1x GbE LAN (RJ-45) with 4KV isolation
- Control I/O:
  - 1x UART (RX/TX only) (3.5mm)
  - 1x RS-232 (DB-9) with 4KV isolation
  - 3x USB 2.0 (Type-A)
  - 1x USB 2.0 (Type-A) with 4KV isolation (12MB/Bits)
  - 2x USB 3.0 (Type-A)

  Other
- Housing Construction: Metal (Aluminum)
- Device Dimension(WxHxD): 12.5" x 12.4" x 2.6" (318mm x 316mm x 67mm)
- Weight: 9.5lbs (4.3kg)
- Power Supply: 24V/4.17A DC
- CPU Memory: Intel Elkhart Lake x6425E 2.0Ghz (Boost 3.0Ghz) DDR4-16GB Soldered on board
- Storage:
  - 2.5" SATA SSD 1TB
  - M.2 SATA SSD (Expandable)
Item Includes:
- 1x Multi-viewer with Streaming Solution and Stand-alone PCbased System for Video Capturing
- 1x 24V/4.17A DC Power Adapter
- 1x Software Serial Number Card
- 1x Operation Manual
Warranty:
- 6-Year Limited Warranty
GTIN:
0810119592132
