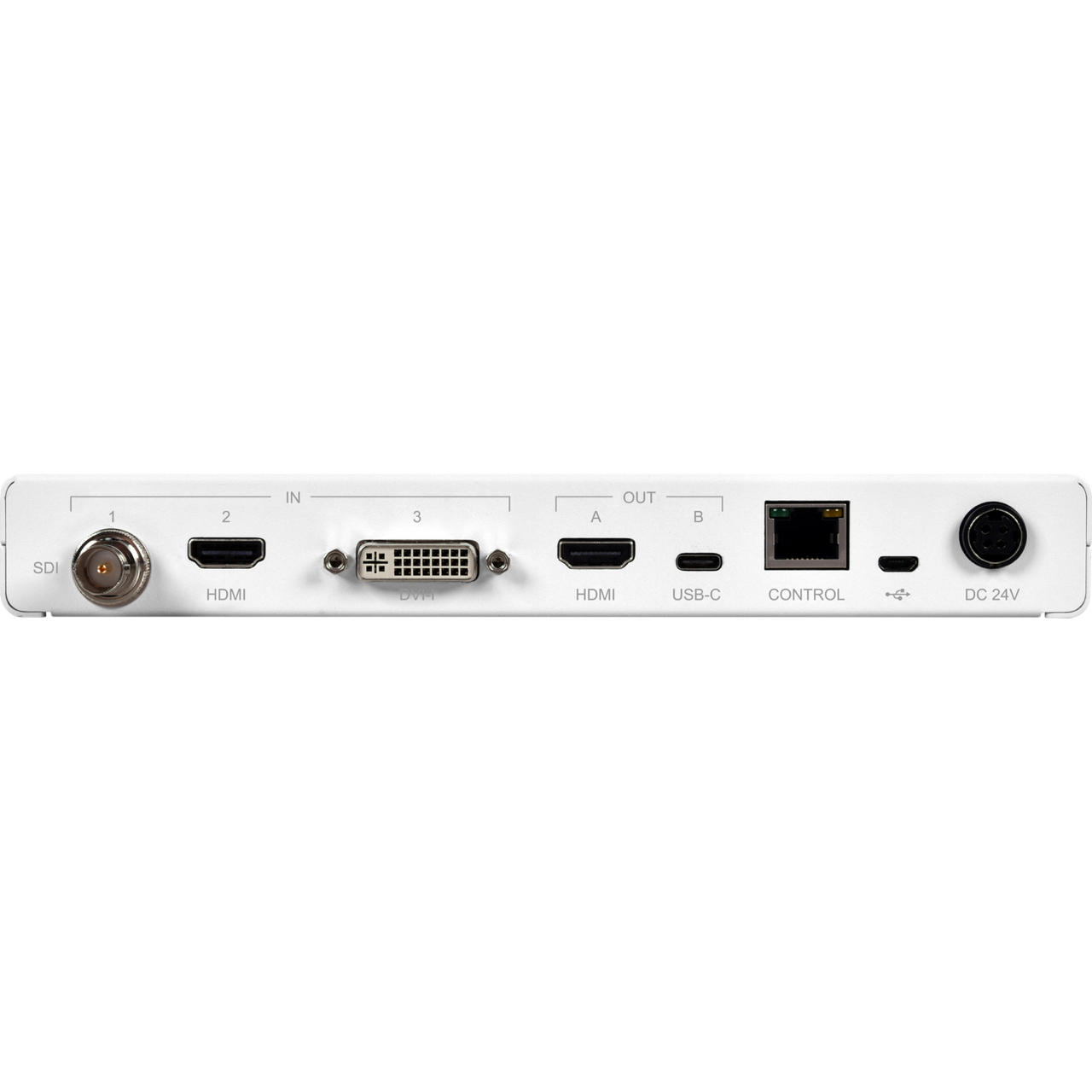

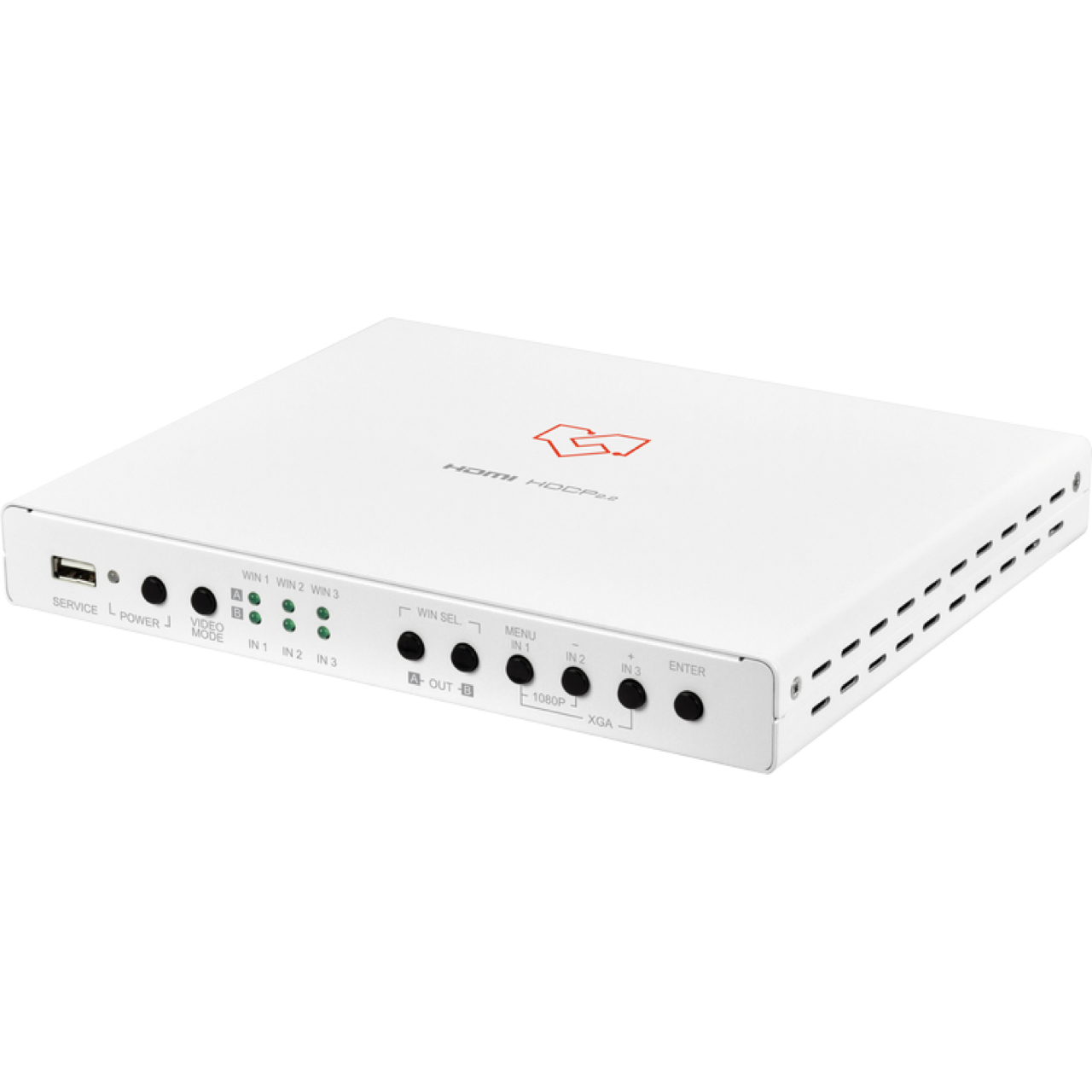

The VigilLink VLML-SDH3X2 is a high-performance 3x2 matrix switch with integrated scaling and multi-windowing technology. It is an ideal solution for monitoring or displaying multiple medical sources, such as endoscopes, X-ray systems, ultrasonic devices, and the Da Vinci Surgical System, simultaneously during operation or diagnosis. Video resolutions (SDI and HDMI) up to 4K@60Hz, along with LPCM audio supporting up to 7.1 channels and 192kHz, are supported on both input and output. This unit is fully compatible with HDCP 2.x standards.

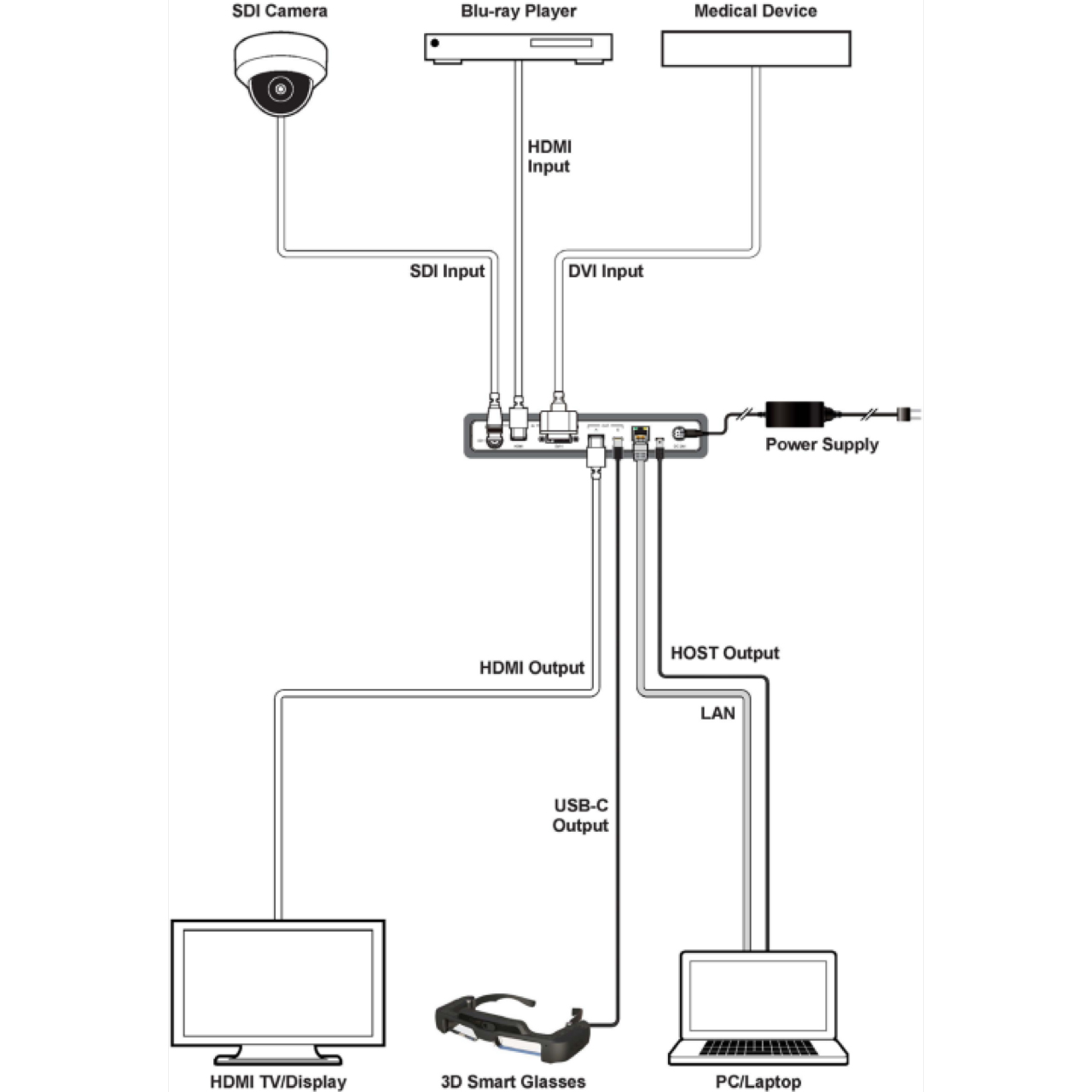

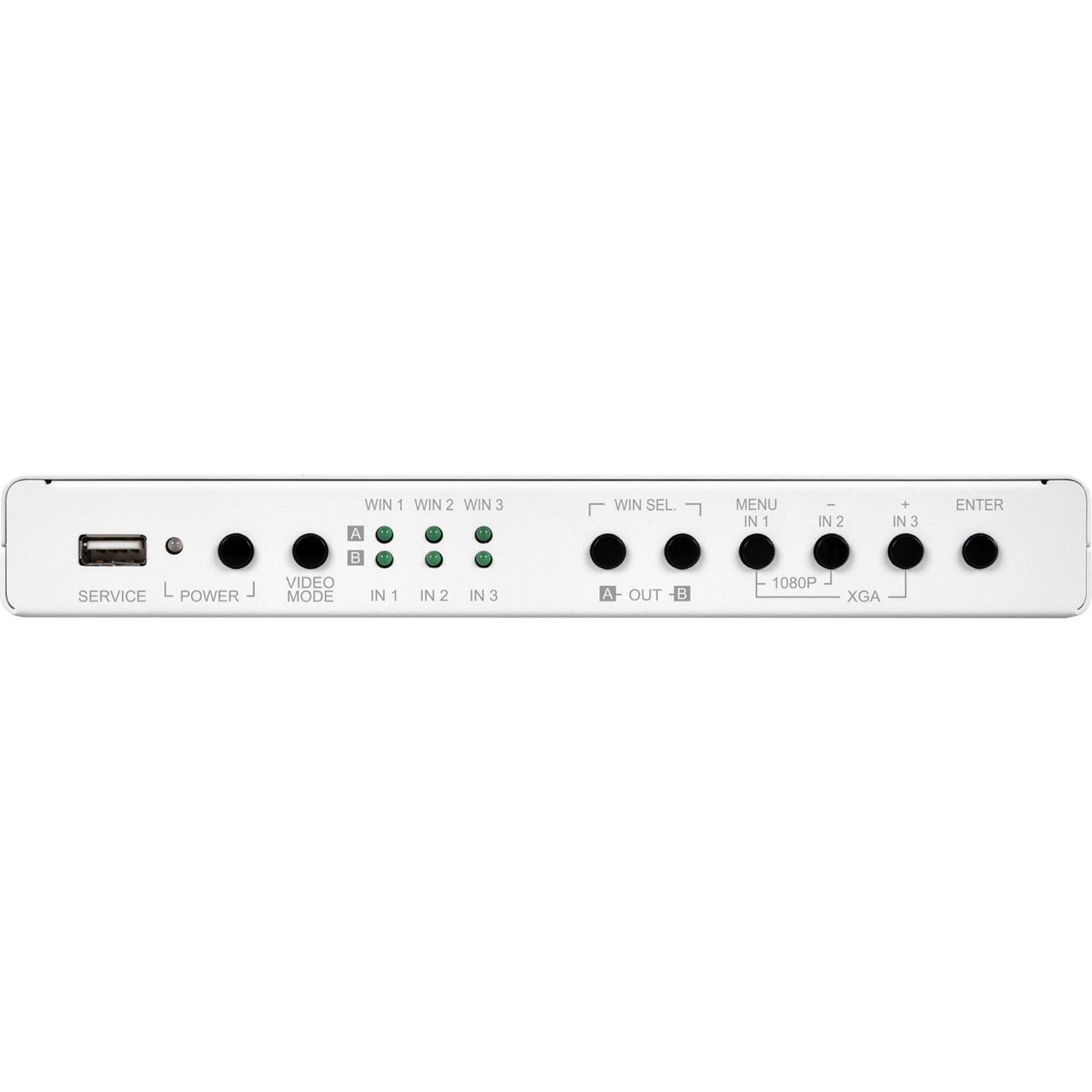

Any of the three HDMI sources can be displayed individually, full-screen, or in a variety of multi-window modes, including PiP, PoP, Side-by-Side, and Auto display, with the output sent to a general HDMI display and 3D Smart Glasses. Management of input, window routing, position, and sizing can be easily controlled using the front panel controls, as well as through WebGUI, RS-232, Telnet, and other options.
