Vinten VB360-OP Osprey Plus Pedestal System with Versine 360 Fluid Head

ITEM #: VIN-VB360-OP MFG #: VB360-OP

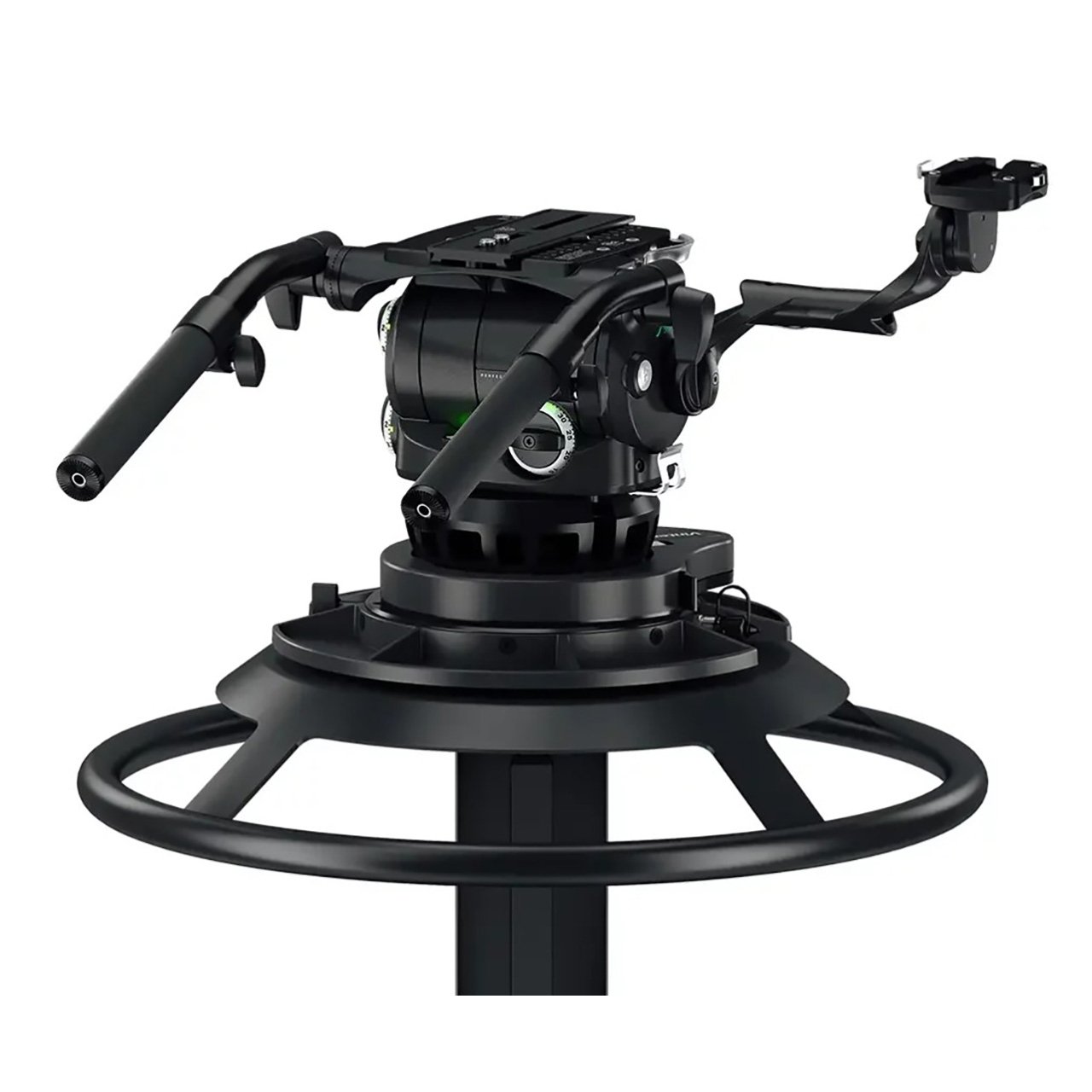

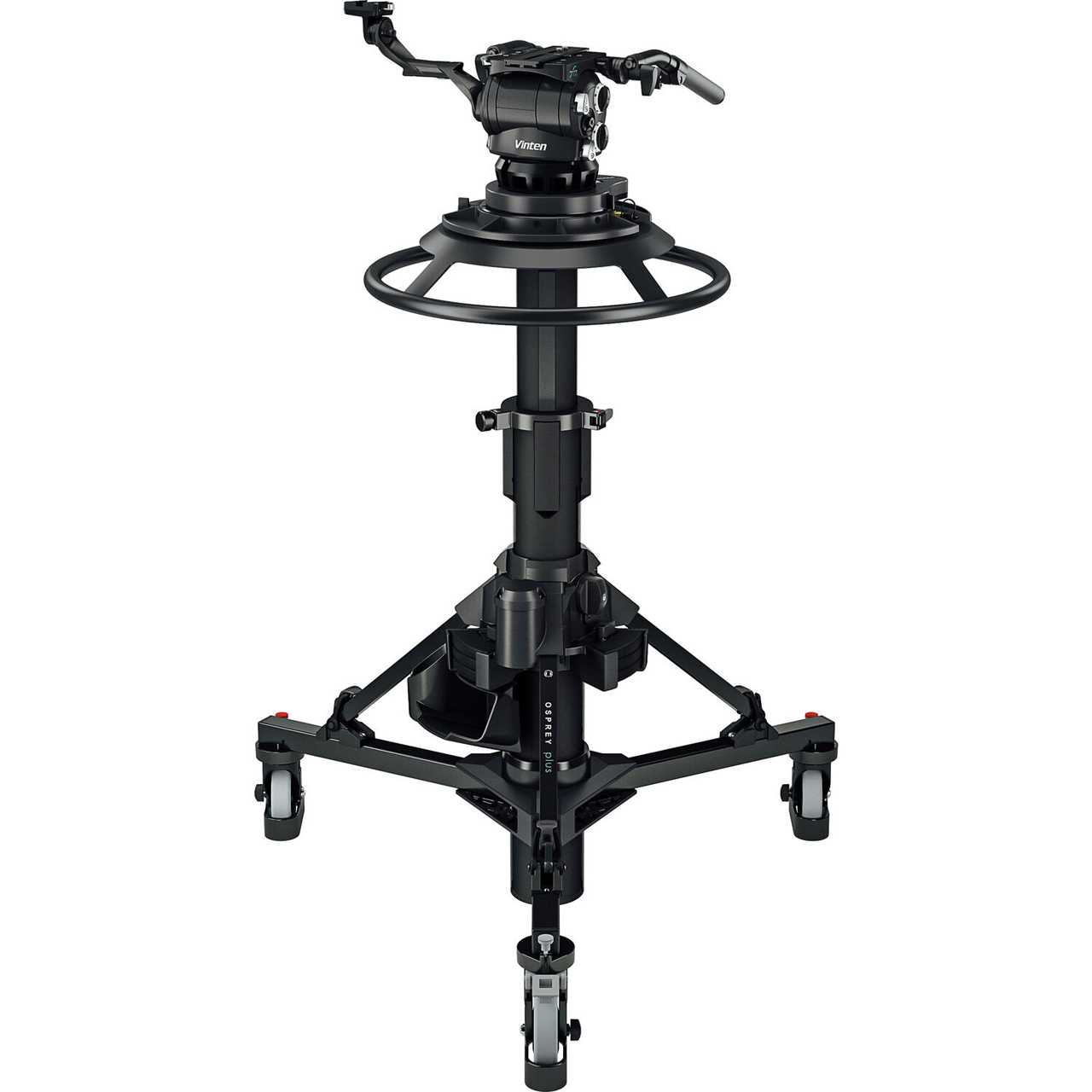

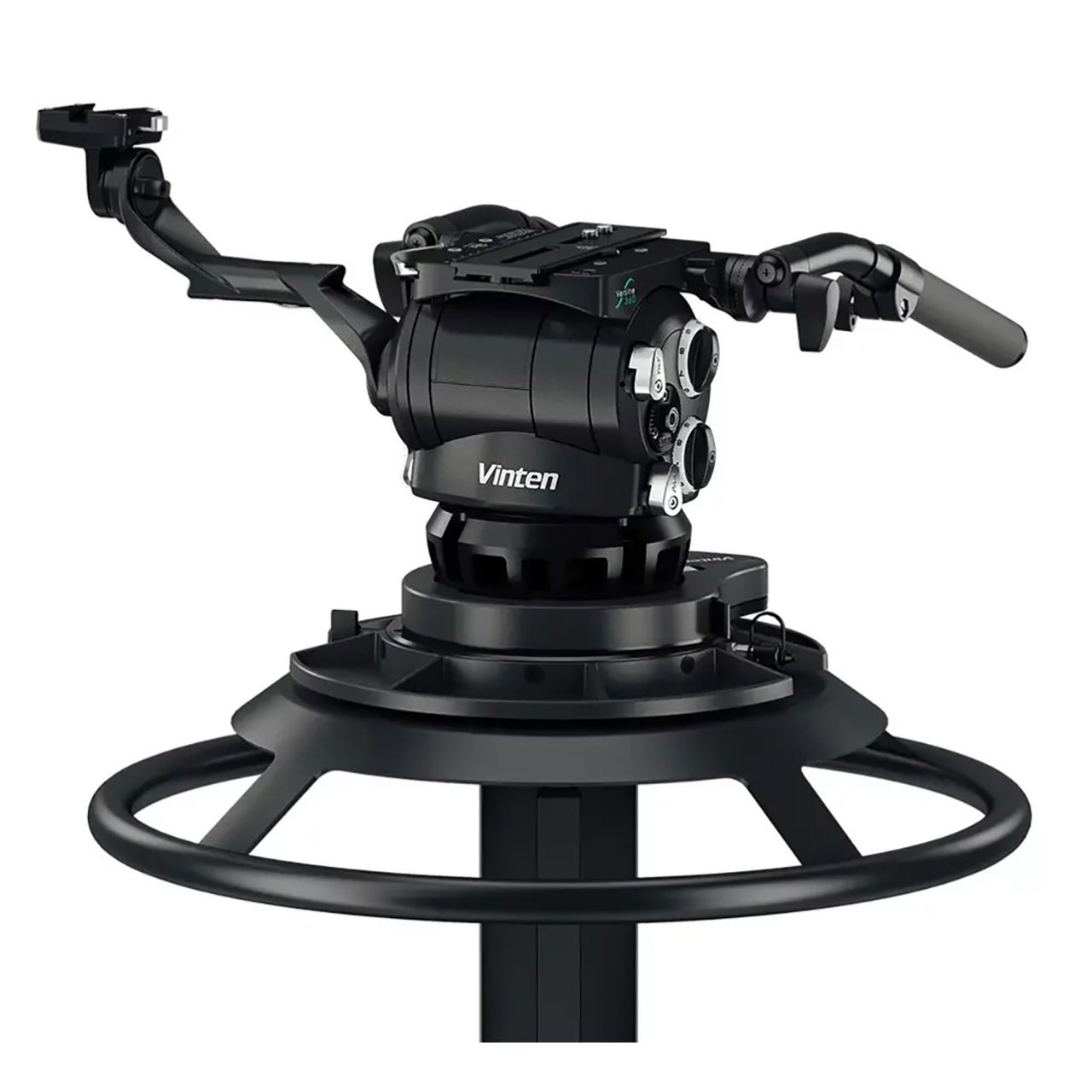

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$29,900.00

Our Price:

$28,405.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


VB360-OP - Overview

Developed in partnership with many of the world's largest OB companies, Versine 360 is the ultimate fluid head for fixed camera positions without box lenses. Vinten engineers have worked closely with camera operators, visiting broadcasts worldwide to truly understand their needs. The result is a design with extended payload, unique features, and exceptional control, carefully engineered to solve real-world challenges and meet the exacting demands of live television.

In this system the Versine 360 is combined with an Osprey Plus studio pedestal, mounting easily via the included Quickfix adaptor. The Osprey Plus has 2 stages for achieving very high and low shots, and the upper stage is perfectly balanced for `on shot' tracking of talent. With an integral manual pump and an inlet valve for use with an external supply, Perfect Balance is easy to achieve. A detachable skid allows the pedestal to be simply broken down into two sections for easy storage and transportation. It comes with 5" (12.5cm) wheels, track locks and adjustable cable guards for studio use.

  • Features:

    • Versine 360 system with portable 2-stage studio pedestal
    • Compact head with 88lbs (40kg) payload, Perfect Balance and TF Drag
    • Osprey Plus pedestal with single perfectly balanced stage for `on shot' height movement
    • Balance assisted second stage extends the pedestal height range
    • Quickfix release adaptor included for fast mounting of the Versine 360 head

  • Specifications:

    • Color: Black
    • Drag: TF30
    • Height: 33.9" - 66.14" (86.1cm - 168cm)
    • On Shot Stroke: 16.14" (41 cm)
    • Payload: 0lbs - 88.18lbs (0kg - 40kg)
    • Perfect Balance Stages: 1
    • Range: Versine
    • Stages: 2
    • Steering Ring Diameter: 21.06" (53.5cm)
    • Transit Width: 33.86" (86cm)
    • Weight: 80.47lbs (36.5kg)
    • Wheel Diameter: 4.92" (12.5cm)
    • Wheel Locks: Individual

  • Item Includes:

    • 1x Versine 360 (includes camera plate, pan bar, tiedown and Versine Arm)
    • 1x Additional telescopic broadcast pan bar
    • 1x Osprey Plus Studio Pedestal with Quickfix adaptor
    • 1x Quickfit adaptor incl. wedge and ⅜? screws
