Hall Technologies HRT VS-2A 2-Port VGA Switch with Audio & Serial Control

ITEM #: VS-2A MFG #: VS-2A

free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    VS-2A - Overview

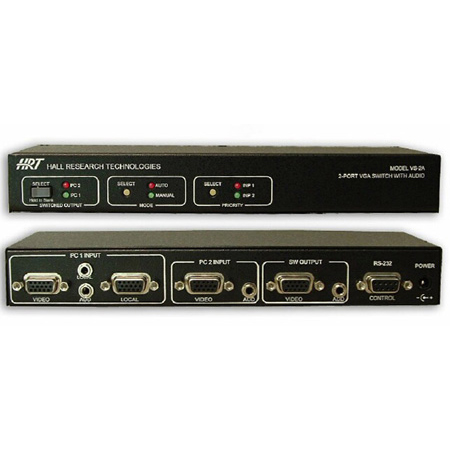

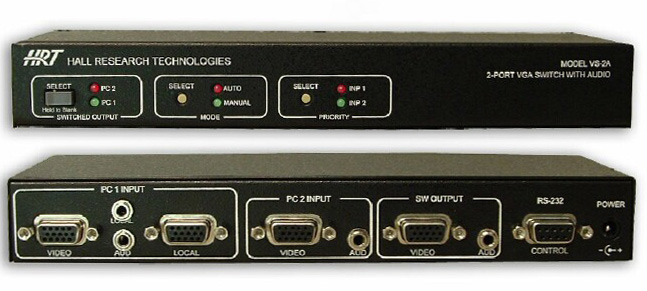

    The Model VS-2A is a versatile and compact 2 input x 1 output VGA & audio switch. It supports PC resolutions to 1600x1200 or HD resolutions to 1080p. The unit allows one monitor to be switched between two video and audio sources. Input #1 has local loop-thru outputs of audio and video that is perfect for desktop PCs. The switched output can be selected via front panel push-button, through RS-232 serial port, or automatically by scanning and detecting active video on the inputs. In 'Auto' mode, the user can also assign priority to Input #1 (or Input #2), whereby if both video inputs are active, input #1 (or Input #2) would have precedence. The switched output can be blanked (with audio muted) or unblanked via the front panel or through the serial port.

    • Features:

      • Allows two video & stereo audio input sources to be switched to one output
      • Can be controlled manually by push-button, via Serial port, or by detecting active video input
      • Select input 1, input 2, or blank the output
      • Auto mode automatically scans and selects the input with active video
      • Auto Mode priority can be set for input #1, Input #2 or no-priority
      • Switched output can be blanked and un-blanked
      • Stores the last selection and mode in EEPROM
    • Specifications:

      • Resolutions supported:PC from VGA to UXGA (640x480 to 1600x1200) HD from 480p to 1080p
      • Audio Inputs:PC or Consumer audio (standard line-level)
      • Video Level:0 to 0.7V p-p on RGB, 0 to 5 V for H and V Sync
      • Bandwidth:200 MHz
      • Temperature:Operating: 32 to 122°F (0 to 50°C); Storage: -40 to +185°F (-40 to +85°C)
      • Enclosure:Steel
      • Power:6V center positive, 300 ma DC power adapter for N. America (-U units include Universal power supply 100'240VAC).
      • Size:1.3" (33mm) H x 9" (229mm) W x 2.6" (66mm) D
      • Weight:1.1 pounds (500 grams)
