Wooden Camera 280500 B-Box EXT Connector Breakout Box for RED KOMODO Cameras

ITEM #: WDC-280500 MFG #: 280500

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup

    280500 - Overview

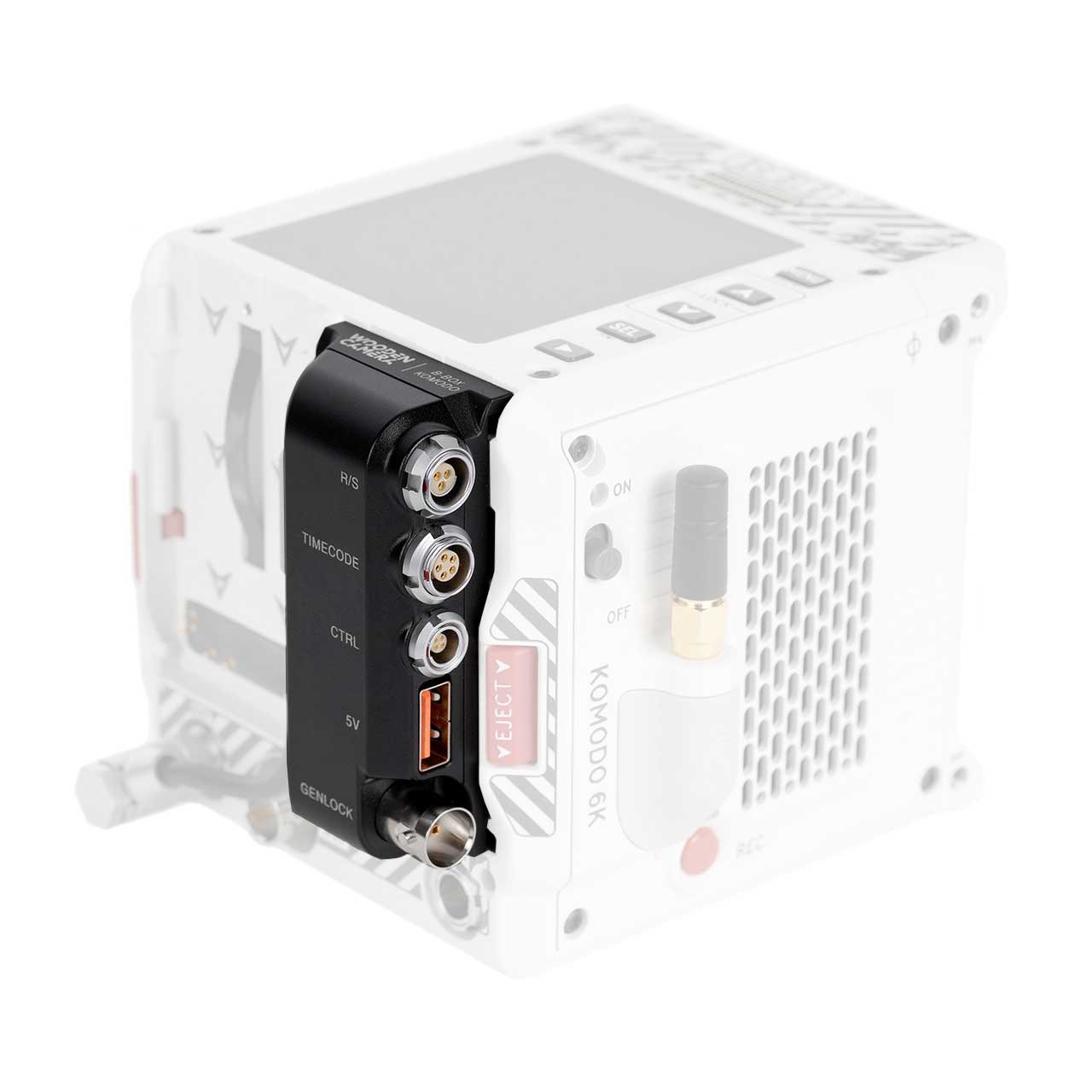

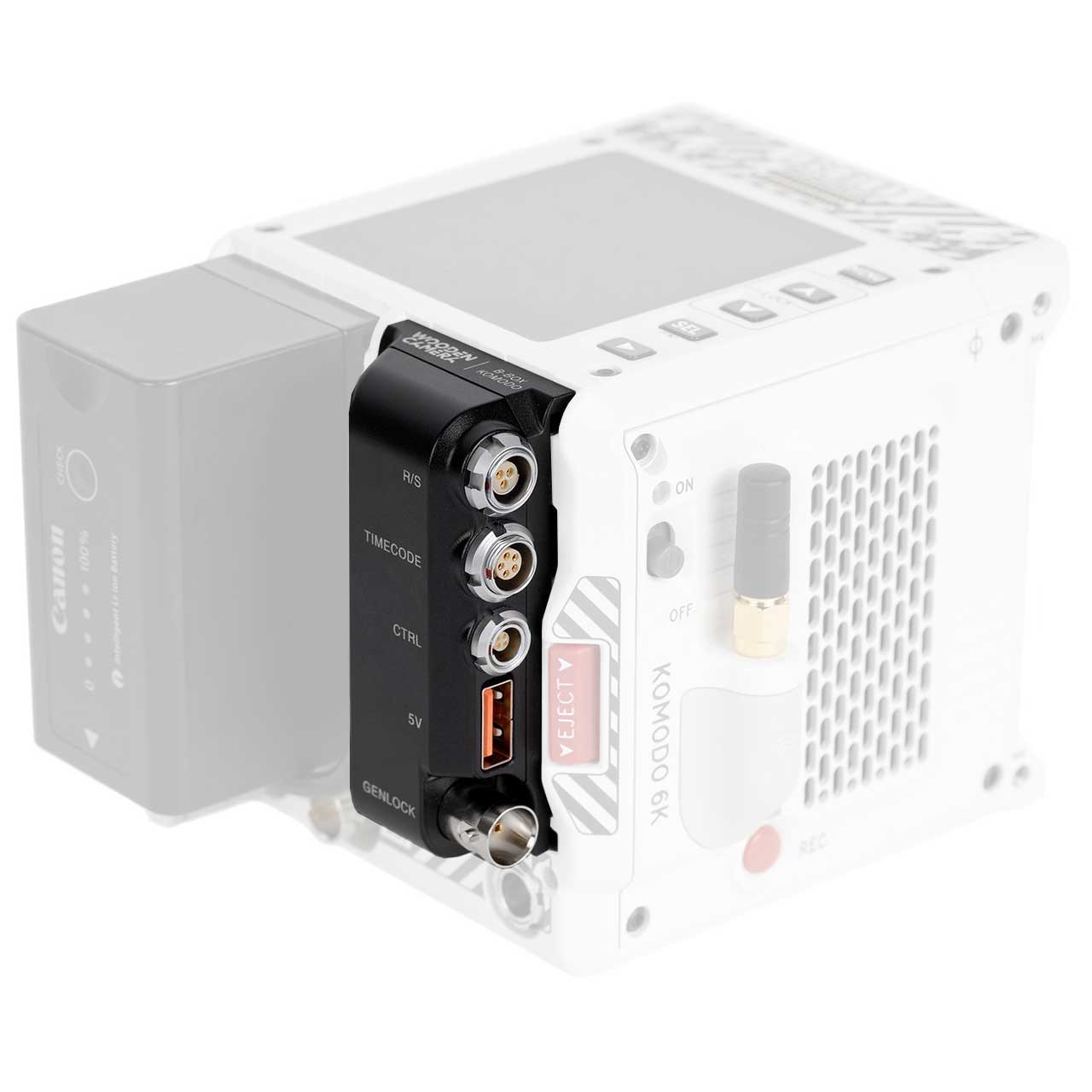

    Wooden Camera 280500 B-Box (RED® KOMODO™) attaches to the camera-right BP-9 battery slot and provides a breakout for the camera’s EXT connector. Battery Slide Pro V-Mount or Gold Mount for RED KOMODO can be used simultaneously and custom right-angle LEMO compatible connector allows for neat cable run. Canon BP-9 batteries could also be attached in camera-left slot while B-Box is used.

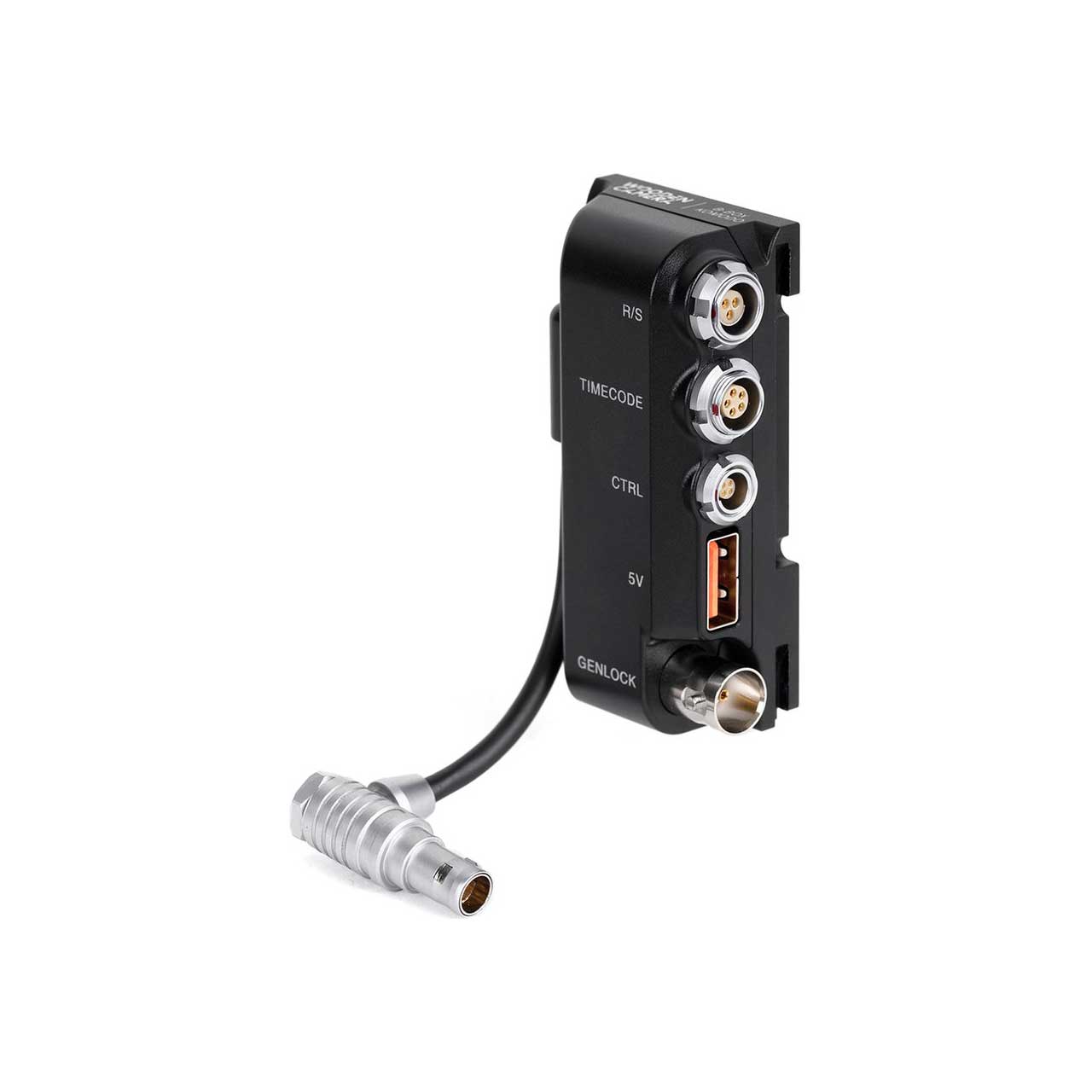

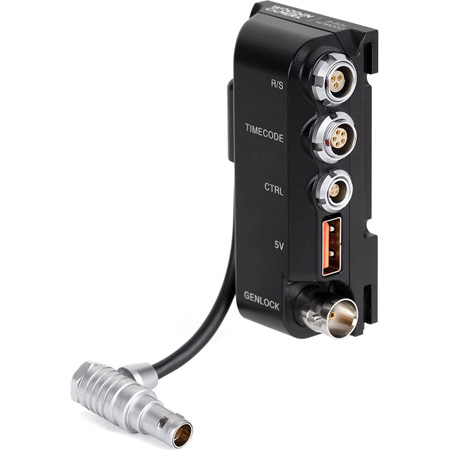

    Available Ports Include
    R/S (3pin Fischer)
    Simple run/stop for Handgrip Trigger Box, Simple 3pin Fischer Trigger Cable, etc.
    No power available
    Devices like ARRI WCU-4 may require CTRL port interface with cable K2.0015758
    Pin1:GND, pin2:N/C, pin3:GPI
    Timecode (5pin LEMO)
    standard wiring for timecode in/out
    pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT
    CTRL (4pin LEMO)
    Standard wiring for RED CTRL
    Pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX
    5V (USB)
    5V available at 500mA maximum
    Power may need to be enabled in camera menu
    Genlock (BNC):
    Standard wiring for genlock
    Center:signal, shell:GND

    • Specifications:

      • Weight: 100g (0.23Lbs)
      • Dimensions: 107.95 x 82.5 x 25.4mm (4.25 x 3.25 x 1")
