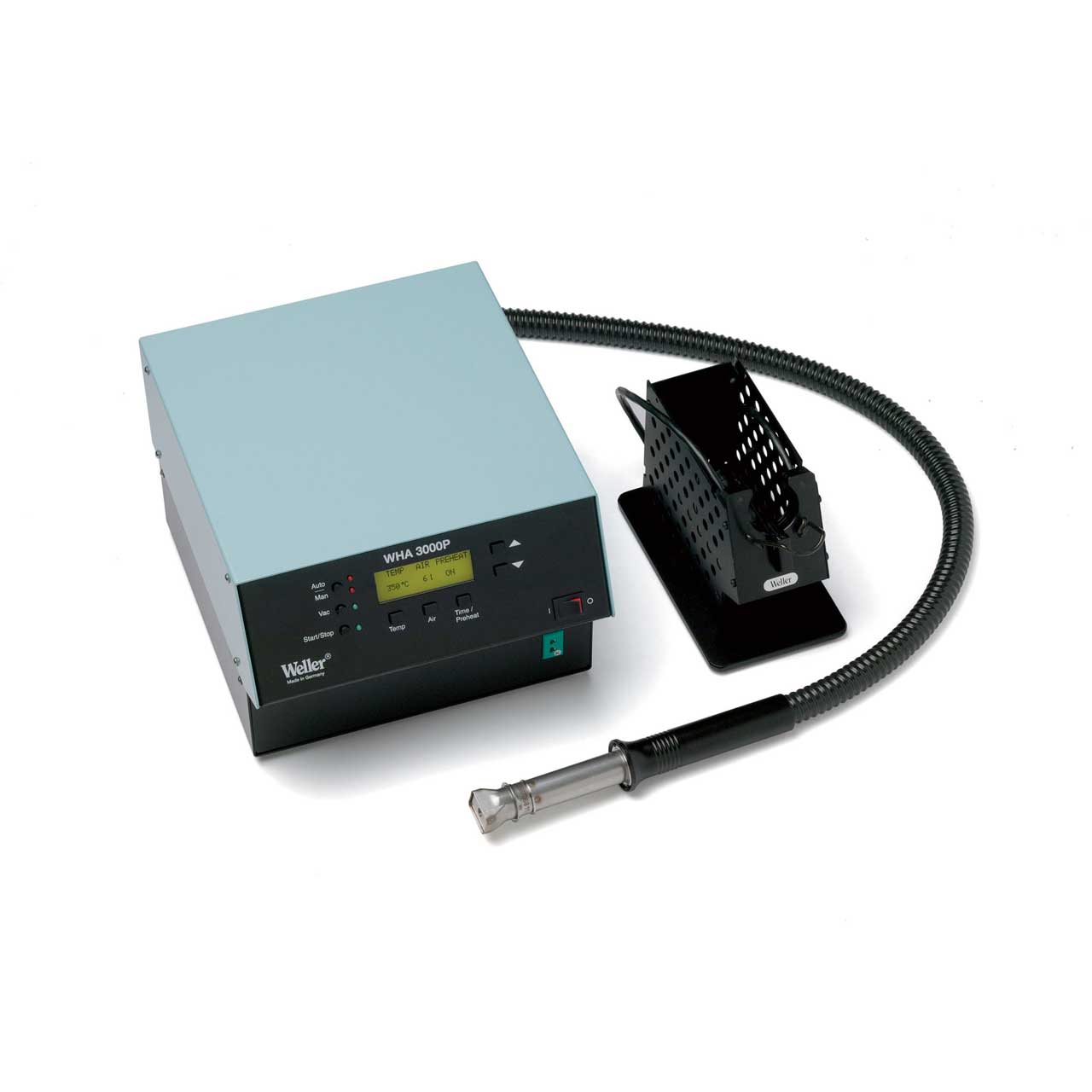

Weller WHA3000P Digital 700W Hot Air Station With Built-In Turbine

WHA3000P - Overview

• Features:

  • Self-contained benchtop unit features powerful internal air source for maximum portability
  • Suitable for demanding repair tasks involving complex fine pitch surface mounted components
  • 700 watts of power allow work on larger dual in-line and quadpack components
  • Set and read temperatures are digitally displayed on bright, clear LCD
  • Temperature and air flow are independently controlled
  • Controlled output maintains set temperature regardless of air flow setting
  • Memory stores up to 10 thermal profiles to ensure process repeatability
  • Special ionizing circuit assures hot air is static-free to protect sensitive components
  • Compatible with optional Type K thermocouple to measure temperature on specific areas of PCBs
  • Foot switch includes three positions: Off, Hot Air, Vacuum
  • Hot air iron features vacuum pickup for easy component removal


• Specifications:

  • Power Consumption: 700W
  • Input Voltage: 230 V
  • Output Voltage: 120 V
  • Temperature Range: 122°F to 1022°F (50°C to 550°C)
  • Temperature Accuracy: +/- 86°F (+/- 30°C)
  • Pump Type: Rotary Vane
  • Vacuum Pressure: - 0.6 Bar
  • Air Flow Volume: 5 to 50 l/min.
  • Dimensions: 9.5 x 10.6 x 6.7 in. (240 x 270 x 170 mm)


• GTIN:

  0037103309495
