WILLIAMS AV BA SYS1 Infinium Two Receiver Modular Bluetooth Auracast Broadcast Assistive Listening Audio System

ITEM #: WLS-BA-SYS1-00 MFG #: BA SYS1

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,516.50

Our Price:

$3,168.50

Availability: Preorder
iAvailability Description Popup


BA SYS1 - Overview

Infinium™ Broadcast Audio System

Williams AV Infinium™ BA SYS1 is a modular Bluetooth® Auracast™ broadcast audio system with two receivers and two HED 024 headsets for assistive listening and real-time audio distribution in commercial AV environments. It delivers low-latency, high-fidelity audio to unlimited Auracast enabled devices - including hearing aids, cochlear implants, headphones, and Infinium™ receivers - making it an ideal ADA-compliant solution for inclusive venues.

System Highlights:

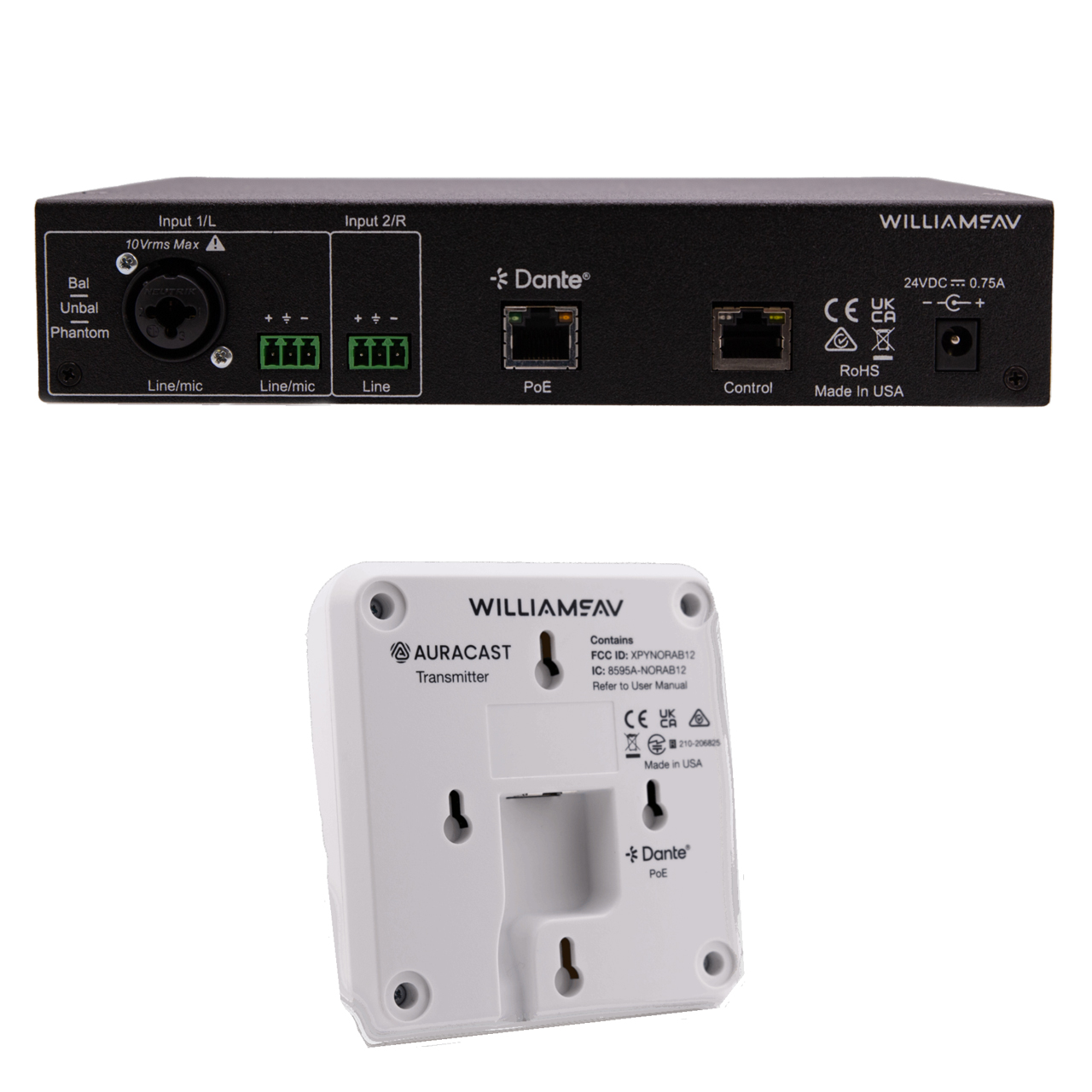

Pro AV Controller - Rack-mount ready with analog and Dante® inputs; configure and monitor via front panel or web interface.
Low-Profile Transmitter - Installs with a single CAT cable; 100-meter (328 ft) omnidirectional audio range.
Ergonomic Receiver - Features the largest display in its class, balance control, and all-day battery life.

Infinium™ removes traditional barriers to assistive listening with a streamlined, high-performance solution built for today's venues, including:

- Theaters & performing arts venues
- Classrooms & lecture halls
- Airports & transportation hubs
- Fitness centers & gyms

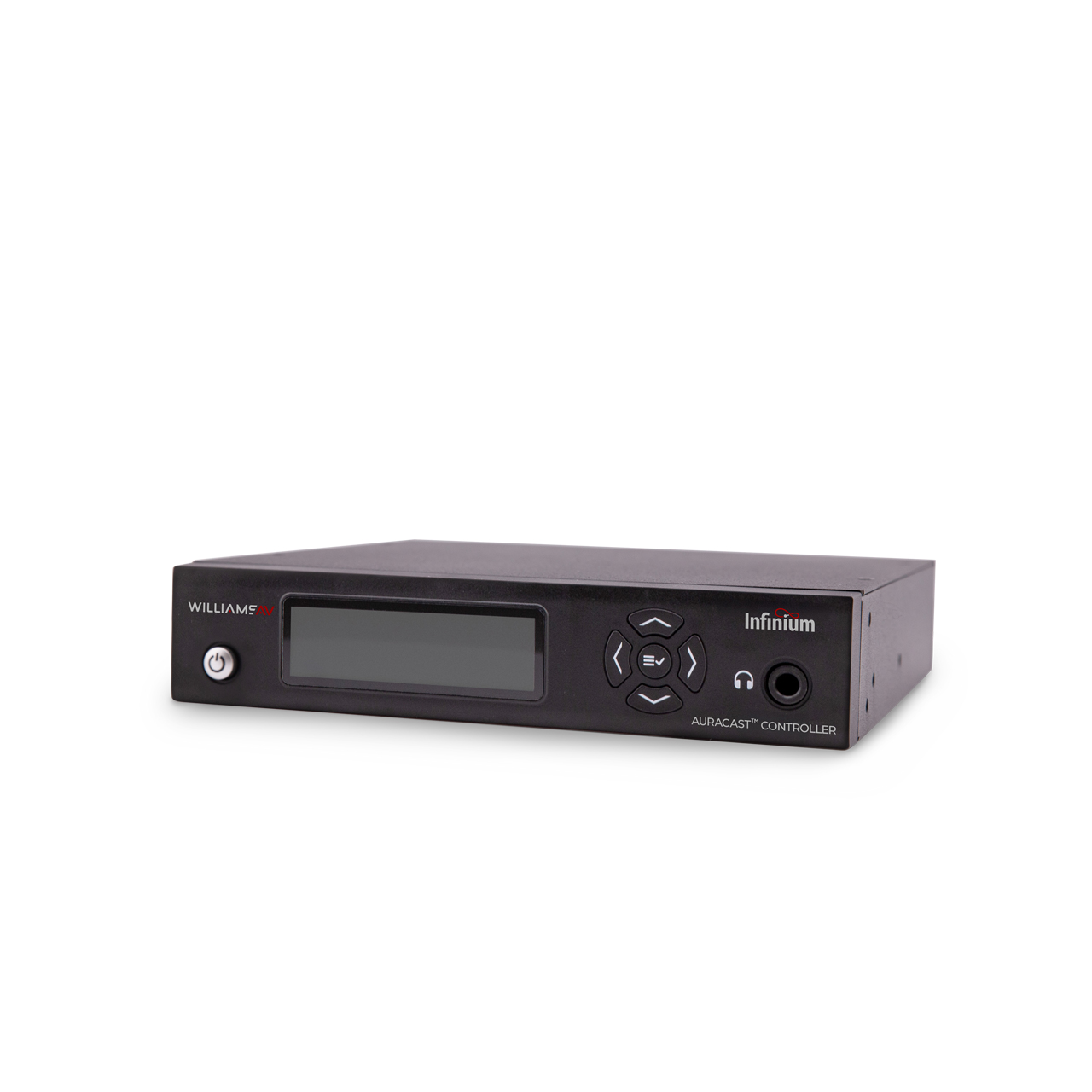

The controller integrates smoothly into AV networks, with an analog input and one Dante® input supporting two Dante® channels. It supports stereo and mono transmission, and users can easily configure, monitor, and troubleshoot via the front panel or web interface.

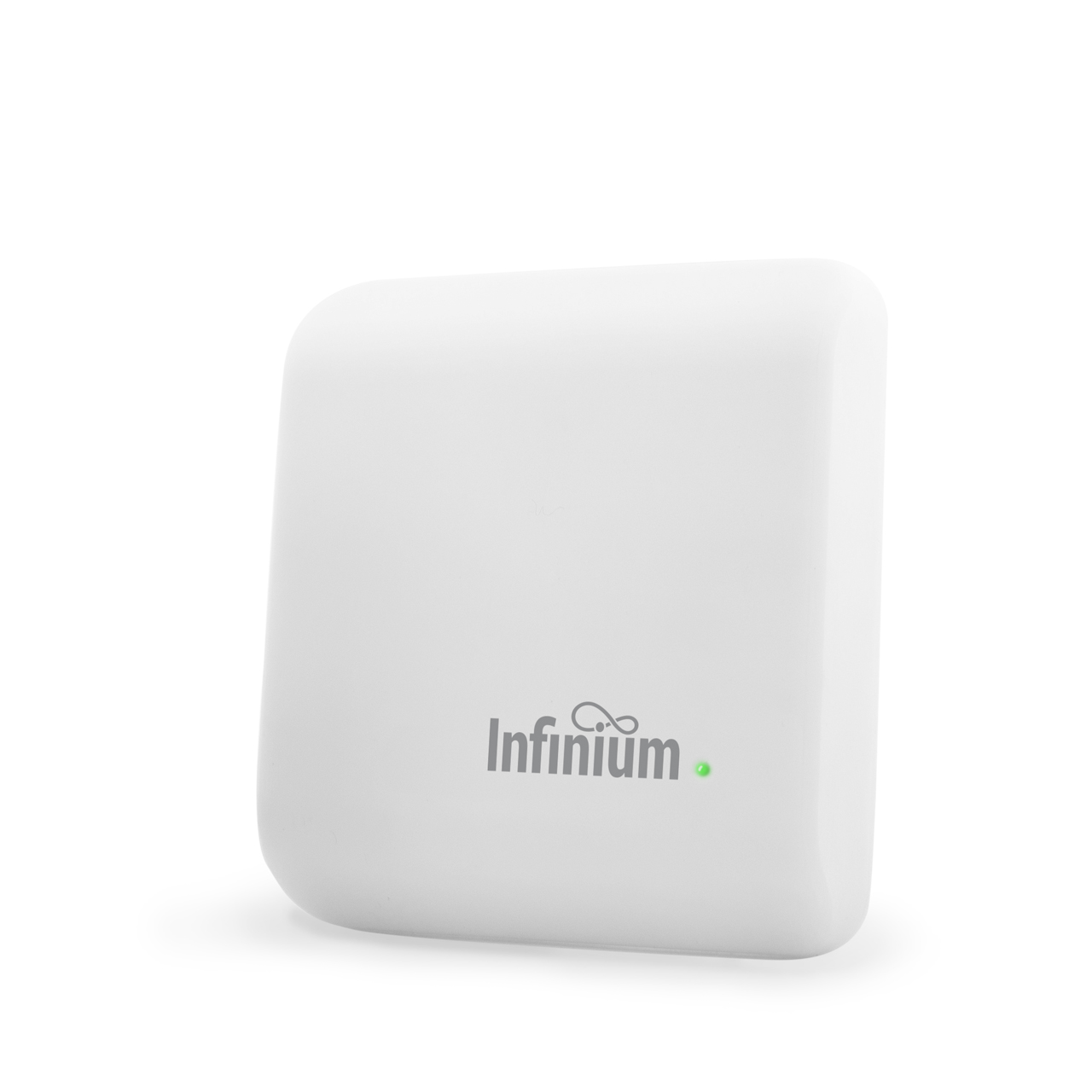

The transmitter is engineered for effortless installation, requiring just a single CAT5 cable for power, audio, and control. Its compact, low-profile design preserves room aesthetics without compromising performance, and a 100-meter (328 ft) broadcast range with Infinium™ receivers ensures reliable coverage while secure channel creation protects audio integrity.

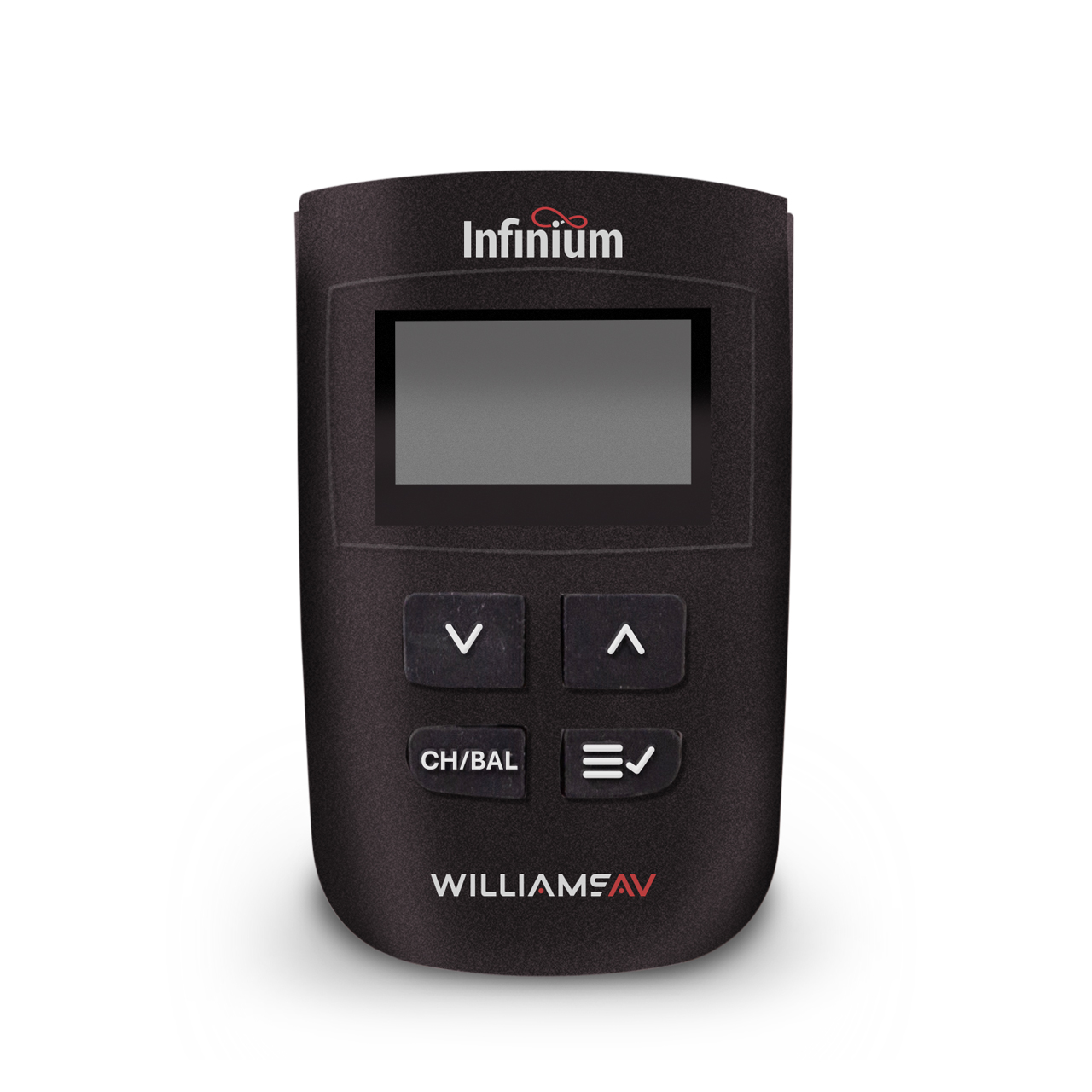

The ergonomically designed Infinium™ R1 handheld receiver features the industry's largest OLED display for clear visibility, easy access buttons with tactile feedback, and balance control to adjust audio delivery to the left and right ear to match a user's hearing profile - enhancing speech clarity and intelligibility.

The Infinium™ R1 receiver supports both secure (private) and open (public) audio modes. The receiver's rechargeable lithium-ion battery ensures reliable, all-day operation and can be charged via USB or a multi-unit charging dock.

With Infinium™, reliable coverage and seamless AV integration deliver professional-grade, inclusive audio for any space!

Applications:
- Assistive/Augmented Listening
- Language Interpretation
- Audio Description

  • Features:

    • Modular System Design - Controller and transmitter are housed separately for flexible placement and efficient AV integration.
    • Effortless Transmitter Setup - Installs quickly with one CAT cable, simplifying deployment for systems integrators.
    • Effortless Real-Time Control - Configure and monitor locally or remotely, with live audio monitoring outside the coverage area.
    • Comfortable, Ergonomic Receivers - The Infinium™ R1 receiver features a large display, balance control, all-day power, and a convenient USB or multi-unit charging dock.
    • Auracast™ Compatibility - Works with Infinium™ receivers and Auracast™ enabled hearing aids, cochlear implants, and headphones.

  • Specifications:

      Controller
    • Dimensions: 8.45" x 8.25" x 1.72"
    • Weight: 2.3lbs
    • Color: Black
    • Installation Configurations: Rack Mount: Standard 19" Rack, one EIA rack space high, 1/2 space wide
    • 1-2 units can be mounted in a single rack space. Shelf: Can sit on shelf, table, podium, etc.
    • Temp Range:
      - Operating: 32°F - 122°F
      - Storage: -4°F - 158°F
    • Power Supply - Desktop Style Transformer:
      - Input: 100V - 240V AC, 50/60Hz
      - Output: 24V DC, 750mA, 18W. 2.5mm ID center positive barrel connector
    • Power Button: Push On/Push Off latching power button.
    • Ethernet Control Port: 1x RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328ft; 10/100 Base-T
    • Front Panel Display: 3.12" High Resolution OLED Direct Entry UI with button entry programming and status indicator selections
    • Dante: 1x RJ-45 jack
    • Power Supply: Desktop Style Transformer; Input: 100V - 240V AC, 50/60Hz. IEC Line Cord; Output: 24V DC, 750mA, 18W. 2.5mm ID center positive barrel connector
    • PoE Power Out: PoE
    • Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme

      Transmitter
    • Dimensions (HxWxD): 1.19" x 4.7" x 5.0"
    • Weight: 0.4lbs
    • Color: White
    • Installation Configurations: Ceiling Mount, Wall Mount, Shelf
    • Temperature Range:
      - Operating: 32°F - 122°F
      - Storage: -4° F - 158°F
    • Power: PoE
    • Connection: 1x RJ45 with audio, control and PoE
    • Power ON Indicator: Programmable LED
    • Transmitter Power Output: Programmable
    • Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)

      Cable
    • Ethernet Cable: 10' - CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant

      Receiver
    • Dimensions: 3.9" x 2.48" x 0.85"
    • Dimensions w/ Belt Clip: 3.9" x 2.48" x 1.19"
    • Weight: 3.8oz
    • Shipping Weight: 4.5oz
    • Color: Black
    • Battery Type: Li-ion
    • Battery Size: 3.7V DC, 1200mAh
    • Battery Life: > 20 hours
    • Temp Range:
      - Operating: 14°F - 104°F
      - Storage: -4°F - 122°F
      - Charging: 41°F - 114°F
    • Charging Connections: Dual contacts for use with Infinium Drop In Chargers or USB-C Connector
    • Button Controls: Power, Increment, Decrement, CH/BAL, Menu/Select
    • Display: OLED display 1.38" x 0.69", Diagonal 1.54"
    • Belt Clip: Removable
    • Audio Output Connector: 3.5mm stereo jack
    • Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme
    • USB-C Connection: Power/Charge (5V @~500 mA), Firmware Updates

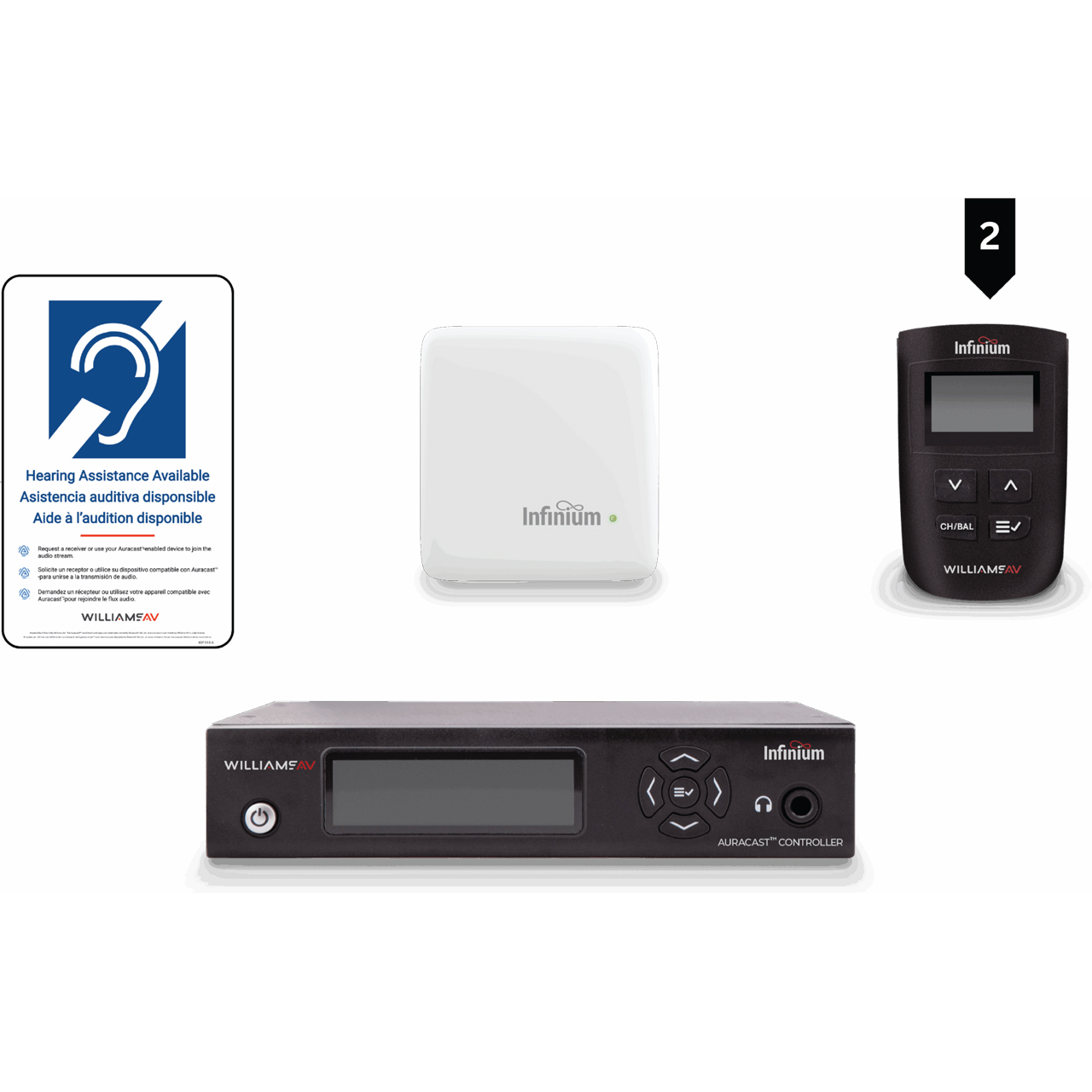

  • Item Includes:

    • 1x BA CT1 (Infinium Controller and Transmitter package)
    • 2x BA R1 Infinium receivers
    • 2x HED 024 headphones
    • 1x CHG 003 2 bay charger
    • 1x IDP 018 Auracast ADA wall plaque
    • 1x NKL 001s Neckloops
    • 1x RPK 005 Rack mount kit

  • Warranty:

    • 2 Years
