WILLIAMS AV BA SYS3 Infinium Auracast Broadcast Assistive Listening Audio System Bundle with Two TX & Twelve RX

ITEM #: WLS-BA-SYS3-00 MFG #: BA SYS3

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$9,495.00

Our Price:

$8,545.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


BA SYS3 - Overview

Auracast™ is revolutionizing assistive listening by directly delivering high-quality, real-time audio to the infinium receiver or Auracast™-enabled hearing aids, cochlear implants, earbuds, headphones, and mobile devices.

Infinium® SYS3 Auracast™ Broadcast Audio System
The Williams AV Infinium® SYS3, with 2 transmitters and 12 receivers, is a complete Auracast™ broadcast audio solution designed for larger venues and multi-zone environments. Built on a patented modular architecture, proudly made in the USA, and TAA-compliant, this system combines a rack-mount controller, dual transmitters for expanded coverage, and 12 receivers in a single, scalable package.

With Enhanced Scale & Management (ESM) features, AV teams can easily scale and manage deployments through a centralized web interface - delivering low-latency, high-quality audio to unlimited Auracast-compatible devices and included receivers.

Infinium redefines assistive listening by offering a modern, easy-to-deploy audio solution that ensures no guest misses a word.

Ideal for:
• Large venues and multi-room environments
• Theaters, lecture halls, and transportation hubs
• Assistive listening, audio description, and interpretation
• Venues requiring both BYOD and receiver-based listening

  • Features:

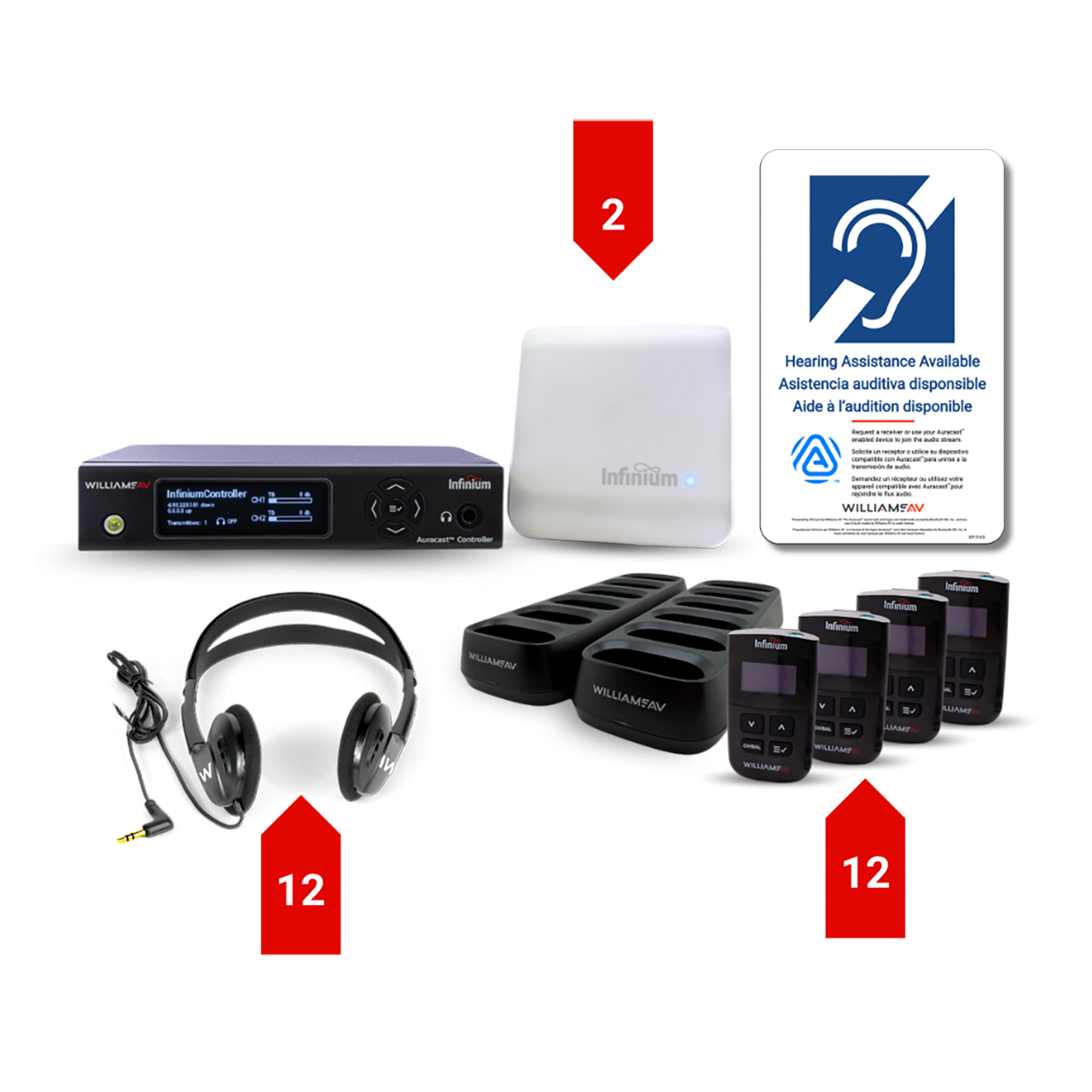

    • Complete System Package - Includes controller, 2 transmitters, 12 receivers, and 12-bay charging station
    • Patented Modular Design - The controller and transmitter operate independently for flexible installation and seamless AV integration.
    • Quick Transmitter Installation - A single CAT5 cable provides both power and audio, streamlining setup for installers.
    • Flexible System Management - Configure, monitor, and troubleshoot onsite from the front panel or via a web interface.

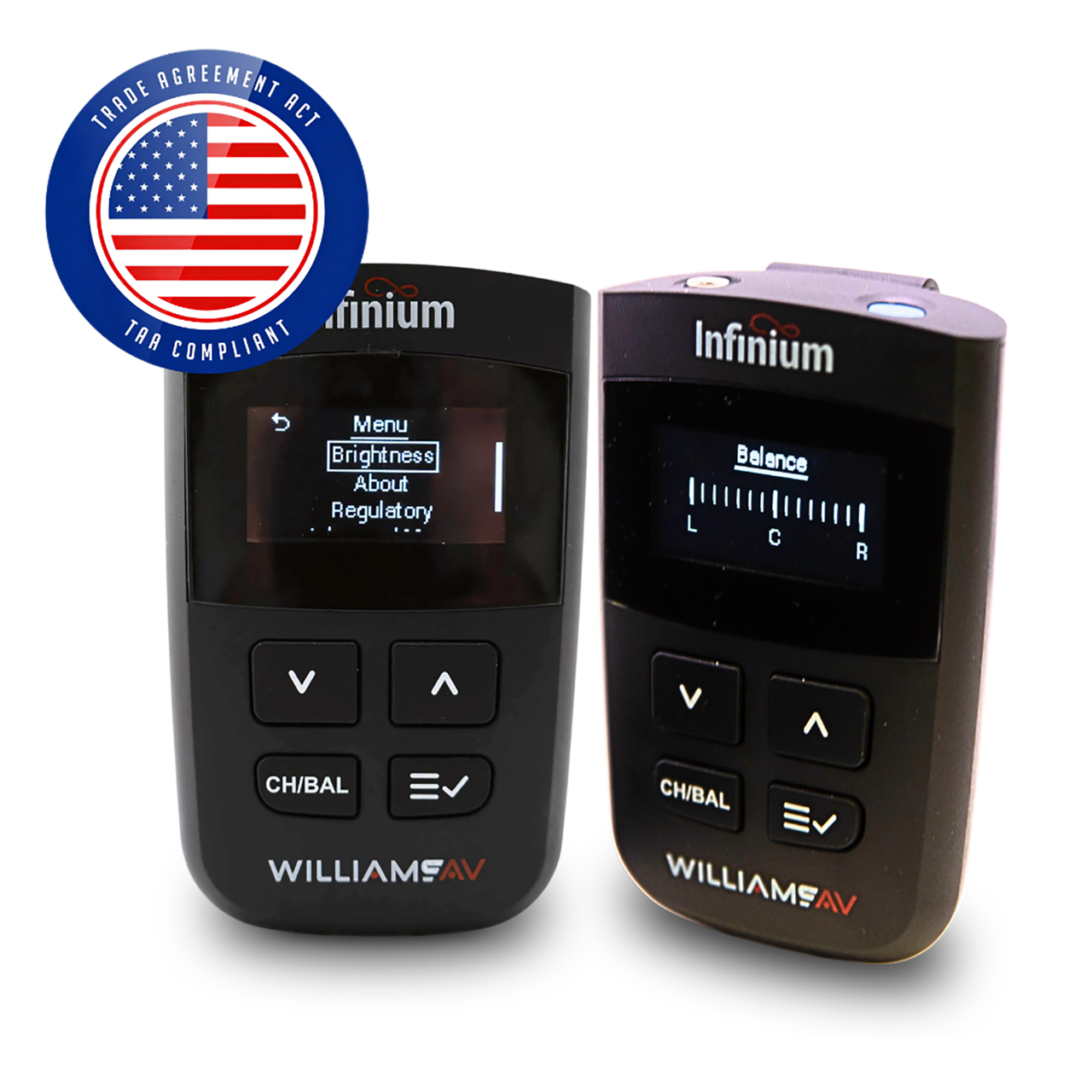

    • Ergonomic Receiver - The Infinium R1 features a large display, user-controlled audio balance, long battery life, and supports charging via USB or a charging dock.
    • Broad Device Compatibility - Delivers audio to Infinium receivers and any Auracast™ compatible hearing aids, cochlear implants, or headphones.
    • Dante®-Ready + Open API - Integrates smoothly into AV networks for efficient audio routing and smart-building systems.

  • Specifications:

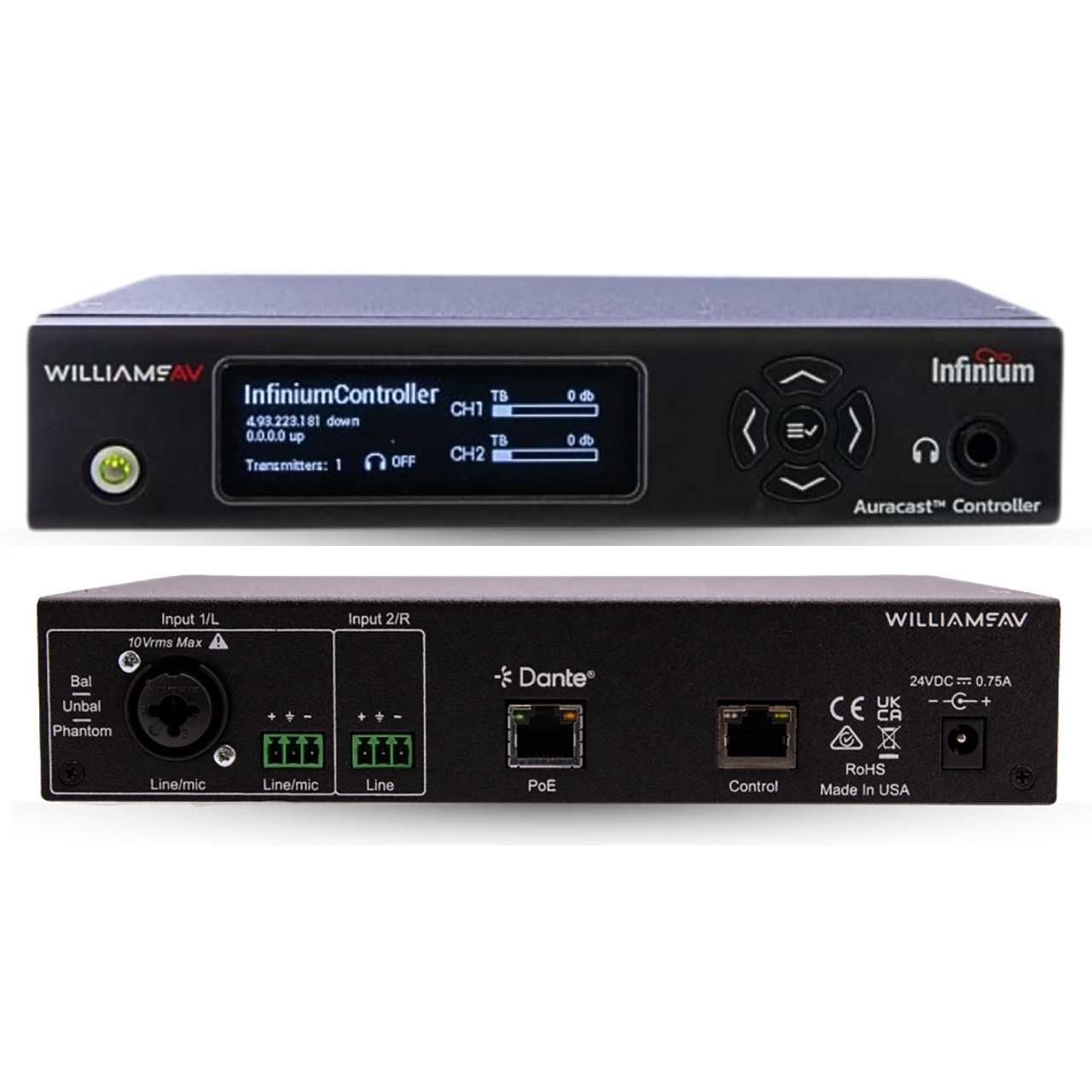

      Controller
    • Dimensions: 8.45" W x 8.25" D x 1.72"H
    • Weight: 2.3 lbs
    • Color: Black
    • Installation Configurations:
      - Rack Mount: Standard 19" Rack, one EIA rack space high, 1/2 space wide
      - 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
    • Shelf: Can sit on shelf, table, podium, etc
    • Temperature Range:
      - Operating: +32°F to +122°F
      - Storage: -4°F to +158°F
    • Power Supply:
      - Desktop Style Transformer (TFP 062)
      - Input: 100-240 VAC, 50/60 Hz
      - Output: 24 VDC, 750 mA, 18W
      - 2.5mm ID center positive barrel connector
    • Power Button: Push On/Push Off latching power button.
    • Ethernet Control Port: (1x) RJ-45 used for web UI, programming, and status display. Supports CAT 5e cable lengths up to 328 feet; 10/100 Base-T
    • Front Panel Display: 3.12" High Resolution OLED Direct Entry UI with button entry programming and status indicator selections
    • Dante: (1x) RJ-45 jack
    • Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme

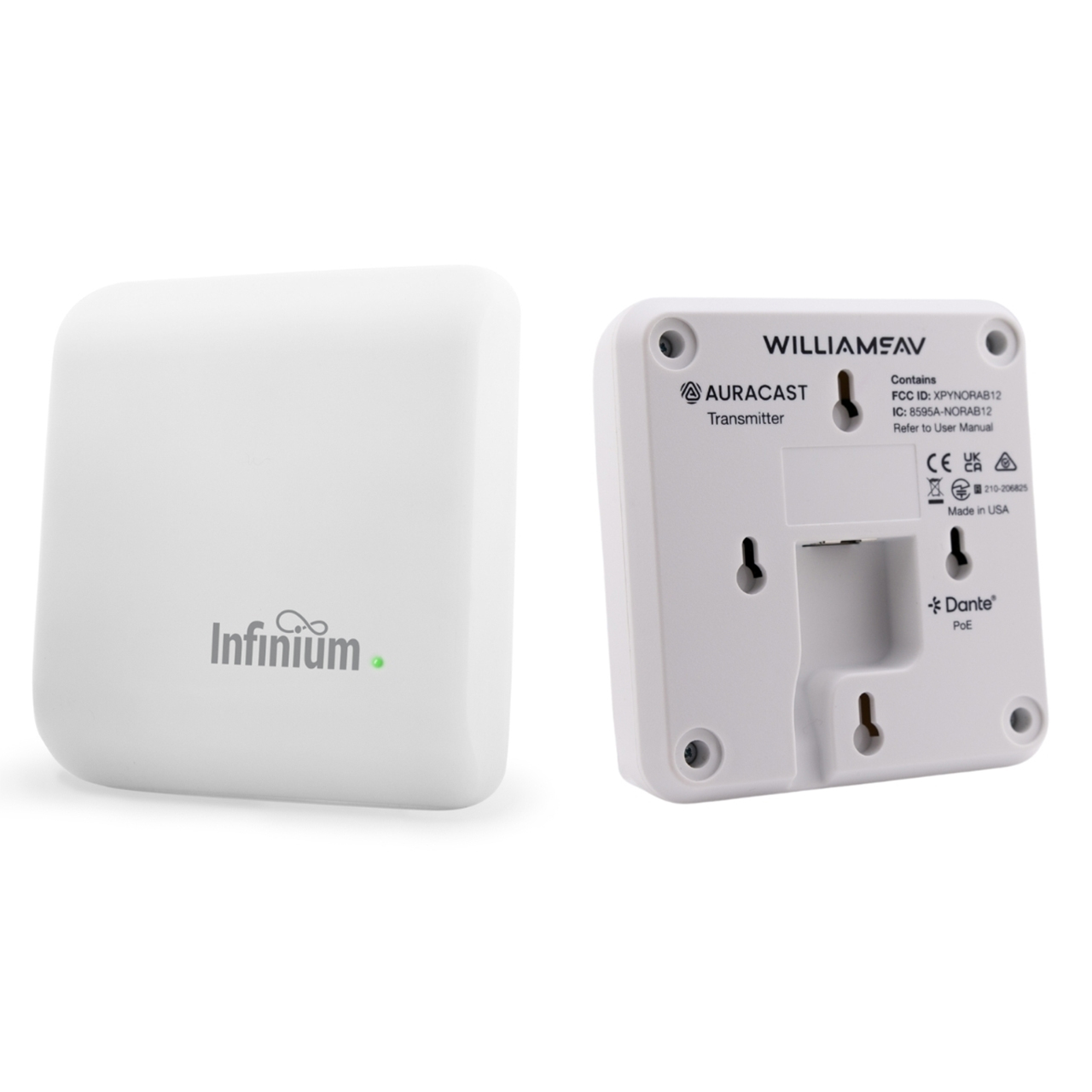

      Transmitter
    • Dimensions: 4.7" W x 5.0" D x 1.19"H
    • Weight: 0.4 lbs
    • Color: White
    • Installation Configurations: Ceiling Mount, Wall Mount, Shelf
    • Temperature Range:
      - Operating: +32°F to +122°F
      - Storage: -4°F to +158°F
    • Power: PoE (Input)
    • Connection: RJ45 (1x) with audio, control and PoE
    • Power ON Indicator: Programmable LED
    • Transmitter Power Output: Programmable
    • Compliance Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme, Gitecki (Japan)
    • Ethernet Cable: 10' - CAT 5e Ethernet; 10/100 Base-T IEEE 802.3 compliant

      Receiver
    • Dimensions: 3.9" x 2.48" x 0.85"
    • Dimensions with Belt Clip: 3.9" x 2.48" x 1.19"
    • Weight: 3.8 oz
    • Shipping Weight: 4.5 oz
    • Color: Black
    • Battery Type: Lithium Ion (Li-ion) Camera Style Rechargeable Battery; Field Replaceable
    • Battery Size: 3.7 Vdc, 1200 mAh
    • Battery Life: > 20 hours
    • Temperature Range:
      - Operating: +14°F to +104°F
      - Storage: -4°F to +122°F
      - Charging: +41°F to +114°F
    • Charging Connections: Dual contacts for use with Infinium Drop In Chargers or USB-C Connector
    • Button Controls: Power, Increment, Decrement, CH/BAL, Menu/Select
    • Display: OLED display 1.38 x 0.69", Diagonal 1.54"
    • Belt Clip: Removable
    • Audio Output Connector: 3.5 mm stereo jack for wired stereo or mono headphones, earphones or neckloops
    • Approvals: FCC, RoHS3, WEEE, Industry Canada/ISED, CE, UKCA, RCM, CB Scheme
    • USB-C Connection: Power/Charge (5V @~500 mA), Firmware Updates

  • Item Includes:

    • 1x BA-C1 Infinium controller
    • 2x BA-T1 Infinium transmitters
    • 12x BA-R1 Infinium receivers
    • 2x WCA 158 10 ft Ethernet cables
    • 1x CHG 005 12 bay charger
    • 1x IDP 018 AuracastT ADA wall plaque

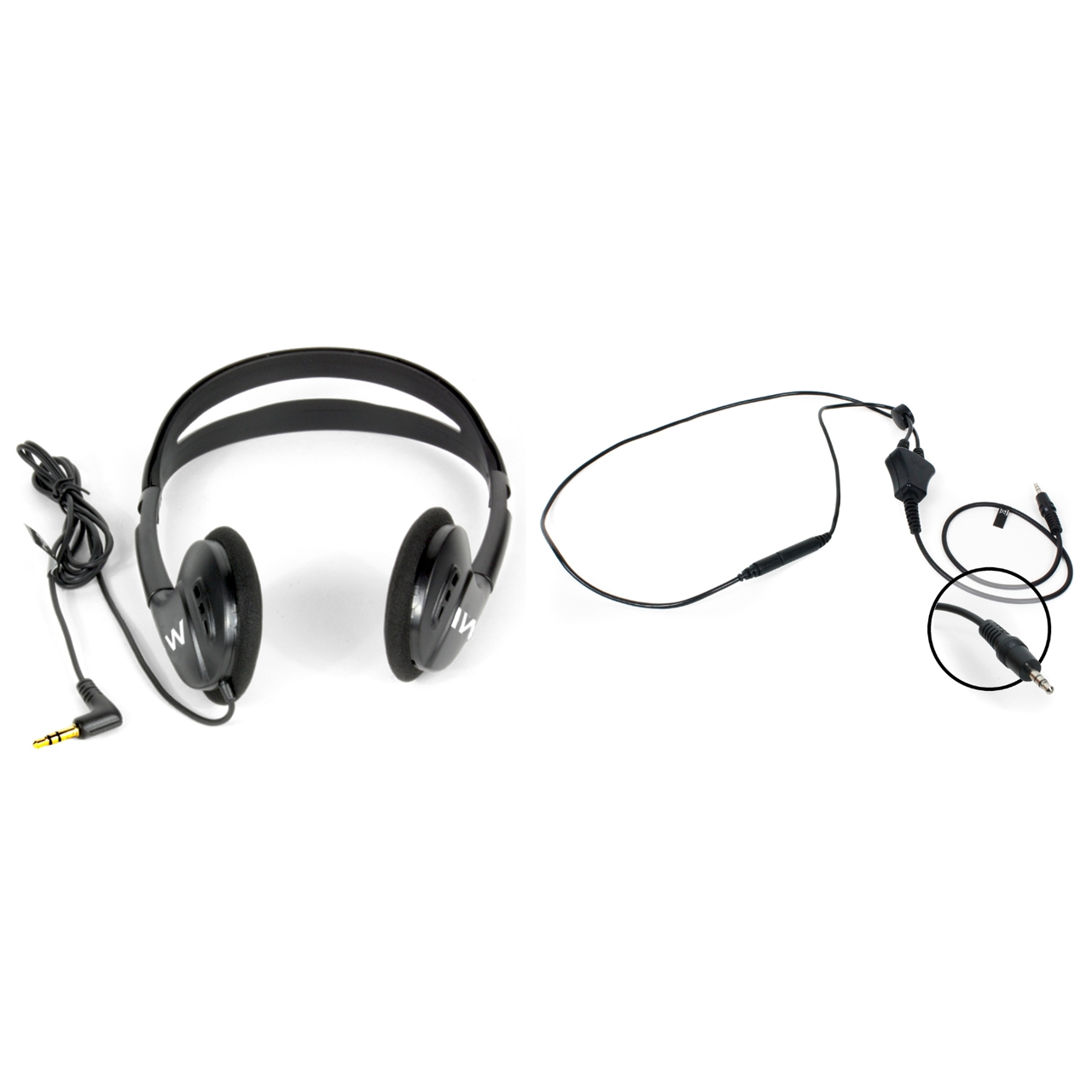

    • 3x NKL 001s Neckloops
    • 12x HED 024 headphones
    • 1x RPK 005 Rack mount kit

  • Warranty:

    • 2 Years
