WILLIAMS AV WF SYS2C WaveCAST System with Integrated Li-Poly Battery & 6 WAV Pro Wi-Fi Receivers

WF SYS2C - Overview

• Specifications:

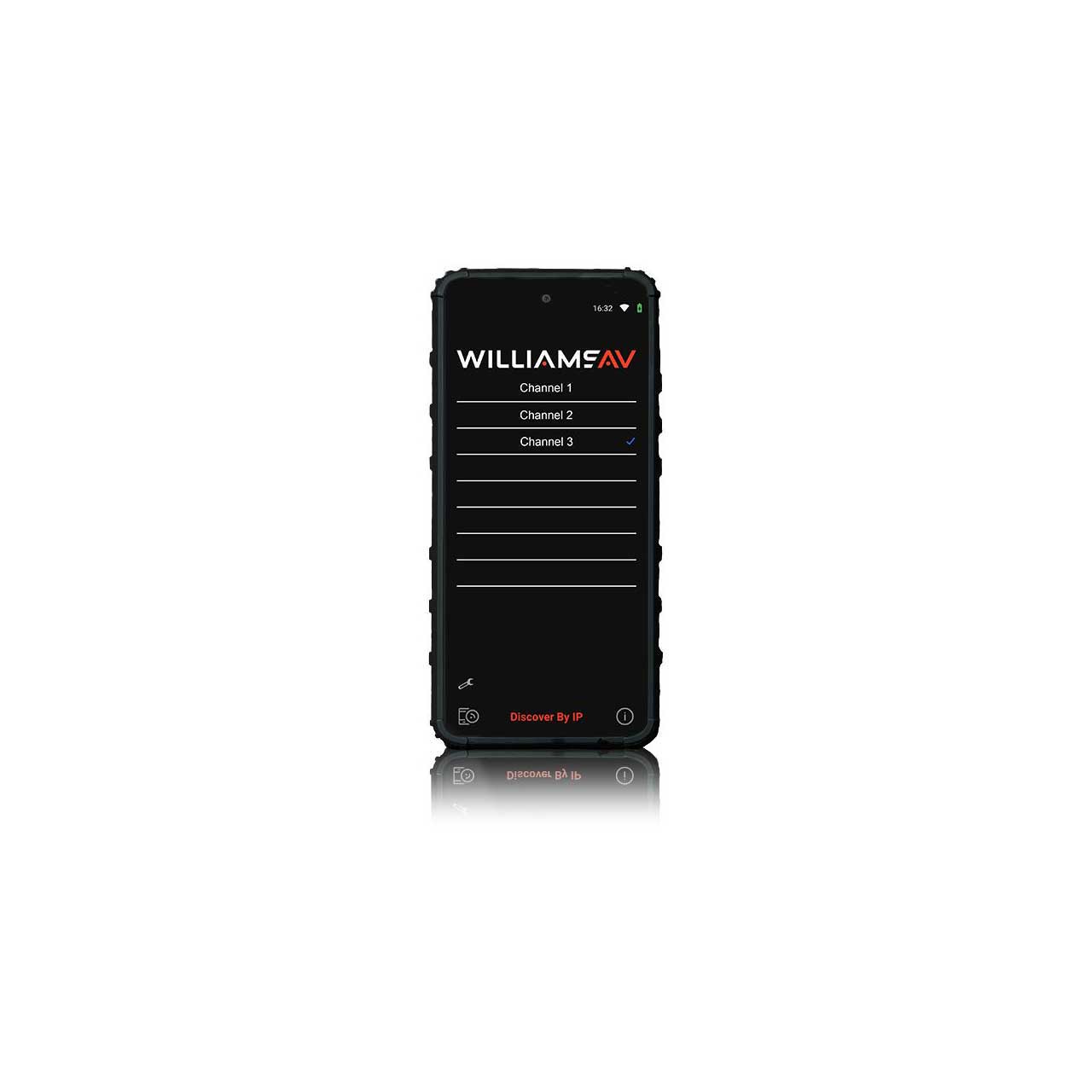

  • WF R2-03
  • Dimensions 6.61 x 3.01 x 0.35 in
  • Weight 7.12 oz (202g) without case
  • Display 6.8" Full HD+ Infinity Dot 1080 x 2460 Resolution | 396ppi
  • Receiver Jack 3.5mm (1/8") stereo headphone jack
  • Battery Life Lithium Polymer (Li-Po) 6000 mAh, non-removable
  • Battery Life Up to 40 hours of continuous audio streaming
  • USB Connection USB Type C for power and charging
  • Approvals CE, FCC, WEEE, CB Scheme, UK CA, RoHS3. RCM and IC- Pending.

    NKL 001-S
  • Color: Black
  • Weight: 1.5 oz
  • Length: 18.5" cord
  • Connector: NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
  • Impedance: 8-16 Ohms
  • Input Power: 500 mW max
  • Magnetic Field Strength: 25 mW input at 1000 Hz produces 1.7 A/m 6" above the center of loop 85æW input produces 0.1 A/m (IEC Standard)
  • Approvals: RoHS, WEEE

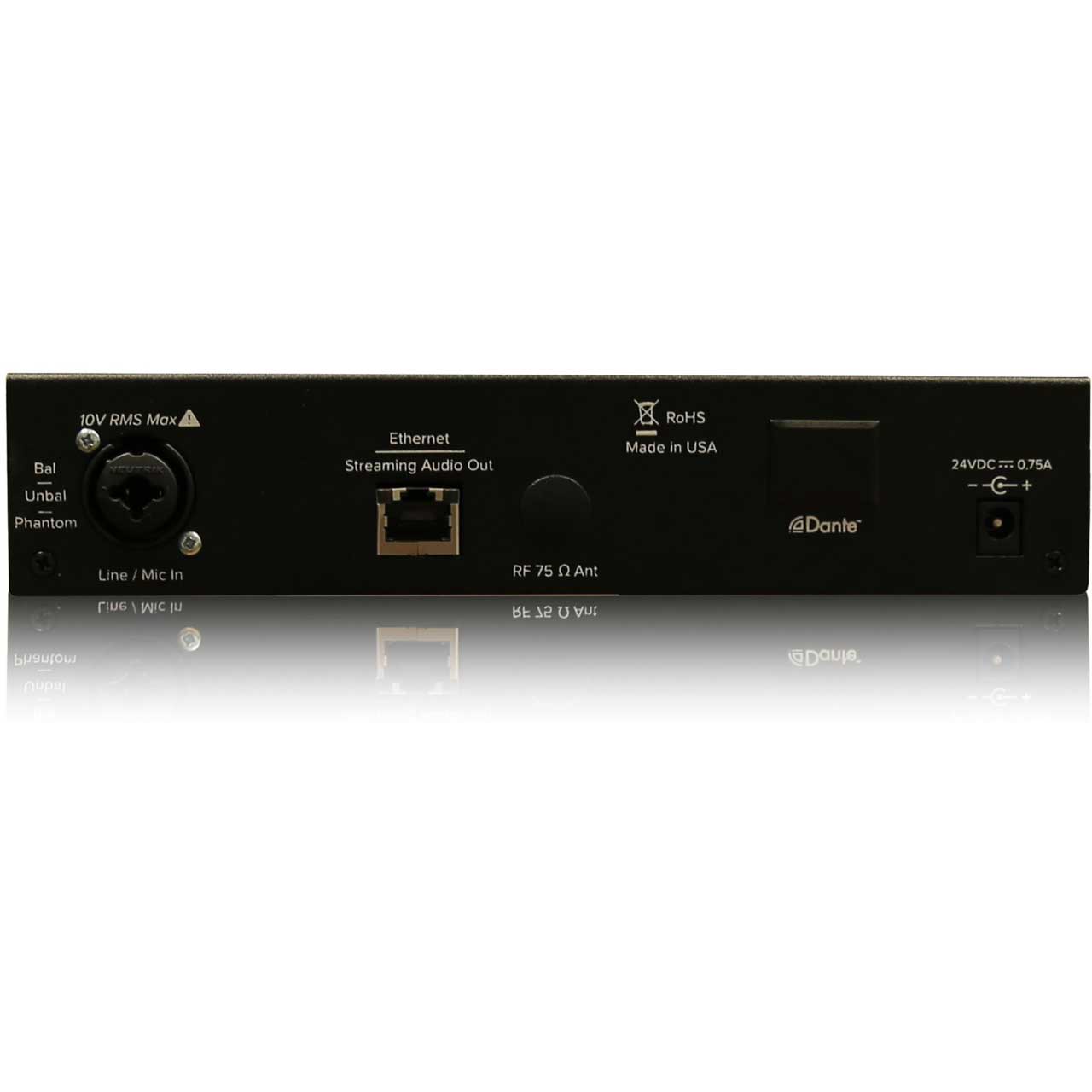

    WF T5C
  • Dimensions 8.45" W x 8.25" D x 1.72"H (21.5 cm x 21 cm x 4.4 cm)
  • Weight Transmitter: 3.2 lbs (1.45 kg)
  • Color Black
  • Rack Mount Standard 19" Rack, one EIA rack space high, 1/2 space wide 1-2 units can be mounted in a single rack space with optional RPK 005 (single) or RPK 006 (double) Rack Mount Kits
  • Power Supply Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
  • Power ON Indicator Push On/Push Off latching power button with backlight. Green backlight indicates power ON, backlight off indicates power OFF.
  • Temperature Range Operating: +32° F to +122° F; Storage: -4° F to +158° F
  • User Interface 1. 3.12" High Resolution OLED display with selections via buttons. 2. Hosted Web page. 3. Telnet commands over ethernet (see our WaveCAST and FM+ Programmers Guide" for available commands and protocol).
  • Dante (1x) RJ-45 jack. Only available on WF T5CD
  • Ethernet RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address. RJ-45 jack used for web page and streaming audio out. An external Router/DHCP Server is required to stream audio to receiving devices
  • Audio Inputs (1x) Combination 3-pin XLR, 1/4" (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power. Optional RJ-45 Dante Input ("D" models only).
  • Audio Processor Functions DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control, Music, Voice, and Hearing Assistance Audio Presets
  • Frequency Response 31-16000 Hz, ±3 dB (re: 1 kHz) ("Music" Audio Preset)
  • Signal-to-Noise Ratio 64 dB (typical) Transmitted RF @ 1kHz
  • Total Harmonic Distortion Less than 0.25% @ 1 kHz (RF output)
  • Common Mode Rejection Greater than 57 dB @ 1 kHz, Mic or Line mode
  • Audio Input Gain Adjust Adjustable from +24dB to -60 dB, in 1dB steps from front screen or web page
  • Phantom Power 14.4 VDC applied through 2.2 kOhms resistors to analog combo jack: Pin 2 and Pin 3 on XLR jack, or tip and ring on 1/4" TRS jack
  • Audio Level Display Front screen bar graph display, each segment representing 3dB. It ranges from -18 (1 segment lit) to +12dB (10 segments lit). Over-range warning is indicated by 'OLVD' and flashing empty bar.
  • Headphone Output 1/4" TRS stereo jack, mono signal, 7.8 mW total power with 33 O.
  • Dante Output (1x) RJ-45 jack, only available on WF T5CD
  • Input Level (Bal or Unbal) (at Audio Input Gain = 0dB)
  • Nominal (@7th Segment Lit) Overload Warning (Displayed on Screen) Absolute Max. Rating*
  • Microphone : -45 dBV (5.6 mV RMS) -20 dBV (100 mV RMS) +20 dBV (10.0 V RMS)
  • Line: -8.4 dBV (380 mV RMS) +16 dBV (6.5 V RMS) +20 dBV (10.0 V RMS)
  • Approvals: FCC, RoHS3, WEEE, Industry Canada, CE, UK CA, RCM

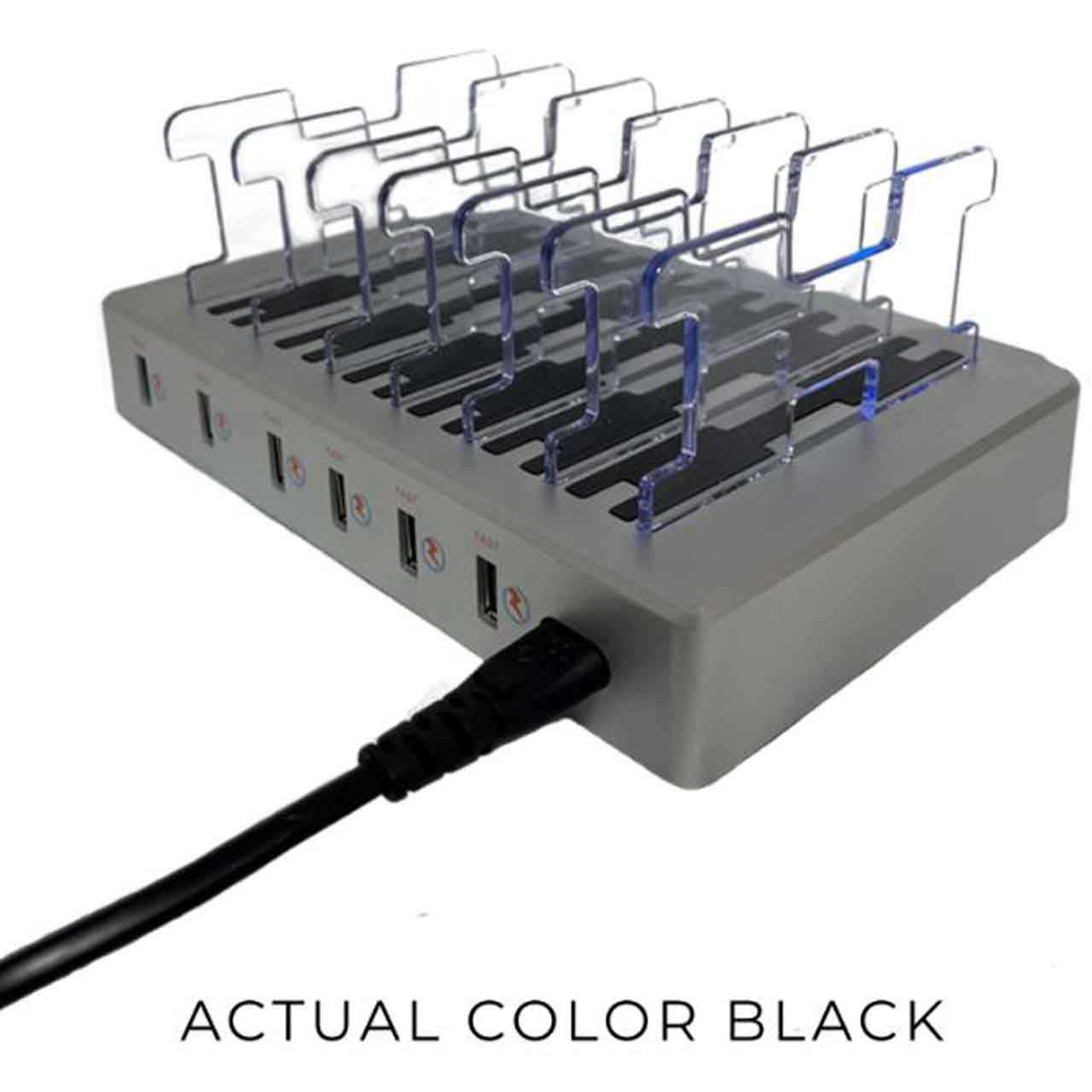

    AC CHG406
  • Dimensions: 7.2"L x 5.1"W x 1.1"H
  • Weight: 1.3 lbs
  • Color: Black and clear plastic
  • Power Input: AC100-240V 50/60Hz 0.5A max
  • Power Output: DC 5.0V/10A (50W)
  • Ai Output DC 5V/2.4A
  • Indicators: Individual Charging Indicators: Blue LEDs light up dividing clear panels
  • Cable Length 4.9ft

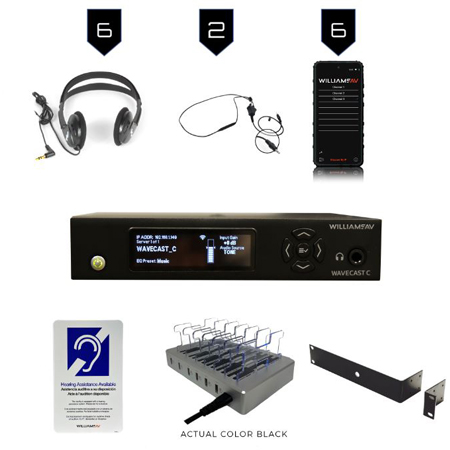

• Item Includes:

  • (1) WaveCAST C transmitter (WF T5C)
  • (6) WAV Pro Wi-Fi Receivers (WF R2-N)
  • (2) Neckloops (NKL 008)
  • (1) Rack Panel Kit (RPK 005)

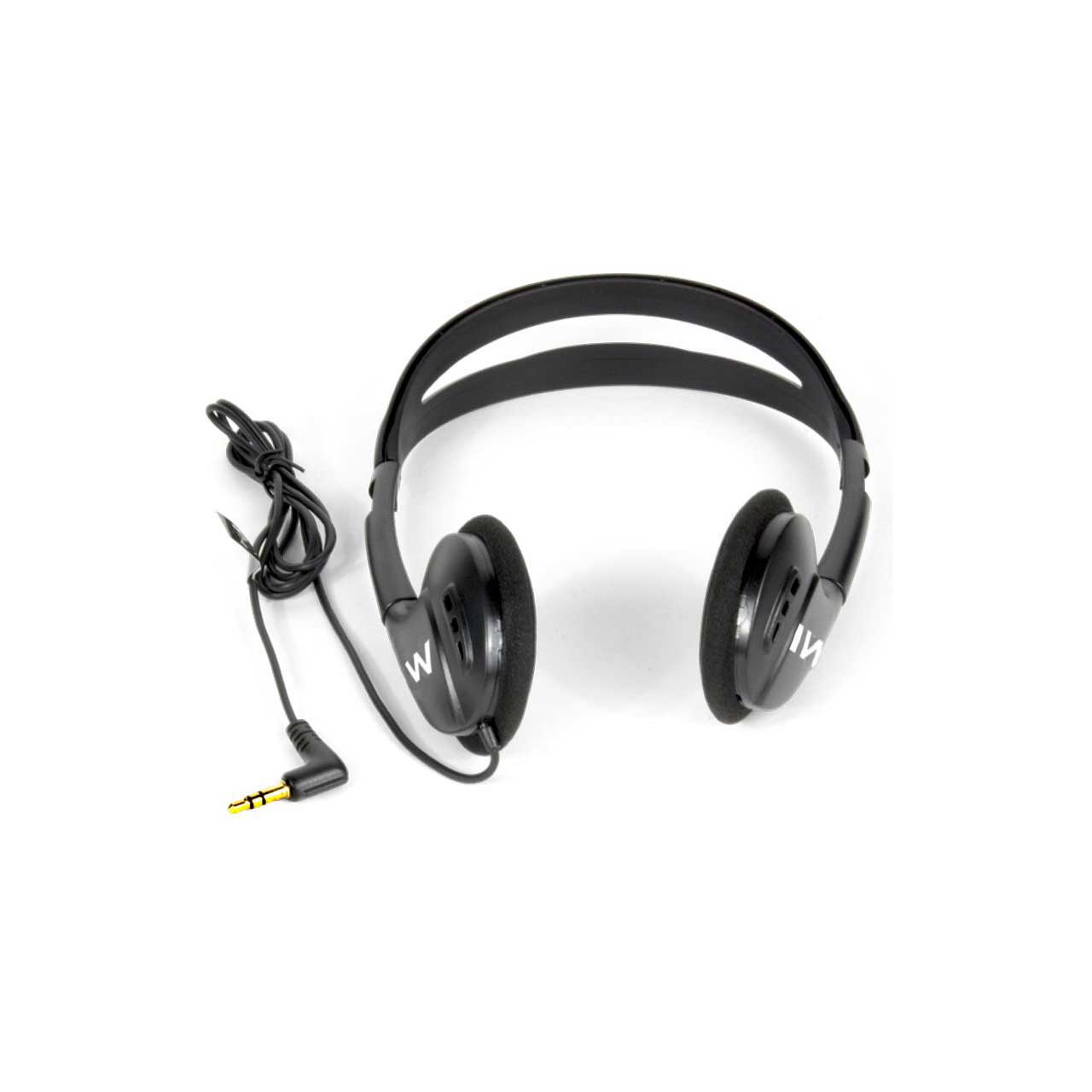

  • (6) Folding Stereo Headphones (HED 024)
  • (1) ADA Wall Plaque (IDP 008)
  • (1) 6-Bay Charger (AC CHG406)
