    WF T8 D - Overview

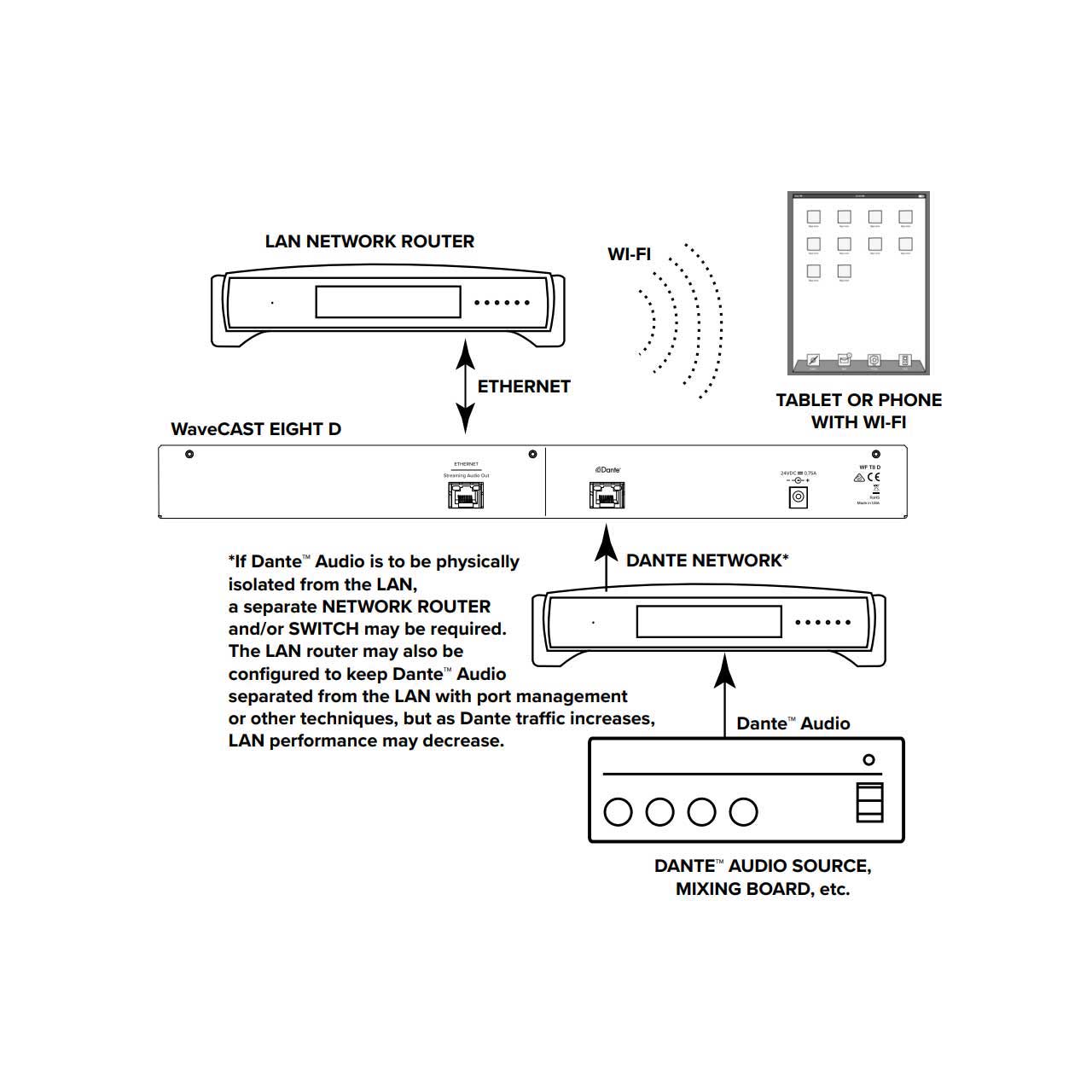

    Williams AV WaveCAST Eight with Dante is a multi-channel Wi-Fi assistive listening platform designed for larger assistive listening applications or for streaming audio in a bar, gym, or other devices where multiple sources of audio exist. The WaveCAST Eight is designed for pro-audio applications where high-quality sound is required for streaming multi-channel audio in real-time to smartphones and/or tablets.

    This WaveCAST Eight features Dante.

    The WaveCAST app provides an easy-to-use, intuitive user interface and is available in iOS or Android. Listeners easily select channel and volume level once their personal device is connected to the Wi-Fi network.

    Applications:
    Presentations
    Assistive Listening
    Streaming music
    Houses of Worship
    Healthcare - medical centers / waiting rooms
    Gaming / Casinos
    Education - classrooms & lecture halls
    Entertainment - Stadiums, Theaters
    Transportation - airports, train stations

    • Features:

      • 16-bit DAC provides 48Khz sample rate
      • Professional audio DSP architecture
      • Audio presets - hearing assistance, music, voice and custom


    • Specifications:

      • Dimensions: 17" W x 7.625" D x 1.72"H
      • Weight: 5.0 lbs
      • Color: Black
      • Rack Mount: Standard 19" Rack, one EIA rack space high, one rack space wide
      • Power Supply: Desktop Style Transformer (TFP 062); Input: 100-240 VAC, 50/60 Hz. IEC Line Cord; Output: 24 VDC, 750 mA, 18W. 2.5mm ID center positive barrel connector
      • Power Switch: Rocker; backlit red LED indicates power on
      • Temperature Range: Operating: +32° F to +122° F; Storage: -4° F to +158° F
      • Audio Processor Functions: DSP based; Compression: 1:1, 1.5:1 or 2:1; High-pass and Low-pass Filter Frequency control
      • Frequency Response: 31 - 16000 Hz, ±3 dB ("Music" Audio Preset) dependent on chosen Dante source
      • Signal-to-Noise Ratio: Greater than or equal to 69 dB (streaming to iPhone) dependent on chosen Dante source
      • Total Harmonic Distortion: Less than 0.25% @ 1 kHz dependent on chosen Dante source
      • Common Mode Rejection: Greater than 52 dB @ 1 kHz dependent on chosen Dante source

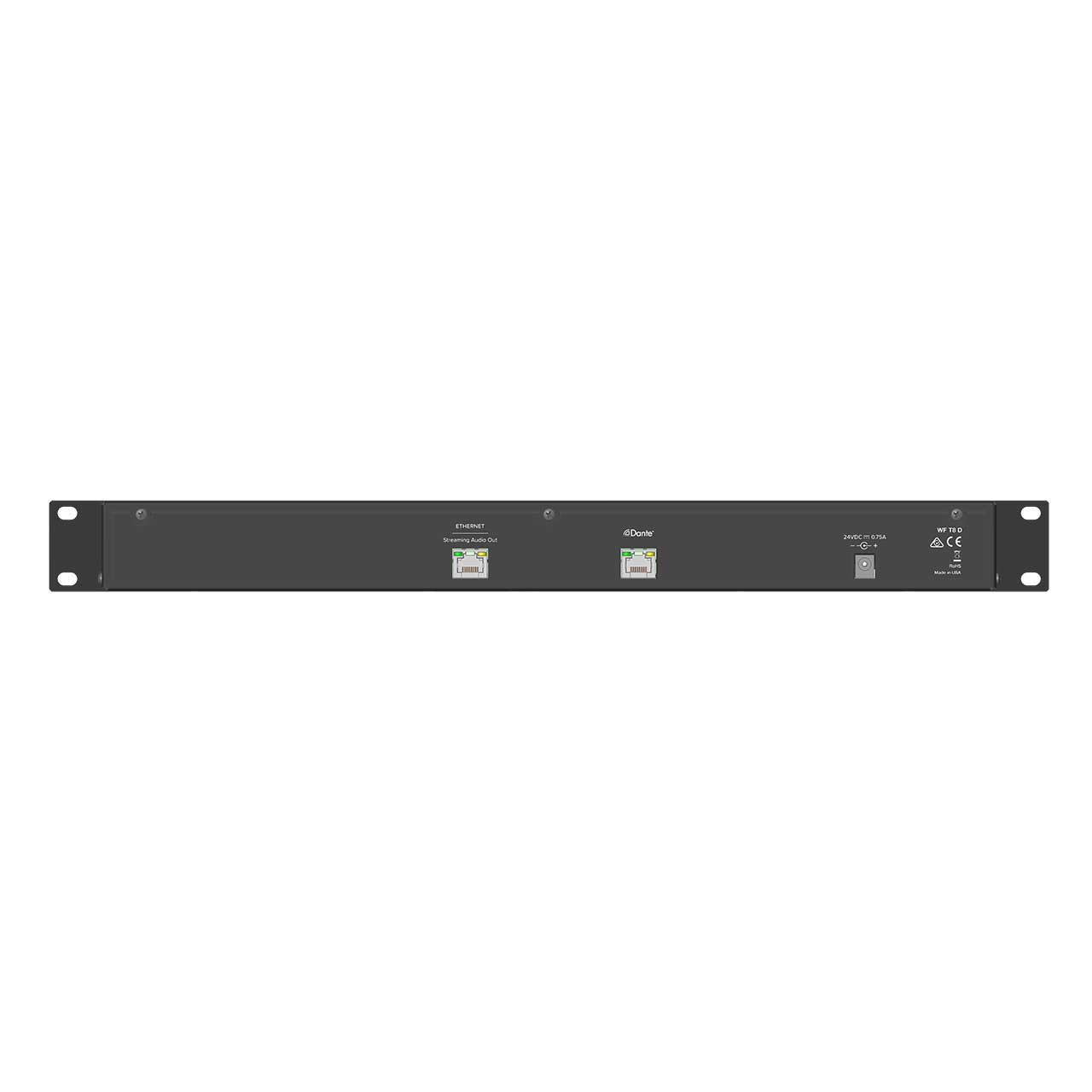

      • Audio Inputs: Dante RJ-45 on back of unit supports CAT5e cable lengths up to 328 ft. (100 m.) 100/1000 Base-T IEEE 802.3 compliant
      • Audio Input Gain Adjust: In menu, adjustable to +6 to -60 dB, in 1dB steps
      • Ethernet: RJ-45 on back of unit supports CAT 5e cable lengths up to 328 feet (100 meters); 10/100 Base-T IEEE 802.3 compliant, unique MAC address
      • Approvals: FCC, RoHS3, WEEE, Industry Canada, CE, PSE, RCM, CB Scheme


    • Item Includes:

      • 1x WILLIAMS AV WF T8 D WaveCAST 8 Channel Wi-Fi Assisted Listening Platform with Dante Audio Streaming & Pro Audio DSP


    • Warranty:

      • 2 Years
