West Penn Wire 294 Communication Cable 16G Stranded Shield PVC Jacket - 500 Feet - Gray

ITEM #: WP-294-GY-0500 MFG #: 294GY0500

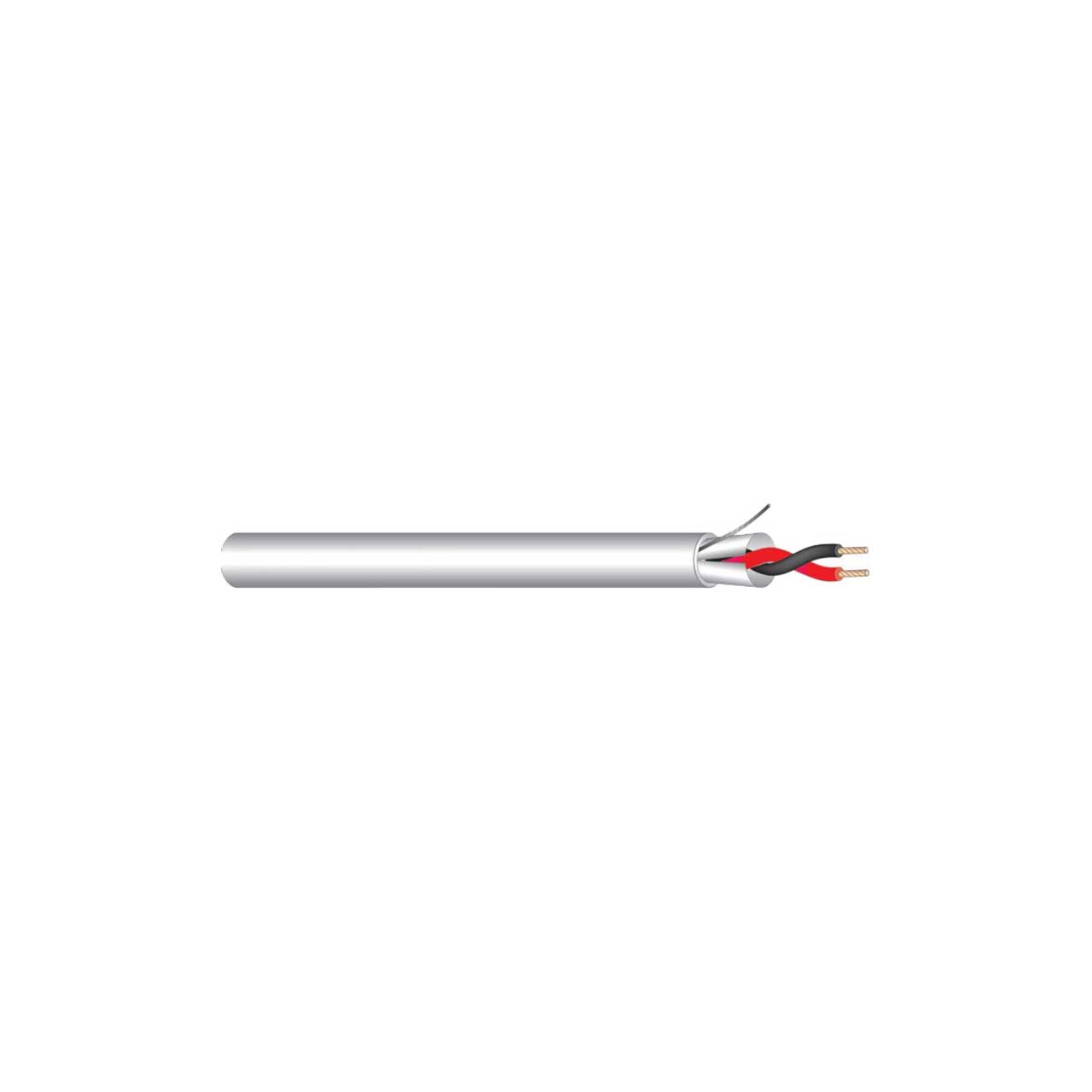

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

List Price:

$166.00

Our Price:

$134.00

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    294GY0500 - Overview

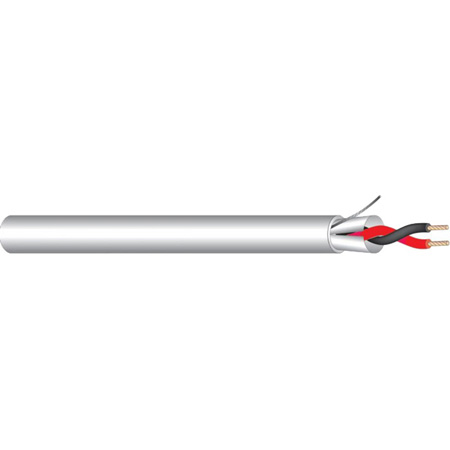

    West Penn Wire's 294 is a 2 conductor 16AWG communication/audio/control cable with a stranded shield and PVC jacket.

    • Specifications:

      • Number of Conductors: 2
      • AWG Size: 16
      • Conductor Stranding: 19x29
      • Conductor Type: Bare copper
      • Nominal DCR: 4.2 Ohm/1000ft
      • Cabling Lay Length: 3 in
      • Twists/Foot: 4 twist/ft
      • Insulation Type: Thermoplastic
      • Insulation Thickness: 0.008 in
      • Insulation Color Code: 1. Black; 2. Red
      • Shield Type: Overall 100% Aluminum Foil
      • Drain Wire Type: Tinned Copper
      • Drain Wire AWG: 24 AWG
      • Nom. Cap. Between Conductors: 45 pF/ft
      • Nom. Cap. Conductor to Shield: 89 pF/ft
      • Jacket Type: PVC
      • Jacket Thickness: 0.017 in
      • Nominal Cable O.D.: 0.186 in
      • Plenum: No
      • NEC UL Rating: CMR, CMG
      • RoHS Compliant: Yes
      • Pull Tension: 86 lbs
      • Bend Radius: 1.674 in
      • Cable Weight: 32 lbs


    • GTIN:

      0612825052104
