West Penn 4246 23 AWG 4 Pair Unshielded Category 6 Cable - 1000 Ft. Gray

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

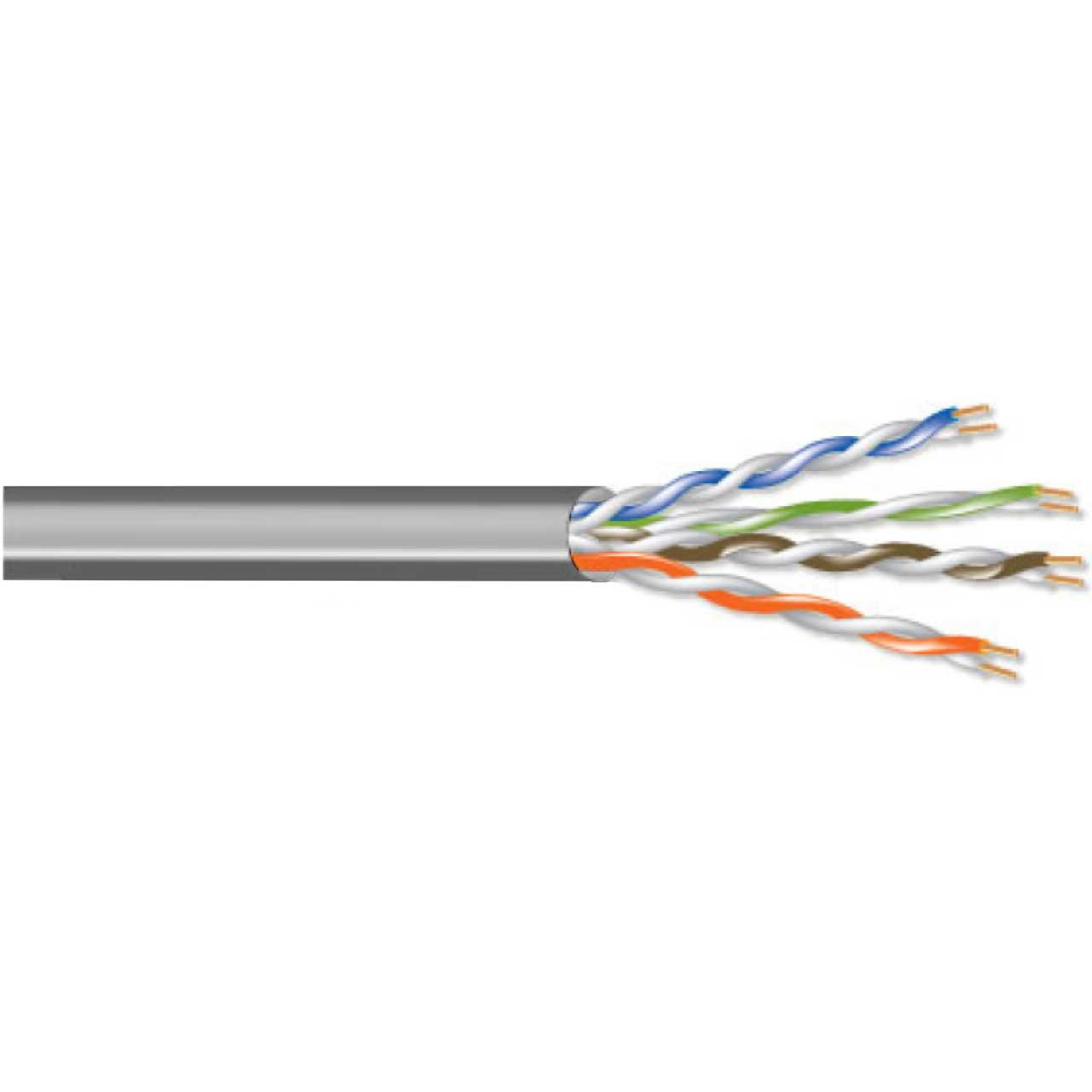

    West Penn 4246 23 AWG 4 Pair Unshielded Category 6 Cable - 1000 Ft. Gray

    Manufacturer: West Penn Wire Corp

    Item #: WP-4246-1000   •   MFG #: WP-4246-1000



    List Price:$212.20
    Our Price:$191.42

    free ship


    Colors:



    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.



      Share!





      23 AWG.- 4 PAIR Solid bare copper conductors, unshielded with an overall jacket.

      APPLICATION: Indoor - Category 5E Applications- Ethernet, IP Cameras, Digital Integration Meets or exceeds TIA/EIA 568B.2.1 Category 6 Specifications


      • Specifications

        • Construction Parameters:
        • Conductor 23 AWG Bare Copper
        • Stranding Solid
        • Number of Conductors 8 (4 Pair)
        • Insulation Thermoplastic - .008"
        • Shield None
        • Drain None
        • Core Separator Yes
        • Jacket Material PVC
        • Overall Cable Diameter 0.225'' Nom.
        • Approximate Cable Weight 30 Lbs/1M' Nom.
        • Flame Rating UL1666

        • Electrical & Environmental Properties:
        • Operating Temperature Rating -20°C To +60°C
        • Operating Voltage Rating 300 V RMS
        • DC Resistance per Conductor @ 20deg C 7.8 Ohms/100m Nom.
        • Mutual Capacitance 14pf/ft Nominal
        • Nominal Impedance 100 Ohms+/-15% (1-100Mhz)
        • Velocity of Propogation 66% Nominal
        • Delay Skew 45ns/100m MAX
        • Standards TIA/EIA568-B.2 1
        • Insulation Colors 1.Blue/White-Blue, 2. Orange/White-Orange
        • 3. Green/White-Green, 4. Brown/White-Brown
        • Jacket Color Gray, White, Blue - Other Colors Available
        • Example: 4246-BL
        • RoHS Compliant Yes

        • Electrical Specifications:
        • Frequency: MHz 1 10 25 100 250 400
        • Insertion Loss: dB/100m 1.8 5.7 9.1 19.0 31.5 41.3
        • NEXT: dB/100m 74.3 59.3 53.3 44.3 38.3 35.3
        • ACR: dB/100m 72.3 53.3 46.3 24.5 5.5 --
        • PS-NEXT: dB/100m 72.3 57.3 51.3 42.3 36.3 33.3
        • PS-ACR: dB/100m 70.3. 51.3 41.8 22.5 3.5 --
        • ELFEXT: dB/100m 67.8 47.8 39.8 27.8 19.8 15.8
        • PS-ELFEXT: dB/100m 64.8 44.8 36.8 24.8 16.8 12.8
        • RL: dB 20 25 24.3 20.1 17.3 15.9
        • Operating Temp -20 C to +60 C
        • Storage Temp -20 C to +75 C
        • Installation Temp 0 C to + 60 C
        • Delay Skew 45ns/100m Max
