4246OSPBK0500 - Overview

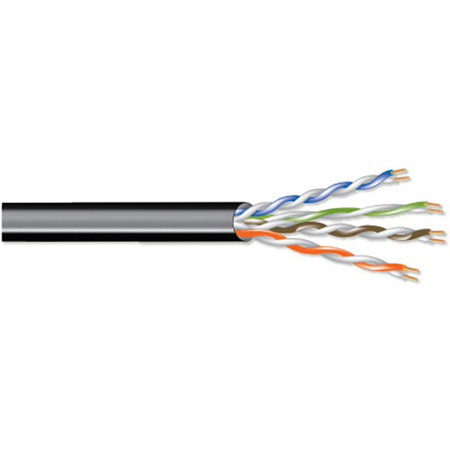

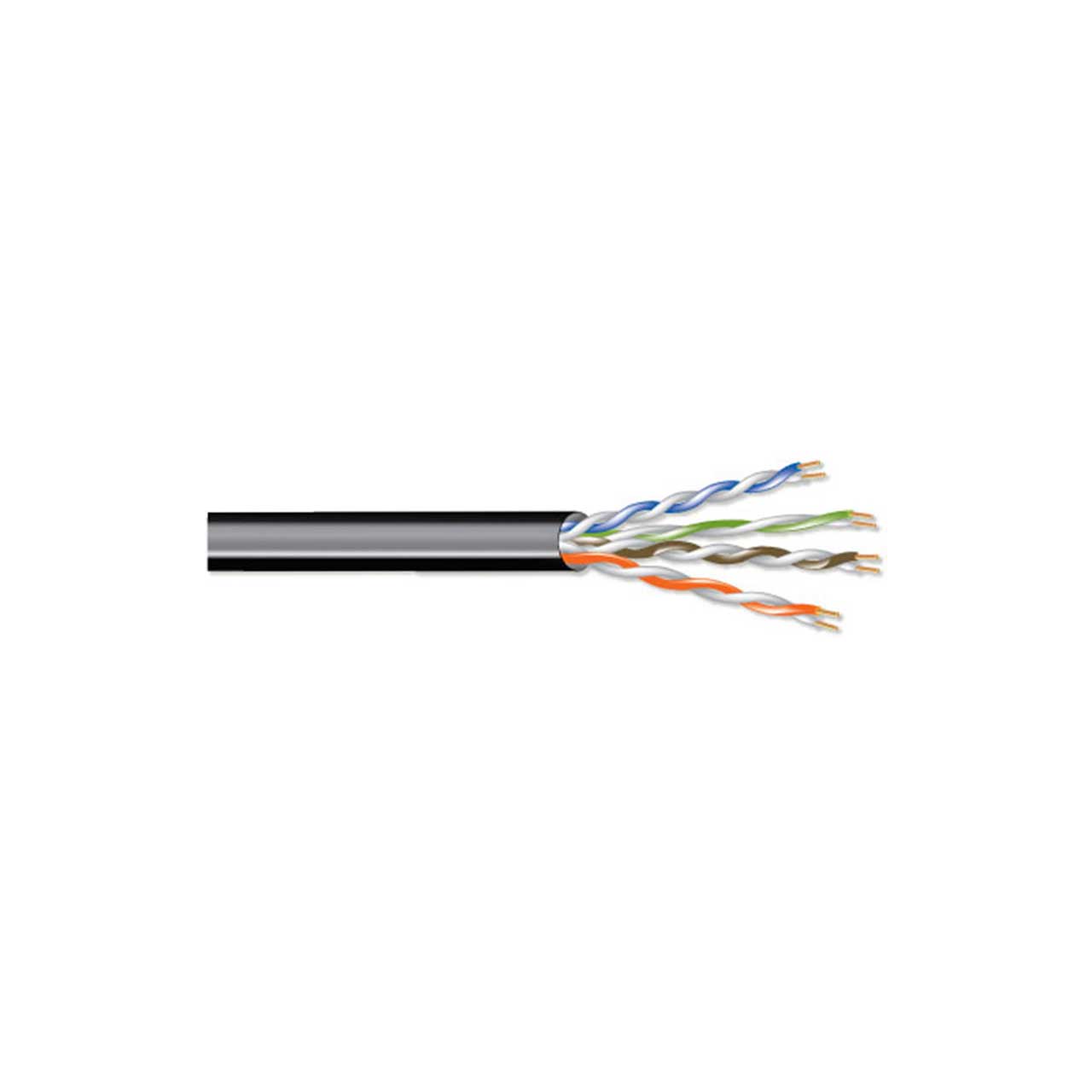

The West Penn 4246OSPBK0500 is an 8 conductor 23 AWG UTP category 6 OSP cable, 500 Foot, black.

  • Specifications:

    • Number Of Pairs: 4
    • AWG Size: 23
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR: 22 Ohm/1000f
    • Insulation Type: Polyolefin
    • Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
    • Shield Type: Unshielded Twisted Pair (UTP)
    • Flooding Compound: Yes
    • Total Number of Conductors: 8
    • Jacket Type: UV Resistant PE
    • Nominal Cable O.D: 0.255 in
    • Plenum: No
    • NEC UL Rating: Outdoor
    • ANSI/TIA Category: Category 6 TIA/EIA 568C.2
    • TIA Test: ANSI/TIA-568-C.2
    • Pull Tension: 35 lbs
    • Bend Radius: 1.275 in
    • Cable Weight: 39 lbs


  • GTIN:

    0612825054412
