West Penn 77292 20AWG Tinned Copper 2-Conductor Stranded Shielded Audio Cable - Gray - 1000 Foot

ITEM #: WP-77292 MFG #: 77292

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

77292 - Overview

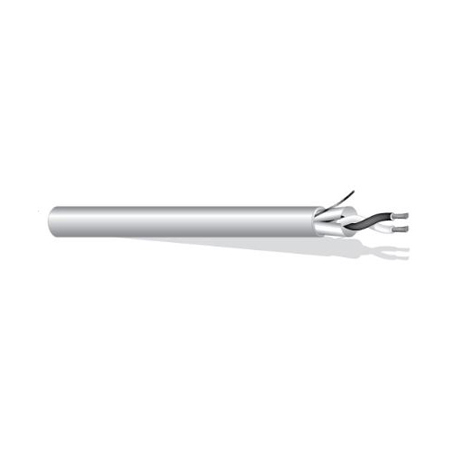

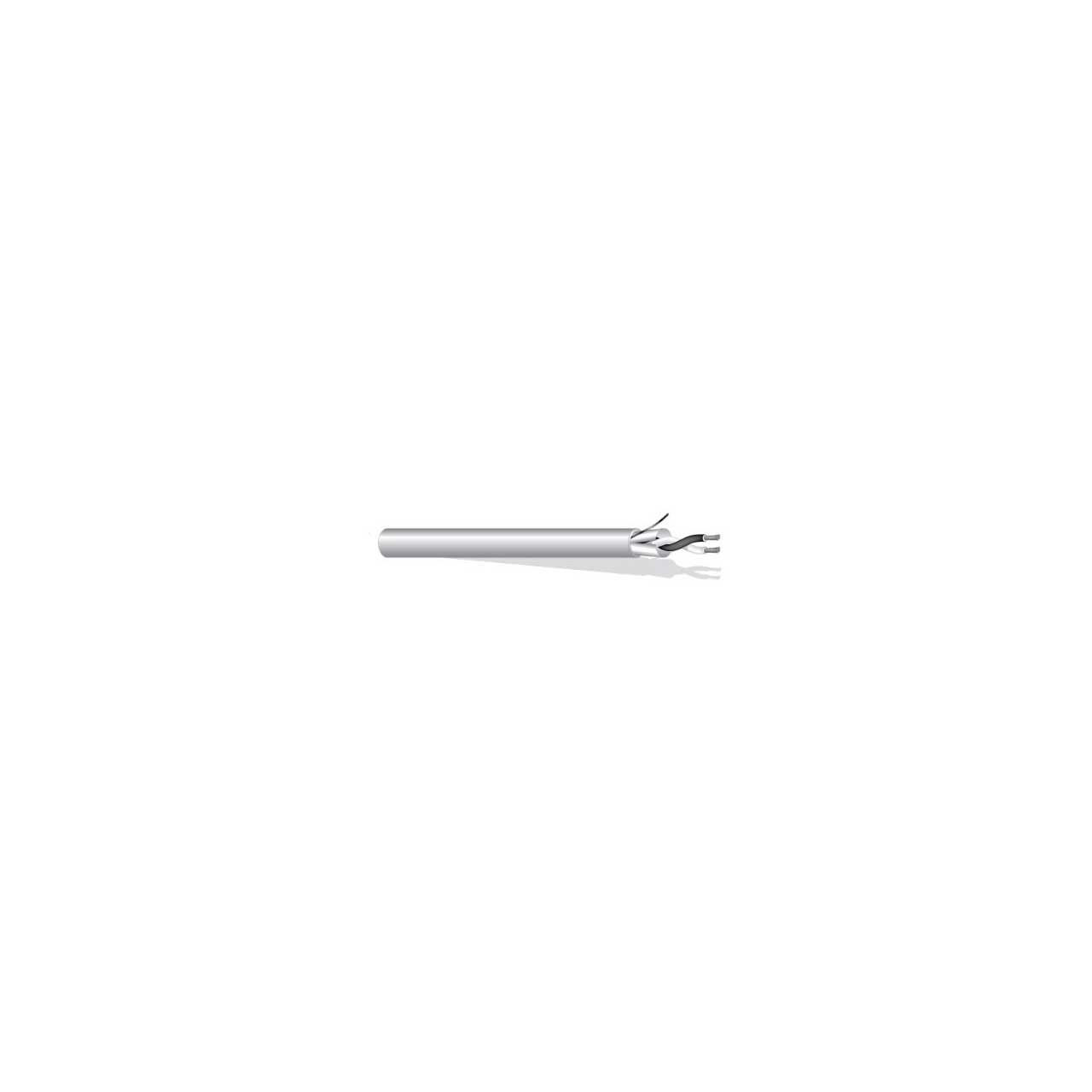

West Penn Wire 77292 is a 1000 foot 20AWG Tinned Copper 2-Conductor Stranded Shielded Audio Cable.

  • Specifications:

    • Conductor Parameter
    • Number of Pairs: 1
    • AWG Size: 20
    • Conductor Stranding: 7x28
    • Conductor Type: Tinned Copper
    • Nominal DCR: 10.5 Ohm/1000ft

      Insulation Parameter
    • Insulation Type: Polyethylene - PE
    • Insulation Thickness: 0.016 in
    • Insulation Color Code: 1.Black, 2.Clear

      Shielding Parameter
    • Shield Type: Overall 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 20 AWG

      Electrical Characteristics
    • Nom. Cap. Between Conductors: 27 pF/ft
    • Nom. Cap. Conductor to Shield: 49 pF/ft

      Overall Construction Parameters
    • Jacket Type: PVC
    • Jacket Thickness: 0.025 in
    • Nominal Cable O.D.: 0.204 in
    • Plenum: No
    • NEC UL Rating: CM
    • RoHS Compliant: Yes
    • Pull Tension: 39 lbs
    • Bend Radius: 1.835 in
    • Cable Weight: 22 lbs


  • GTIN:

    0612825057444
