Wave Central W2G-LITE-M-5G-LG Grab-and-Go Wireless Video System w/ cineVue MICRO Transmitter & cineVue QDR Receiver

ITEM #: WVC-LITE-KIT MFG #: W2G-LITE-M-5G-LG

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

Our Price:

$12,995.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


W2G-LITE-M-5G-LG - Overview

Go Live Simply. Perform Like a Pro.

Entry-level wireless kits often overpromise and underdeliver - weak range, unstable feeds, and headaches you don't have time for. The Wave Central W2G-LITE-M-5G-LG gives you the opposite: effortless setup, clean HD video, and Wave-engineered reliability that holds steady when other systems fall apart. It's lightweight, affordable, and ready to run right away - but performs with a confidence you'd expect from much higher-end gear. This kit includes the cineVue MICRO Tx transmitter & the cineVue QDR Rx receiver.

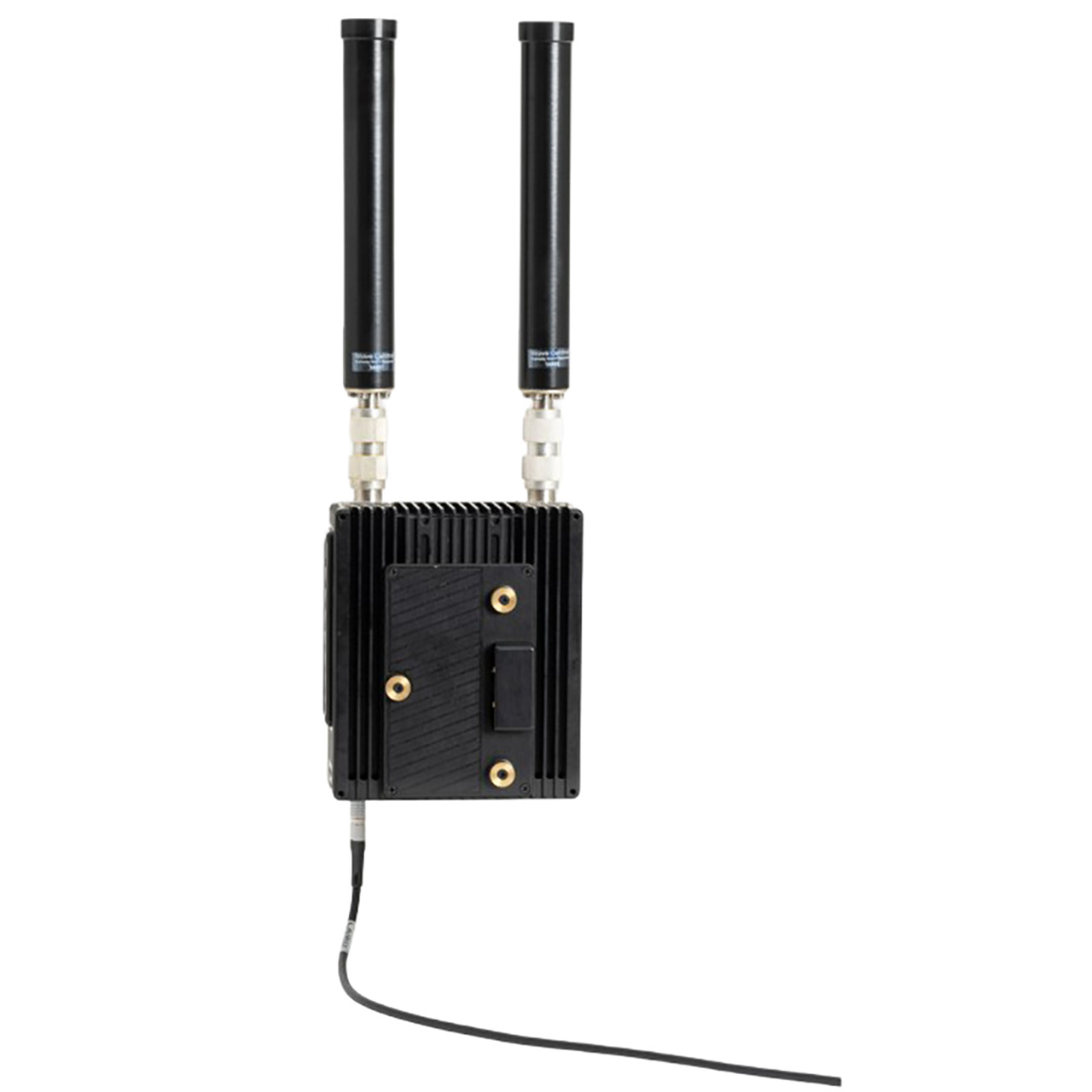

The MICRO TX ultra-compact COFDM RF transmitter is a robust solution for video assist applications. This camera-mounted device via ¬-20 mounting, encased in a durable milledaluminum enclosure, supports 3G HD-SDI and micro-HDMI inputs. It utilizes AVC
Intra h.264/MPEG-4 compression for highquality, low-latency video transmission. With the MICRO TX, you can rely on superior video assist performance in any shooting environment.

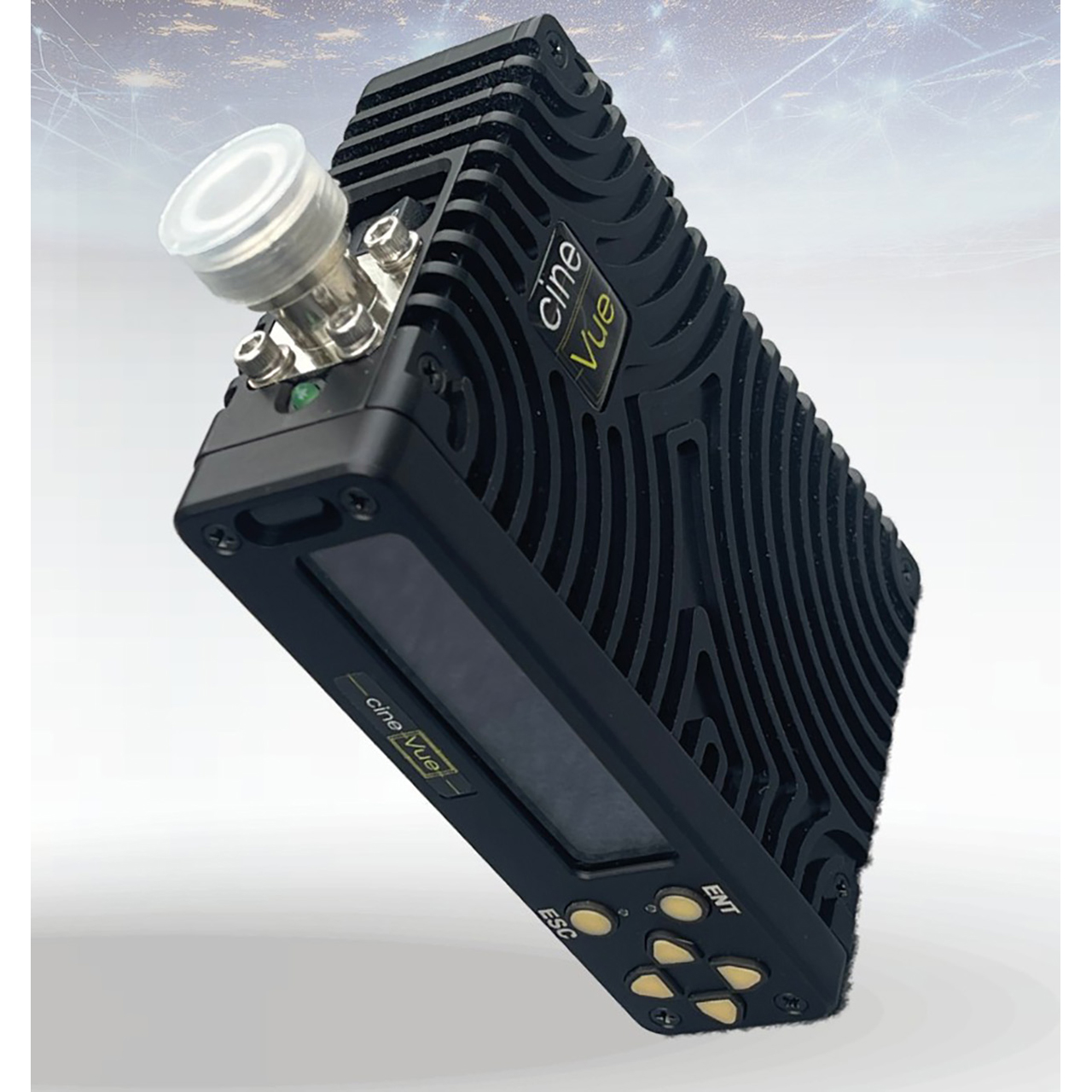

The cineVue QDR RX is a rugged, fully portable digital diversity receiver with low delay SD and HD h.264 and MPEG2 decoding capability. Ideal for quick deployment, it can be used for film assist, talent return video, or Steadicam return video. It offers optional IP streaming, on-board control panel, and comprehensive on-screen display diagnostic capability. It also includes a 3/8" mount on the base for tripod/lighting stand mounting.

Applications:
• Houses of Worship
• Small Venues & Local Productions
• Freelancers & Production Assistants
• Schools & Athletics Programs
• Corporate Events

  • Features:

    • Easy Setup
    • Lightweight & Portable
    • Clean HD Video
    • Flexible Power
    • Budget-Friendly
    • Reliability under pressure
    • Ultra-low latency
    • Long-range performance
    • Hands-on support
    • Clean video stream
    • Plug-and-play simplicity

  • Specifications:

      System
    • Compression: AVC Intra (H.264) MPEG-4
    • Latency: <40ms
    • Audio: SDI Embedded
    • Range: Typically, Over a Mile
    • Video Resolution:
      - (SD/HD/3G) 720x480i, 59.94
      - 720x576i, 50Hz (SD)
      - 1280x720p, 60/59.94/50Hz (HD)
      - 1920x1080i, 60/59.94/50Hz (HD)
      - 1920x1080p, 30/29.97/25/24/23.97Hz (HD)
      - 1920x1080p, 60/59.94/50Hz (3G)

      Transmitter
    • Video Connectors:
    • - BNC - HD-SDI 3G with Loop
      - HDMI - Micro
    • Dimensions: 5" x 4" x 2.5" (127mm x 101.6mm x 63.5mm) - Micro TX
    • Input Voltage: 6V - 17VDC

      Receiver
    • Video Connectors: 2x BNC - HD-SDI 3G
    • Dimensions: 5.875" x 5" x 1.71" (149.23mm x 127mm x 43.4mm)
    • Weight: 1.5lbs (0.7kg)

      Pro Kit
    • TX Antenna: 3dB Flex Omni
    • RX Antenna: 2x 3dB Omni
    • TX Power Cable: 2-pin Lemo-P-Tap
    • RX Power Cable: 2-pin Lemo to AC PSU
    • Video Profile: 4:2:0
    • RF Coverage: Option: 5.8GHz
    • TX Mounting: 1/4"-20
    • Shipping Dimensions: 20" x 14" x 8" (508mm x 355.6mm x 203.2mm)
    • Shipping Weight: 10lbs (4.5kg)

  • Item Includes:

    • 1x cineVue MICRO TX transmitter
    • 1x 2-pin Male Lemo to Dtap Power Cable (2ft)
    • 3x 3dbi Omni Antennas
    • 1x cineVue QDR RX receiver
    • 1x 2-pin Lemo AC Power Supply
    • 1x Custom Hard Case

  • Warranty:

    • 1 Year Limited Warranty
