Xantech EN85K Universal IR Kit (with Multiple Housings)
  • Xantech EN85K Universal IR Kit (with Multiple Housings)
  • Xantech EN85K Universal IR Kit (with Multiple Housings)
  • Xantech EN85K Universal IR Kit (with Multiple Housings)
  • Xantech EN85K Universal IR Kit (with Multiple Housings)


Xantech EN85K Universal IR Kit (with Multiple Housings)

Manufacturer: Xantech LLC

Item #: XAN-EN85K   •   MFG #: EN85K



This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email





Item unavailable. Please select another option.

Items similar to the XAN-EN85K

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The Only IR Kit You Need to Know About

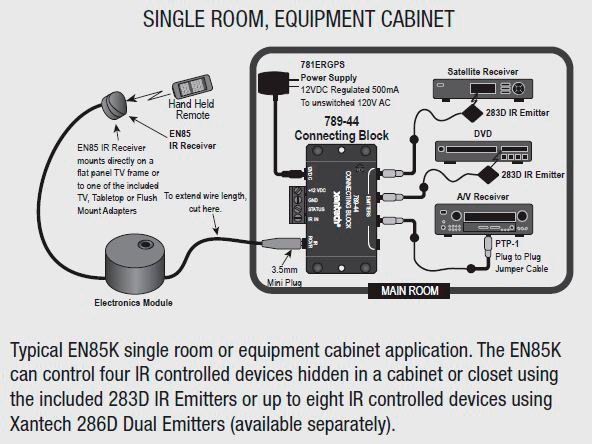

The EN85K Ensemble is a convertible IR Receiver Kit that can be adapted to almost any surface mount, flush mount or shelf mount application. It includes all of the parts necessary for installing a single-room IR Repeater System for controlling a TV, Audio/Video Receiver, Blu-ray player, Cable Box, Satellite Receiver...just about any IR controlled A/V home entertainment device.

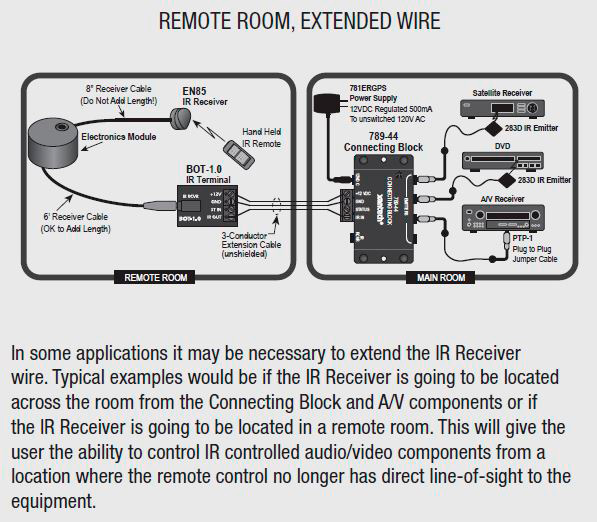

The kit includes an IR Receiver that can be attached to the front of a TV, or extended from behind with the TV Mount Adapter on flat panel TVs that have a minimal frame around the display area. The receiver can also be adapted to low-profile shelf-top placement with the Tabletop Adapter or inconspicuously mounted in a cabinet door with the Flush Mount Adapter for controlling IR components hidden in an equipment cabinet.


  • Features

    • Compatible with most CFL light bulbs
    • Compatible with most Plasma, LED and LCD TVs
    • Excellent ambient noise rejection with IR carrier passthrough design ensures highest level of reliability

  • Specifications

    • Infrared carrier frequency bandwidth: 30-60 kHz
    • Reception range: Up to 80 feet (depending on remote control output strength and ambient conditions)
    • Reception angle: +/- 45
    • Max. Transmission length: 1 mile using 18 gauge wire
    • Maximum current output: 100mA
    • IR Receiver Dimensions: 55" diameter (14mm)
    • Power requirements: +12VDC, 100mA

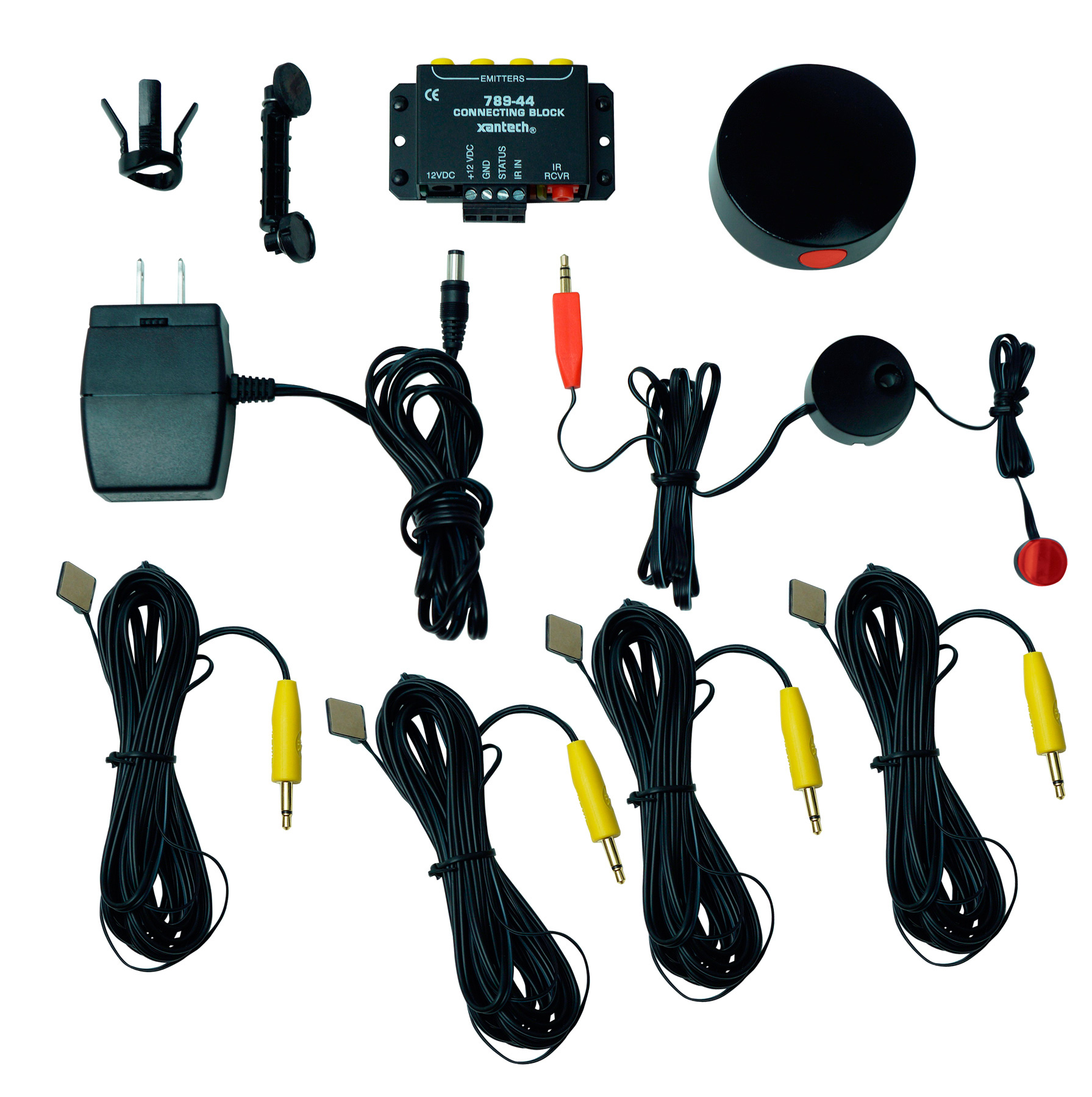

  • Item Includes

    • (1) EN85 IR Receiver
    • (1) Flush Mount Adapter
    • (1) 789-44 Connecting Block
    • (1) 781ERGPS Power Supply
    • (1) PTP-1 Plug to Plug Jumper
    • (1) Tabletop Adapter
    • (1) TV Mount Adapter
    • (4) 283D IR Emitters
    • (1) BOT-1.0 IR Terminal
    • (1) IR Parallel Block

  • GTIN:

    0042777796632
